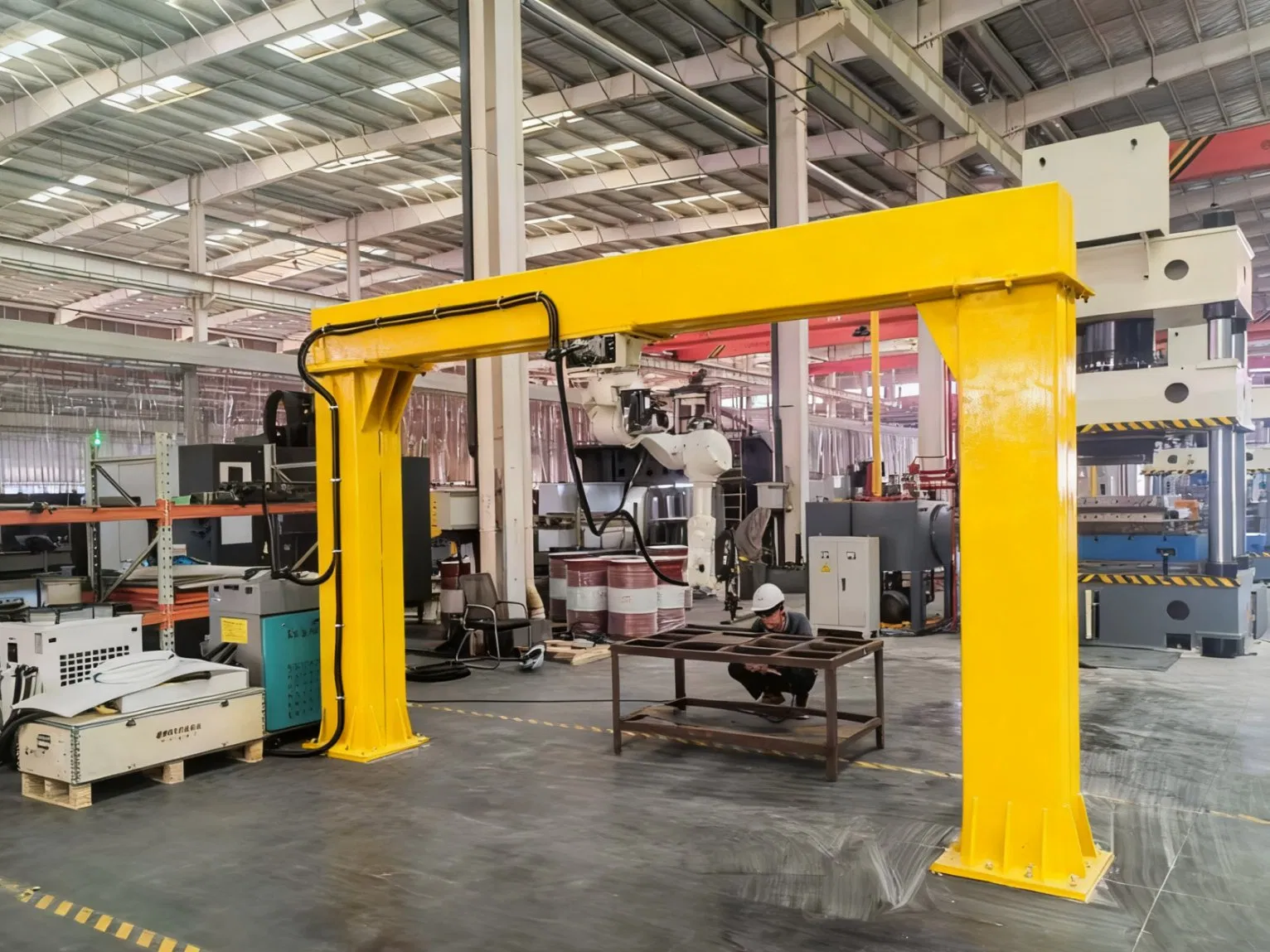

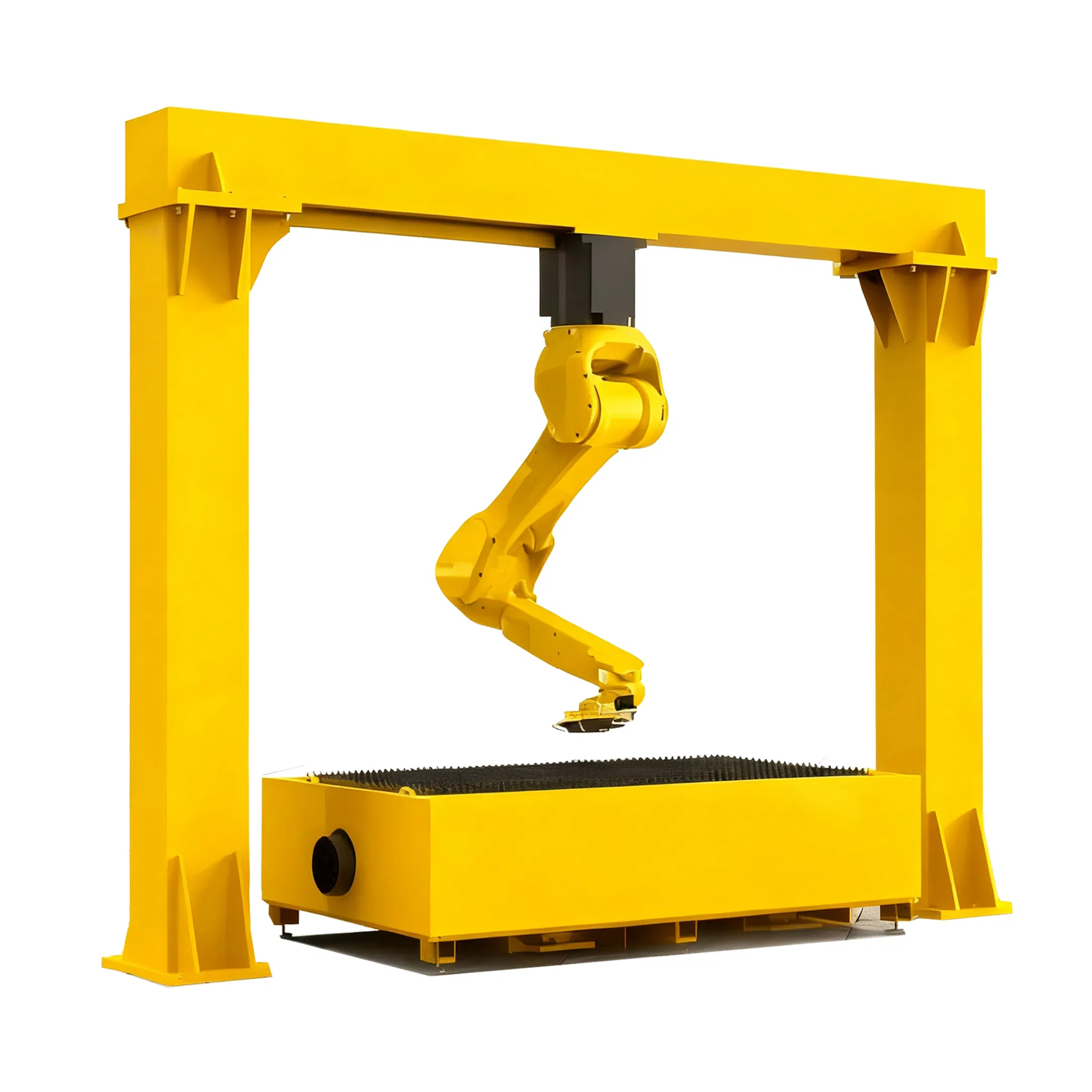

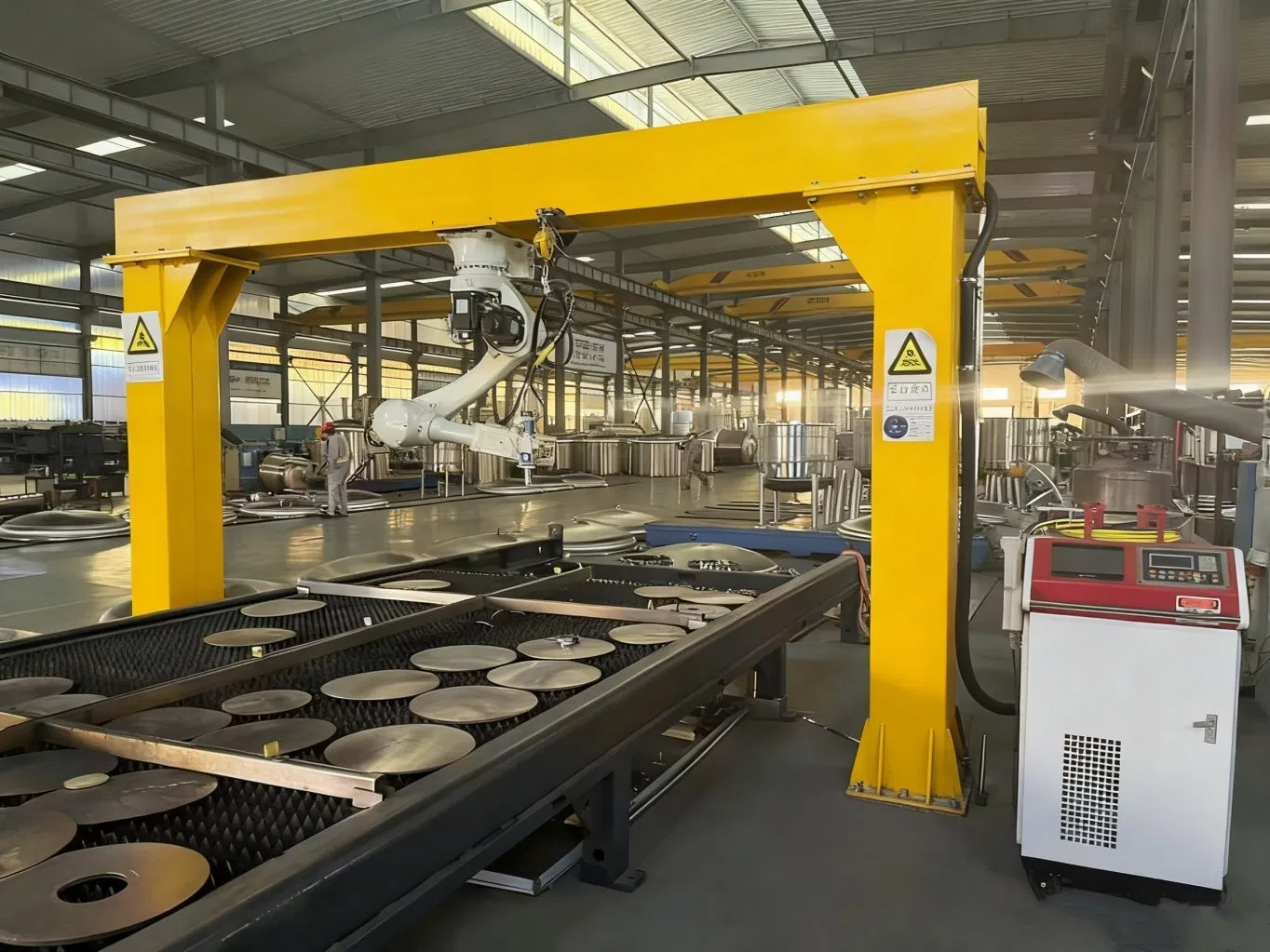

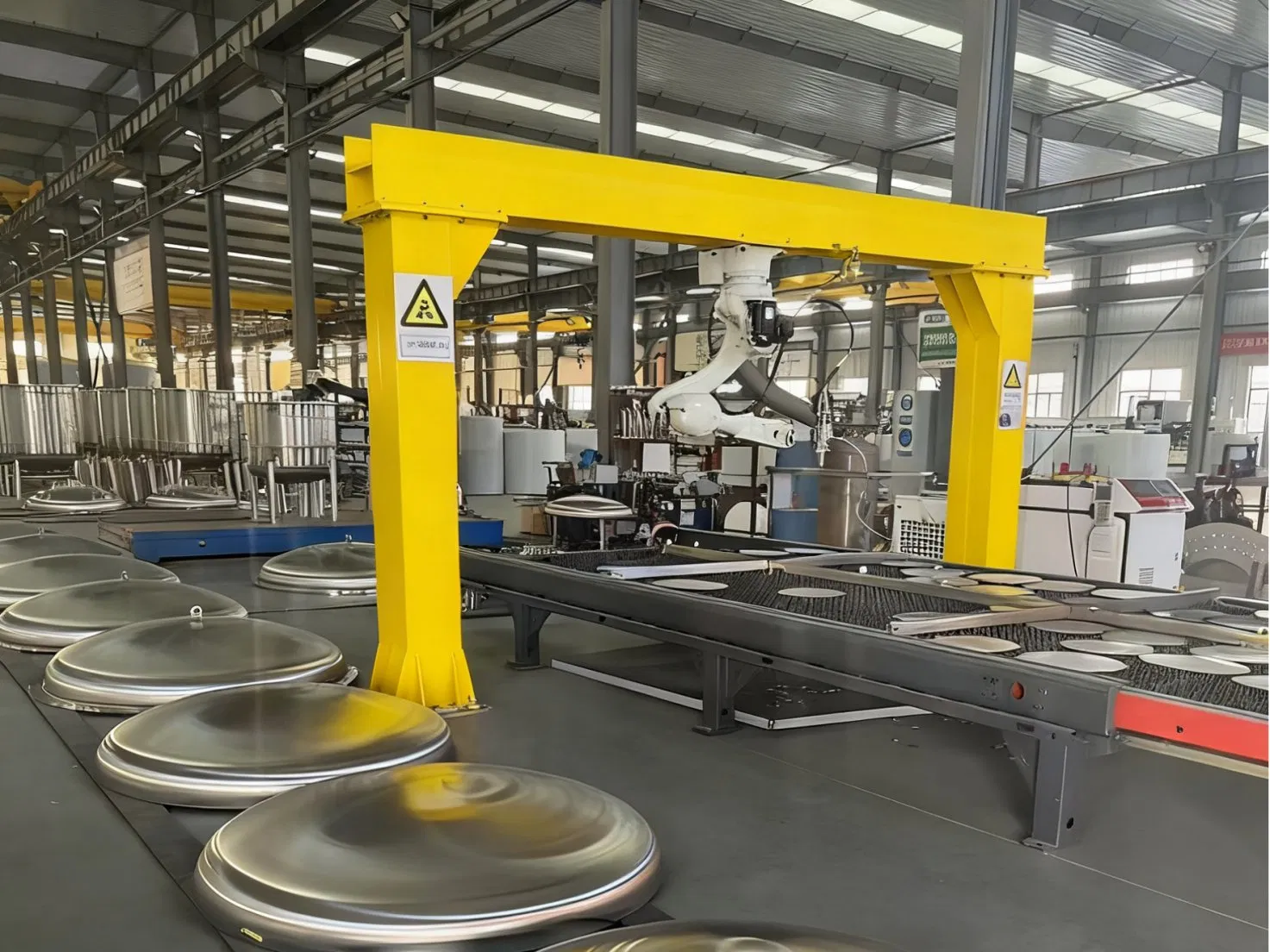

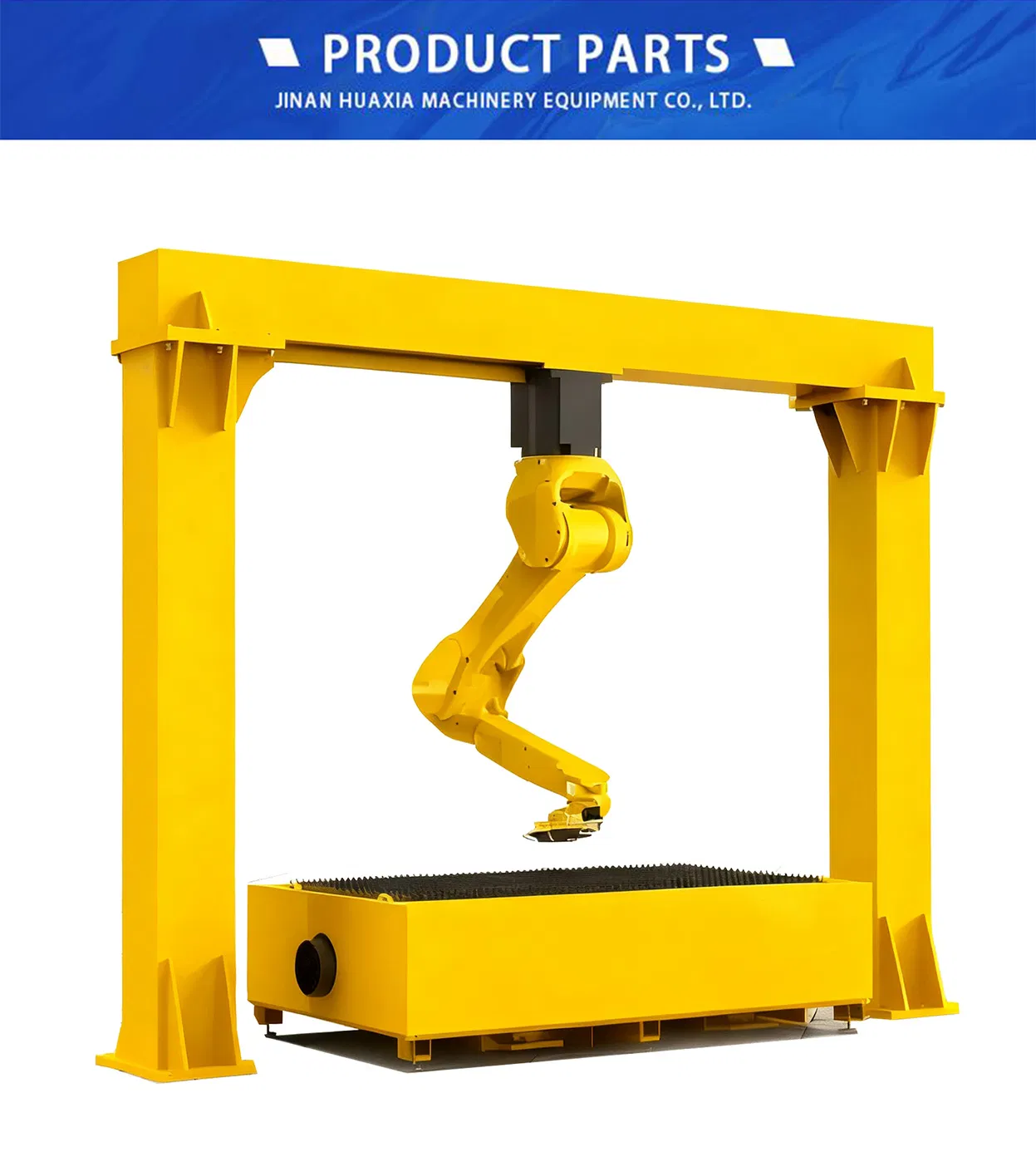

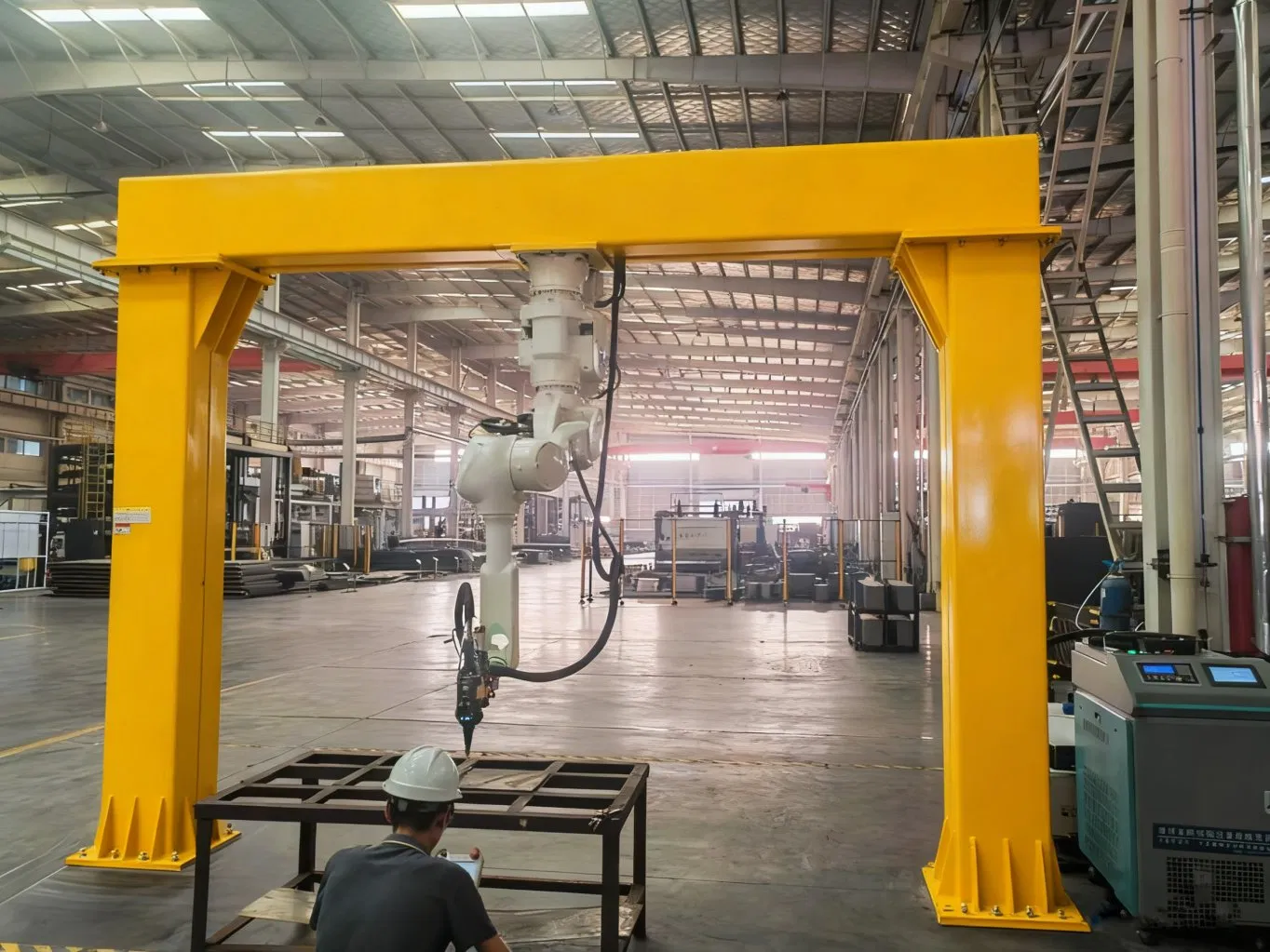

High Precision 3D Robot Laser Cutting Machine Water Cooling System for Sheet Metal Workpiece
High Precision 3D Robot Laser Cutting Machine Water Cooling System for Sheet Metal Workpiece
High Precision 3D Robot Laser Cutting Machine Water Cooling System for Sheet Metal Workpiece
High Precision 3D Robot Laser Cutting Machine Water Cooling System for Sheet Metal Workpiece
High Precision 3D Robot Laser Cutting Machine Water Cooling System for Sheet Metal Workpiece
1 / 5
High Precision 3D Robot Laser Cutting Machine Water Cooling System for Sheet Metal Workpiece
High Precision 3D Robot Laser Cutting Machine Water Cooling System for Sheet Metal Workpiece
High Precision 3D Robot Laser Cutting Machine Water Cooling System for Sheet Metal Workpiece
High Precision 3D Robot Laser Cutting Machine Water Cooling System for Sheet Metal Workpiece
High Precision 3D Robot Laser Cutting Machine Water Cooling System for Sheet Metal Workpiece

High Precision 3D Robot Laser Cutting Machine Water Cooling System for Sheet Metal Workpiece

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Info

Model NO.
HX
Application
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Desktop
Laser Classification
Fiber Laser
Laser Technology
Laser Cutting
Motor
Yaskawa/FUJI/Delta/Weihong/Hechuan
Laser Head
Auto Focus Laser Head
Working Areas
1500*3000mm
Power
1500W 2000W 3000W
System
Cypuct/Raytools/Weihong
Product Name
CNC Fiber Laser Metal Cutting Machine
Function
Cutting Metal Materials
Voltage
3 Phases 380V 50-60 Hz
Certification
CE/ISO Certificate
Working Area
1500mmx3000mm
Transport Package
Plywood
Specification
1500mm*3000mm
HS Code
8456110090
Production Capacity
20 Sets/Month

Packaging & Delivery

Package Size
400.00cm * 200.00cm * 300.00cm
Package Gross Weight
2000.000kg

Product Description

High Precision 3D Robot Laser Cutting Machine Water Cooling System for Sheet Metal Workpiece

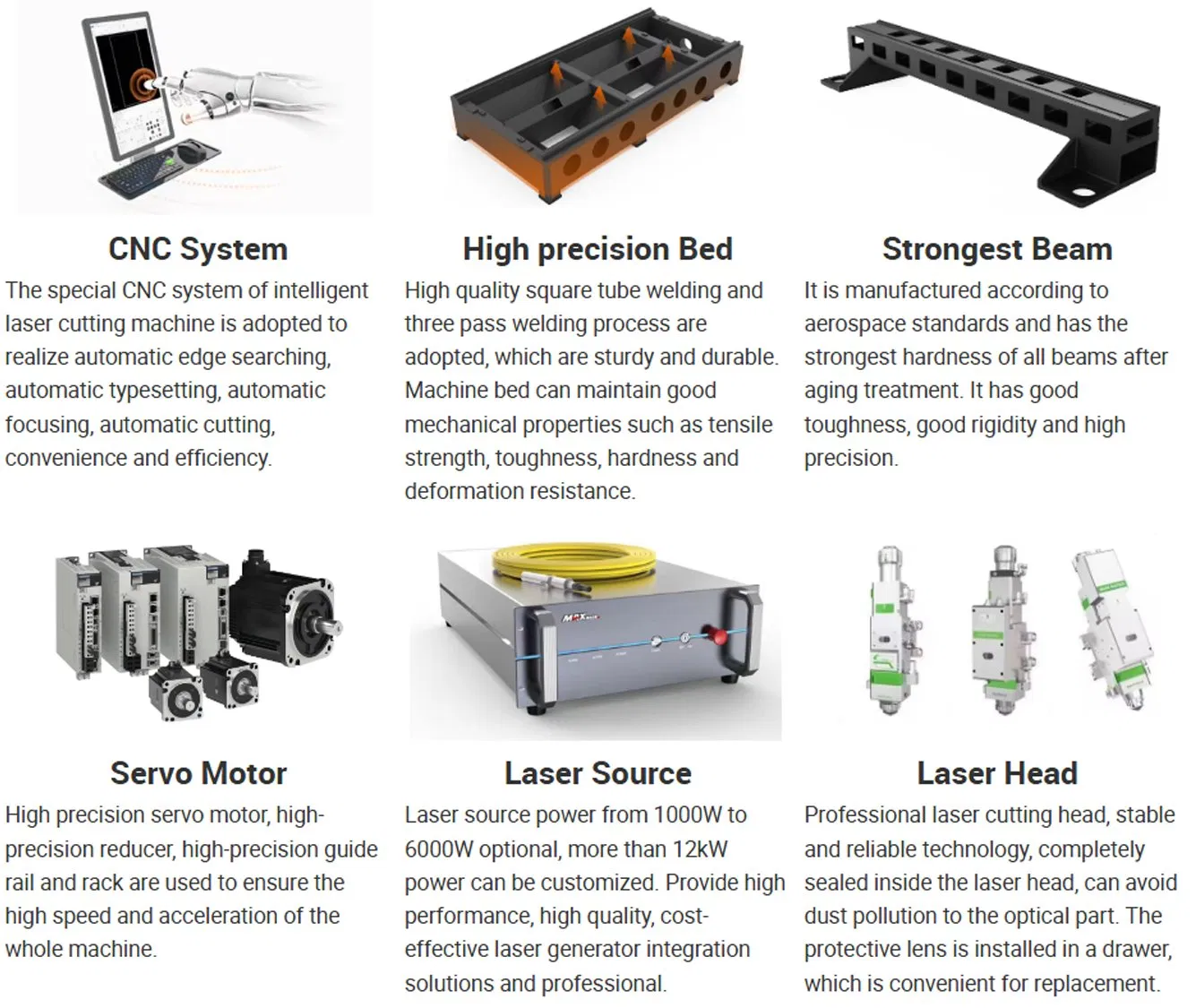

Main Features:
  • Moving crossbeam, imported high precision racks and linear guide rail, stable transmission, high precision.
  • Machine frame, crossbeam and worktable adopt integral welding structure. Keeping the normal use of 20 years without deformation.
  • X, Y and Z axes use imported Japan servo motor with high precision and speed.
  • Using professional and powerful Shanghai Cypcut fiber cutting controlling system that based on Windows operating system, with good Human Machine Interaction and easy operation.
  • Laser is produced without gas and it could use air to cut sheet metal.
High Precision 3D Robot Laser Cutting Machine Water Cooling System for Sheet Metal Workpiece High Precision 3D Robot Laser Cutting Machine Water Cooling System for Sheet Metal Workpiece

Specification

Mode
FAST-3015
FAST-4015
FAST-4020
Working Area
3000*1500mm
4000*1500mm
4000*2000mm
Accuracy of Positioning
±0.02mm
Repeat Repositioning Accuracy
±0.02mm
Maximum Moving Speed
140m/min
Laser Power
1500W / 2000W / 3000W / 6000W (customizable)
Laser Source
MAX/Raycus/IPG
Maximum Acceleration
2.0 G
Product Customized Upgrade
Tube cutting / Exchange platform /Enclosed protection
High Precision 3D Robot Laser Cutting Machine Diagram 1 High Precision 3D Robot Laser Cutting Machine Diagram 2 High Precision 3D Robot Laser Cutting Machine Diagram 3
CNC Laser Cutting Head Showcase
Laser Machine Structural Gantry Frame
Laser Cutting Power System Detail
Finished Sheet Metal Workpiece Sample

Frequently Asked Questions

What materials are suitable for this CNC Fiber Laser Metal Cutting Machine?
This fiber laser cutting system is engineered to cut various metals including carbon steel, stainless steel, aluminum, brass, and copper. It is extensively utilized across automotive, aerospace, agriculture, and home appliance industries.
How does the integrated Water Cooling System enhance operations?
The built-in water cooling system actively regulates temperature for the laser source and autofocus cutting head. This prevents overheating, ensures steady beam delivery, and significantly extends the service life of critical optical components.
What advantages does the Auto Focus Laser Head offer?
The autofocus cutting head automatically recalibrates focal depth dynamically during operation. This compensates for variations in sheet metal thickness and surface contours, producing cleaner cuts with less setup and downtime.
Does this fiber laser machine require specialized shielding gases to function?
The solid-state fiber laser generator itself operates without consuming internal gas. For auxiliary cutting processes, standard compressed air, oxygen, or nitrogen are compatible, allowing for exceptional cost-efficiency depending on the metal thickness.
What customizable upgrades are available for this system?
We offer customized hardware configurations including dual-pallet exchange systems, tube/pipe rotary cutting modules, and fully enclosed safety housing compartments to match distinct plant specifications and safety criteria.
