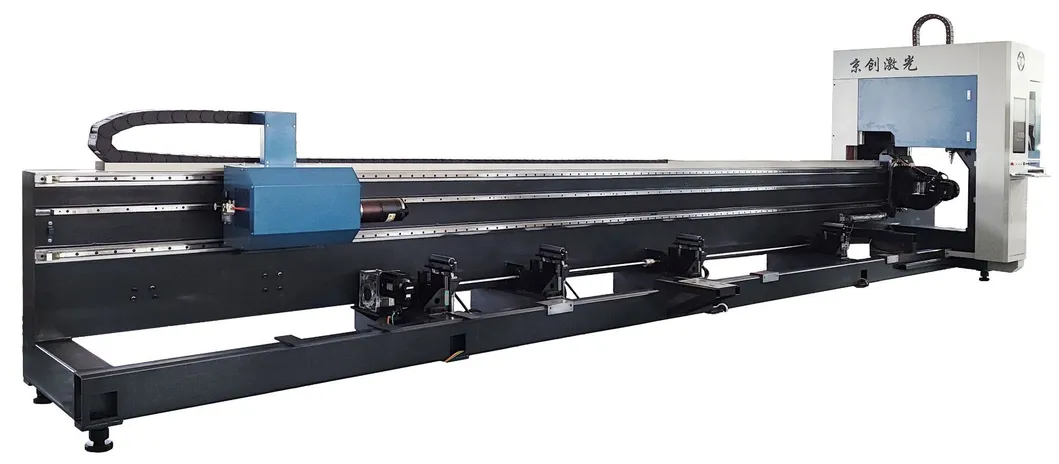

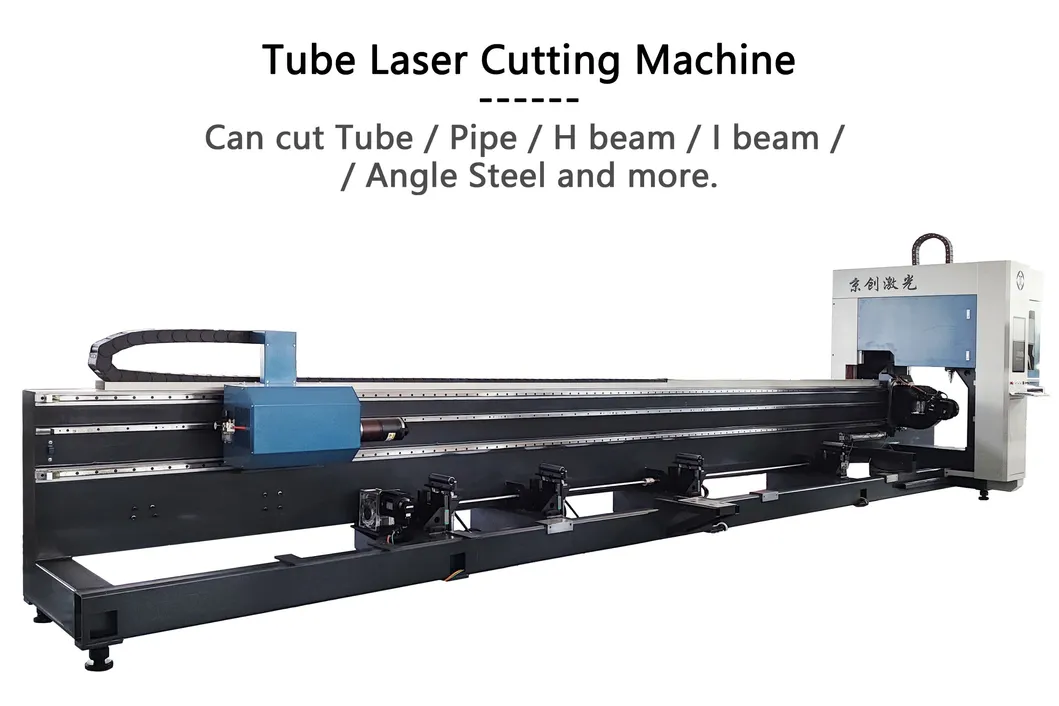

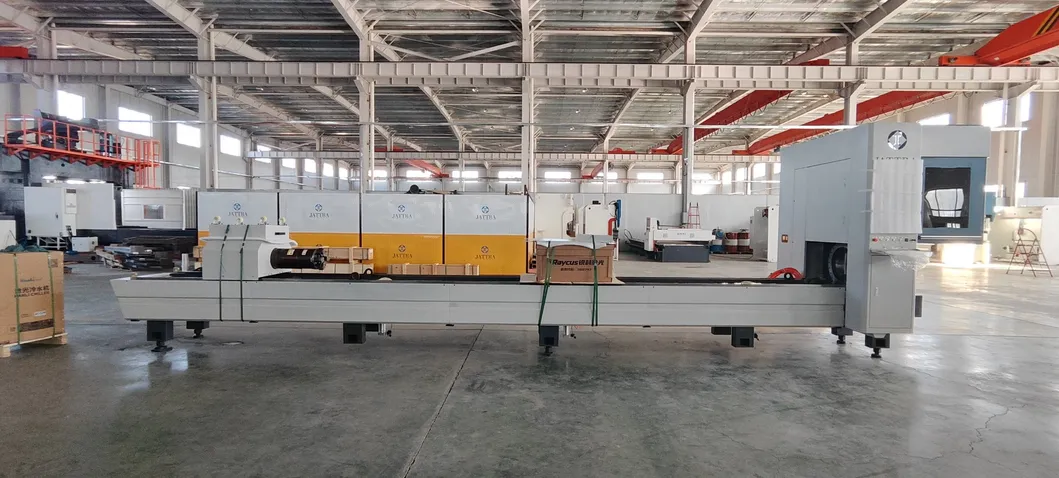

Square/Rectangle tube laser cutting machine, Round tube laser cutting machine, Irregularly shaped tube cutter.
I-beam, H-beam, L shape angle steel, C/U shape steel.
After inclined cutting, it is highly suitable for turning welding or machining.
* The custom service is free of charge.
| Model No. | Clamping Range | Laser Power | Working Length |
|---|---|---|---|
| HT2-170 | 10mm-170mm | 1500W / 3000W / 6000W / 8000W / 12kW | 6000mm and more |
| HT2-240 | 10mm-240mm | 1500W / 3000W / 6000W / 8000W / 12kW | 6000mm and more |
| HT2-350 | 10mm-350mm | 3000W / 6000W / 8000W / 12kW / 20kW /30kW | 6000mm and more |
| SH2-90 | 10mm-90mm | 1500W / 3000W / 6000W / 8000W | 6000mm and more |
| SH2-120 | 10mm-120mm | 1500W / 3000W / 6000W / 8000W / 12kW | 6000mm and more |
| SH3-240 | 10mm-240mm | 1500W / 3000W / 6000W / 8000W / 12kW | 6000mm and more |
| SH3-350 | 10mm-350mm | 3000W / 6000W / 8000W / 12kW / 20kW /30kW | 6000mm and more |
| SH3-550 | 10mm-550mm | 3000W / 6000W / 8000W / 12kW / 20kW /30kW | 6000mm and more |
| SH4-550 | 10mm-550mm | 3000W / 6000W / 8000W / 12kW / 20kW /30kW | 6000mm and more |
| OEM / ODM | Customized | 1500W / 3000W / 6000W / 8000W / 12kW / 20kW / 30kW and more. | 6000mm and more |
| Function | Cutting / Slotting / Bevelling cutting / Laser engraving | ||
| Cutting Type |

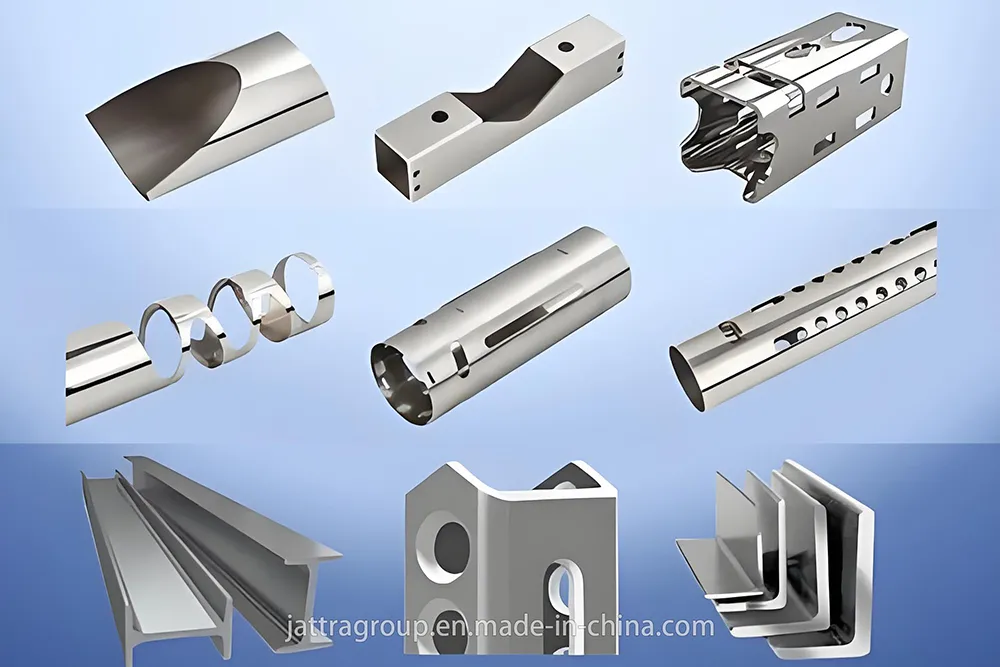

1.Tube / Pipe: Square tubes / Rectangular tubes / Round tubes / Elliptical tubes and more. 2.Strip Steel: I beam / H beam / Angle Steel / Channel steel and more. |
||
| Cutting Material | Iron / Steel / Carbon steel / Manganese steel / Stainless steel / Aluminium alloy / Galvanized / Copper alloy and other metal | ||
| Precision | <0.02mm | ||
| Control System |
Intelligent Laser cutting software from BOCHU (BOCI) / WEIHONG / RAYTOOLS 22 inch LCD monitor 1. Industrial control system with 18 Languages. 2. Enter the values and Import the drawing (.AI /.DXF /.DWG /.PLT /.GERBER /.LXD and other format files) 3. Remote control unit |
||

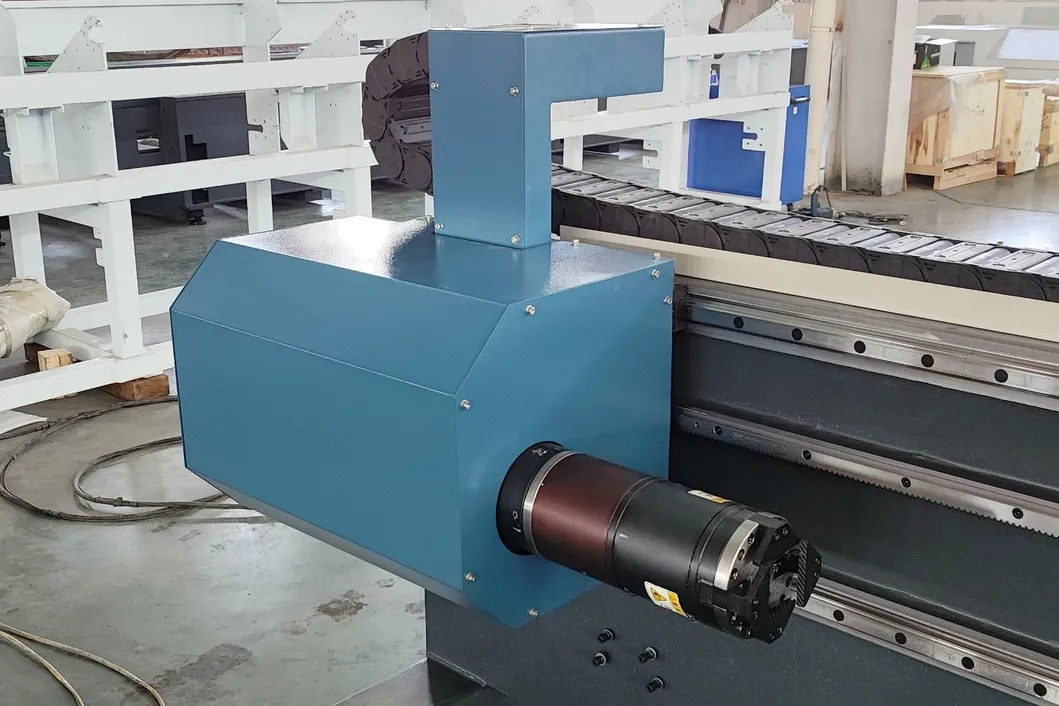

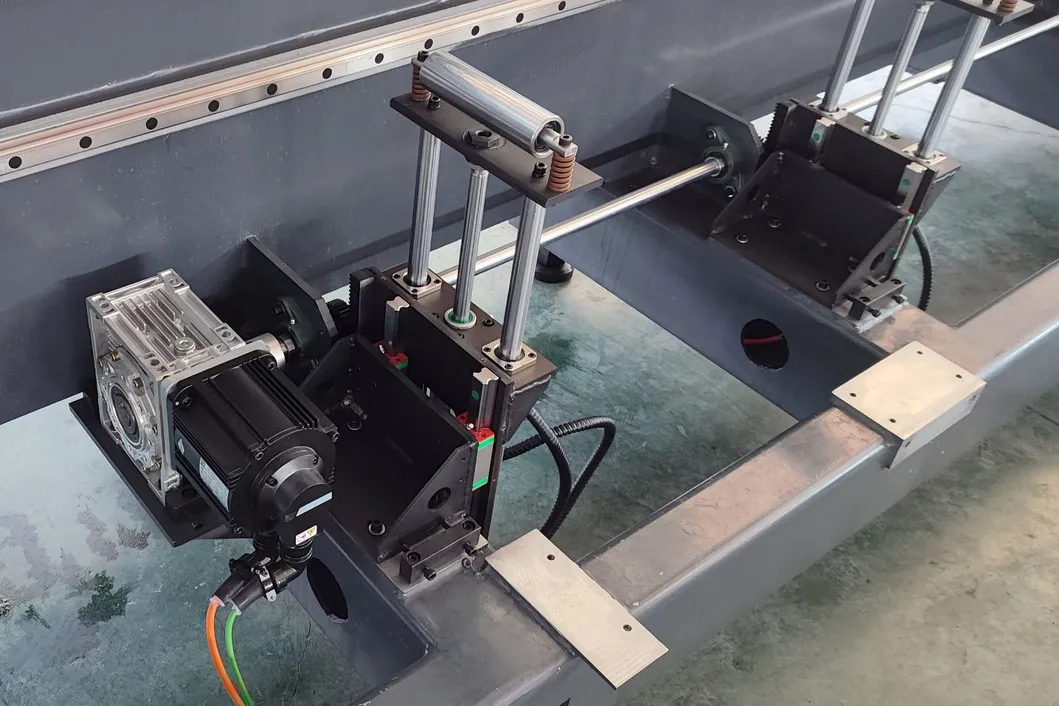

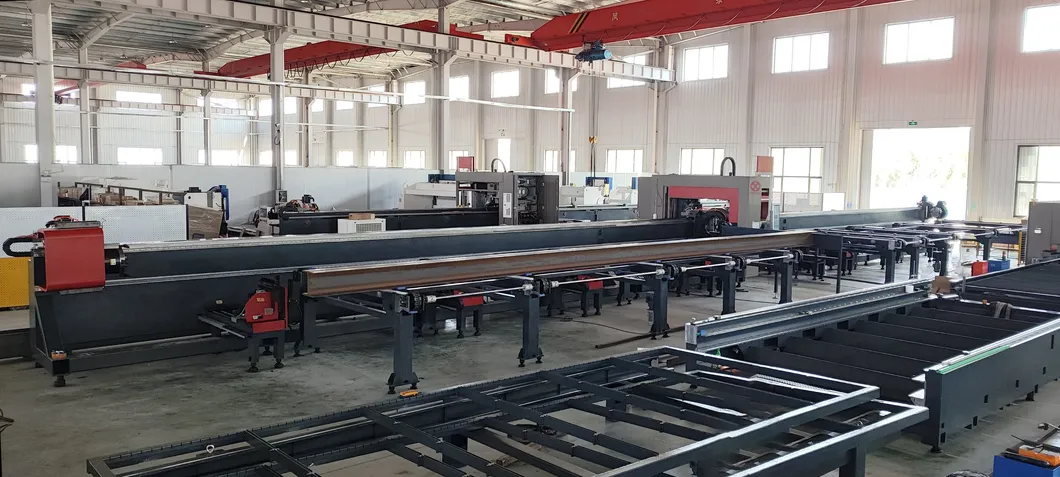

| Support Devices | Servo chuck device, servo Prop up device, automatic offloading tube device. Side hanging type: Support automatic uploading device. |
||
| Customization | OEM / ODM / Colors / Sticker / SPEC | ||
| Component | Specification Detail | Component | Specification Detail |
|---|---|---|---|
| Base Frame | Carbon steel | Sheet Metal Shell | Fully surrounded sheet metal with reinforcing ribs |
| Platform | Two platform support strips steel | Water-cooling | from HANLI (Power adapt laser source) |

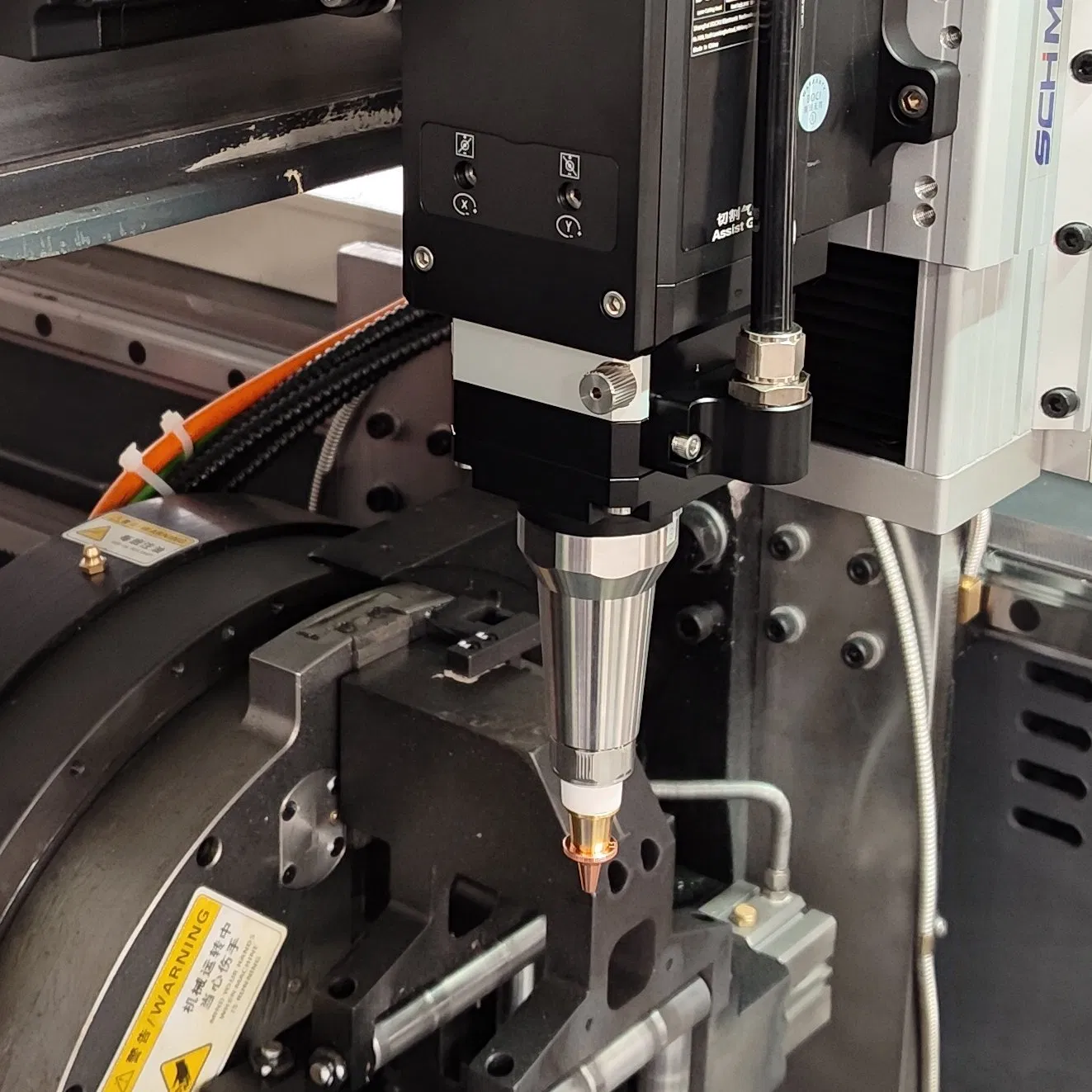

| Laser Source | From Raycus (Laser Power is optional) | Laser Cutting Head | from Raytools / BOCI (BOCHU) (Power adapt laser source) |
| Computer | High-performance industrial mainframe | Monitor | 22 inch LCD monitor |
| Remote-control unit | Yes | Straight rail | J&T |
| Gear Reducer | from FASTON | Guide rail | from RUSON (Taiwan province of China) |
| Voltage Stabilizer | optional | Air Compressor | optional |

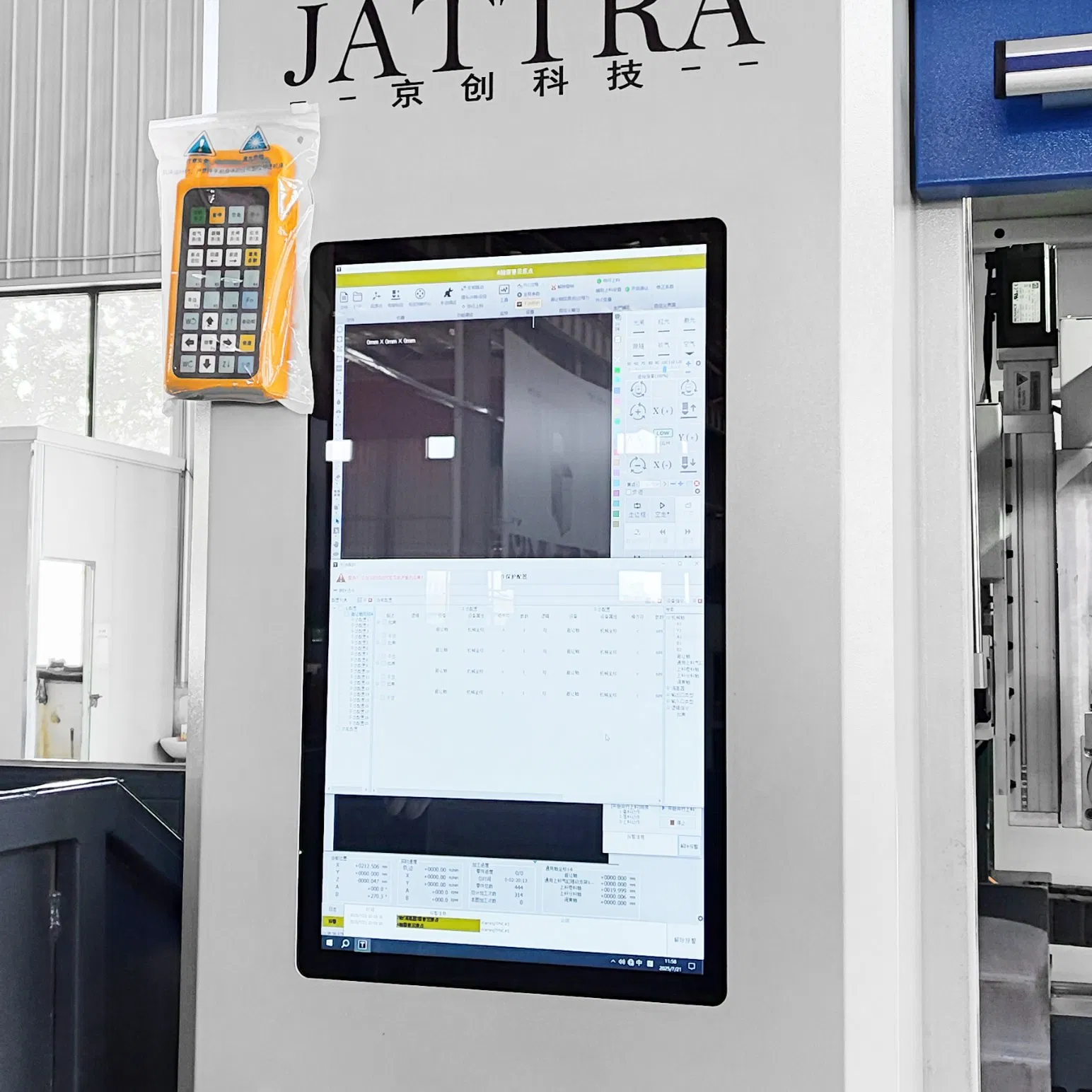

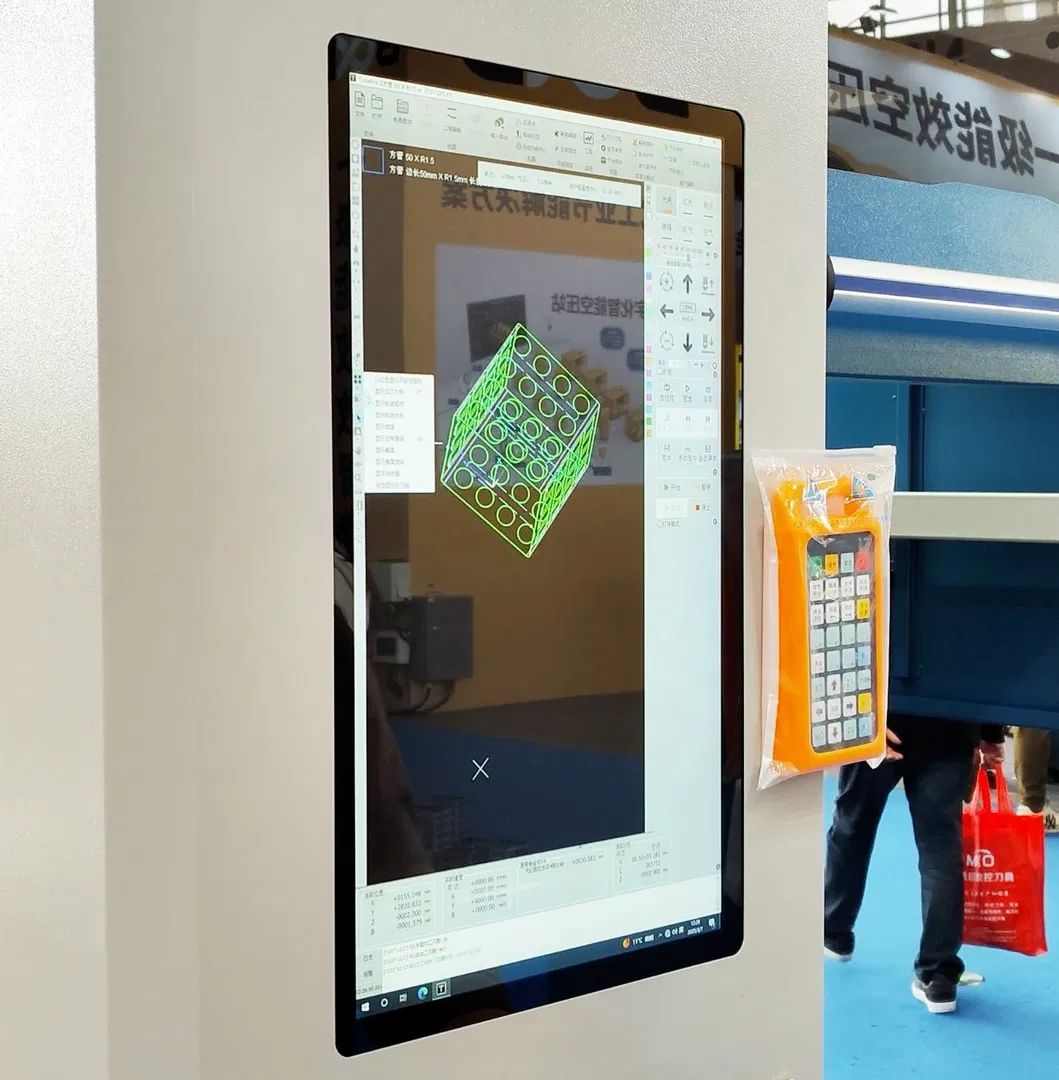

1. Industrial control computer
2. 22-inch LCD monitor
3. Professional CNC cutting software (Supports drawing import: .DXF/ .DWG and numerical inputs)
* Comes equipped with Remote controller unit.

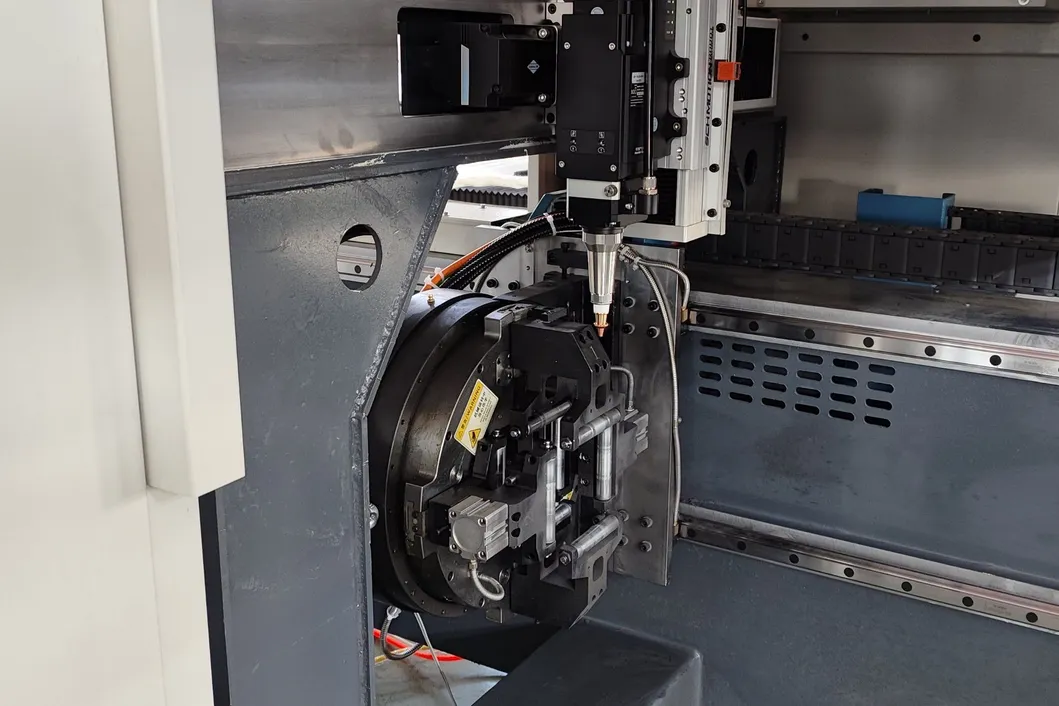

Selected according to the diameter of the processed pipe or the width of the strip steel.

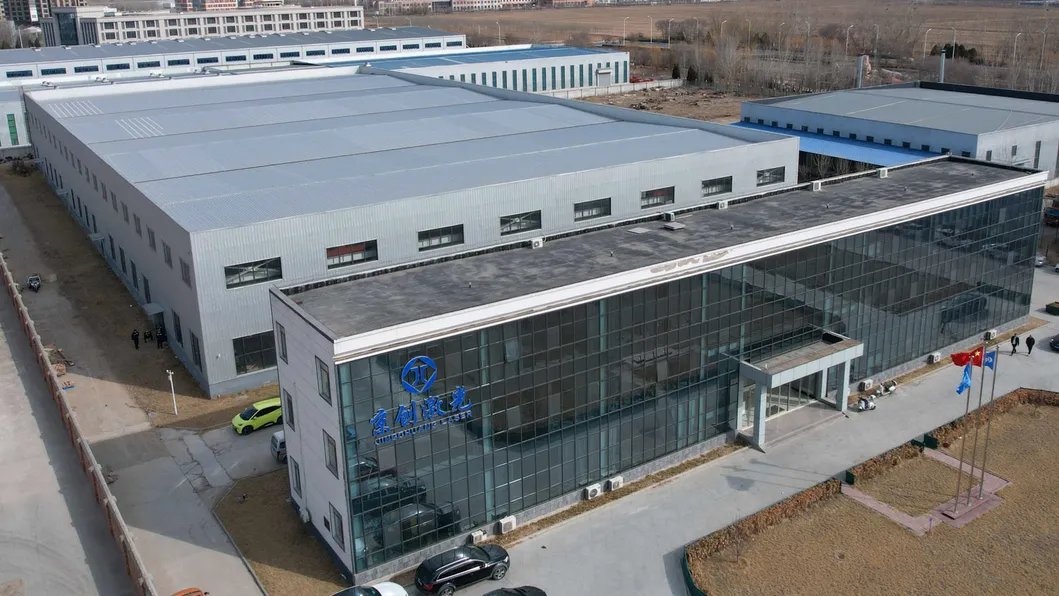

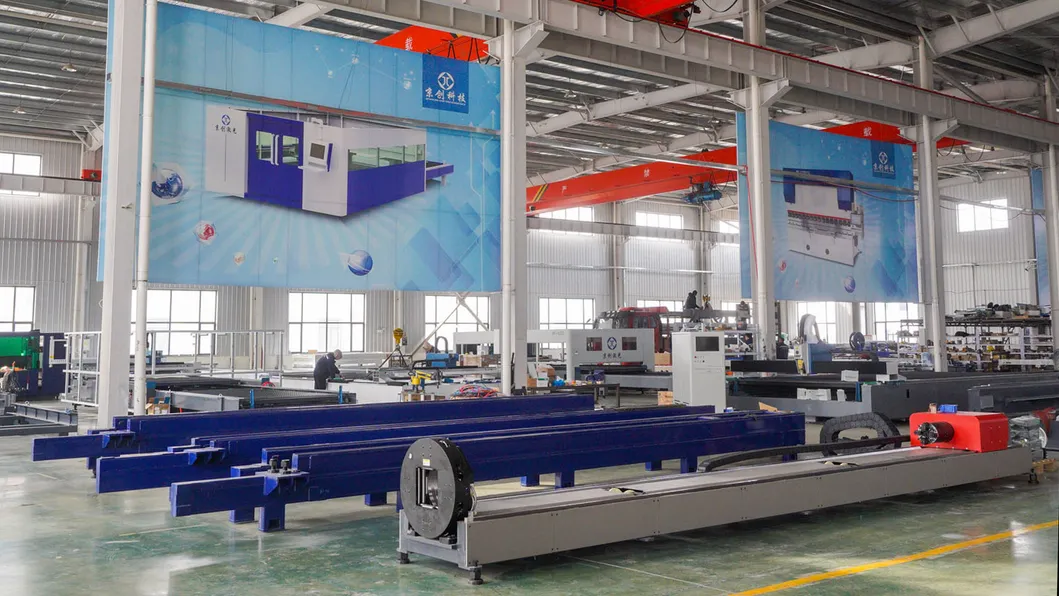

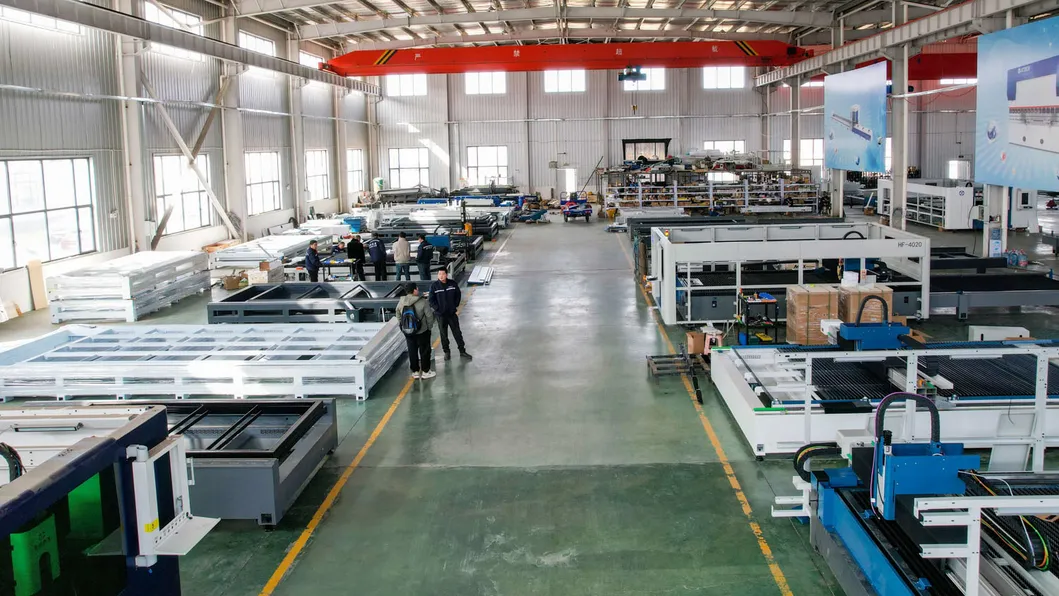

Founded in 2015, covering an area of more than 60,000 square meters, our facility consists of two modern factories and four dedicated production workshops.

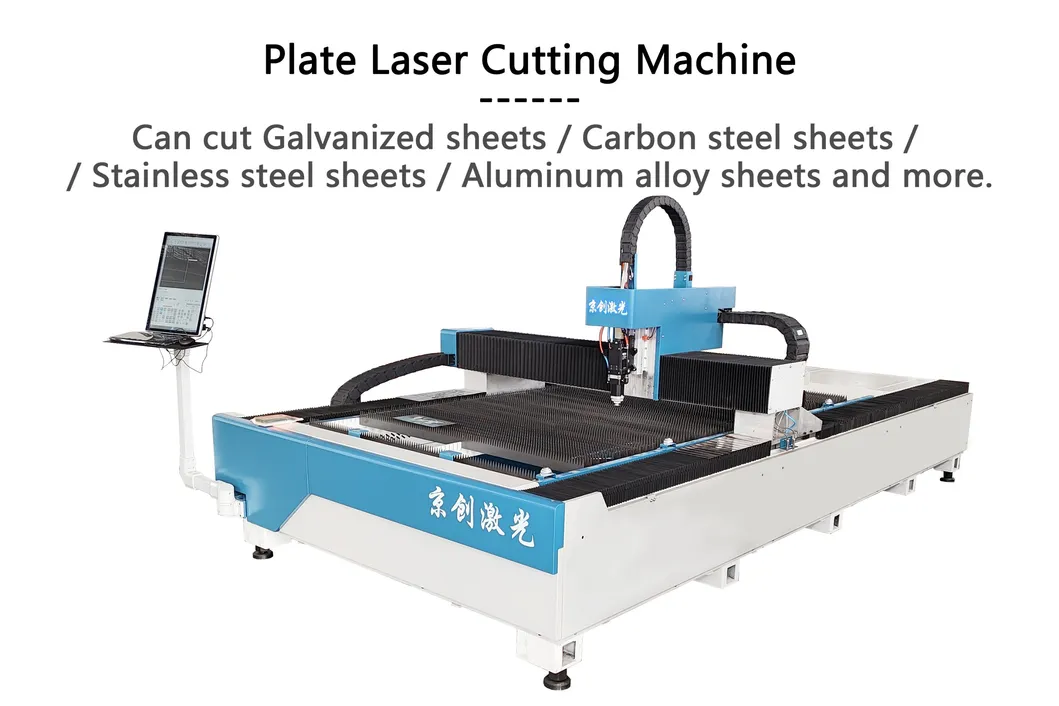

We specialize in the complete production lifecycle of: fiber laser cutting machines for pipes, laser cutting machines for plates, laser welding machines, laser marking machines, CNC bending machines, grooving machines, and other premium matching machinery.
We fully support custom machinery configurations based on your specific industry demands, budget framework, and technical needs to deliver highly optimized, cost-effective industrial equipment alongside continuous technical training and reliable post-sale support.
As a premier manufacturing plant holding multiple technical patents for advanced laser cutting machines and CNC bending equipment, all manufactured hardware strictly conforms to global safety standards.
✓ Compliant with European Standard 2006/42/EC
✓ Certified Quality Standards EN60204 & ISO12100
Our proven tracking record in engineering demonstrations makes us a trusted and certified demonstration enterprise globally.
We consistently participate in various global laser mechanical equipment exhibitions, presenting our operational systems live on the field.
Reach out to receive the upcoming calendar of regional exhibitions and check our laser machines running live in the field near you.
