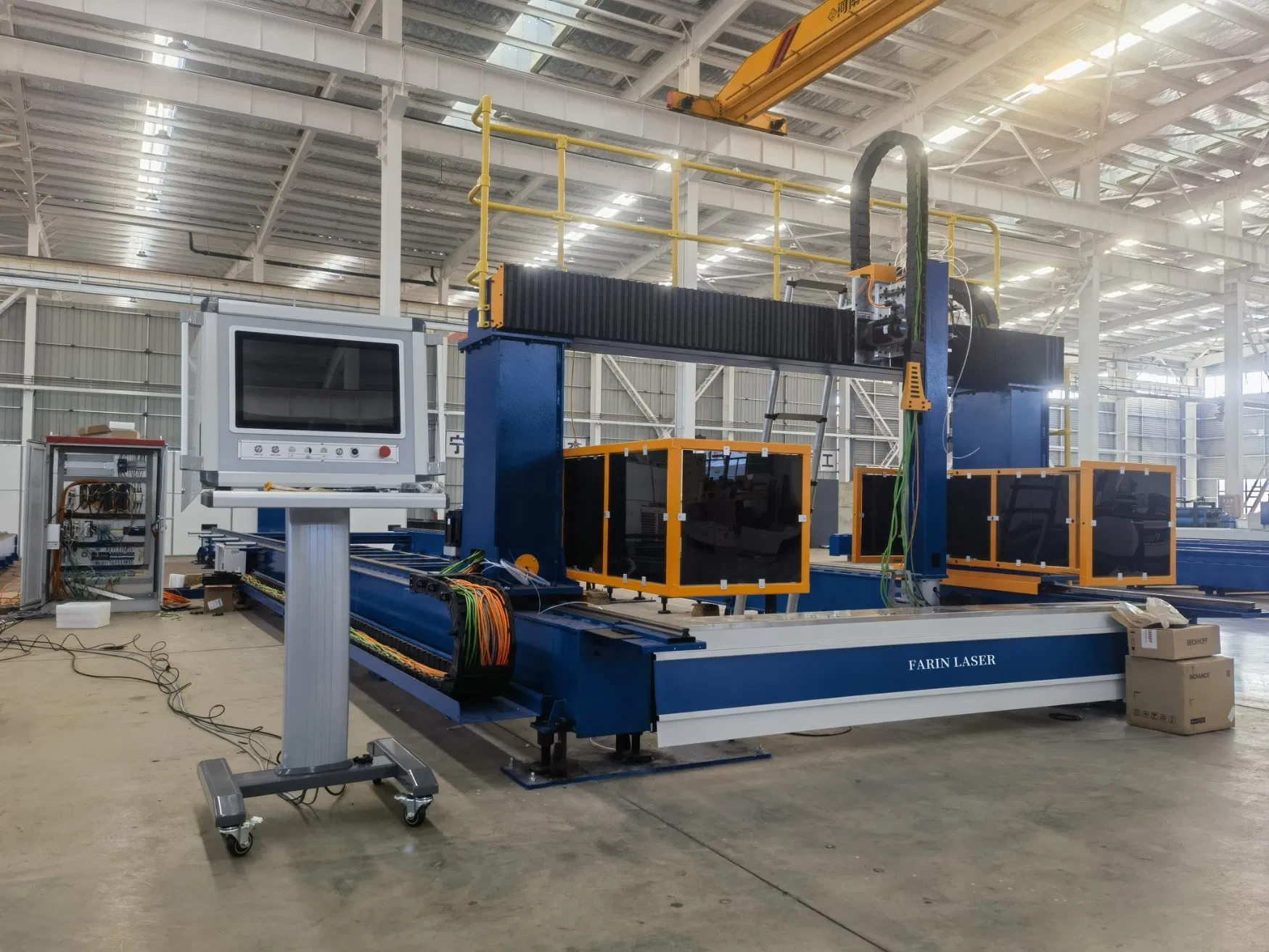

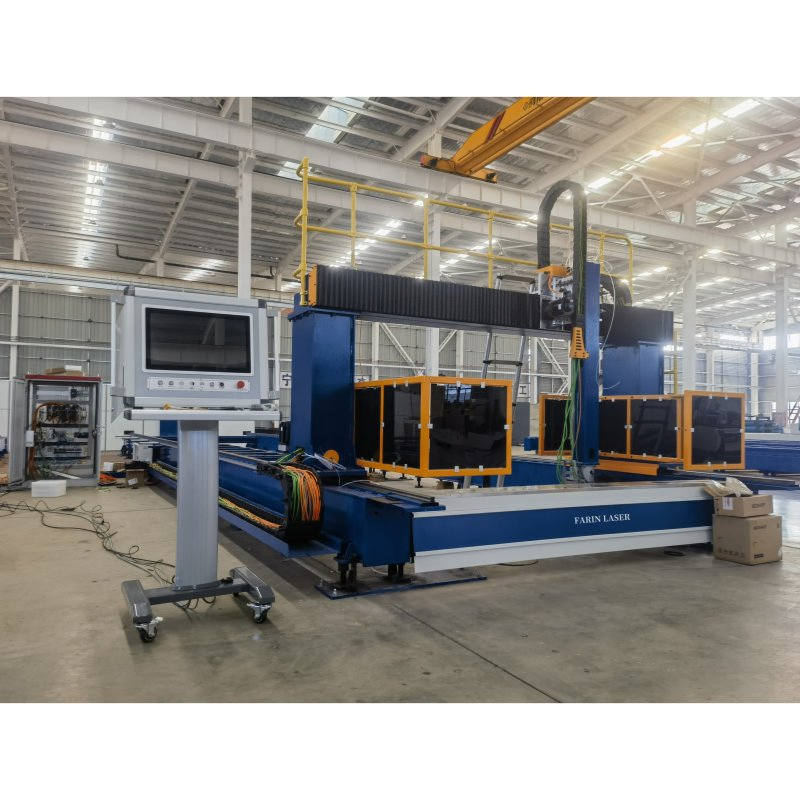

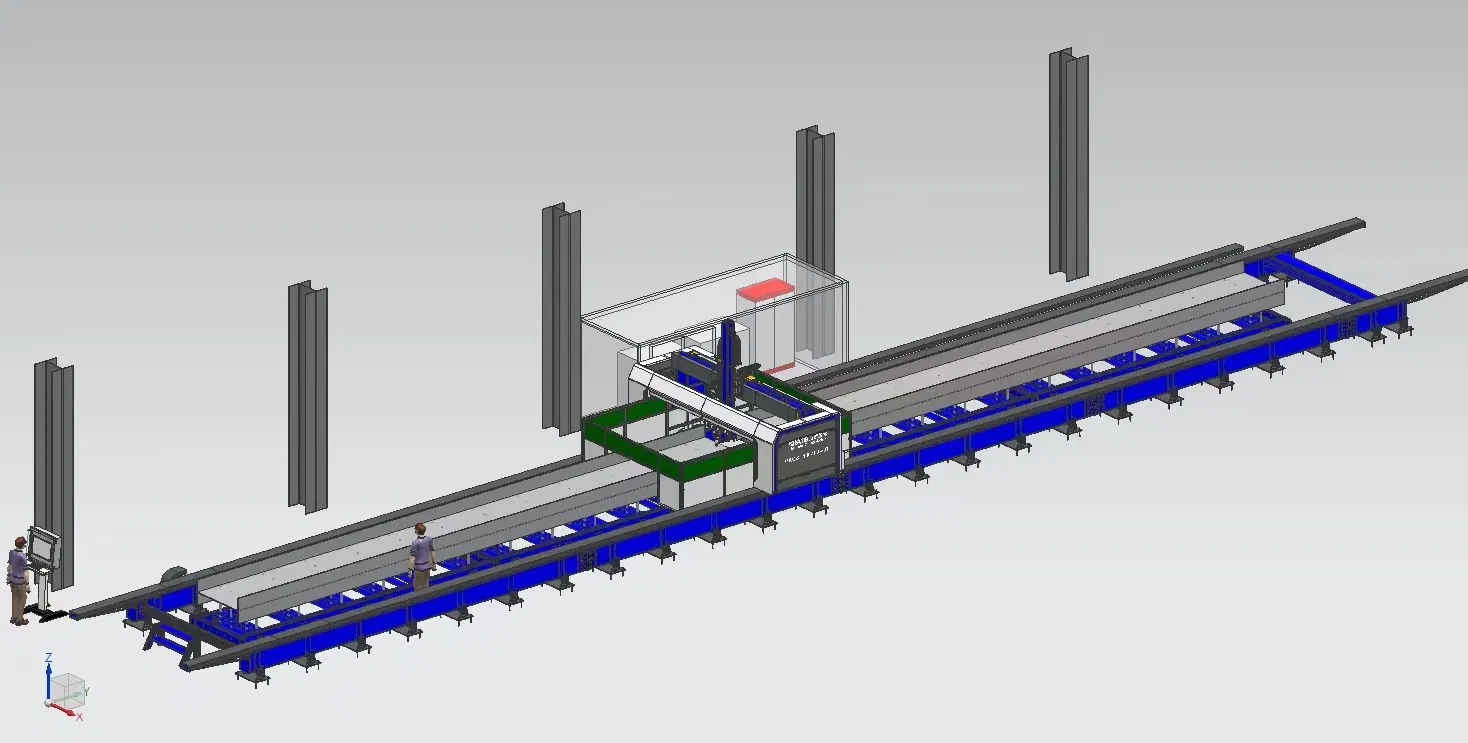

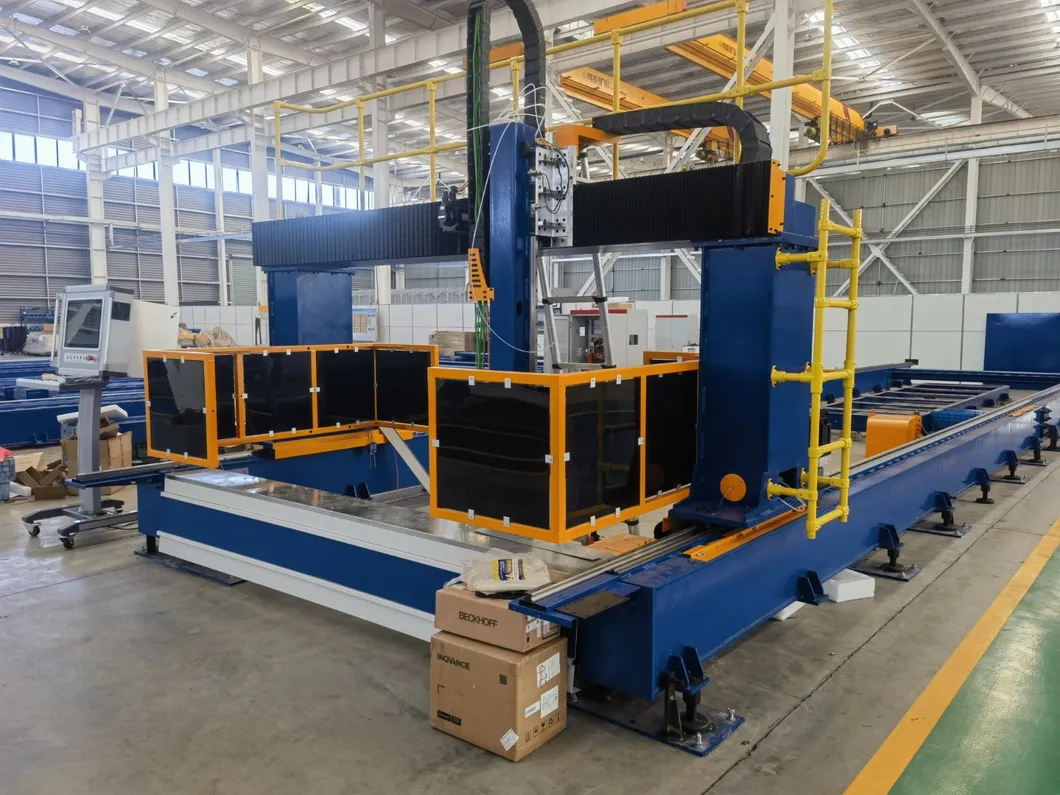

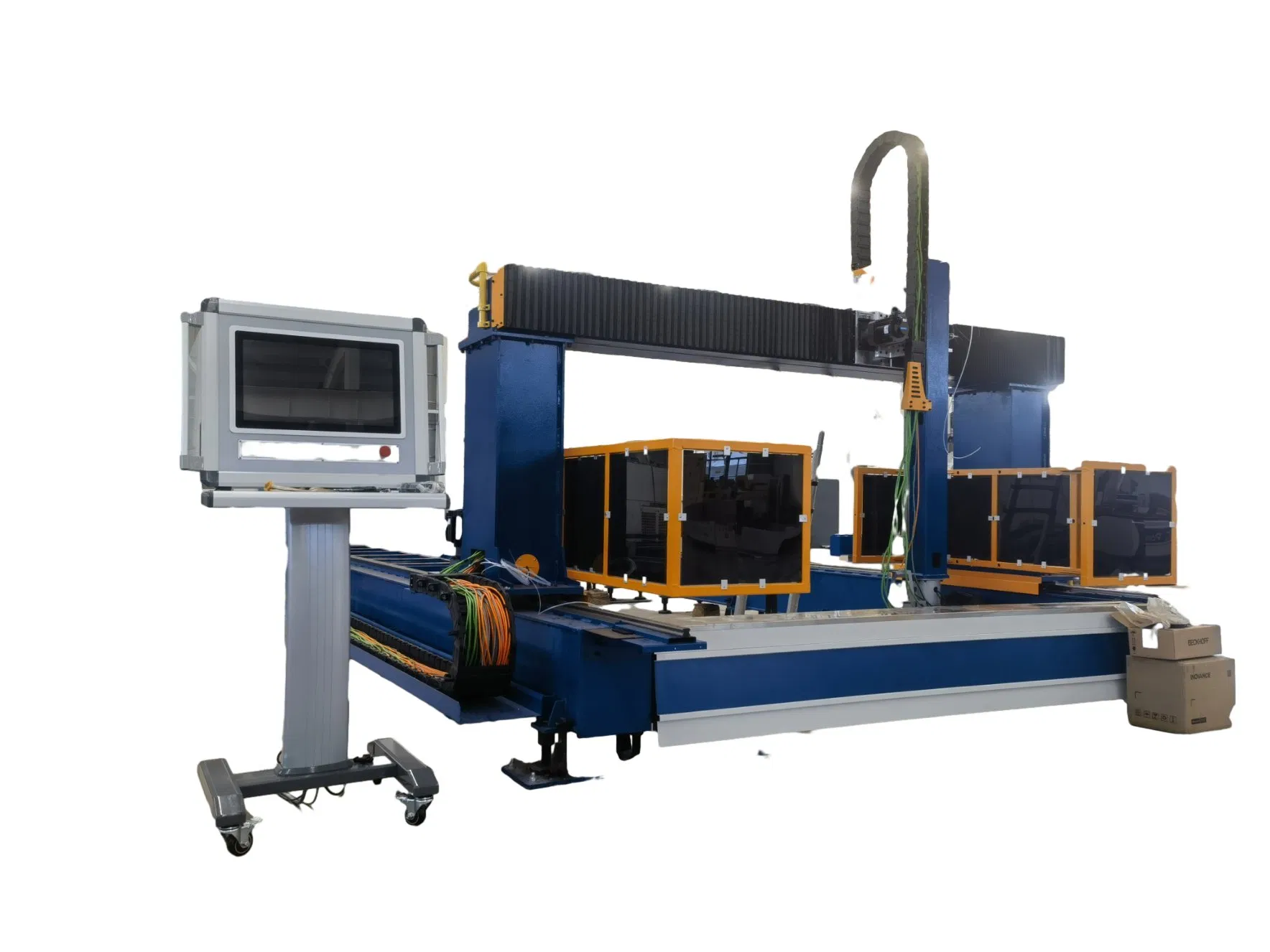

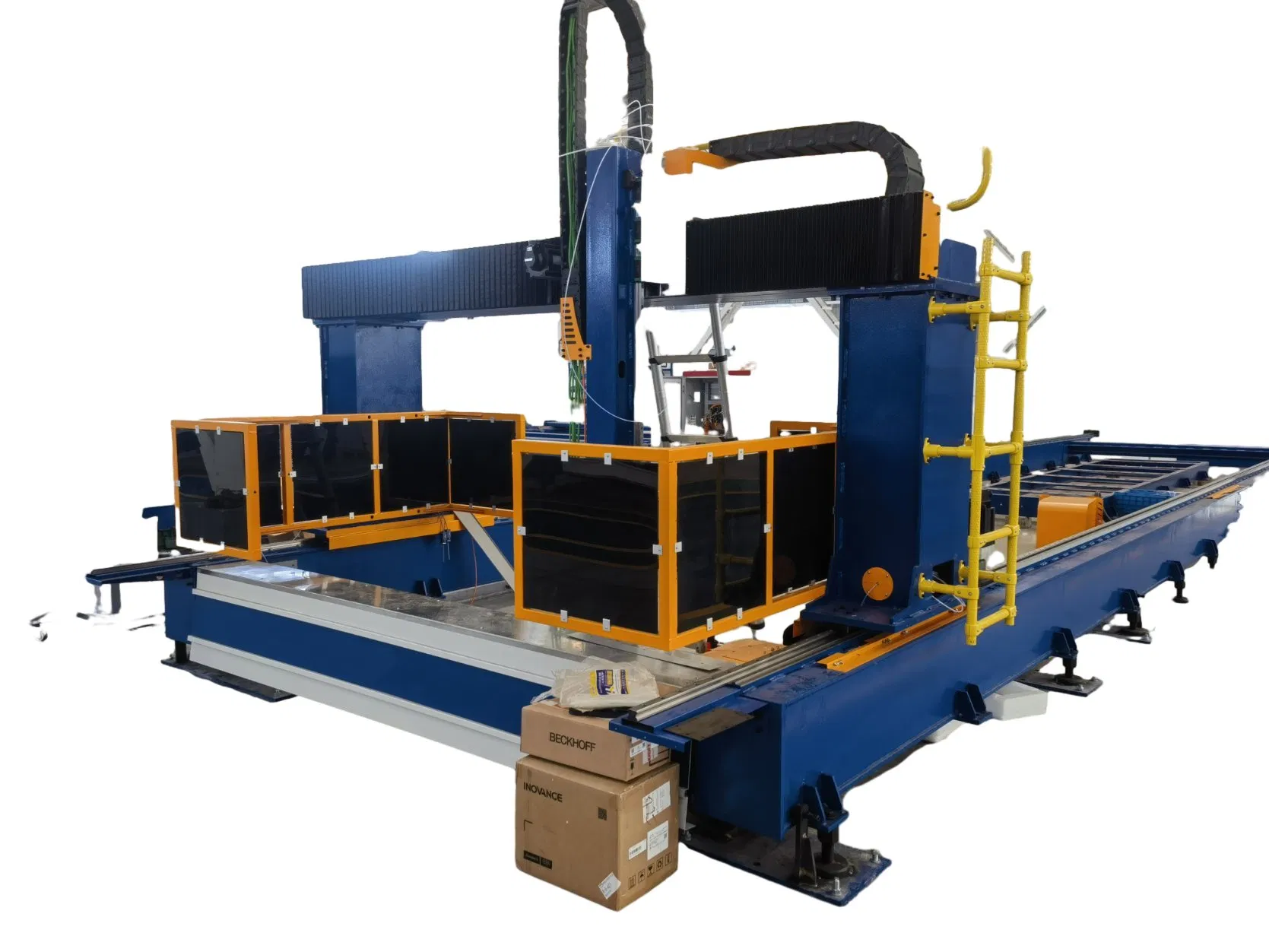

YT-HB1200 3-dimensional 5-axis fiber laser cutting machine can meet the user's H-beam steel cutting processing. The machine is composed of beam, base beam, cutting table, laser, chiller, and cutting parts. It offers high precision, heavy-duty H-steel marking, cutting, and beveling capabilities in one process.
| Items | QTY. | Supplier/Brand | Notes |
|---|---|---|---|
| Section steel cutting machine bed | 1 | FARIN | Heavy duty H-shaped steel cut bed |
| Three-dimensional five-axis steel cutting laser system | 1 | Germany BECKHOFF | GERMANY |
| Industrial PC | 1 | JIUYAN | CHINA |
| Optical fiber laser generator | 1 | RAYCUS | CHINA |
| Three dimensional five axis fiber cutting head | 1 | Cutting head | CHINA |
| ACU shaft swing head | 1 | WisCut | CHINA |
| Cooling system | 1 | Hanli HL-20000 | CHINA |
| Steel range finder | 1 | Panasonic | JAPAN |
| Effective H beam range | Length: 24000mm, Web: 1200mm, Wing: 600mm |
| Max thickness (Mild Steel) | 45mm |
| Max thickness (Stainless Steel) | 40mm |
| Bevel cutting Angle | ≤45° |
| Positioning Accuracy | ±0.05 mm/m |
| Max Linkage Speed | 60 m/min |

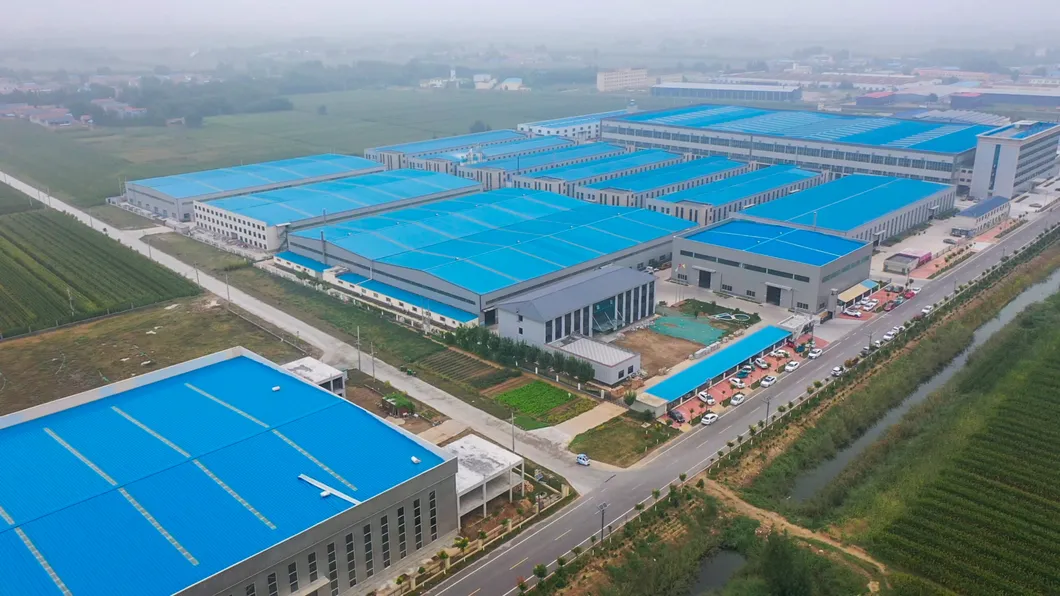

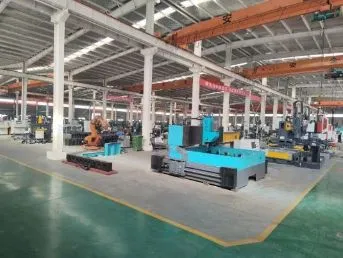

The manufacturing group specializes in researching, developing, and trading metal processing machinery. Our range includes fiber laser cutting machines, CNC drilling/milling machines, and ultra-high power laser equipment. These machines are extensively used in the power tower, steel structure, and construction industries. With advanced R&D and strict management, our products are exported to over 100 countries worldwide, earning high appreciation for quality and reliability.
The machine is packed in wooden boxes or vacuum sealed to ensure moisture, rust, corrosion, and shock protection, suitable for sea or multi-modal transportation.
High-performance manufacturing with customized R&D capabilities and professional certifications.
Designed for quiet, dust-free, and environmentally friendly operations.
Dedicated customer service with 7*24H quick response.
