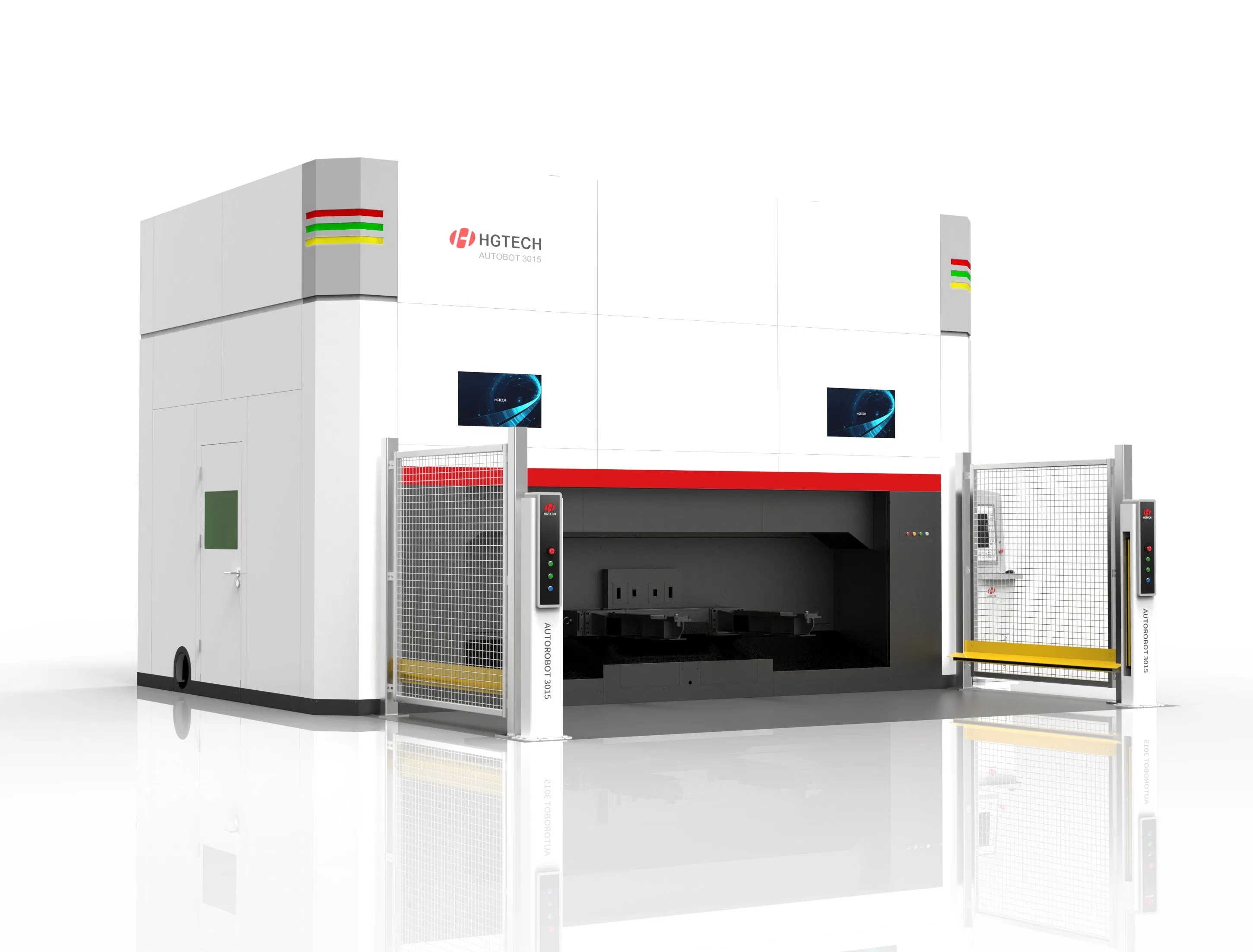

AUTOBOT3015 Auto Thermal Forming Parts 3D Laser Cutting Machine
AUTOBOT3015 auto thermal forming parts 3D laser cutting machine is a kind of 3D 5 axis laser manufacture equipment developed specially for auto thermal forming section, mainly used for hole boring & edge cutting for high-strength steel with higher precision, higher speed and better dynamic performance. Assembled with high performance rotation work table, can meet the efficiency in auto section.
Key Advantages
Stability: Designed in elevated gantry structure, comparing with cantilever structure, more stable.
High acceleration: Higher positioning speed guarantee cutting efficiency and precision in long-term.
High efficiency: Max simultaneous speed is 166m/min, max simultaneous acceleration is 1.7G, min station shift for rotation work table is 3s, and max cutting speed is 30m/min.
Multi-station: Realize rapid machining for different parts, and automatically loading and unloading.
Security: Machine protection device meet with international standard CE/CDRH.
Cost efficiency: Performance as good as foreign brand, shorter delivery period, more flexible budget, lower maintenance cost.
Advanced Features
Axis rotate unlimitedly
Max positioning speed: 360°/s
Quick boring
Auto focusing
Small angle parts cutting
Crash protection
Technical Parameters
AUTOBOT Specifications
Parameter Value
Working Range
Working Range (Length × Width)
3000mm × 1500mm
X-Axis
3000mm
Y-Axis
1500mm
Z-Axis
680mm
A-Axis
±135°
C-Axis
±n × 360°
Accuracy
X/Y/Z Axis Position Accuracy
0.08mm
X/Y/Z Axis Repeat Accuracy
0.03mm
A/C Axis Position Deviation
0.015°
A/C Axis Repeat Accuracy
0.005°
Speed & Acceleration
X/Y/Z Axis Max Speed
100m/min
A/C Axis Max Speed
540°/s
X/Y/Z Axis Simultaneous Max Acceleration
10m/s²
A/C Axis Simultaneous Max Acceleration
60rad/s²
Dynamic Axis Range
±12.5mm
Rotation Work Table
Rotation Work Table
Rotation diameter: 4000mm
Side max. load: 400kg
Min shifting time: ≤2.3s
Power Details
Phase No.
3
Rated Voltage
380V
Frequency
50Hz
Protection Level
IP54
Weight & Size
Net Weight
≤16000kg
Space Size (Length × Width × Height)
8500 × 7600 × 4200mm
Industry Case Study
Automotive Thermoforming Industry
Industry Background

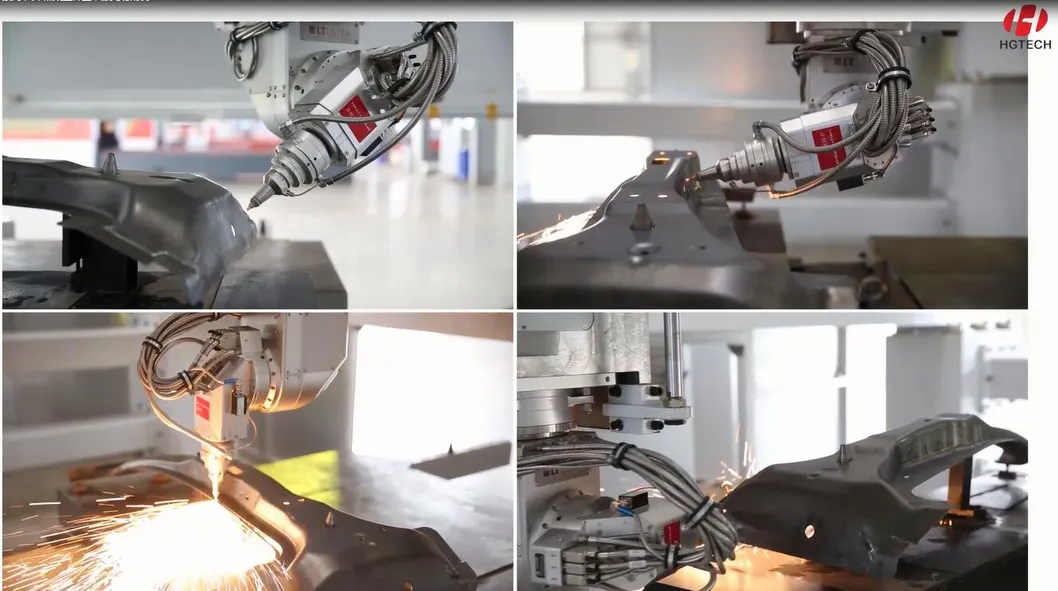

The application of thermoforming technology can reduce the body mass, improve fuel economy, and achieve energy saving and emission reduction. High-strength steel, with its high hardness, high toughness and high wear resistance, is widely used in the field of automotive thermoforming. The AUTOBOT 3D Five-Axis laser cutting machine for high-strength steel thermoforming parts solves the problem of difficult punching of high-strength steel, replacing a large number of punching and trimming dies.

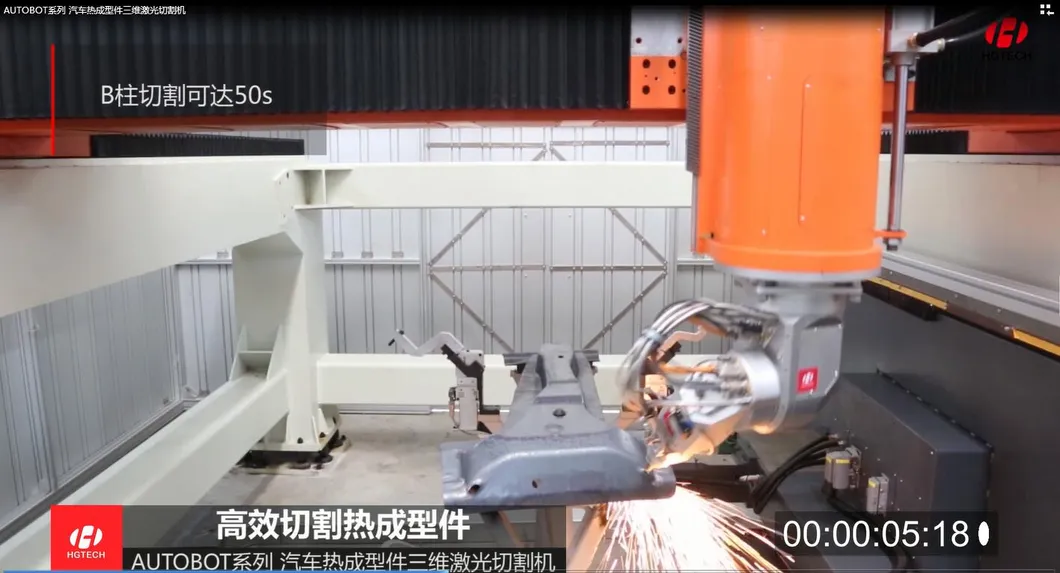

The machine can cut automotive thermoformed parts 24 hours a day, and can produce up to 1,000 pieces of B-pillars for this model in one day. It is equipped with a high-speed rotary worktable and a new generation of independently developed high-performance cutting head, completely meeting the intensive production rhythm requirements of the automobile hot forming industry.
Industry Achievements
Awarded the first prize of Hubei Provincial Science and Technology Progress.
The 3D Five-Axis laser cutting intelligent equipment delivered breaking 200 units in the thermoforming industry.

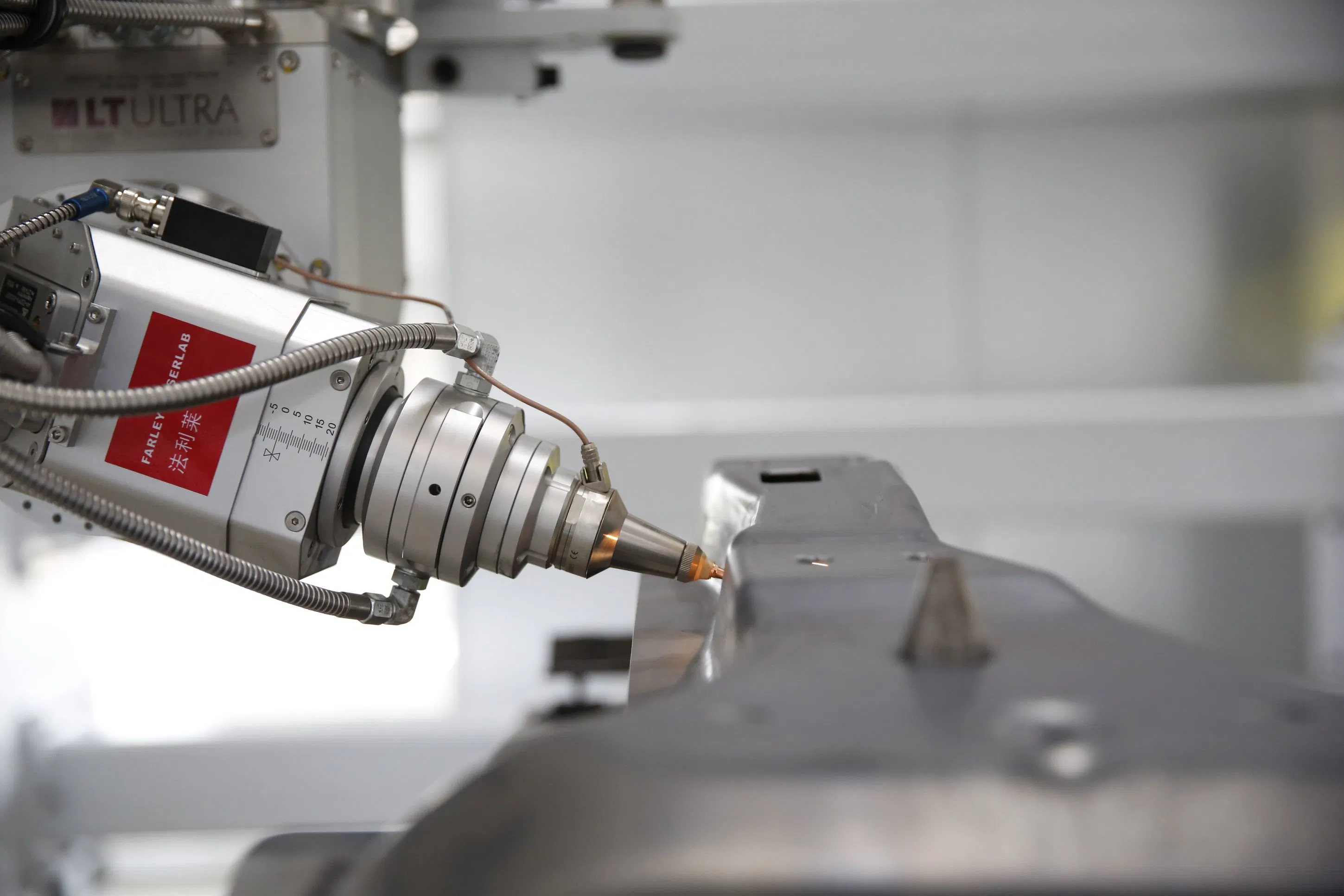

Equipped with the third generation of self-developed lightweight 3D Five-Axis cutting head, holding a leading domestic market share.

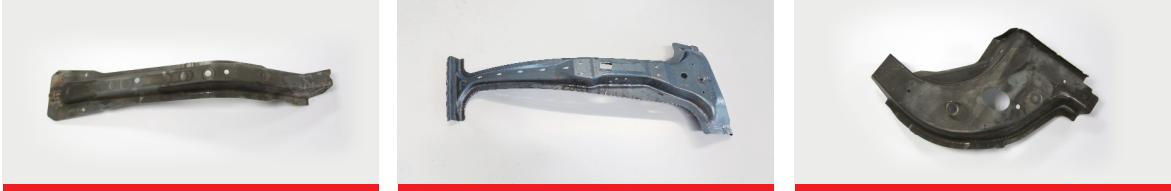

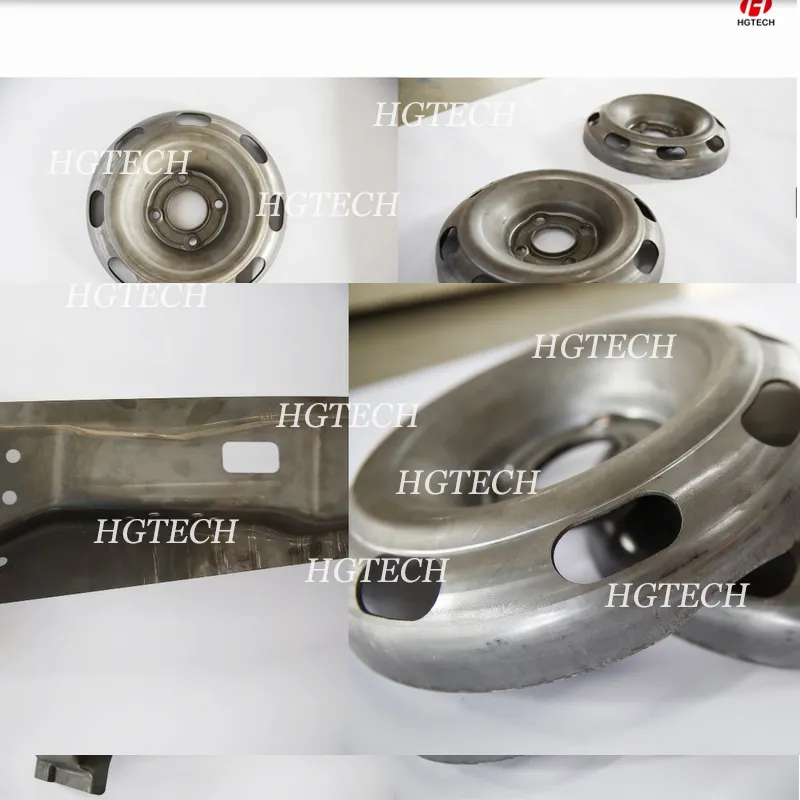

Application Samples
Frequently Asked Questions
What are the primary applications of the AUTOBOT3015 laser cutting machine?
The AUTOBOT3015 is specifically designed for high-strength steel automotive thermoforming parts. It is widely used for high-precision, rapid hole boring and edge cutting in automotive manufacturing, aerospace, environmental equipment, and machinery manufacturing.
Why is the elevated gantry structure superior to a cantilever structure?
The elevated gantry structure provides much higher physical stability and structural rigidity compared to cantilever structures. This stability translates directly to higher accuracy, minimized vibration during high-speed movements, and reliable long-term operational precision.
What are the maximum cutting and movement speeds of the AUTOBOT3015?
The machine features a maximum simultaneous translation speed of 166m/min, simultaneous acceleration of 1.7G, and a maximum cutting speed of 30m/min. The A/C axis features a maximum rotary speed of 540°/s, enabling exceptionally fast cycles.
How does the integrated rotary table improve overall productivity?
The high-speed rotation work table has a minimal shifting time of ≤2.3s. This setup allows for continuous automated loading and unloading in multiple stations, ensuring zero-downtime machining for optimized high-volume industrial output.
What safety mechanisms are built into the AUTOBOT3015?
The machine features a full-enclosure protection device that strictly meets international safety standards including CE and CDRH. It also incorporates state-of-the-art crash protection and auto-focusing systems to prevent machine and workpiece damage.
