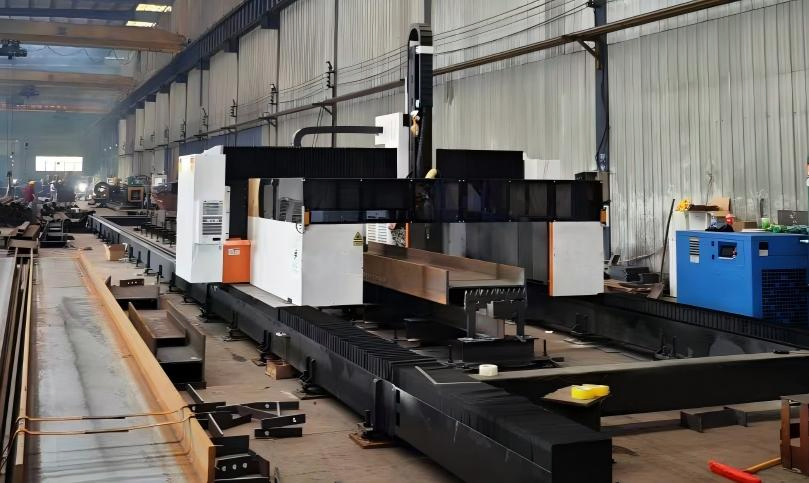

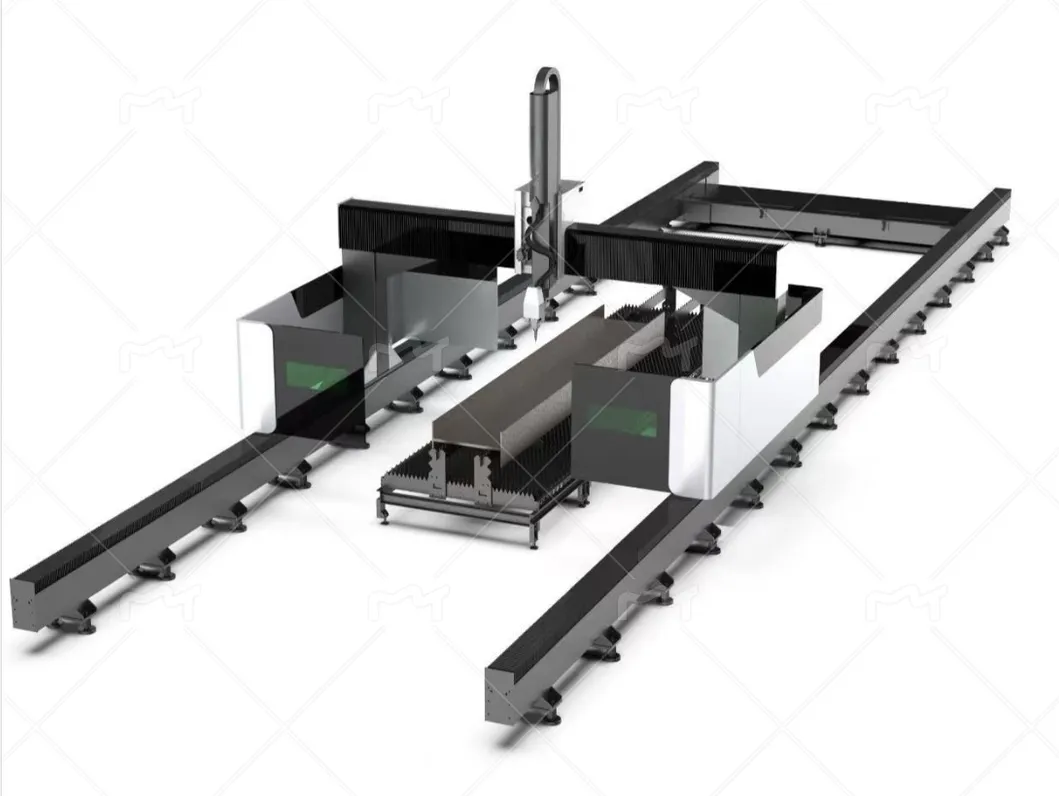

Product Parameters
1. Cutting Steel Pipe Specifications
| Specifications |
Standard Value |
| Web cutting size |
30-2500mm |
| Plasma cutting tube thickness |
40mm |
| Cutting pipe length |
12000mm |
| Round tube load |
4500KGS |

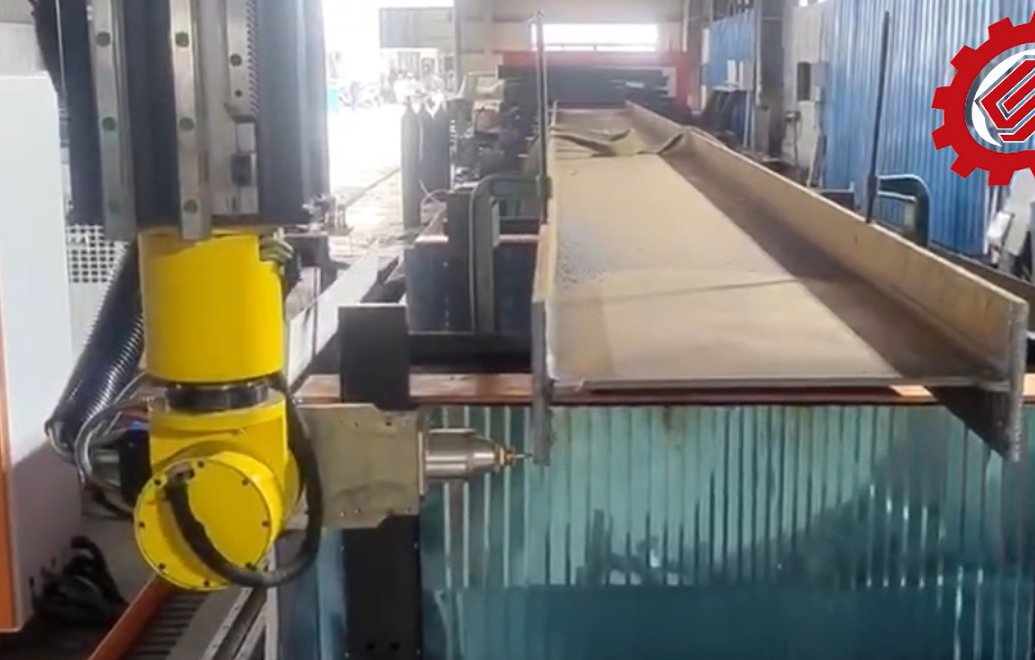

2. Equipment Movement Axis & Range of Motion
| Movement Axis |
Cutting Machine Shaft Number Selection |
Activity Range |
| A-axis |
Pipe rotation |
Axis 360° free rotation |
| Y-axis |
Torch moves horizontally along the axial direction of the pipe |
430mm |
| B-axis |
Torch along the axis of the pipe axis |
A=±60° |
| C-axis |
Torch rotates along the radial plane of the pipe |
B=±45° |
| Z-axis |
Torch vertical lifting axis |
Maximum stroke 300mm |

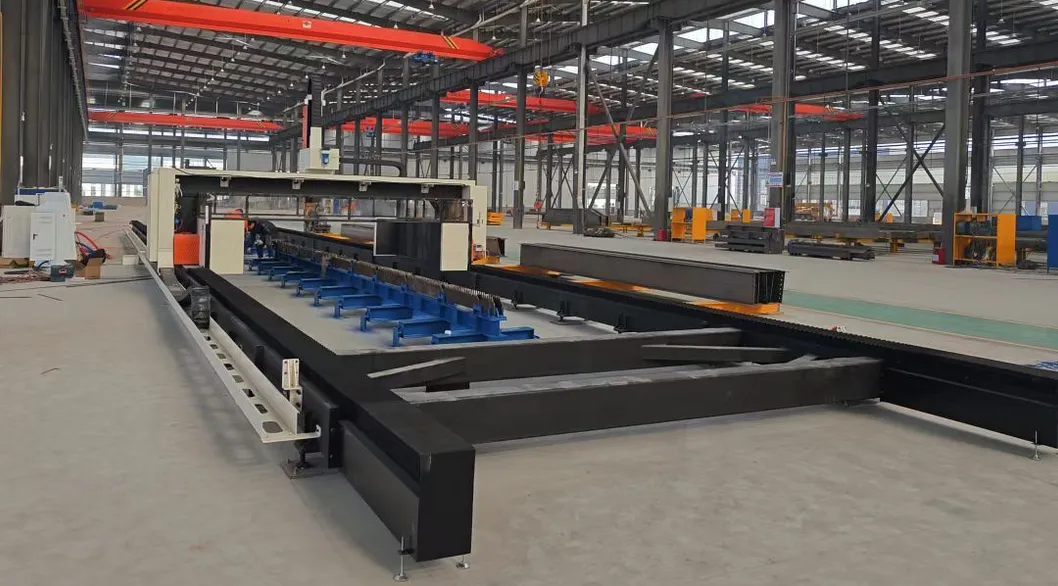

3. Steel Pipe Loading Method
The round tube adopts a 4-claw chuck type structure, utilizing multiple sets of long-axis roller frames. The active frame drives a maximum pipe weight of 2 tons, with the minimum spacing of the roller frame rollers configured at 400MM (end part).
5. Positioning Accuracy
Torch repeating positioning accuracy is within ≤ ± 0.03mm; bus positioning accuracy is within ≤ ± 0.03mm; groove positioning accuracy is within ± 0.05°.

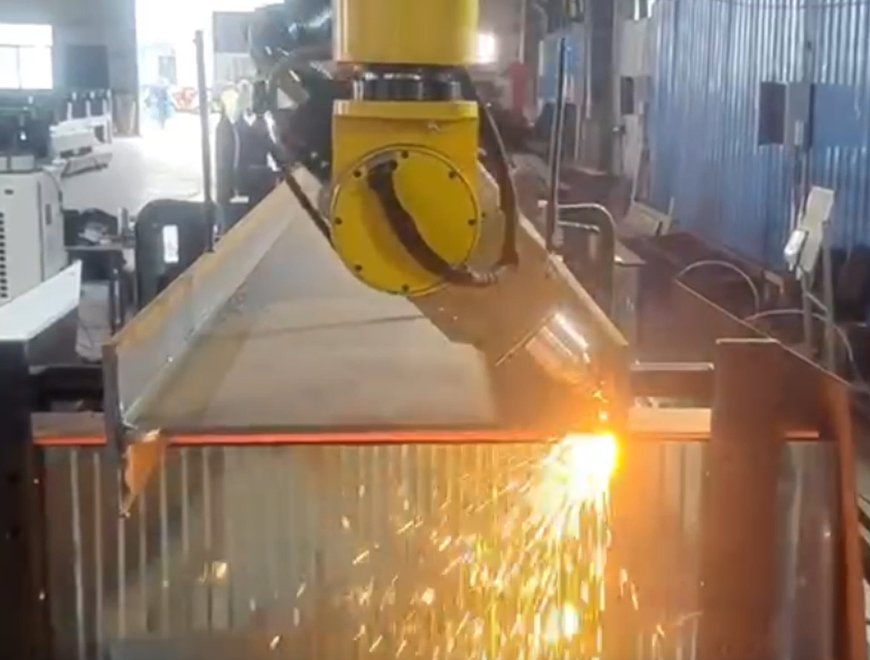

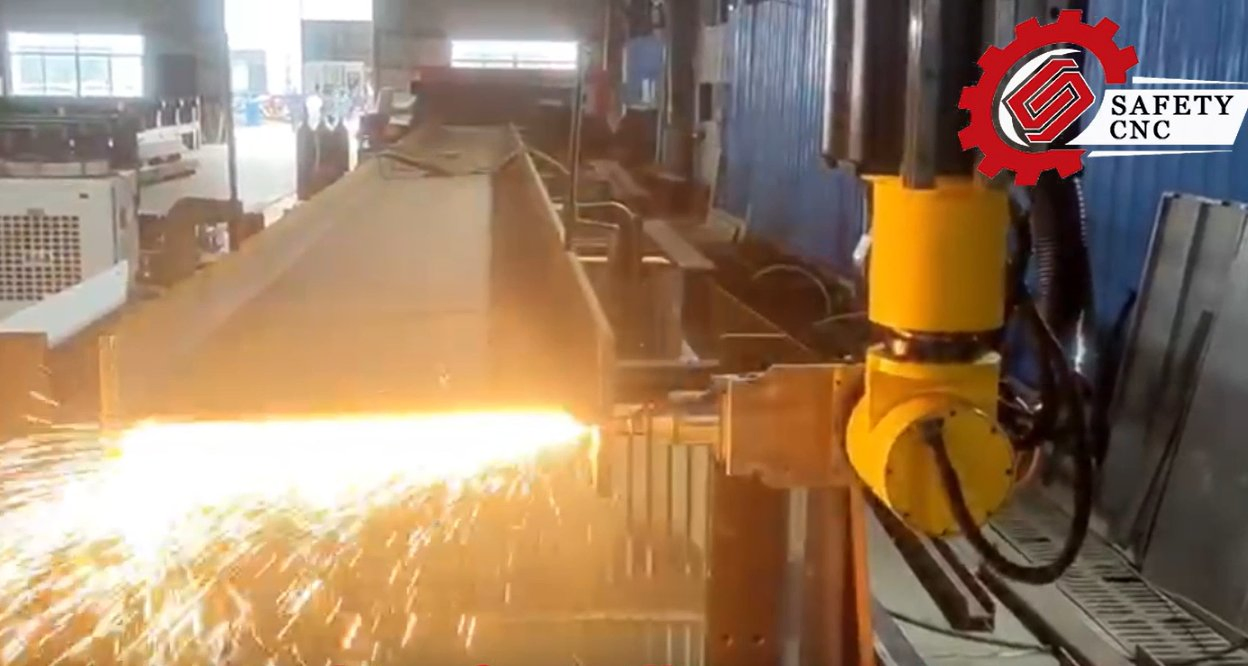

4. Cutting Speed
| Method |
Speed Range |
| Flame cutting speed (optional) |
100-750mm/min |
| Plasma cutting speed |
1000-6000mm/min |
| Movement speed |
10-8000mm/min |
6. Equipment Parts Configuration List
| No. |
Items of Parts |
Specification |
Supplier / Brand |
Quantity |
| 1 |
Electrical control cabinet |
ZLQ-XGEC |
EOE |
1 |
| 2 |
Control system |
EOE-01A |
EOE |
1 |
| 3 |
Programming software |
With the beveling function |
Shanghai FL |
1 |
| 4 |
Servo driver and Motor |
- |
Japan Panasonic |
6 |
| 5 |
Planetary Reducer |
1:5 |
Japan Shimpo |
6 |
| 6 |
Brace of Rotary |
500mm |
EOE |
2 |
| 7 |
Adjustable chuck support |
500mm |
EOE |
3 |
| 8 |
All the head system |
Z and hold the torch |
EOE |
1 |
| 9 |
Y axis 35kg rail |
35 kg |
EOE |
18 |
| 10 |
Plasma power |
LGK160A |
- |
1 |
7. Control System Features
- Industrial control CNC system: powerful, highly scalable.
- Hardware board interpolation: stable, reliable, with simple wiring layouts.
- Fully supports standard G code, FastPipe, FastFrame and other nesting software.
- Equipped with manual box operation features to optimize workspace production.
- Supports Flame / Plasma / Demo operating modes with quick switching capability.
- Intelligent automatic introduction of pipe diameters, ensuring safe and reliable operation.
- Real-time graphic display of maximum processing paths with complete zoom capabilities.
8. System Performance Parameters
- Control Number Axis: 8-axis control with 7-axis linkage
- Control Accuracy: Up to ±0.001mm
- Maximum Running Speed: 8000mm/min
Frequently Asked Questions (FAQ)

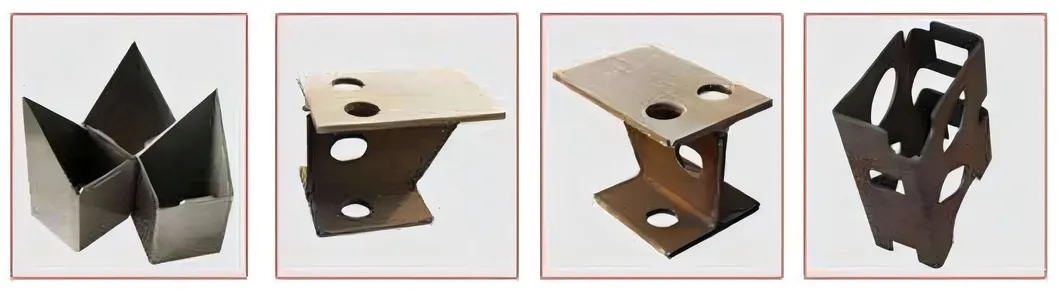

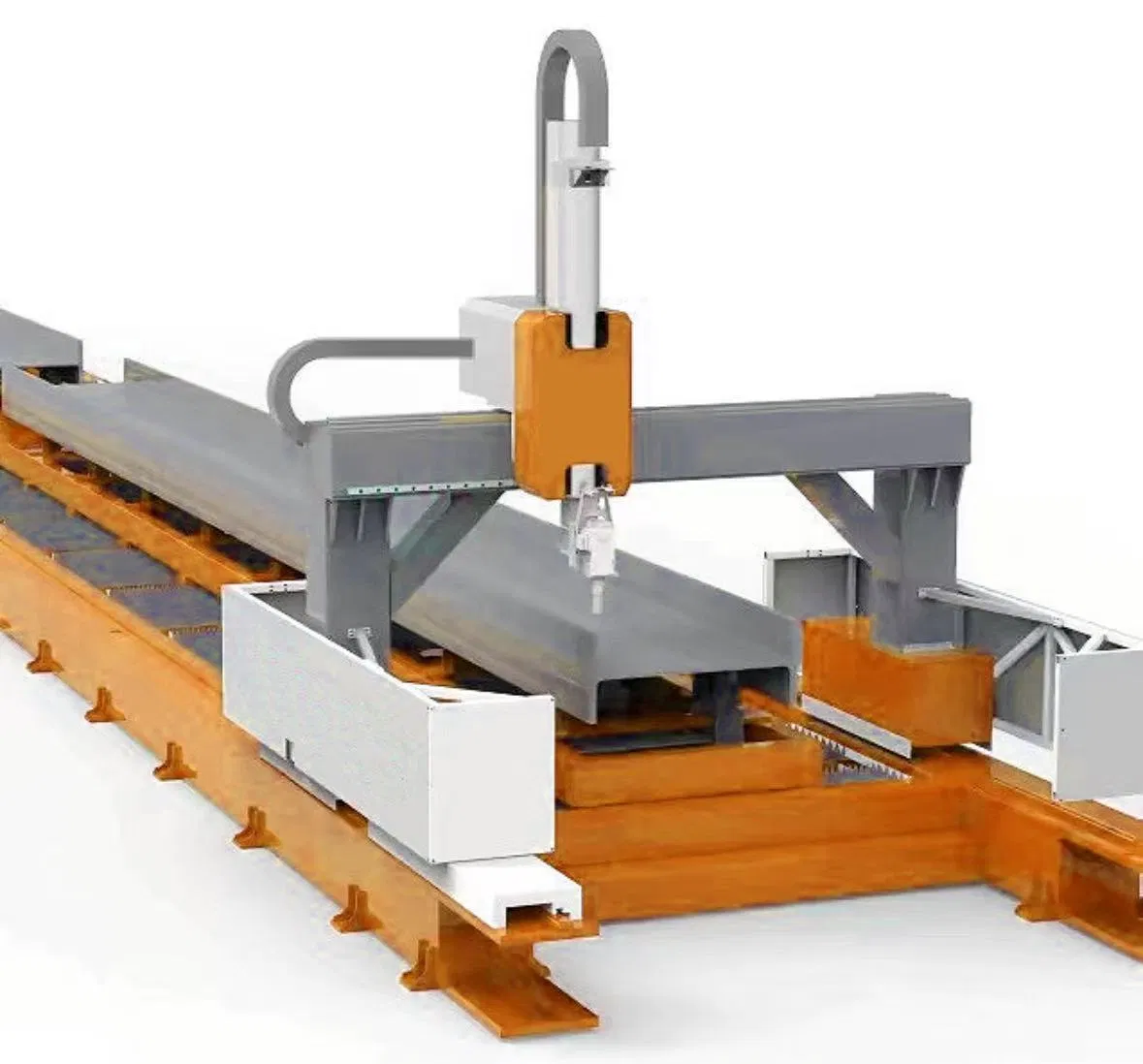

What types of metal profiles can the SU-HB2500 laser machine cut?

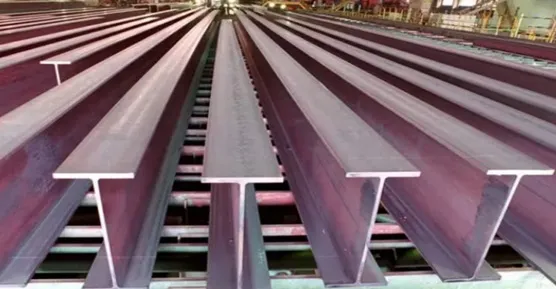

The machine is designed to handle H-beams, channel steels, rectangular pipes, square pipes, and round pipes. It is compatible with a wide range of materials, including low carbon steel, stainless steel, copper, and aluminum.
Can the technical specifications and components of the machine be customized?
Yes. Component configurations, sizing requirements, and technical modules can be adjusted and customized based on your specific industrial production demands to optimize performance.
What control and processing accuracy does the SU-HB2500 offer?
The machine features an advanced 8-axis control with 7-axis linkage CNC system. It achieves an incredibly high control accuracy of up to ±0.001mm and a repeating positioning accuracy of ≤ ±0.03mm.
What are the standard payment and commercial terms for equipment purchase?
Our standard commercial terms require a 30% T/T deposit paid in advance to initiate production, followed by the remaining 70% balance paid prior to shipment. All lead times are strictly monitored to ensure prompt delivery.
What professional pre-sales and technical consultation services do you provide?
We provide complete technical support, including answering questions regarding parameters, layout planning, and materials compatibility. If needed, we also facilitate formal technical discussions and remote inspections.
What are the main installation requirements for this equipment?
The equipment requires a flat concrete foundation with an inclination of no more than 1/100, set up indoors. Operating temperatures should range between -10°C and 50°C, and a monthly average humidity of ≤ 80% is recommended.
