Hot Sale Factory Supply High Efficiency Molds Laser Hardening Machine

1 / 5

Hot Sale Factory Supply High Efficiency Molds Laser Hardening Machine

Customization:	Available
After-sales Service:	Provided
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO. SL-A017

Automatic Grade Automatic

Style Stationary

Technical Class Continuous Wave Laser

Q-Switch with Q-Switch

Laser Classification Optical Fiber

Type Laser Hardening

Laser Power 3000W/6000W/12000W

Core Diameter 600um/800um/1000um

Fiber Length 20m

Center Wavelength 1080±10nm

Robot Orbit Accuracy ±0.1mm

Transport Package Standard Marine Export Plywood Case

Specification 1450*1450*1500CM

Origin China

HS Code 8479819000

Production Capacity 100 Sets Per Month

Application Fields Aerospace, Agricultural Machinery, Heavy-Duty Machinery, Petroleum Metallurgy, Automotive Industry

Product Overview

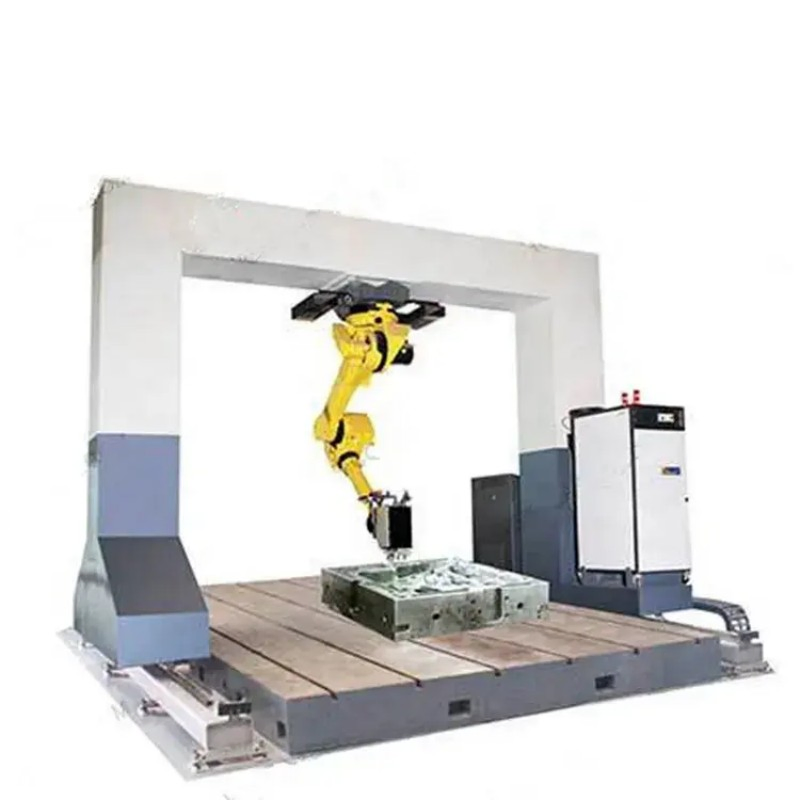

High Efficiency Molds Laser Hardening Machine

What is Laser Hardening?

Laser hardening is the use of laser to heat the surface of the material above the phase transition point. As the material itself cools, austenite transforms into martensite, resulting in a highly effective surface quenching and hardening technology.

It is widely used in the surface treatment of cutting tools, molds, engine pistons, crankshafts, transmission gears, turbochargers, bearings, propellers, metal pipes, valves, etc. to improve their wear resistance, corrosion resistance, and overall service life.

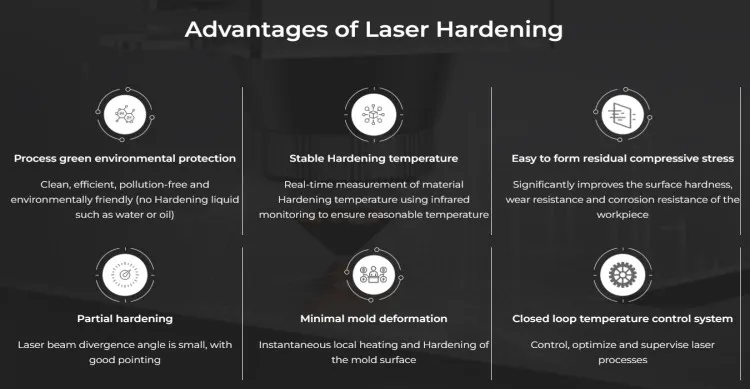

Laser Molds Hardening Machine Processing

Main System Components

Laser Source

Laser power: 10~ 3000W continuously adjustable, QBH interface, core diameter 600um, length 20m.

Laser Head

1. Collimation focal length: 100mm, focusing focal length: 300mm
2. Applicable wavelength: 900-1100nm
3. The powder feeding nozzle contains a water-cooled base
4. Optical fiber interface: QBH

Chiller

Dual temperature control provides cooling water for lasers, machining heads, optical fibers, etc.

PLC General Control System

The laser, water cooler and protective gas are integrated and controlled by PLC. The light can be controlled and turned off through the robot interface programming.

Technical Parameters

Item	Spec.	Description	Qty.
Laser	2000W	Laser power: 10~1500W continuously adjustable.	1 set
Fiber system	600μm	Core diameter 600 μm, length 15m	1 set
Laser collimating head	TS-Q100	Collimating focal length: 100mm, focusing focal length: 300mm	1 set
Laser focusing module	TS-301P300	Ensure speckle effect and heat treatment consistency	1 set
Chiller	CWFL-2000	Double temperature control to provide cooling water for laser and external optical path	1 set
Multi-station four-axis system	TS-Q_SYS-4-900	Professional laser CNC system, equipped with industrial control computer, to achieve XYZ moving. Stroke: X: 500mm, Y: 400mm, Z: 300mm (or customized according to workpiece). Positioning accuracy: ≤±0.035mm, Repeat accuracy: ≤±0.01mm. Axis A and XYZ form a four-axis linkage.	1 set
Smoke purification system	Standard	Implement smoking and dust removal in work area to prevent pollution	1 set
Refrigerated dryer	10HP, 1.5M³	Filter and dry compressed air	1 set
Fixture	Customized	Tailored to product geometry specifications	1 set

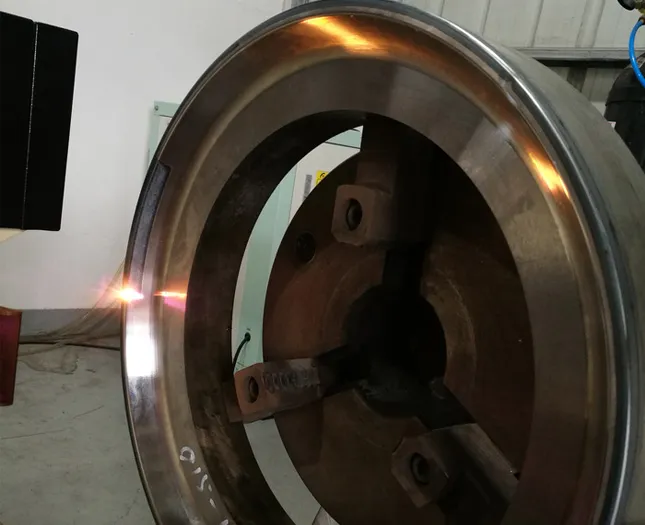

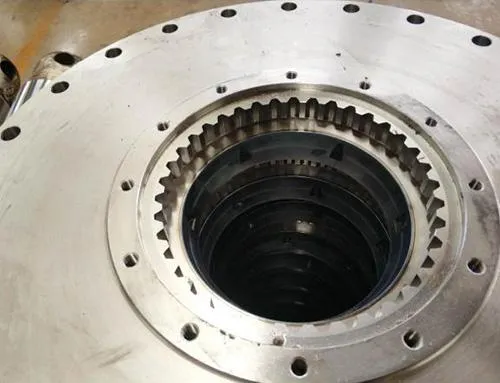

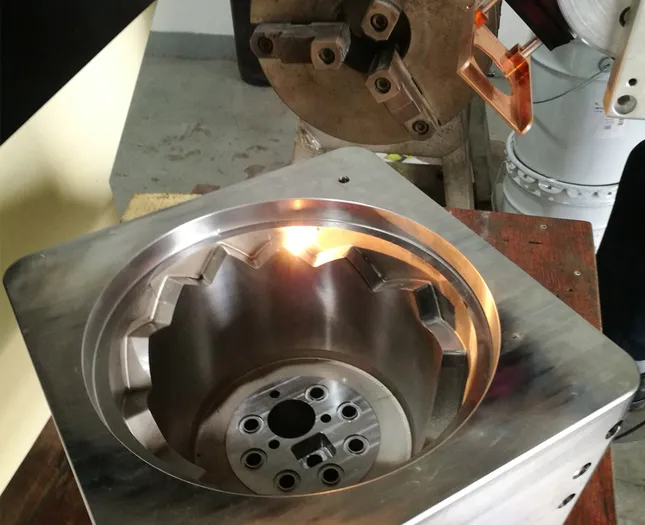

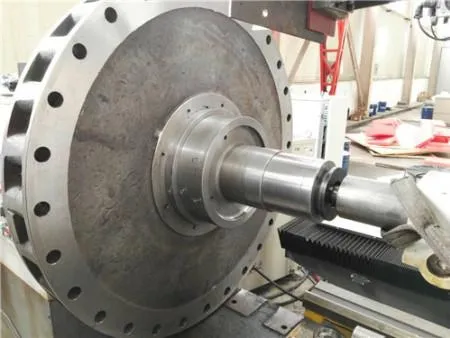

Industrial Applications

Frequently Asked Questions (FAQ)

Q How does laser hardening improve mold service life?

Laser hardening applies a concentrated laser light source to heat the metal surface precisely. The rapid cooling (self-quenching) structure transforms into martensite, vastly increasing the surface hardness, wear resistance, and corrosion protection without distorting the core of the mold.

Q What industries benefit most from this laser hardening system?

This system is heavily utilized across high-precision and heavy industries, including Aerospace, Automotive Manufacturing, Agricultural Machinery, Heavy-Duty Machinery, and Petroleum Metallurgy.

Q Can the working stroke and system fixtures be customized?

Yes. While the standard multi-station four-axis CNC system features an XYZ moving stroke of 500mm x 400mm x 300mm, the specific stroke and fixtures can be custom-engineered to suit the geometry and setup requirements of your precise workpieces.

Q What are the options for laser power configuration?

The SL-A017 model is highly versatile and supports various laser power output levels including 3000W, 6000W, and 12000W, operating at a central wavelength of 1080±10nm.

Q How is the equipment safely packed for international export?

To guarantee zero damage during transit, the complete laser hardening system is packaged in a Standard Marine Export Plywood Case, providing robust protection against humidity and mechanical impact.
