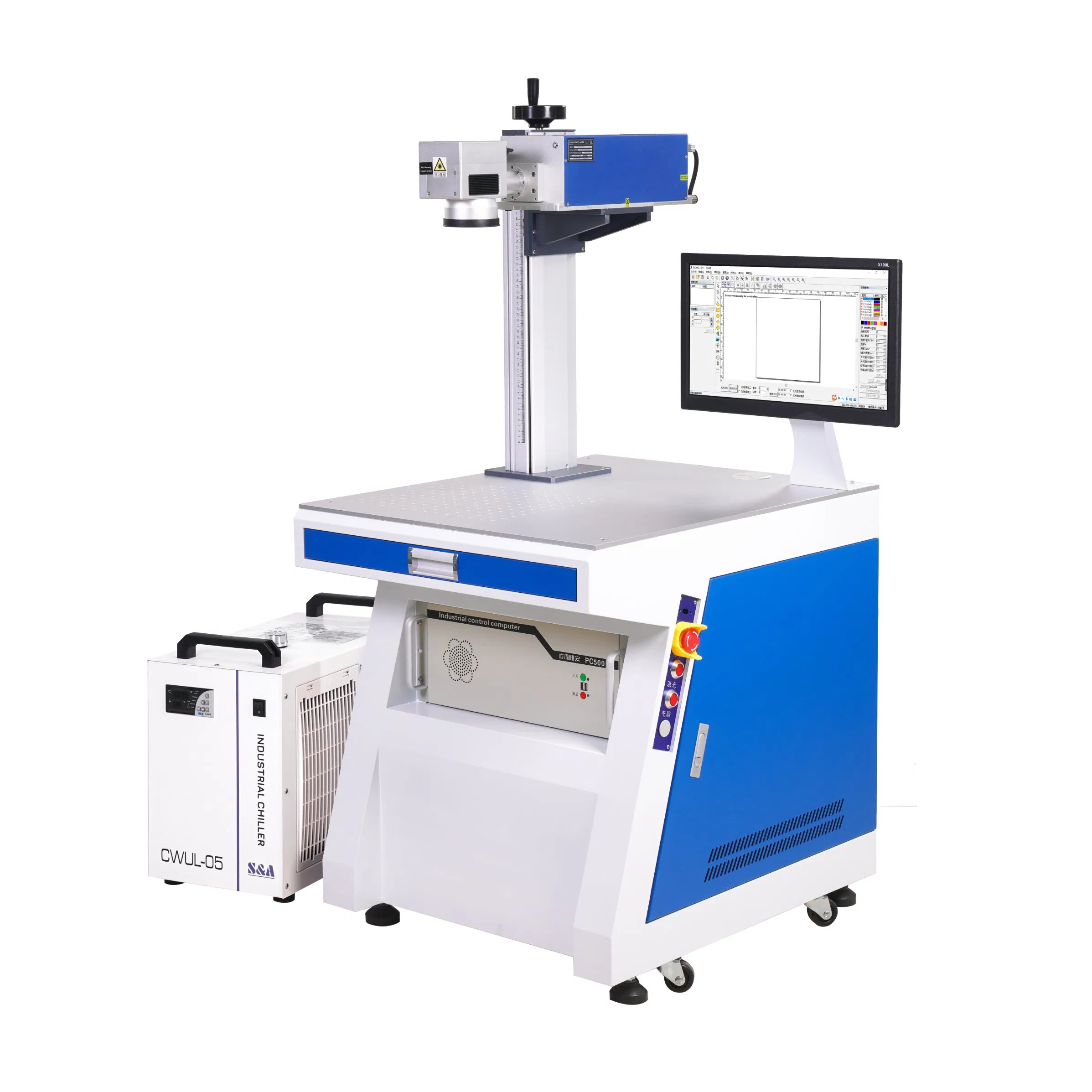

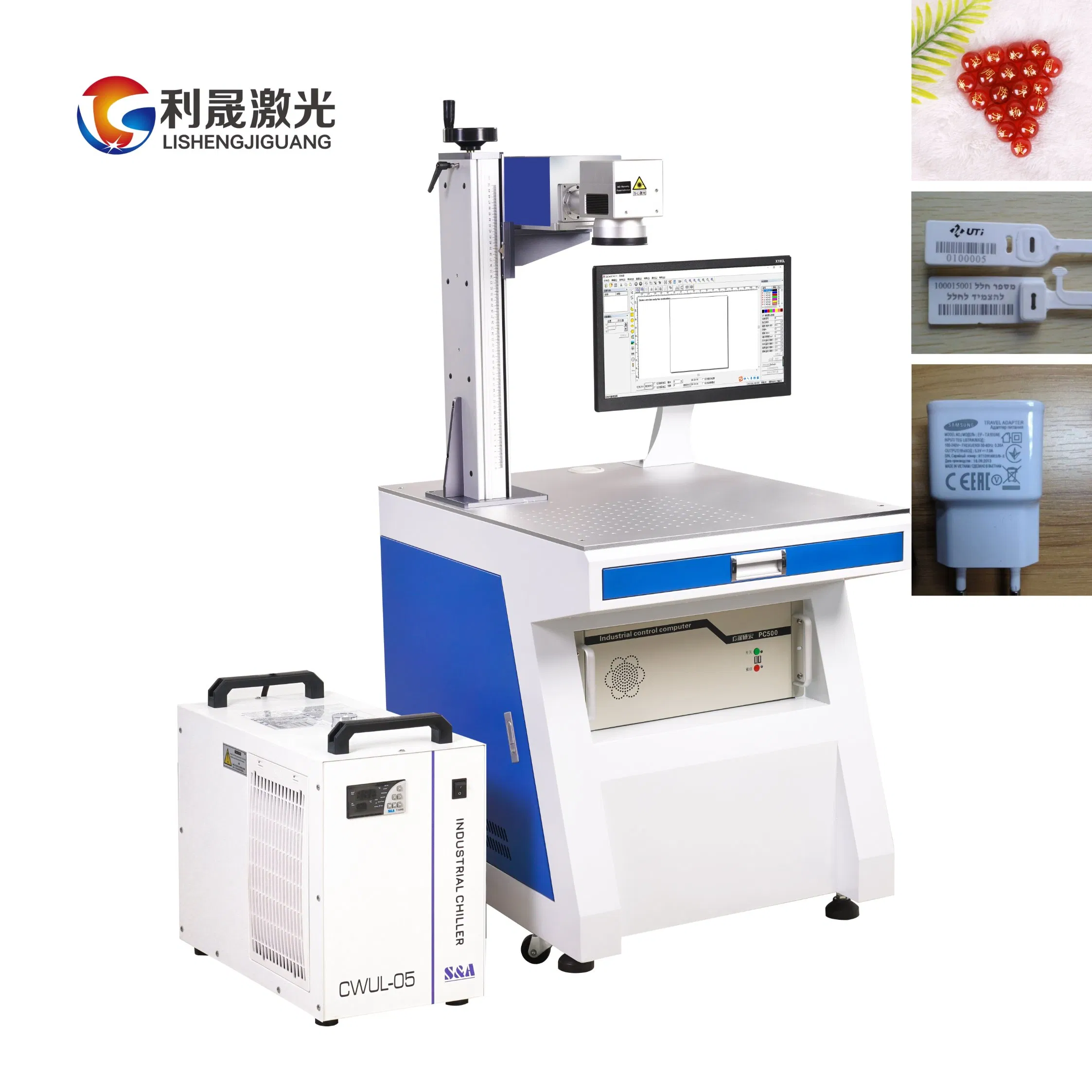

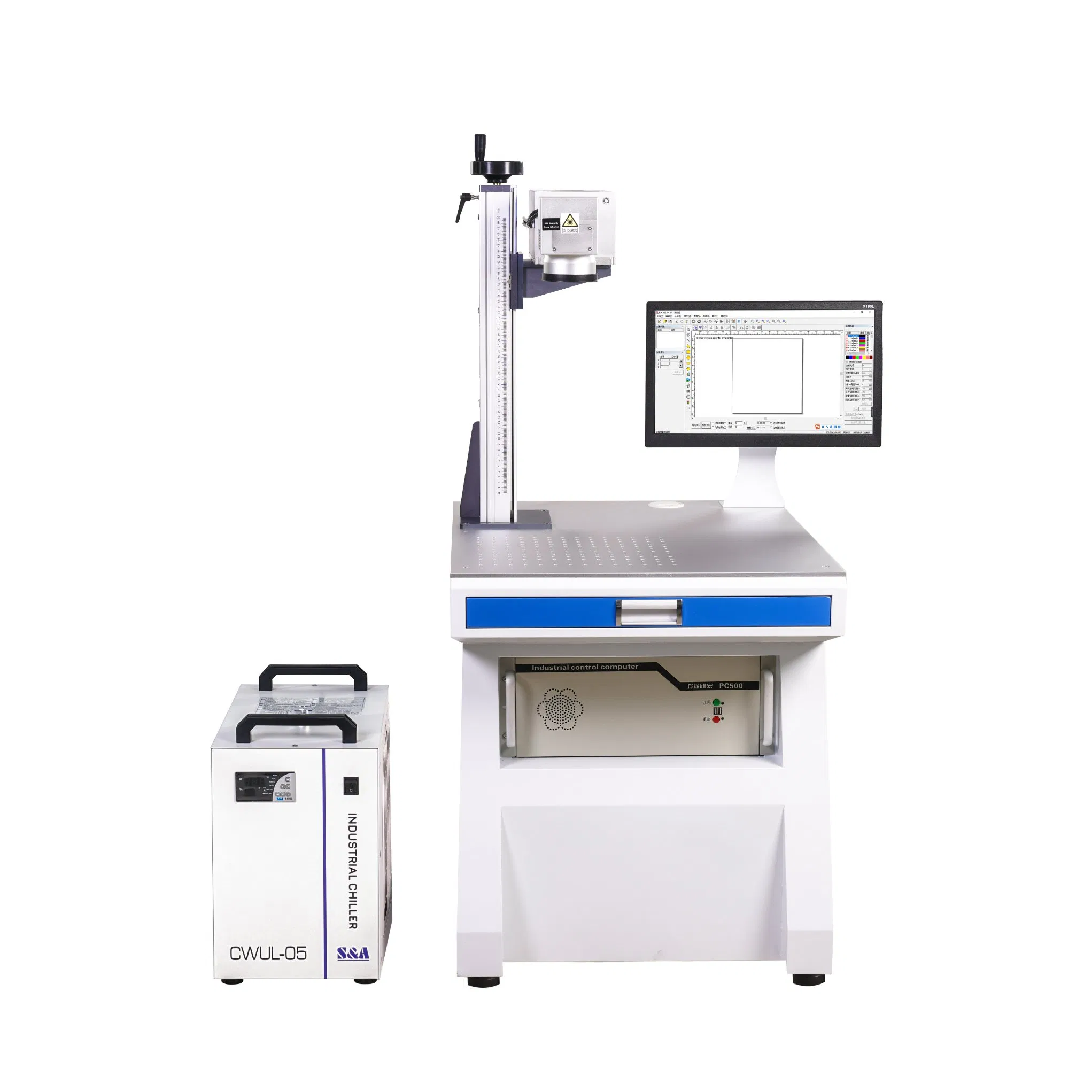

3W/5W UV Laser Marking Machine Laser Engraver with Water Cooling for Etching Barcode Date Laser Marker

Customization: Available
Warranty: 18 Months
Laser Visibility: Invisible

Product Description

UV Laser Marking Machine Laser Engraver with Water Cooling
📋

Technical Specifications

Model NO. LS-UV-5W
Applicable Material Metal and Nonmetal
Cooling System Water Cooling
Technical Class Pulse Laser
Laser Wavelength 355nm
Laser Classification Solid Laser
Type UV Laser Marking Machine
Marking Method Scanning Marking
Marking Speed 5000mm/S
Repeat Accuracy ±0.03mm
AC Power Supply 220V/50Hz±10%
Marking Area 140X140mm
Transport Package Export Standard Plywood
HS Code 84561000
Production Capacity 100 Sets/Month
📦

Packaging & Delivery

Package Size

100.00cm * 80.00cm * 125.00cm

Package Gross Weight

100.000kg

🔍

Product Description

UV Laser Engraving Machinery Details
The UV Laser Marking Machine is a high-performance series within modern laser marking machinery. It is meticulously engineered using a 355nm UV laser, utilizing advanced third-order intracavity frequency doubling technology. Compared with traditional infrared lasers, the focused spot of 355nm UV light is significantly smaller, which remarkably minimizes mechanical deformation of materials and ensures extremely low thermal impact. Consequently, this UV laser marking machine excels in ultra-fine marking and high-precision engraving tasks. It is exceptionally well-suited for diverse industries, including labeling food and pharmaceutical packaging, micro-hole drilling, high-speed glass cutting, and intricate pattern etching on silicon wafers.
Model Specs LS-UV-3W LS-UV-5W LS-UV-10W
Output Power 3W 5W 10W
Laser Wavelength 355nm 355nm 355nm
Adjustable Frequency Range 20-100KHZ 20-100KHZ 20-100KHZ
Marking Range 140x140mm 140x140mm 140x140mm
Marking Line Speed 5000mm/s 5000mm/s 5000mm/s
Repeat Accuracy ±0.03mm ±0.03mm ±0.03mm
Cooling Method Intelligent Water Cooling Intelligent Water Cooling Intelligent Water Cooling
Power Requirement 220V±10%/50Hz 220V±10%/50Hz 220V±10%/50Hz

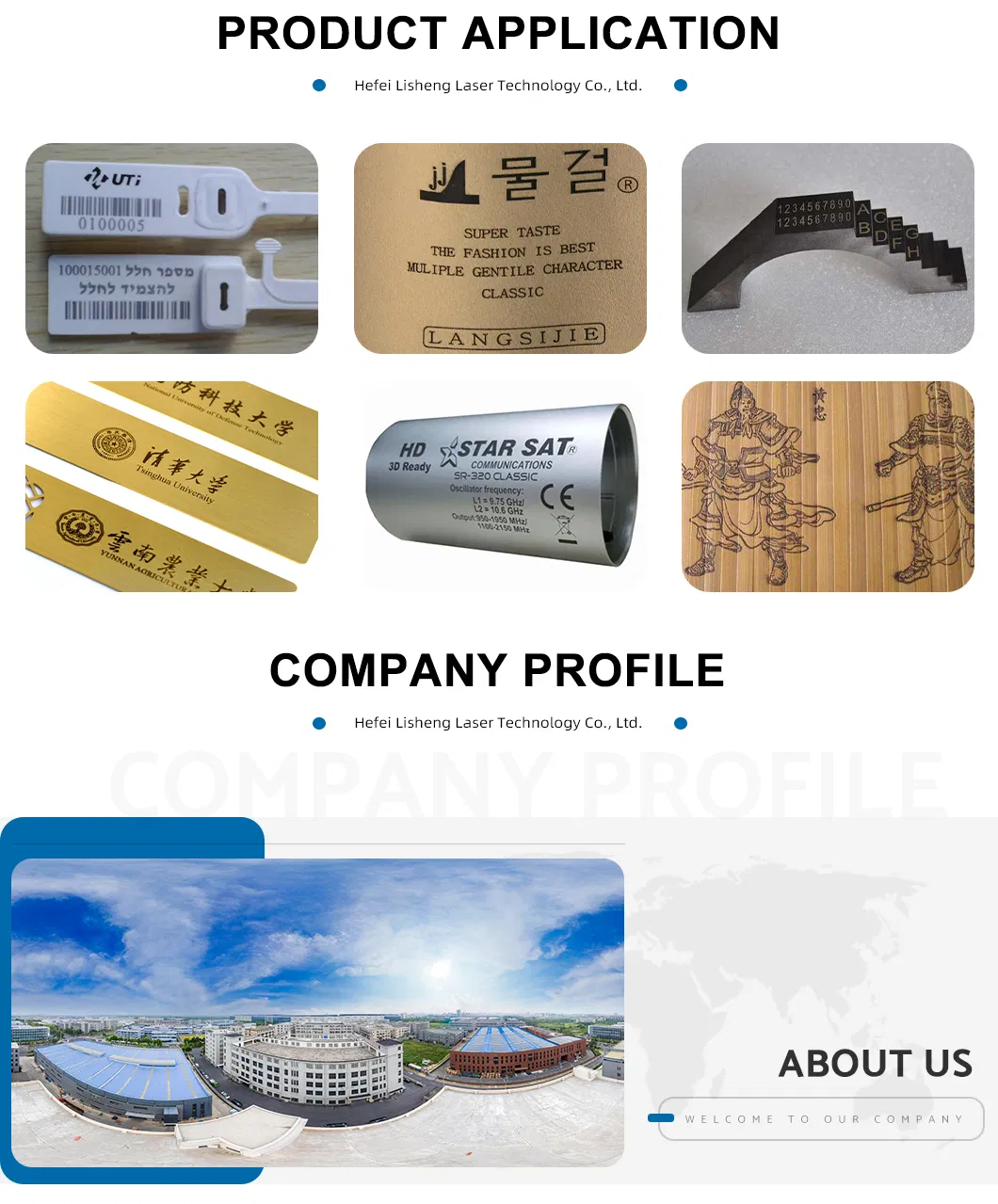

High-Speed Laser Coding and Engraving

Advanced Manufacturing Capabilities

As an advanced development, manufacturing, and support infrastructure, our production line focuses heavily on high-end optoelectronic and laser industrial equipment. Drawing together top technical talent in the laser sector, our developments foster micro-processing and robust applications of high-end laser hardware in modern manufacturing setups. The product lineup encompasses highly efficient Laser Welding Machines, Robot Laser Welding Machines, 3D Large-Format Laser Marking Machines, UV Laser Marking Machines, Fiber Laser Marking Machines, CO2 Laser Marking Machines, Laser Rust Removers, Automated Laser Welding Machines, and Automatic Polishing Machines. Guided by precision and reputation, our technologies deliver extensive laser processing solutions globally across diverse sectors including 3C manufacturing, mobile digital systems, automotive electronics, communication hardware, machine parts, cutting tools, bearings, precision machinery, and automated processing.

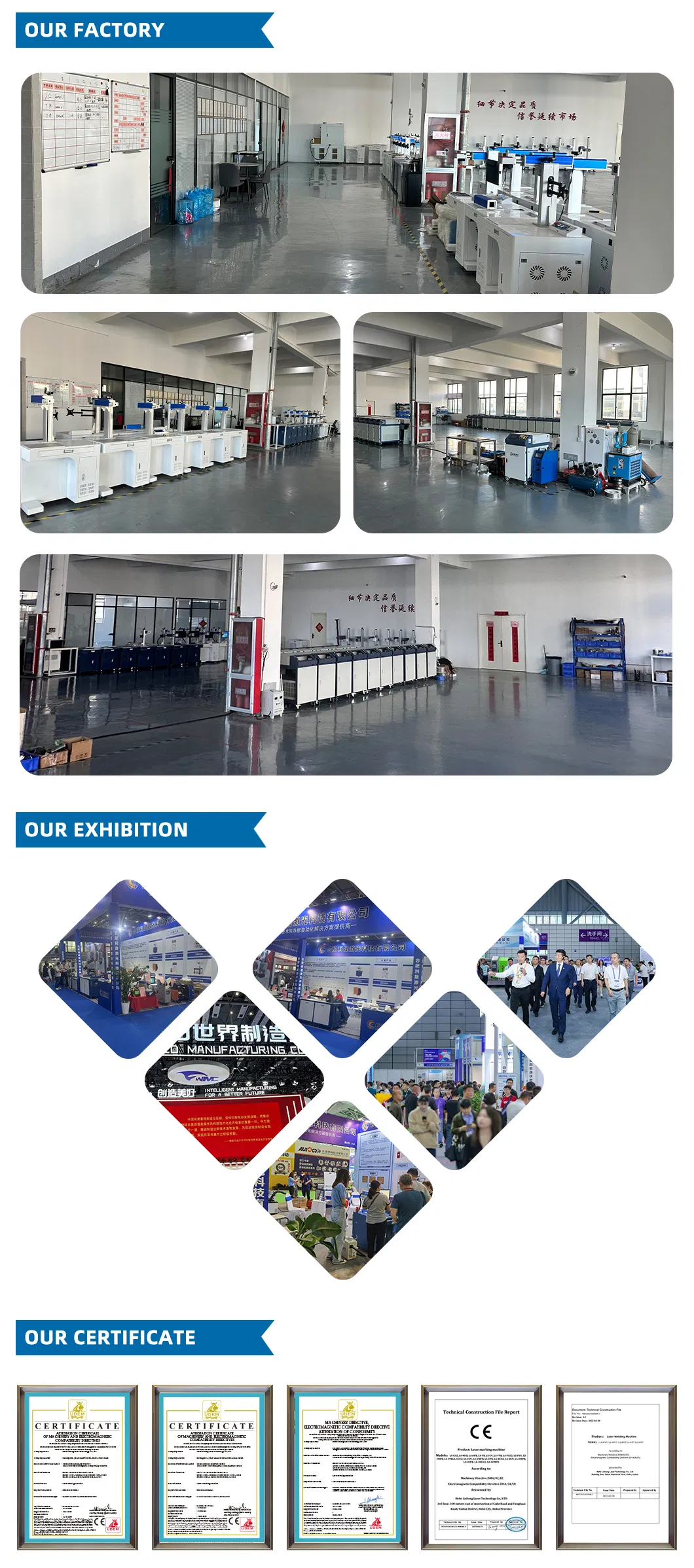

Precision Laser Processing Workflow
Laser Quality Inspection and Standards

Frequently Asked Questions

Q1. Are you a manufacturer?
Yes, we are an established professional laser equipment manufacturer with advanced production and design facilities.
Q2. How long is the delivery time?
For standard configuration machines, the delivery process takes 7 to 14 days. For customized or non-standard systems designed to meet client-specific specifications, delivery is generally between 15 to 30 days.
Q3. What payment methods are accepted?
We accommodate multiple standard payment systems, including T/T, L/C, and other secure transaction formats.
Q4. How can I know if this machine is suitable for my needs?
Before booking your order, we will supply comprehensive technical specifications and details for your complete reference. You can share your specific material processing goals with us, and our engineers will recommend the most suitable machine system for your requirements.
Q5. What materials can this UV laser marking machine process?

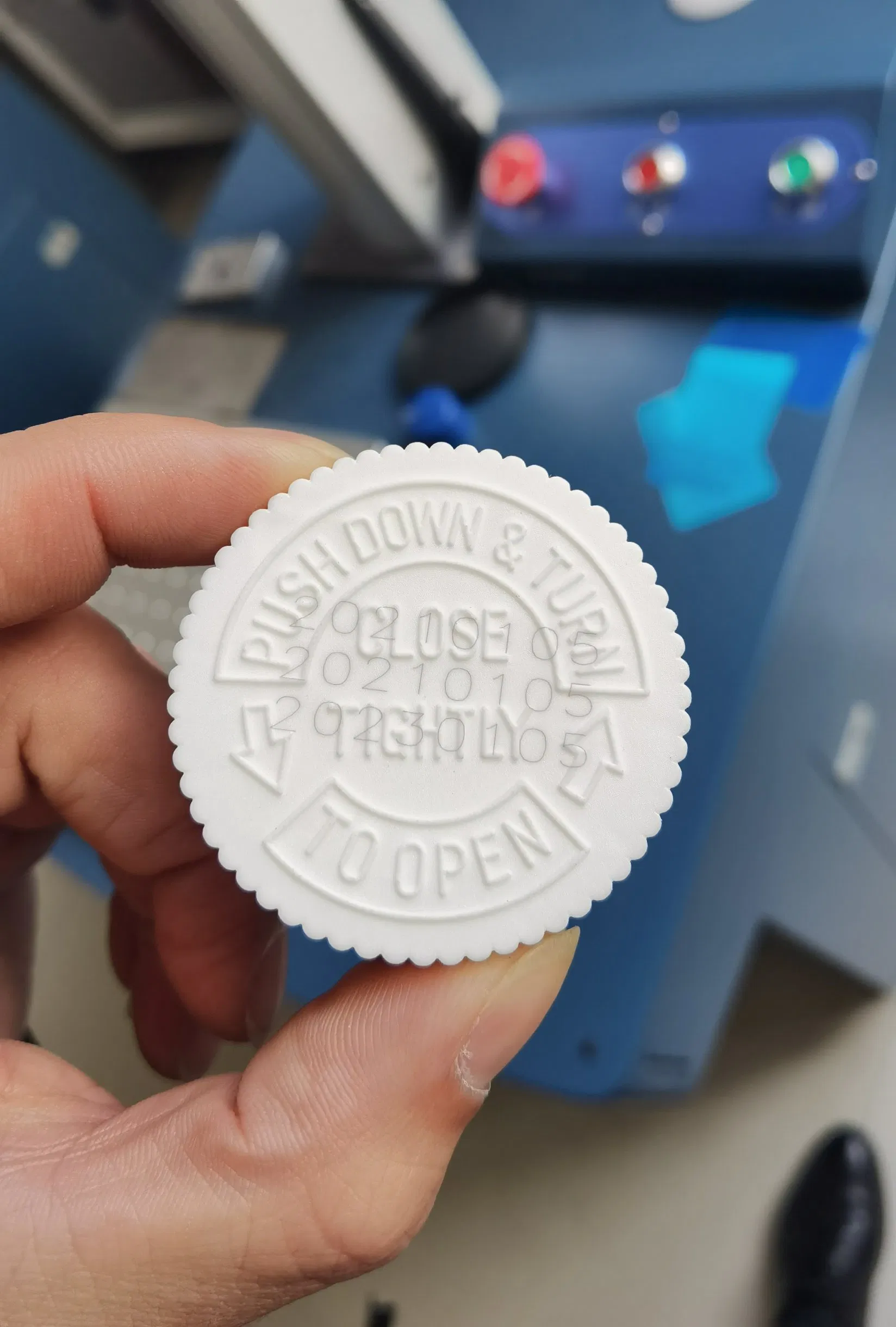

This UV laser marker is ideal for both metal and non-metal materials. It is particularly effective for high-precision etching on plastics, delicate glass, pharmaceutical packaging, silicon wafers, and micro-hole drilling due to its low thermal impact.
Q6. What is the advantage of the intelligent water cooling system?
The intelligent water cooling system provides consistent temperature control, ensuring stable performance during continuous manufacturing runs and effectively prolonging the functional life of the 355nm UV laser.
