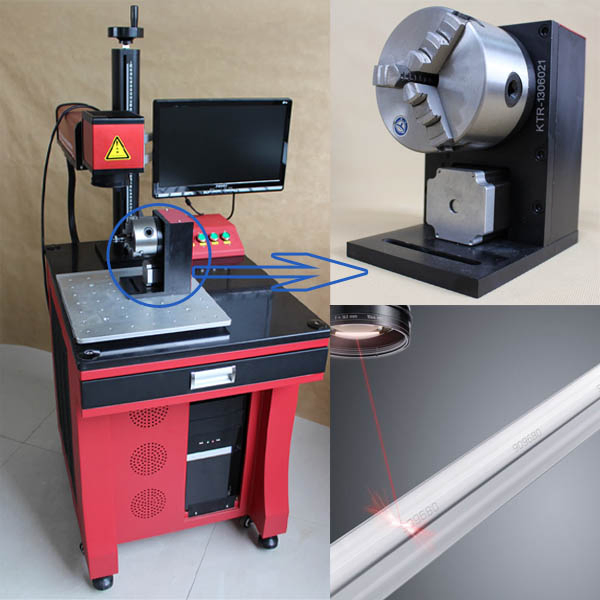

Premium Fiber Laser Marking Machine with Rotary Chuck
Available in 20W, 30W, 50W, 60W, 100W, 120W, 200W, 300W | Ideal for Cylinders, Pipes, Bearings, and More
Basic Specifications
Model NO.
KT-LF
Laser Visibility
Visible
Applicable Material
Metal
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Solid Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Engraving Machine Type
Laser Engraving Machine
Usage
Metal
Power
Small Power
Drive Type
Stepper Drive
Certification
CE, ISO
Laser Type
Fiber Laser
Control
CNC
Current
AC
Condition
New
Max Marking Speed
9000mm/S
Transport Package
Plywood Case
Specification
CE FDA ISO
HS Code
8456110090
Production Capacity
300unit/Month

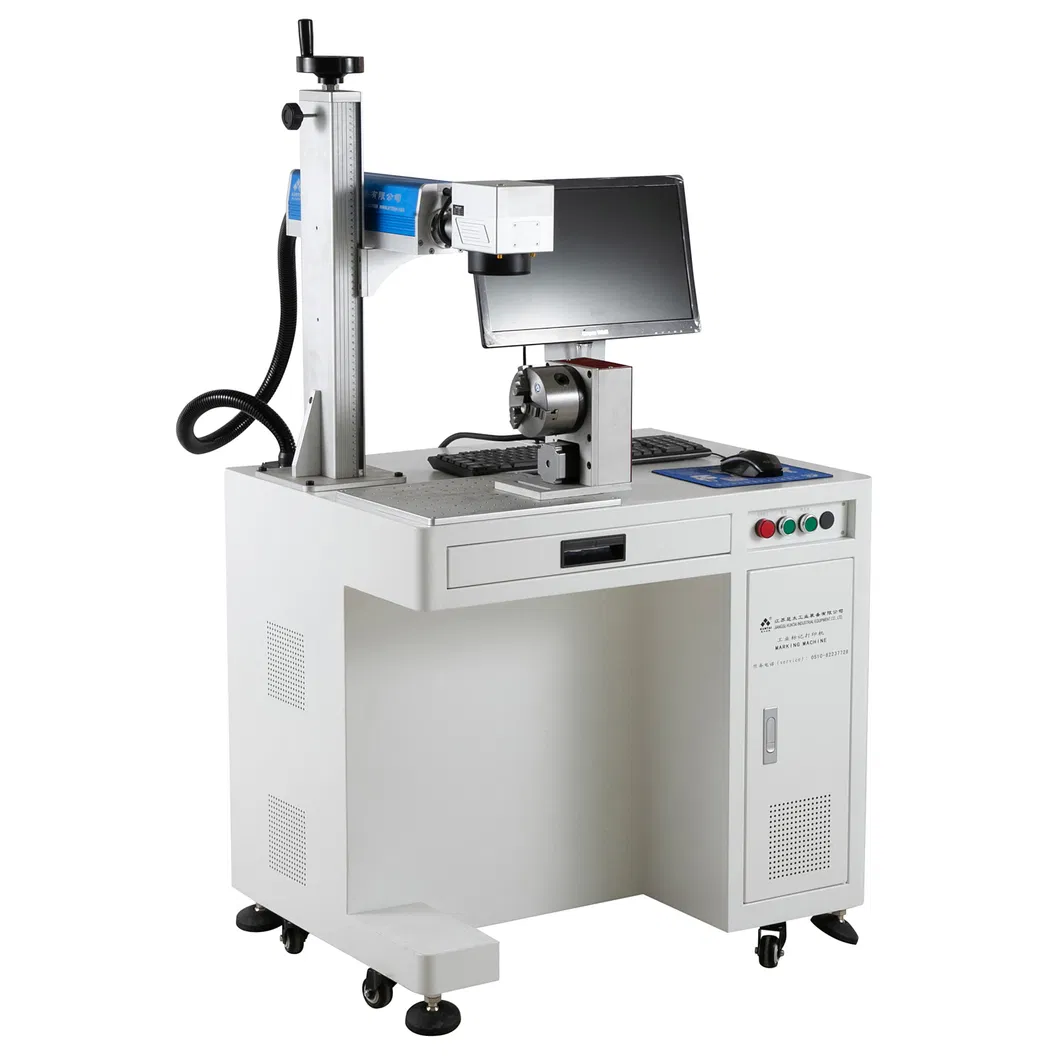

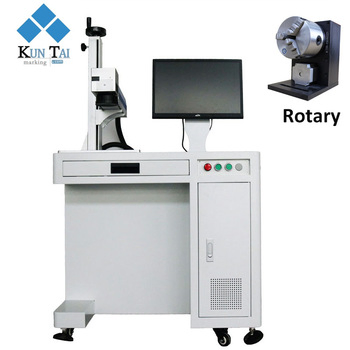

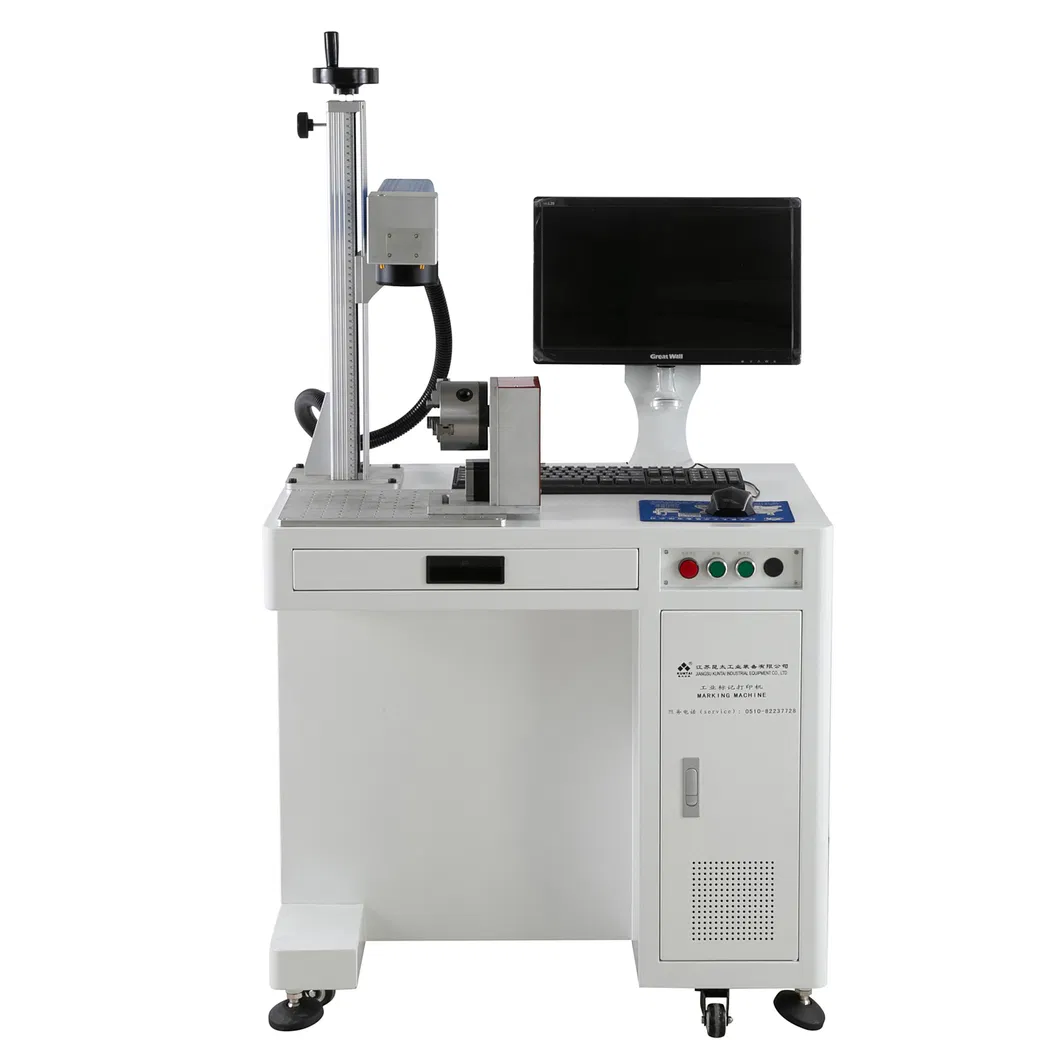

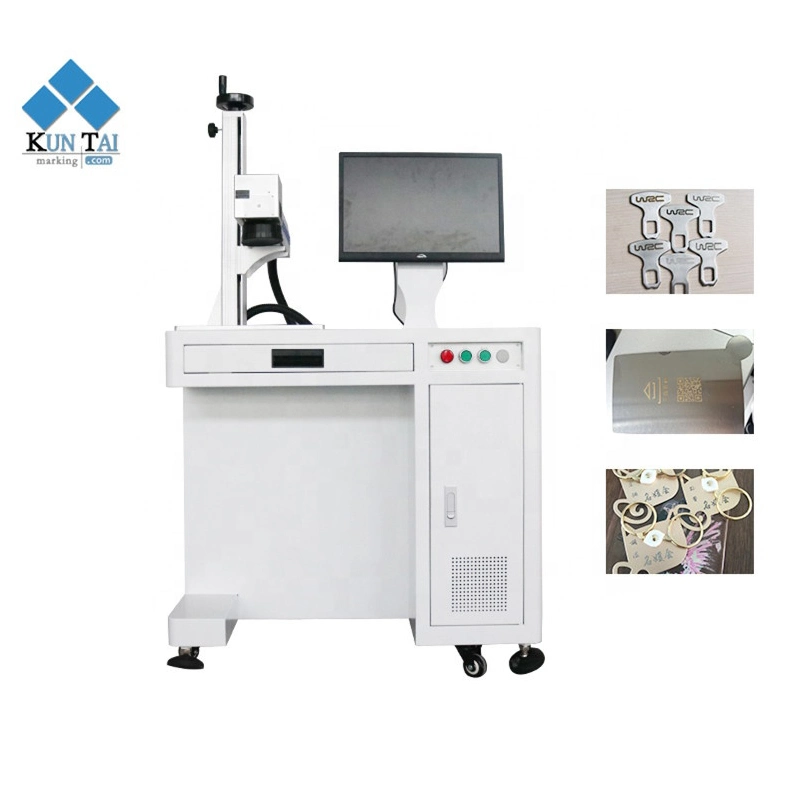

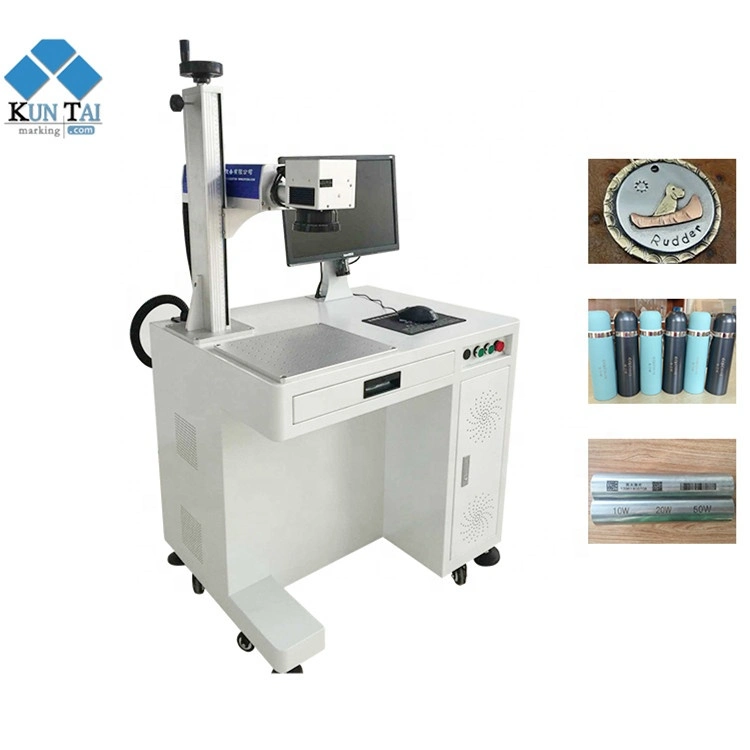

Product Gallery
Product Overview
KT-series high quality laser marking machine is a new generation laser marking system made with the newest laser technique in the world. It is designed with a fiber laser maker as the laser source, and utilizes a high-speed vibration-mirror scan system to actualize marking functions. The fiber laser marking machine features high conversion efficiency of electric-to-light, and is mainly applied to fields requiring high quality, depth, smoothness, and precision, such as horologe and communication products images marking.
Technical Specifications
| Parameter |
Detail Specification |
| Item No. |
KT-LF |
| Laser Output |
20W 30W 50W 60W 100W 120W 200W 300W |
| Max Marking Speed |
800 characters/s, height of character 1mm |
| Laser Wavelength |
1064nm |
| Beam Quality (M2) |
< 1.8 square metres |
| Standard Marking Area |
100mm × 100mm |
| Optional Marking Area |
150x150mm, 200x200mm, 250x250mm, 300x300mm |
| Rotary Component |
Dia100mm rotary |
| Marking Depth |
0.01-0.2mm, according to different materials |
| Whole Machine Power |
< 950 W |
| Min Line Width |
0.01mm |
| Repeatability Precision |
± 0.001mm |
| Cooling System |
Air cooling |
Product Advantages
1
USB Interface Connection: Highly compatible and works effortlessly with standard laptops.
2
Small and Compact: The dimension of the fiber marker is highly compact, making it incredibly convenient to move and set up.
3
High Precision: Offers extraordinary accuracy for premium and highly detailed marking designs.
4
Superior Laser Beam: Beam definition features ultra-fine resolution of 1 micron, up to 10 times more detailed than traditional options.
5
No Consumables Required: Enjoy maintenance-free operations for over 10 years without spending on consumables.
6
Extreme High Speed: Supports up to 800 standard characters per second, which is 3 to 5 times faster than traditional methods.
7
Direct Beam Output: Laser beam emits directly from the IPG fiber device without the need to calibrate or adjust the optical path.
8
Motorized Focus Support: Outfitted with motorized up/down focus adjustments and scale plates for precise and quick alignment.

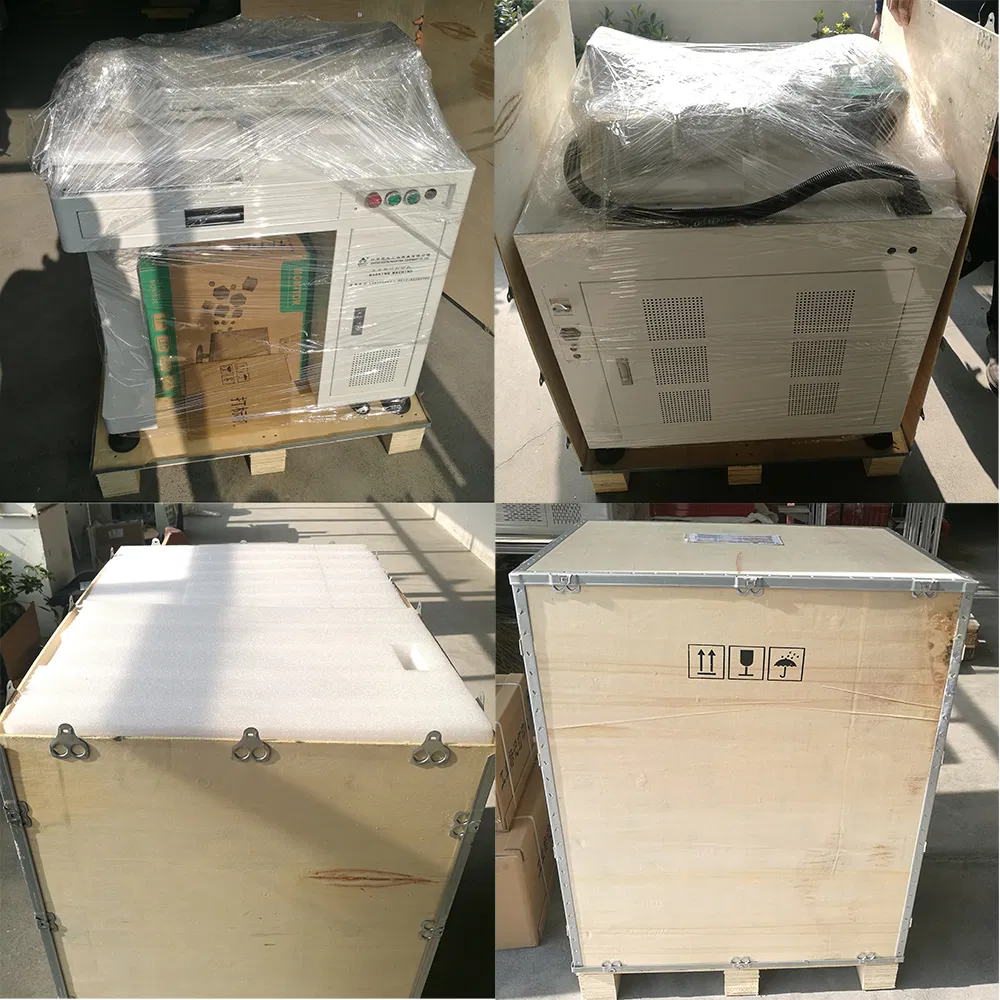

Packaging & Shipping Details
| Detail |
Standard Logistics Specification |
| Model |
KT-LF |
| Package Style |
Each unit packed securely in a plywood case |
| Outer Dimension |
90x70x115 cm |
| Gross Weight |
120 kg |
| Delivery Date |
Within 7 working days after payment is verified |
| Available Shipping Ways |
By sea, by air, or international express posting (door to door) |

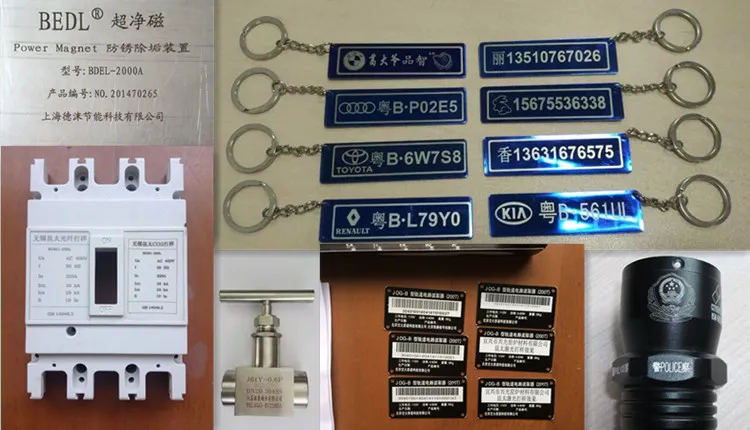

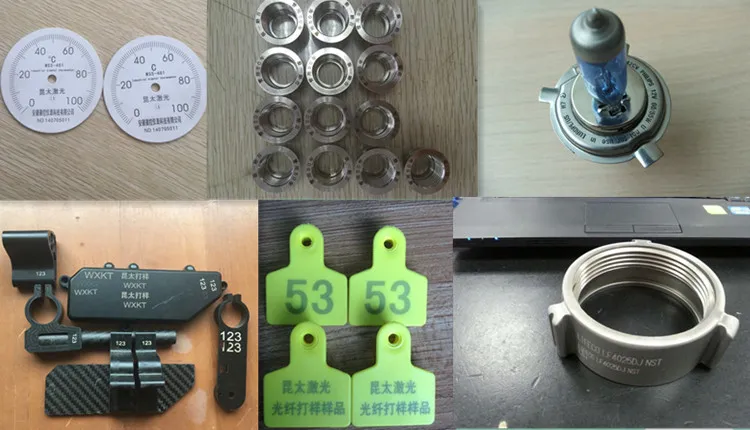

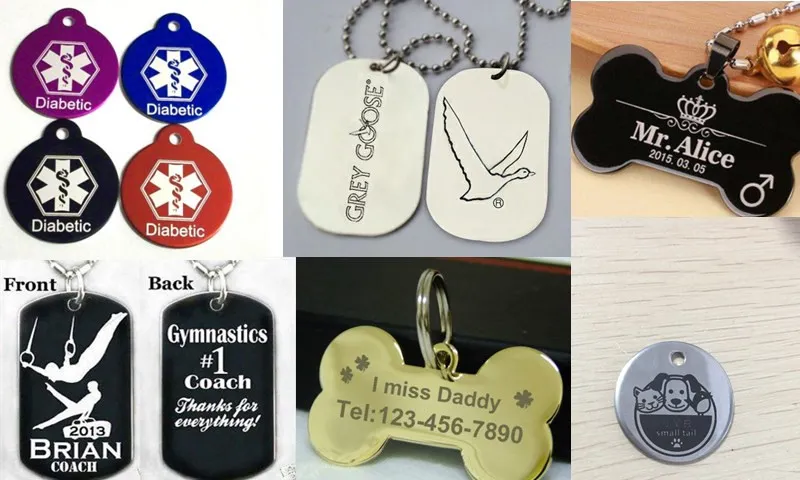

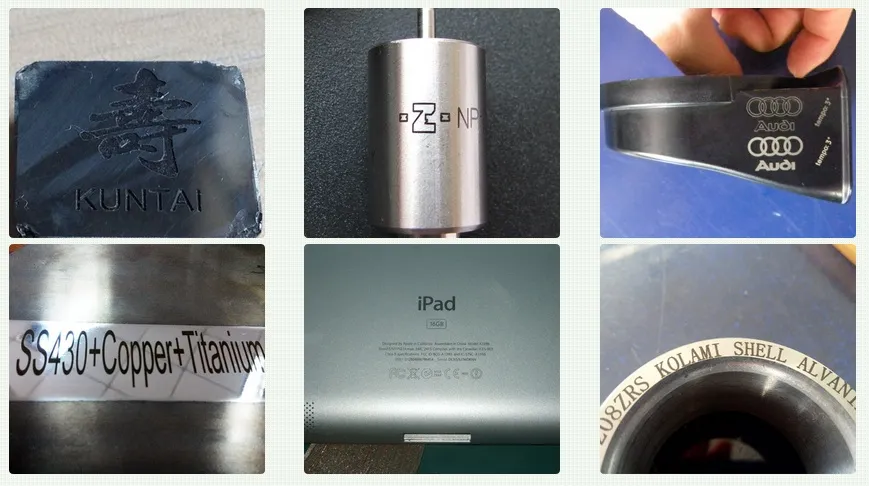

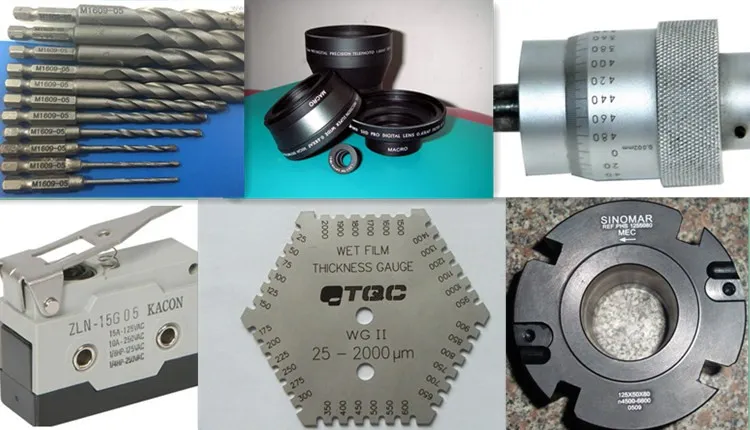

Marking Sample Gallery
Warranty & Support Commitments
- Comprehensive software package supplied to completely support all marking tasks.
- Free fixture customized design services and comprehensive system technical support.
- Guaranteed swift dispatch with a delivery commitment inside of 7 working days.
- Fully customized manufacturing capability catered precisely to unique demands.
- Reliable TWO-year coverage for the laser source, and a full ONE-year warranty for other parts.
Quality Certifications

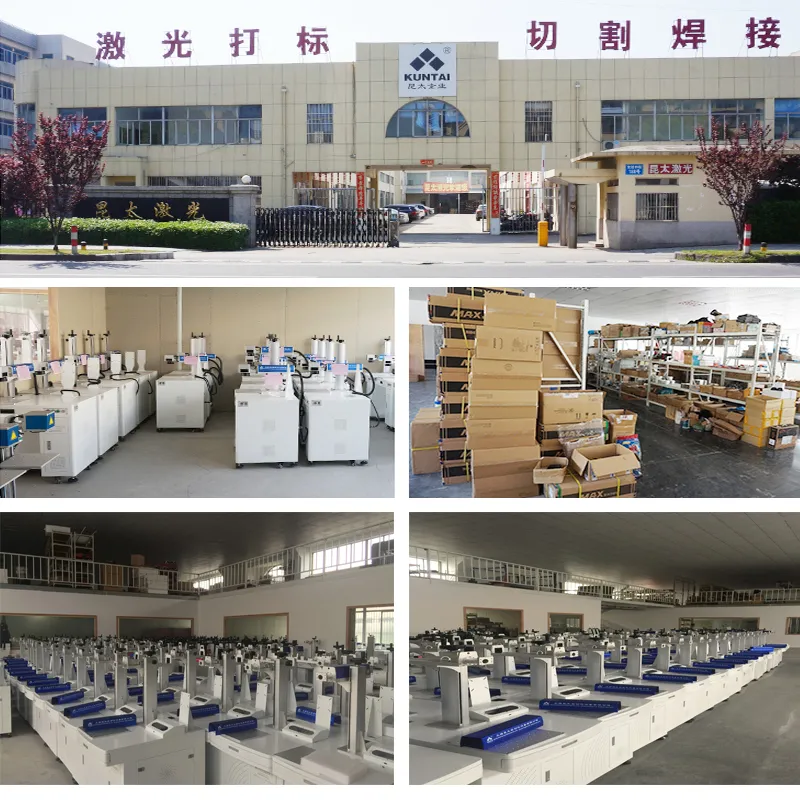

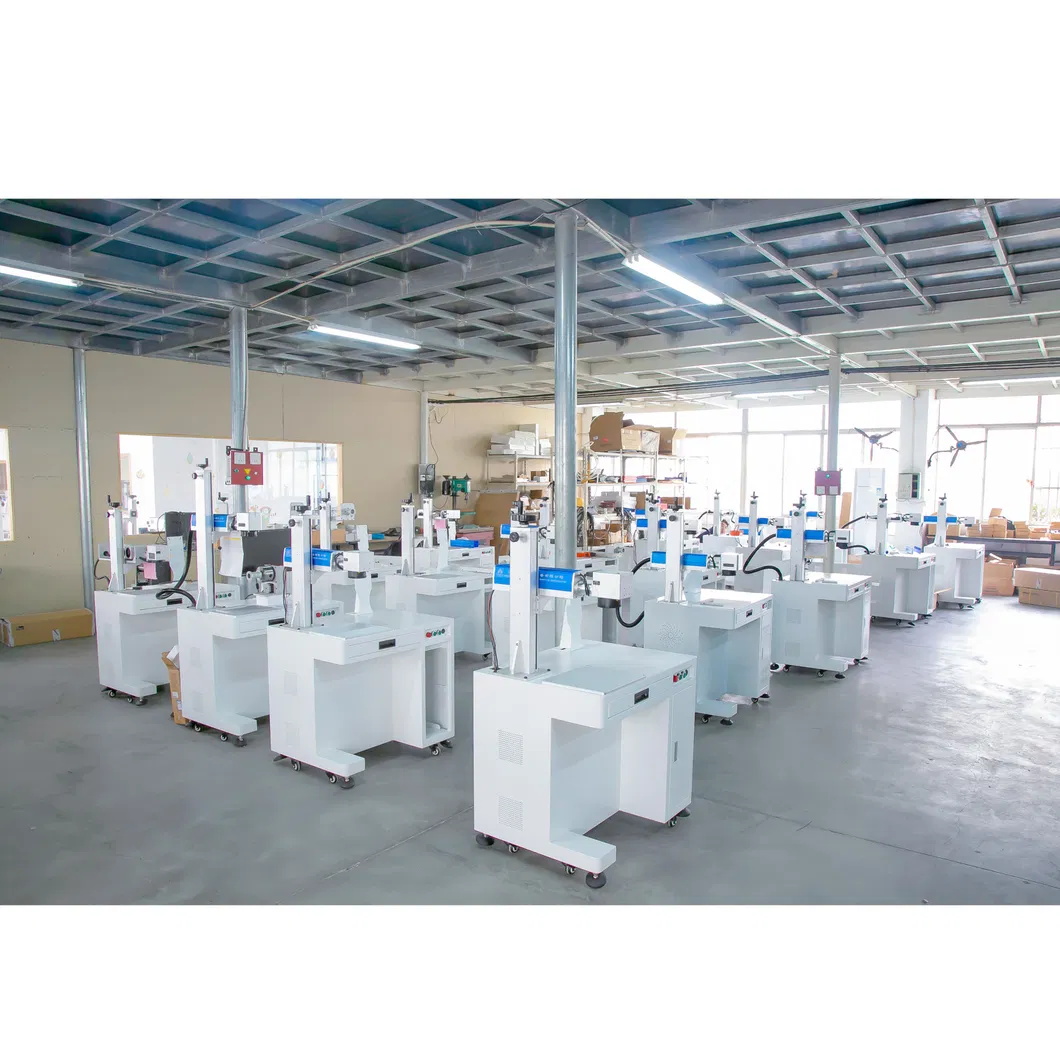

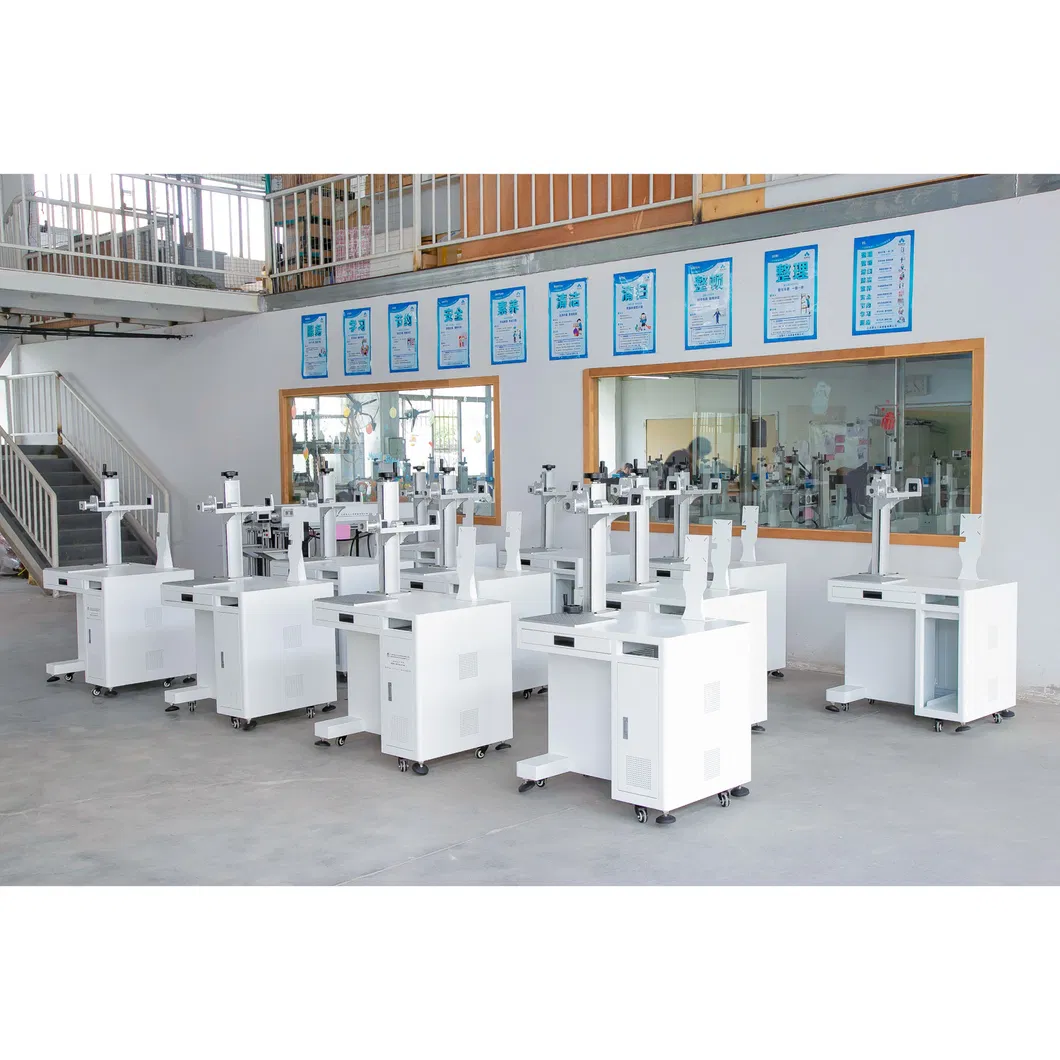

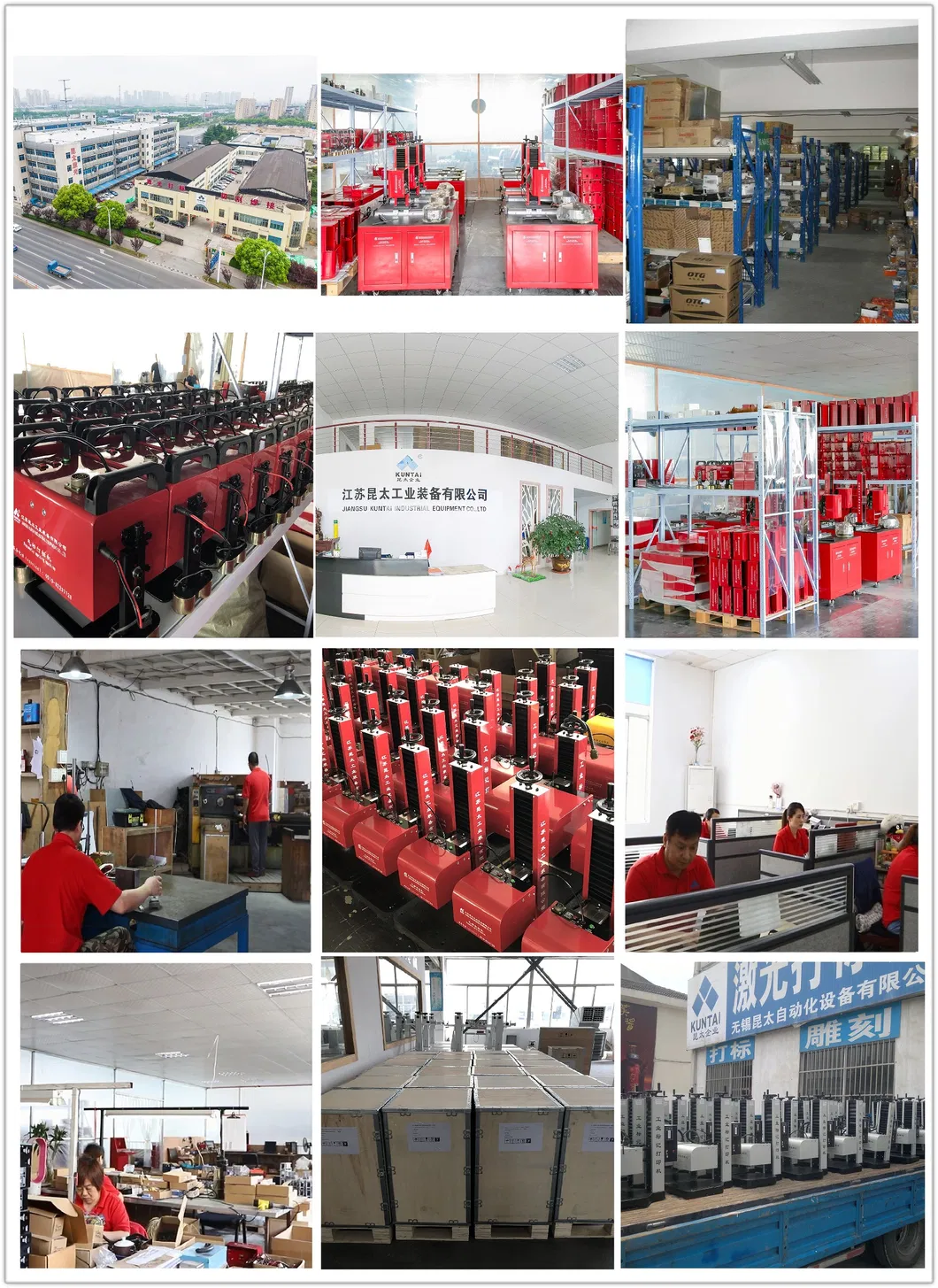

Manufacturing Showcase
Frequently Asked Questions
Q What materials are suitable for this fiber laser marking machine?
This fiber laser marking system is highly optimized for metals, but can also work excellently on a wide variety of select plastic and non-metal materials. It provides deep, smooth, and incredibly precise results.
Q What are the available power outputs for this model?
We offer a highly versatile power range to accommodate different thickness and engraving depth needs, including 20W, 30W, 50W, 60W, 100W, 120W, 200W, and 300W.
Q Does it support engraving on rounded or cylindrical objects?

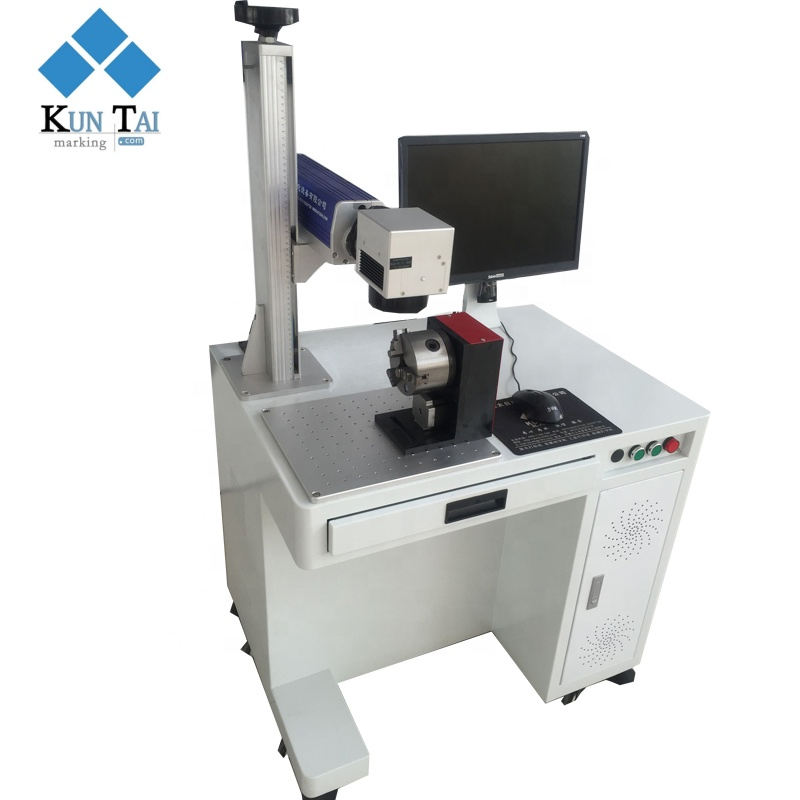

Yes! This unit comes equipped with a professional 100mm rotary chuck accessory, making it perfect for marking on pipes, bearings, cylinders, and other curved geometries.
Q Is there any ongoing maintenance or consumables cost?
No, this fiber laser marking technology requires absolutely zero consumables. A single unit is engineered to run continuously for over 10 years without requiring new parts.
Q What kind of warranty and software support is provided?
We back this system with a 2-year warranty for the high-end laser source, along with a 1-year warranty for all other spare components. The configuration software is included, and we provide lifelong technical support.
Q How long does the packaging and shipping process take?
Every unit is safely cradled in a specialized plywood case. The order is dispatched within 7 working days once payment clears. Shipping methods include air cargo, sea freight, or convenient door-to-door express delivery.
