Stainless Steel Laser Etching / Engraving Machine

1 / 5

Stainless Steel Laser Etching / Engraving Machine

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO. Au-1250, Au-1550, Au-2050

Type Electrical Etching Machine

Object Metal

Usage Marking & Lettering, Corrosion & Hollowed-out, Make Signage

Certification ISO9001: 2000, CE

Etching Type Laser

Precision High Precision

Condition New

Size up to Requirement

Transport Package Sea Worthy Packing

Specification Up to Requirement

HS Code 8460902000

Production Capacity 20 Set/Year

Product Description

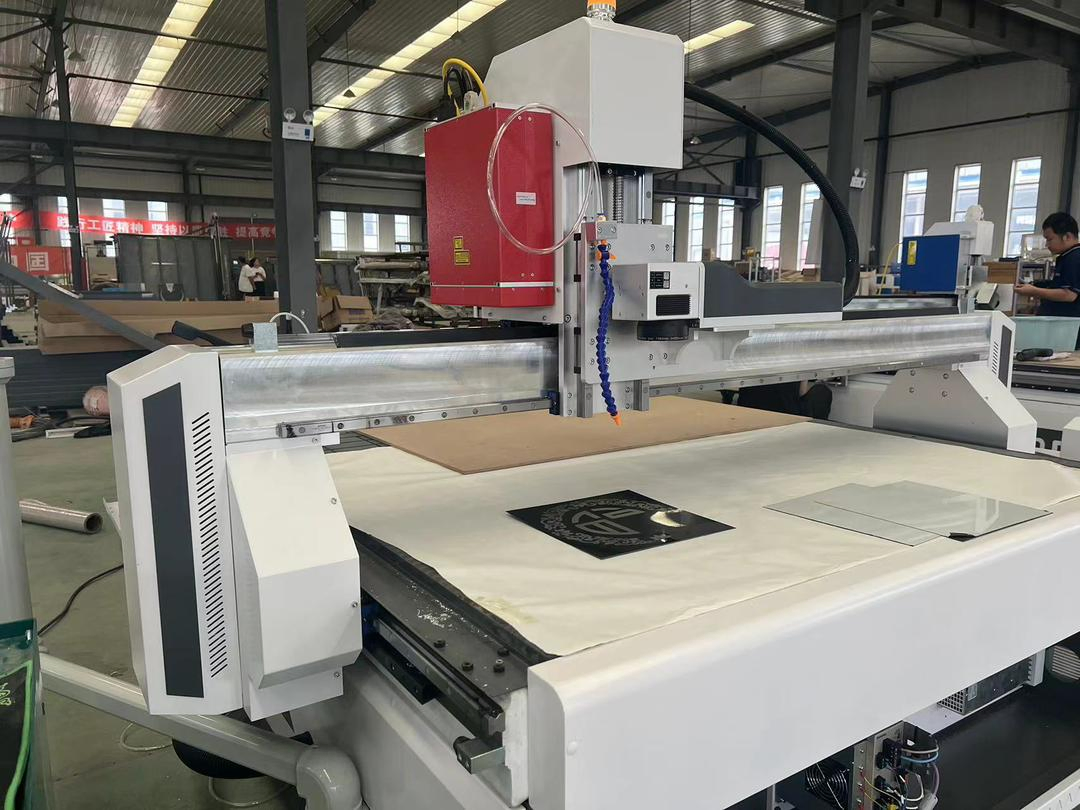

Laser Etching / Engraving Machine

1. Scope of Application:

This laser etching /engraving machine is the latest high-speed, high-precision mirror stripping equipment developed according to the needs of the current intelligent mirror industry; This machine is not only suitable for architectural glass, automotive glass, furniture glass, process glass, decorative glass, cabinet glass intelligent mirror industry paint mirror process, but also suitable for most plastics and stainless steel, alumina, copper and other alloy materials surface marking.

2. Equipment Performance Characteristics:

Using new type IPG fiber laser, good beam quality, high power stability, low power consumption, long service life;
Adopting gantry structure, high strength welding frame, overall stress relief treatment, good rigidity, small deformation;
High precision servo motor drive, with high precision transmission mechanism, high installation accuracy, large transmission torque, small transmission error, good dynamic characteristics.

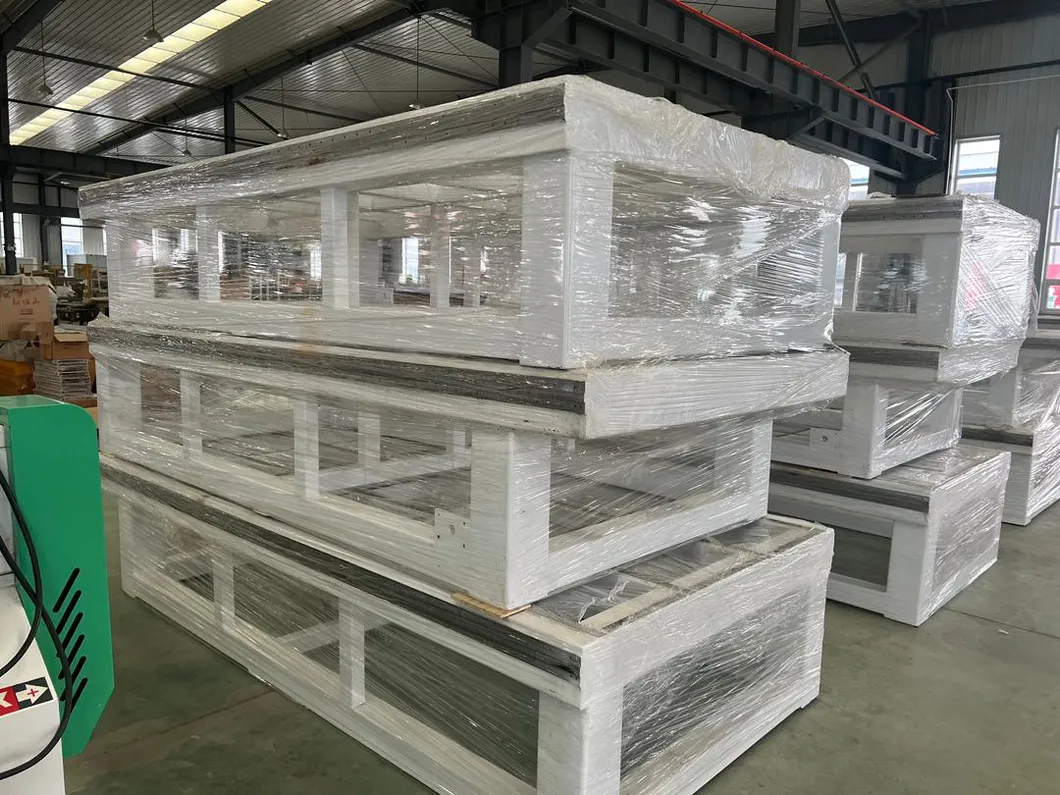

Stainless Steel Laser Etching / Engraving Machine Details

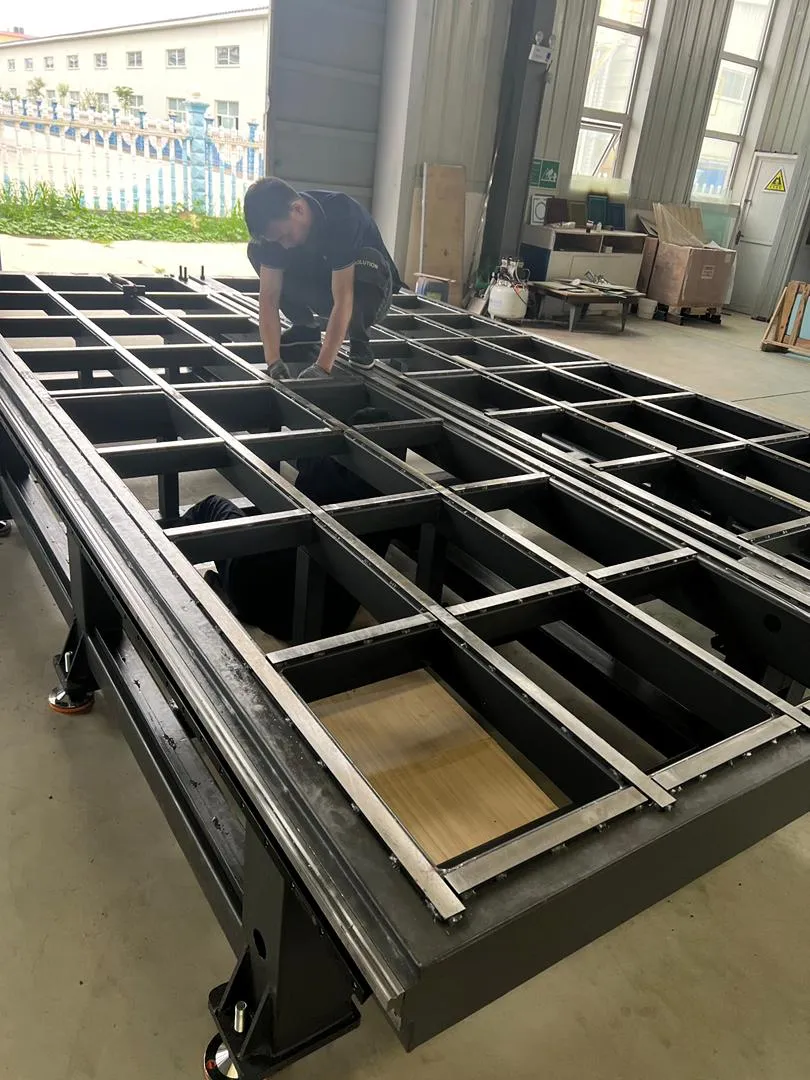

Stainless Steel Laser Etching / Engraving Machine Structure

Large automatic lifting Z-axis table, to ensure that different thickness, different materials of the plate high-quality processing, less fault points, high stability.
Self-developed splicing engraving technology, can be carved in different thickness, different materials on the surface of any pattern, pattern all process parameters can be fully digital control, greatly reduce manual intervention, intelligent and simple operation;

The overall area of the equipment is small, the operation is simple and safe, no special requirements for the operator, a little training can be started, fast speed and high precision, save labor. The machine adopts imported or domestic first-line brand electrical pneumatic element, which has the advantages of high-cost performance, easy operation, small investment and high efficiency, greatly reducing the comprehensive cost of equipment use, and is the best choice for small and medium-sized plate enterprises.

3. Main Parameters

Equipment Basic Parameter

Equipment Model C1225-100W (Large plate laser engraving machine)

Processing Mode Fiber Laser

Processing Size 1500*3000MM

Area Occupation 3600*2350*900MM

Weight 1600KG

Main Technical Parameters of the Equipment

Total Power 1.5KW (less than 1 KWH in 1 hour of normal use)

Laser Type Fiber, Pulse

Laser Power 100W

Theoretical Life of the Laser 80,000 Hours

Laser Wavelength 1064nm

Marking Range 200*200mm (splicing optional)

Mechanical Repetition Accuracy ≤±0.25mm

Laser Repetition Accuracy ≤±0.002mm

Engraving Line Speed ≤7000mm/s

Motion System Taiwan laser control system + high precision servo motion system

Working Power Supply AC190-240V, 50-60Hz

Working Environment +5--35ºC, Relative Humidity 30-60%

Systems and Software

Computer & OS Microsoft Windows 98, 2000, XP, Win7, Win10 Chinese/English OS

User Interface Multi-axis Laser Marking Control System

Design & Vector Integration

Design Software Compatibility AutoCAD, CorelDRAW, type3, Carving Master, Wentai, and other vector design software

Supported Graphics Formats EPS, DXF, PLT, CDR, AI, AC6, and other vector graphics

4. Equipment Main Accessories

Name	Brand	Advantage
Laser generator	Chuangxin	Full power 100W, theoretical service life of about 80,000 hours
Vibration lens	Jinhaichuang	Durability is 2 times that of domestic products
Field mirror + beam expanding mirror	Nanjing Bochang	-
Guide + slider	Taiwan TBI/STAF	High hardness
Bearing	NSK imported from Japan	-
Rack	Taiwan Kaihe	High hardness, high precision
Main pneumatic parts	Imported from ADEke	-
Main electrical appliances	Chint	-
Synchronous belt	Imported Kawamoto	-
Laser control system	Taiwan	Circular rectangular adaptive
Motion control system	CNC control system	Continuous chip, automatic leveling, no manual operation
Photoelectric positioning	Imported Panasonic	Can automatically find edge, automatic positioning
Cable line	Shanghai Cardiff	Special flexible cable
Computer	Laser machine special	Cost-effective, one year warranty
Servo motor	Shenzhen Jiemekang servo	Double drive, four motors, three 750W a 400W
Vacuum pump	Air-cooled pump	Standard
Smoke exhaust	Fan exhaust	Standard
Press roller	Pneumatic press roller	Optional
Proximity Switch	Jienuo	Sensing range within 2mm
Beam	Seamless steel	Finely processed
Side panel	Finished aluminum plate	6061T6 material 25mm thick
Machine body	Welded	Fire aging treatment, permanent deformation-free
Oil-water overvoltage	Imported LS	Manual lubrication, avoid freezing in winter, increase the service life of equipment
Transformer	Taiwan Mingwei	Body with voltage regulator filter switching power supply, enhance the stability of equipment

Frequently Asked Questions

Q: What are the primary applications of this laser etching machine?

A: This machine is highly optimized for the intelligent mirror industry, including paint mirror processing on architectural glass, automotive glass, furniture glass, decorative glass, and cabinet glass. It is also excellent for marking surfaces of most plastics, stainless steel, alumina, copper, and various alloy materials.

Q: What kind of laser technology does this machine use, and what is its expected service life?

A: It uses a premium 100W IPG pulse fiber laser generator (Chuangxin brand) which features excellent beam quality, high stability, low power usage, and an outstanding theoretical service life of approximately 80,000 hours.

Q: What is the processing size capacity and physical footprints of the equipment?

A: The machine supports a maximum processing size of 1500*3000MM. The structural dimensions of the equipment are 3600*2350*900MM with a total weight of 1600KG.

Q: What is the power consumption of this laser engraving machine during normal use?

A: The equipment features a total rated power of 1.5KW, which is exceptionally efficient, consuming less than 1 KWH of electricity in an hour of normal operation.

Q: Which design software systems and graphic formats are compatible?

A: It fully integrates with popular vector design software like AutoCAD, CorelDRAW, type3, Carving Master, and Wentai. It supports standard graphics formats including EPS, DXF, PLT, CDR, AI, and AC6.

Q: How accurate is this laser etching system?

A: The system provides extreme precision, delivering a mechanical repetition accuracy of ≤±0.25mm and an ultra-precise laser repetition accuracy of ≤±0.002mm at engraving line speeds up to 7000mm/s.
