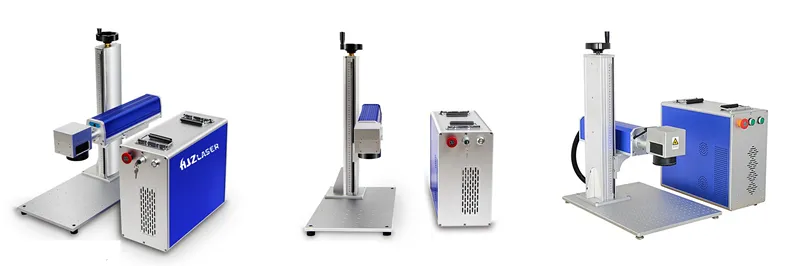

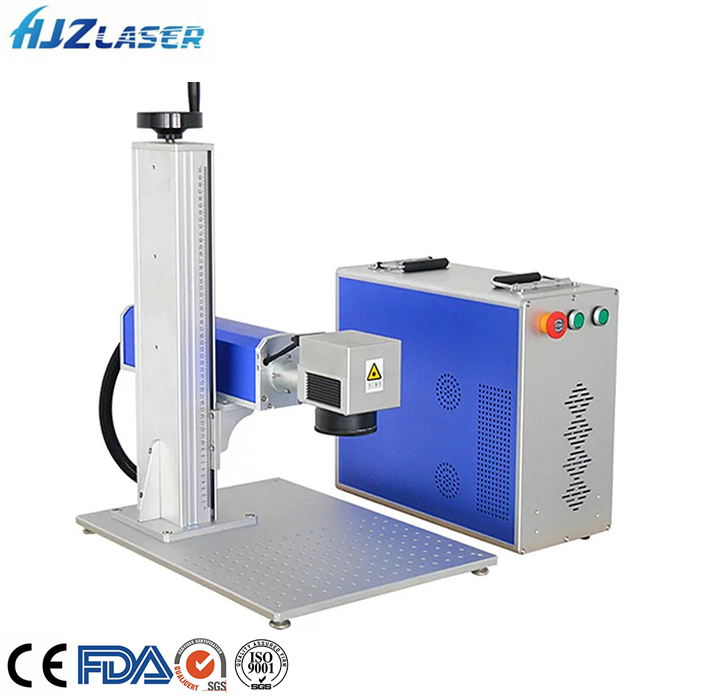

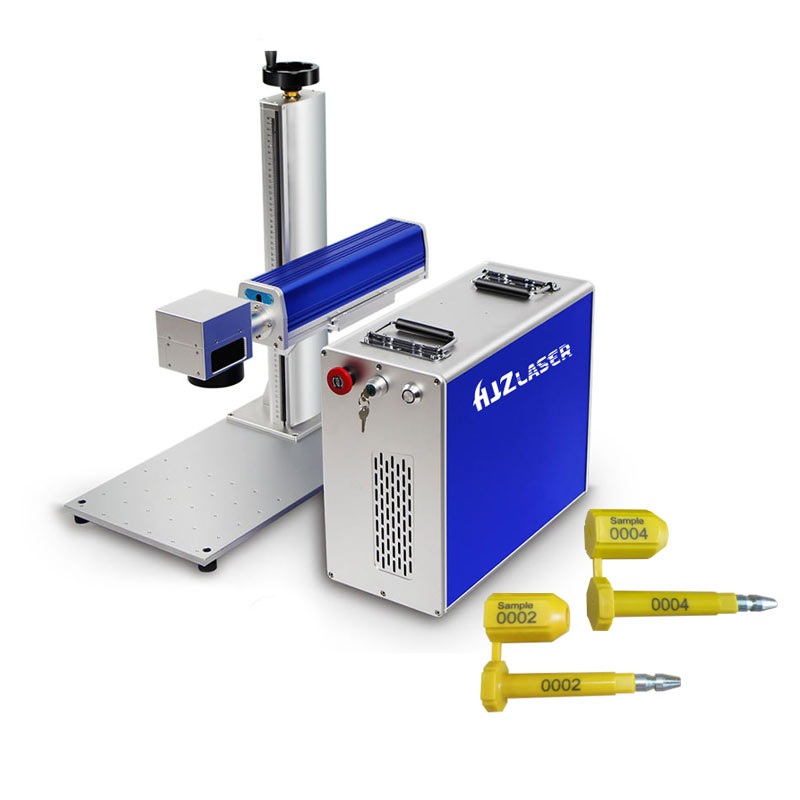

Portable Split Metal Steel Laser Laser Engraving Engraver Etching Markers Laser Marking Machines

Send Inquiry

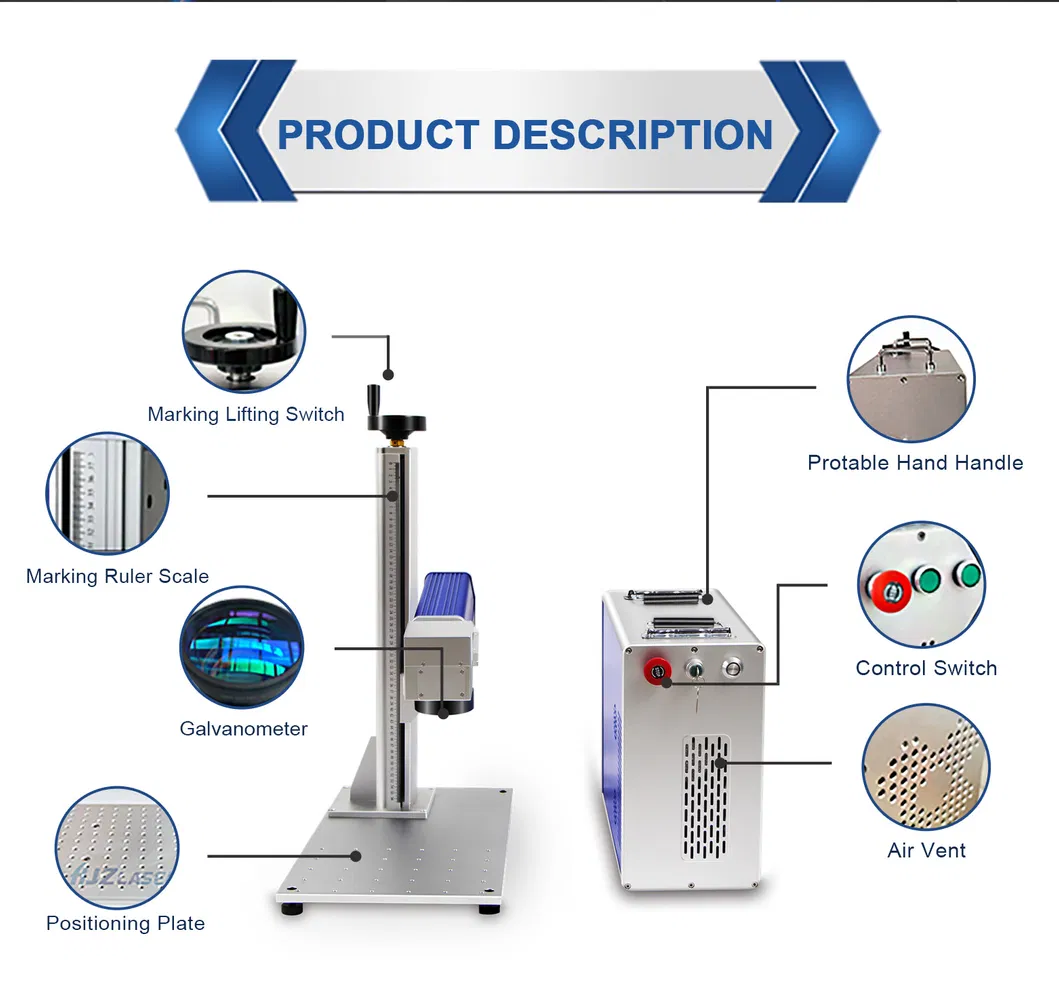

Product Description

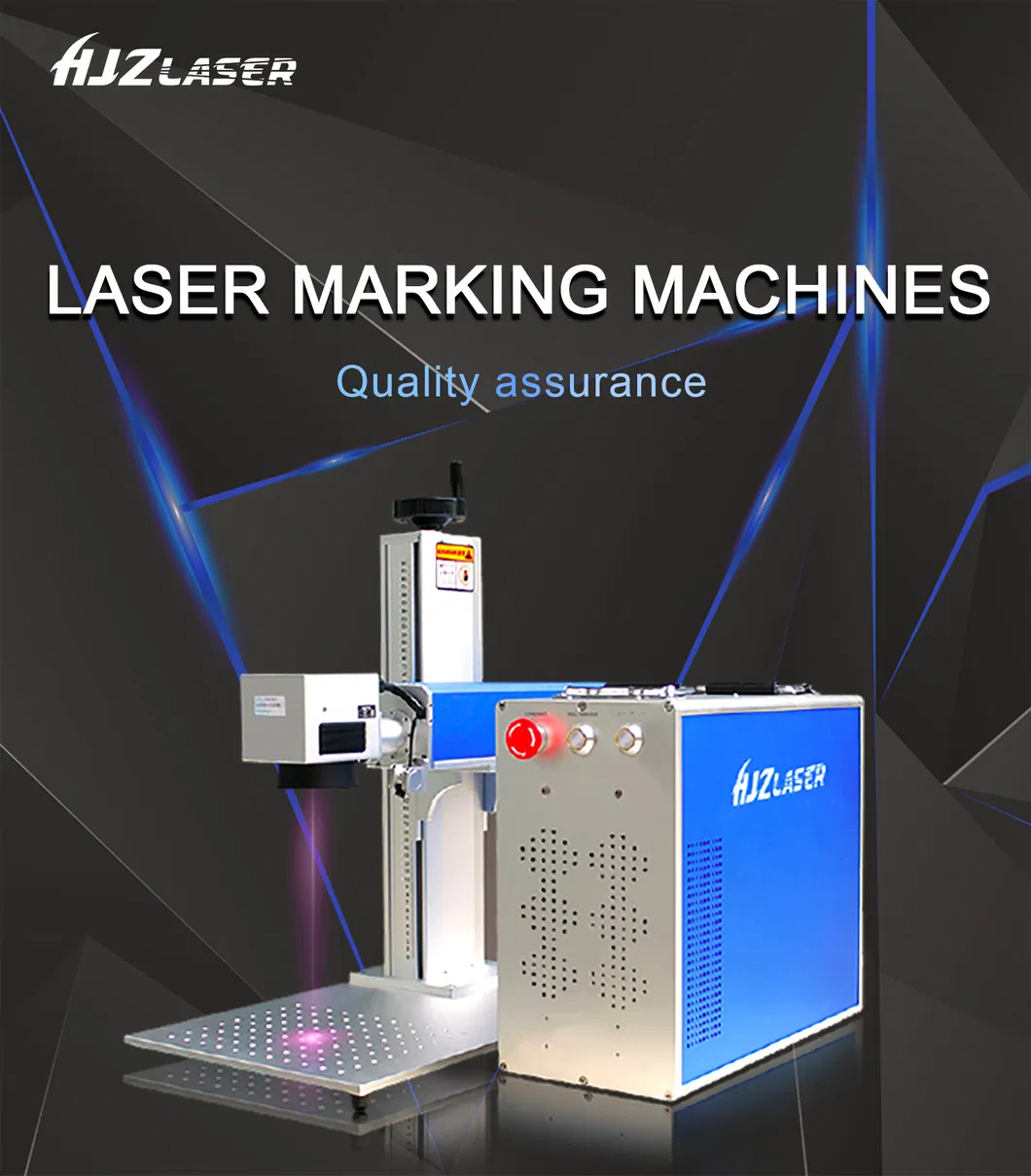

Portable Split Metal Steel Laser Engraving Engraver Etching Markers Laser Marking Machines

🚀 Fiber Laser Marking Machine - Main Features

📊 Technical Data Specification

Technical Parameters
Item / Model	HJZ -DB-04 (20/30/50/60/70/100W)

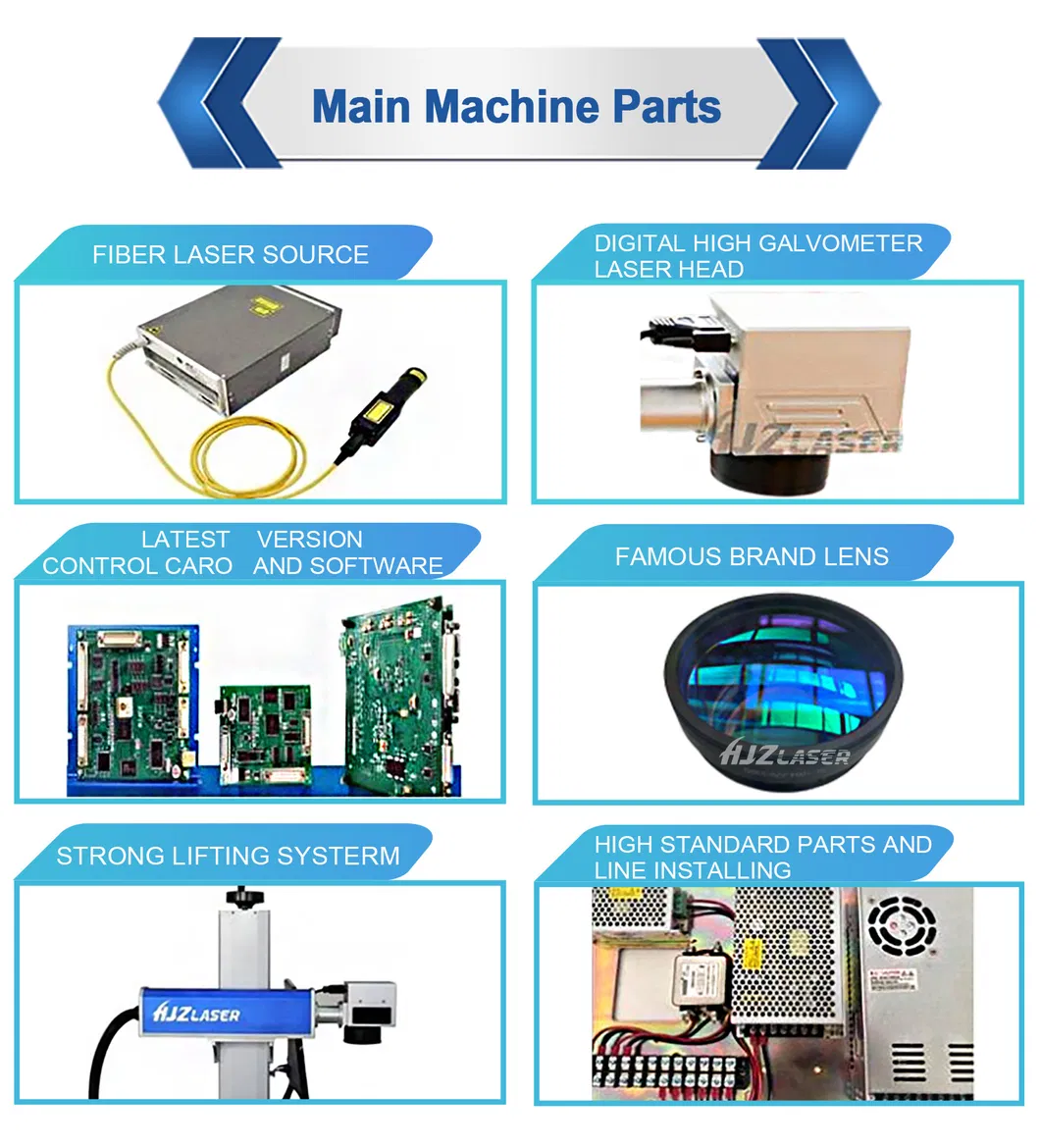

Laser source	Raycus (IPG / MAX / JPT Mopa optional)
Laser power	20w, 30w, 50w, 60w, 70w, 100w
Laser type	Fiber laser (1064nm)
Marking speed	≤9000mm/S
Max. Marking Depth	≤0.4mm
Min. line width / Character	0.01mm / 0.15mm
Resolution ratio	0.01mm
Graphic Format	PLT, BMP, JPG, PNG, DXF, AI, DST, etc.
Software Support	EZCAD, CorelDraw, Photoshop, AutoCAD
Dimensions	420320800mm
Net Weight	Approx. 150kg (Model dependent)
Unit Power	≤500W

❓ Frequently Asked Questions (FAQ)

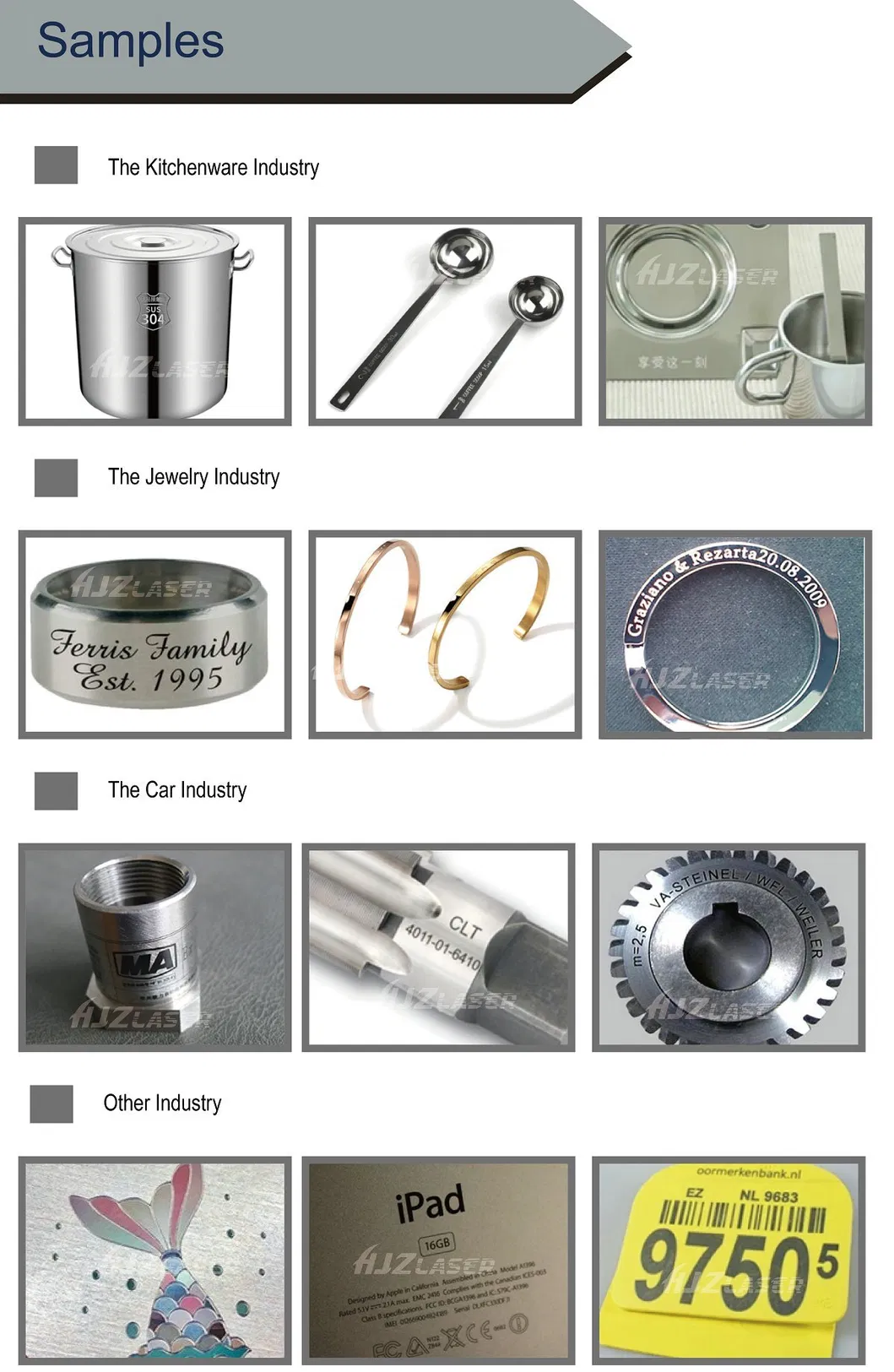

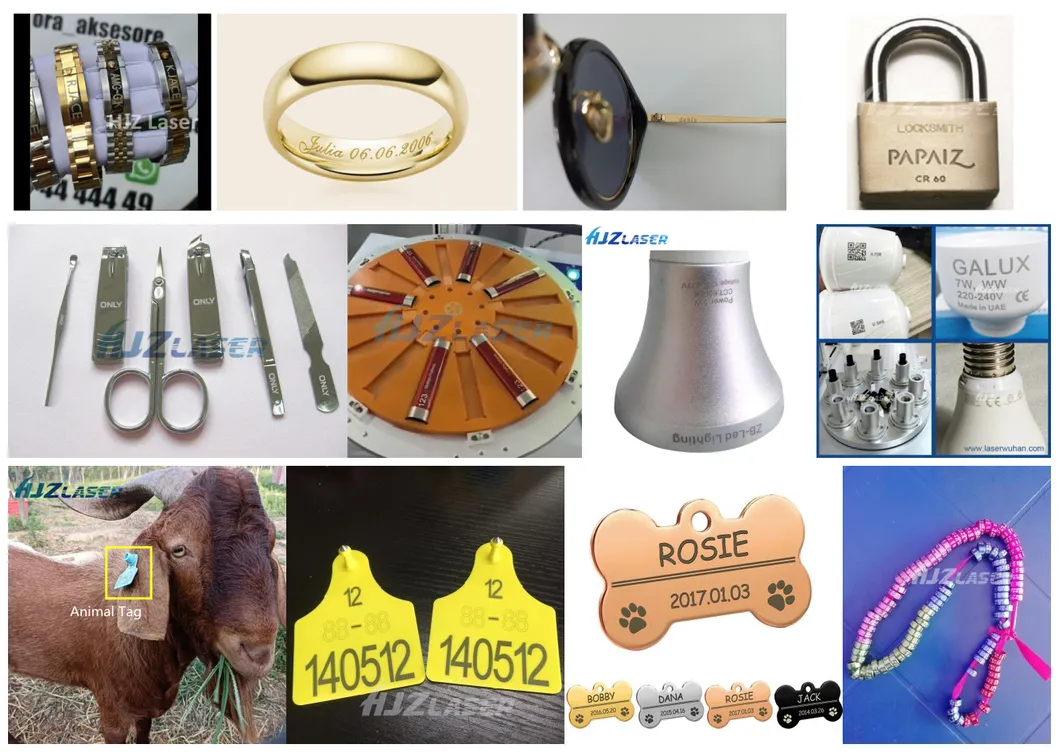

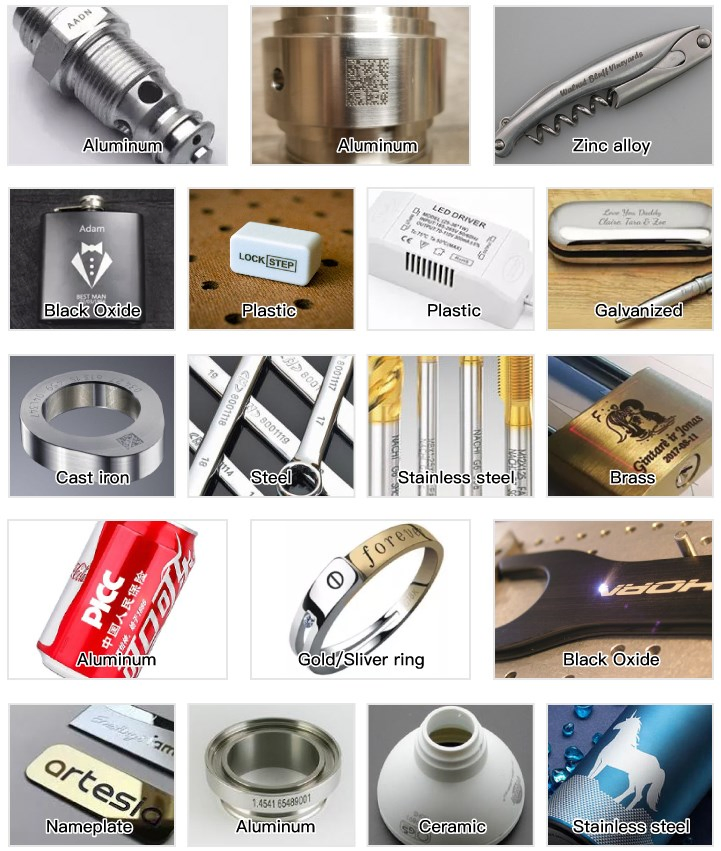

What materials can this fiber laser machine mark?

It is primarily designed for all metal materials including steel, stainless steel, aluminum, copper, and some hard plastics.

What is the maximum marking speed of the machine?

The machine offers a high-speed marking capability of up to 9000mm/s, ensuring efficient production.

Which laser sources are available for selection?

We offer world-class laser sources including Raycus, JPT, IPG, and MAX brands to suit different marking requirements.

Does the machine support software like AutoCAD or CorelDraw?

Yes, the system is fully compatible with professional design software such as AutoCAD, CorelDraw, and Photoshop via the EZCAD control card.

Can I mark on cylindrical objects?

Yes, the machine supports optional rotary fixtures ranging from 50mm to 200mm for marking rings, tubes, and other cylindrical items.

What is the marking depth capability?

The fiber laser can achieve a maximum marking depth of ≤0.4mm depending on the material and power settings.
