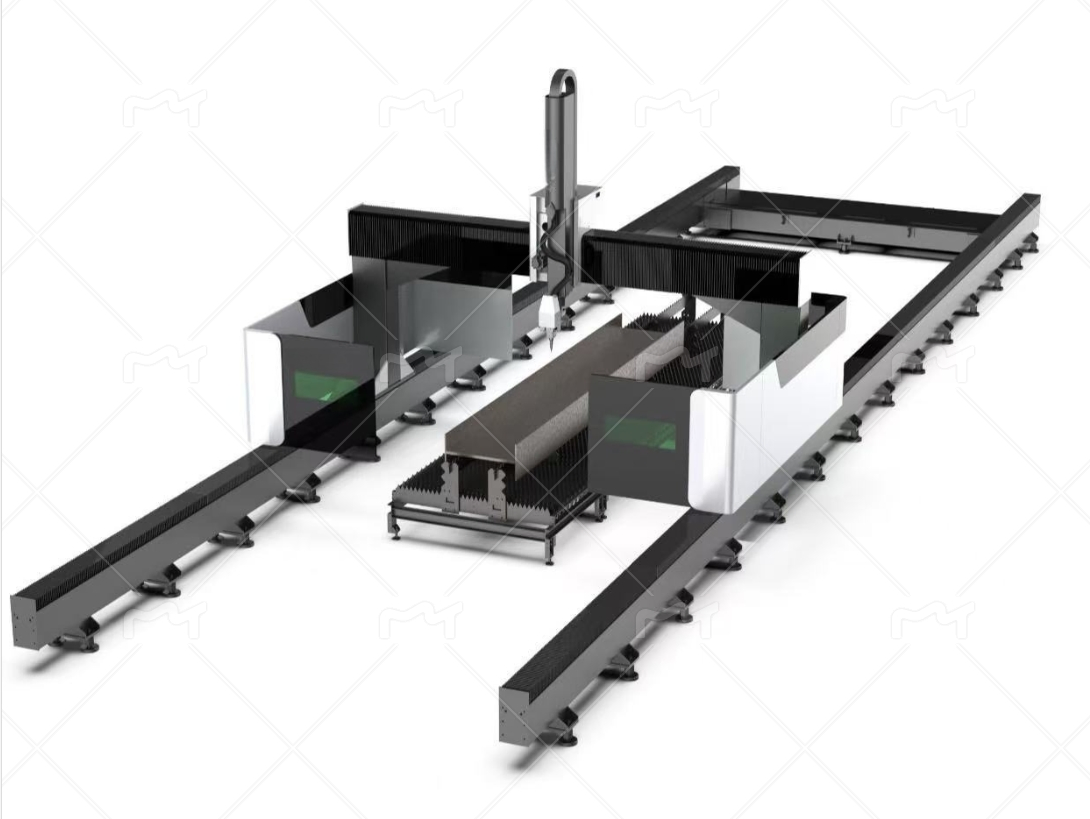

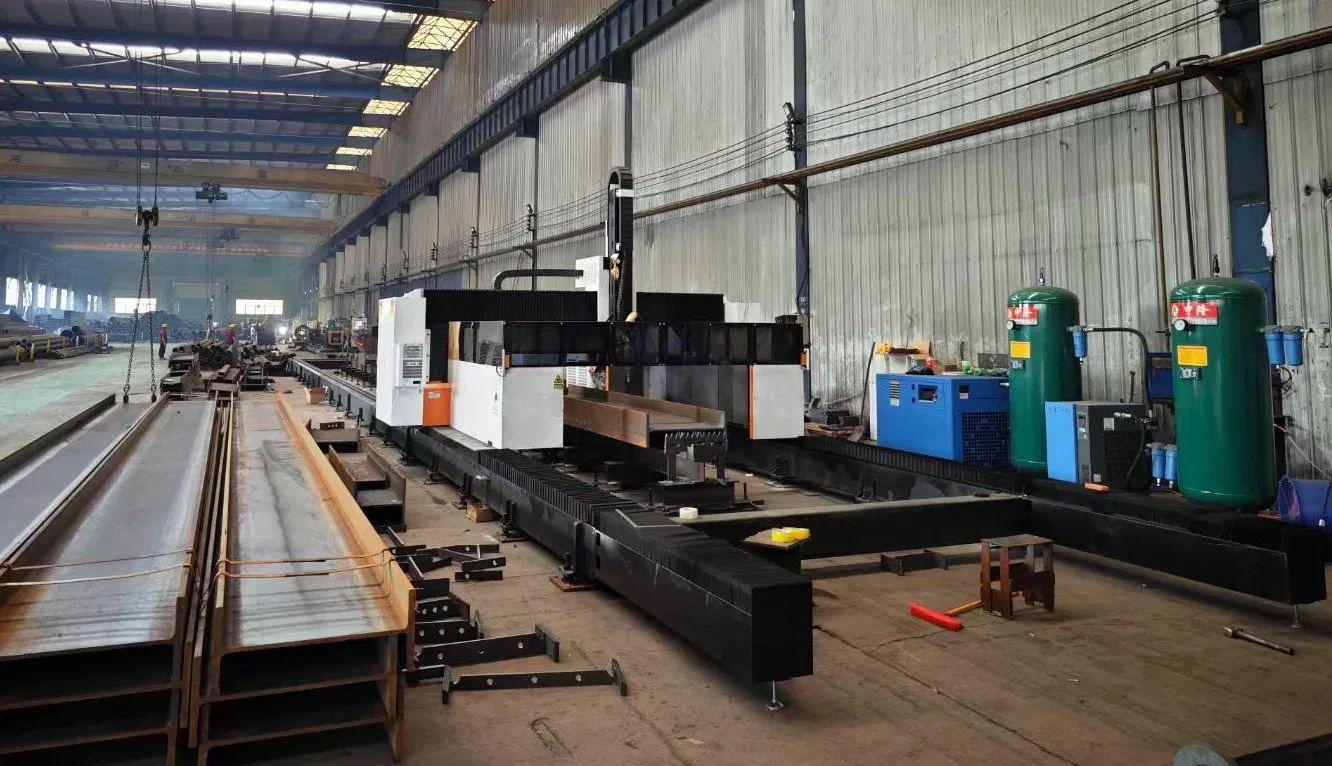

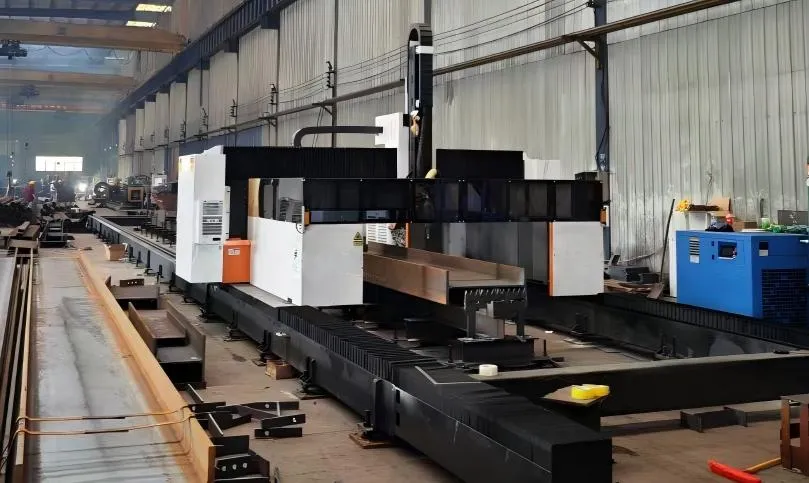

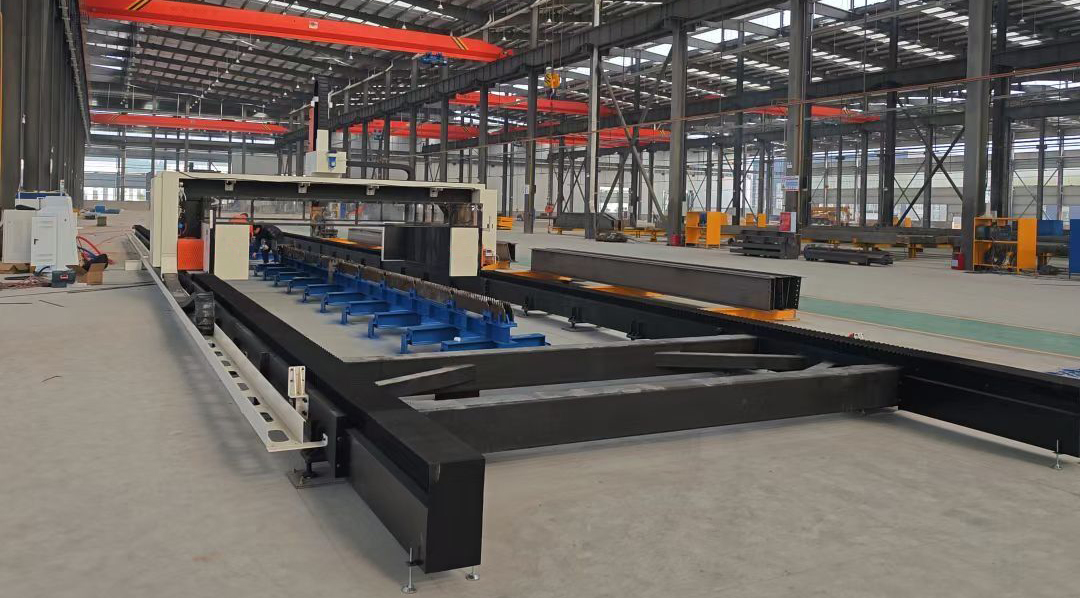

Integrated Laser Drilling/Cutting/Lock-hole milling/ Beveling Machine for H-Beam, Model: SU-HB2500
Application:
H-Beam Laser cutting machine is the latest high-efficiency and high-precision H-beam automatic cutting, drilling, lock-hole milling, and bevelling equipment. It is mainly used for cutting various low carbon steel, stainless steel, copper, aluminum, and other pipes. It can cut the end surface of round pipes, the intersection of circular pipes and planes, and various round and spherical surfaces. This equipment is beautiful in appearance, compact in structure, stable in operation, and easy to operate.
The components and Features:

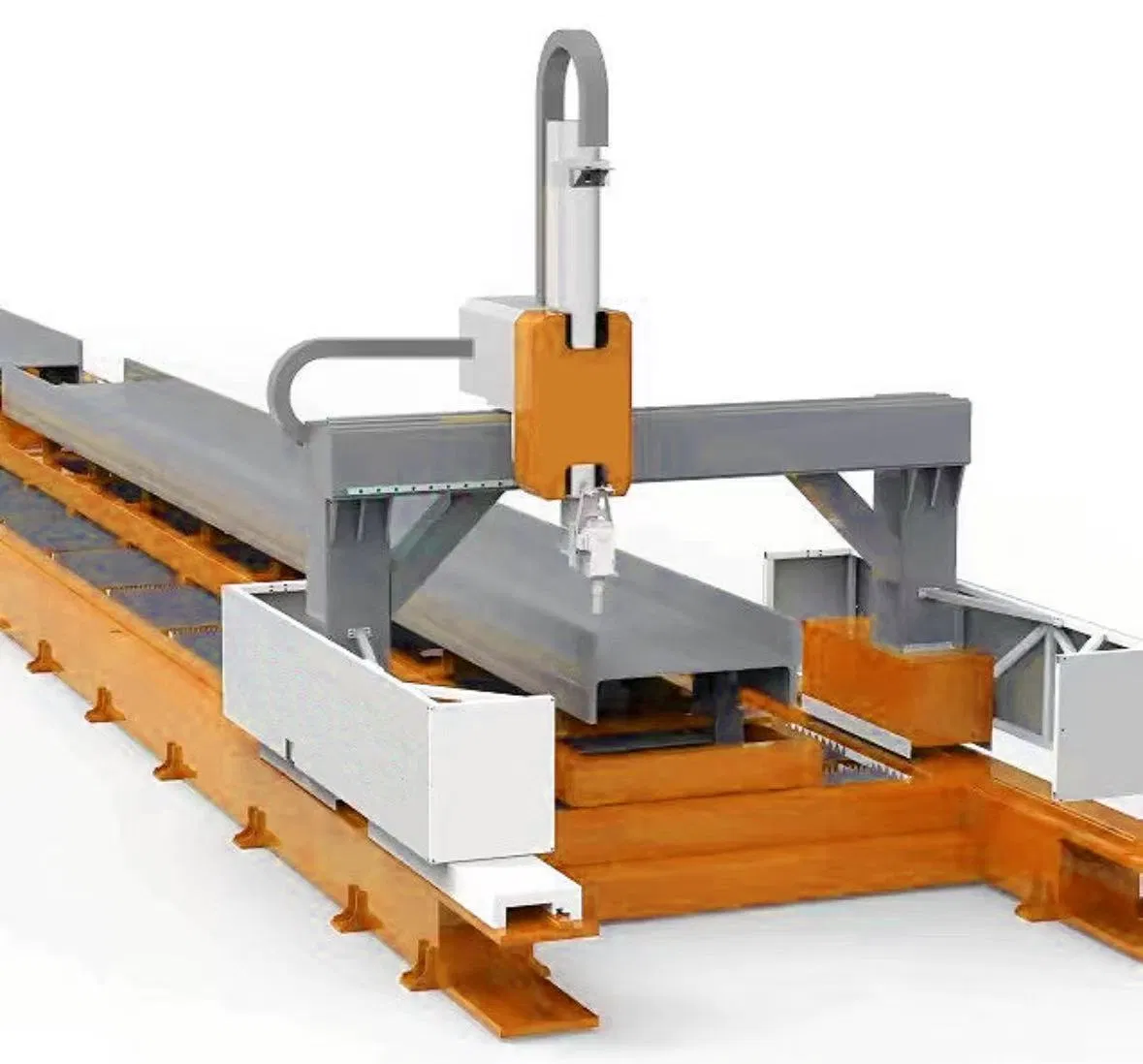

- The mechanical part of the machine is mainly composed of a work table, gantry, guide way, and a cutting head.
- The worktable and gantry adopt an overall design, ensuring the longitudinal guide rail and power chuck shaft are perfectly parallel for high precision.
- Two parallel linear guide rails are mounted on the side of the table with precision racks driven by the move-body drive system.
- The cutting head is controlled by a dual servo motor for axial and radial deflection, achieving intersecting line cutting.
- The rotating device utilizes two sets of parallel multi-group chuck drives, making pipe loading and unloading very convenient.
| Technical Parameter | Specification |
|---|
| Web cutting size | 30-2500mm |
| Plasma cutting tube thickness | 40mm |
| Cutting pipe length | 12000mm |
| Round tube load | 4500KGS |
Equipment Movement Axis and Range of Motion
| Axis | Motion Description | Range |
|---|
| A-axis | Pipe rotation | 360° free rotation |
| Y-axis | Torch horizontal move | 430mm |
| B-axis | Torch along pipe axis | ±60° |
| C-axis | Radial plane rotation | ±45° |
| Z-axis | Vertical lifting | Max 300mm |
Cutting Speed:
| Flame cutting speed | 100-750mm/min |
| Plasma cutting speed | 1000-6000mm/min |
| Movement speed | 10-8000mm/min |
Accuracy:
The torch repeating positioning accuracy is ≤ ± 0.03mm; bus positioning accuracy ≤ ± 0.03mm; groove positioning accuracy ± 0.05°.
Operating Environment:
- Ambient temperature: -10-50 °C
- Ambient humidity: monthly average ≤ 80%
- Power supply: 220V±10% / 380V±10% 50HZ
- Installation: Indoor, concrete foundation, level ground.
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer.
Q2: Can the machine parts be changed according to my requirements?
A2: Yes, we will try our best to provide you with the most suitable product configuration.
Q3: What is your payment term?
A3: 30% T/T deposit paid in advance, 70% balance paid before shipping.
Q4: How can I visit your factory?
A4: We can arrange to pick you up at the nearest airport or high-speed rail station.
Q5: What service can you provide before ordering?
A5: We provide full technical consultations, including parameters, pricing, and payment details. We welcome factory visits to inspect our machinery.
Q6: Can you guarantee the delivery timeline?
A6: Yes, we ensure the machine is completed and delivered according to the agreed-upon lead time.
