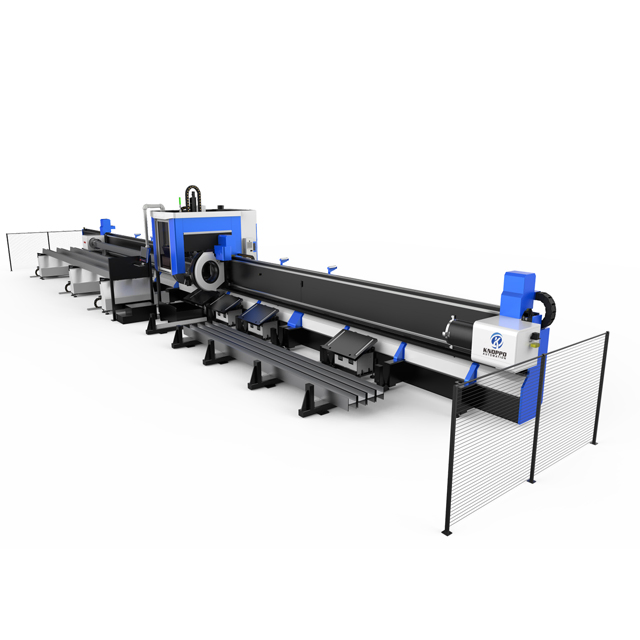

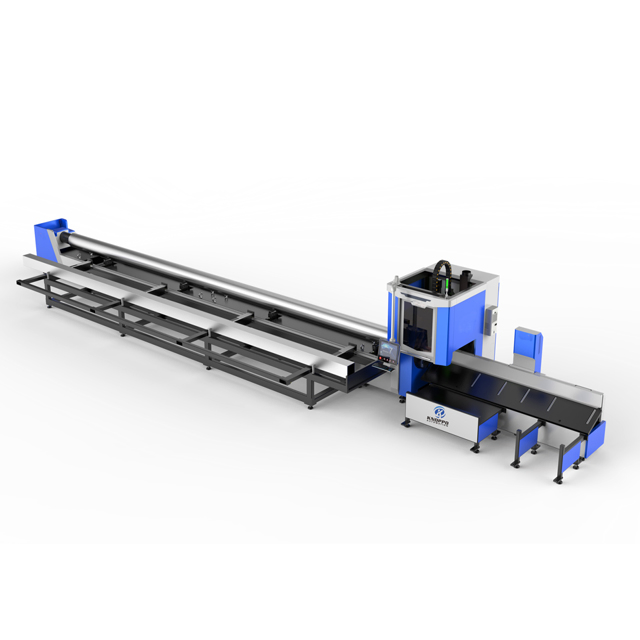

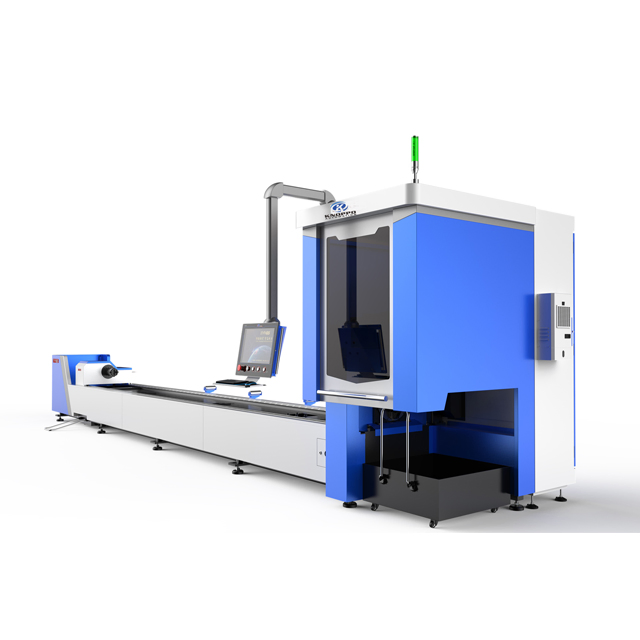

CNC H-Beam Laser Cutting Hole Drilling Machine for Steel Structure Fabrication

1 / 5

CNC H-Beam Laser Cutting Hole Drilling Machine for Steel Structure Fabrication

Customization:	Available
After-sales Service:	24 Hours Online Service
Warranty:	3 Years Warranty

Send Inquiry

Product Description

Overview
Product Description
Detailed Photos
Samples
Packaging & Shipping
After Sales
Profile

Technical Specifications

Model KT6

Cooling System Water Cooling

Technical Class Continuous Wave Laser

Applicable Material Metal

Structure Type Gantry Type

Laser Classification Solid Laser

Name Fiber Laser Cutter

Wavelength 1070nm

Tube Cutting Length 6m / 9m / 12m

Laser Power 1000W / 1500W / 2000W / 3000W / 4000W / 6000W

X/Y-Axis Position Accuracy 0.03mm

Max. Linkage Speed 140m/Min

Laser Head Switzerland Raytools Auto Focus

Laser Source Raycus / Max / IPG

Servo Motor Japan Yaskawa

Water Chiller S&A

Package Size 900cm * 200cm * 200cm

Package Gross Weight 5000.00kg

Product Description

⚙️

The equipment meets the parts processing requirements of most industries with stable working accuracy. Selecting the optimal force and supporting structure, the overall mechanical properties of the equipment are perfect. Adopting cutting-edge optical concepts to improve cutting performance. High speed cutting, auxiliary loading/unloading, and efficient production significantly reduce labor costs. At present, laser cutting machines have been widely used in electronics, electrical, mechanical hardware, new energy lithium, packaging, solar, LED, automotive, and other industries.

Specification Feature		Technical Parameters (KT6 Series)
Model		KT6
Laser Power		1000W / 1500W / 2000W / 3000W / 4000W / 6000W / 12KW / 20KW
Laser Source		Raycus / Max
Tube Cutting Length		12m / 6m
Tube Cutting Diameter		20~240mm / 320mm / 520mm
Machine Overall Dimensions		13500 × 3200 × 2500mm
Machine Weight		5400kg
Max. Linkage Speed		140m/min
Max. Acceleration		1.5G
Positioning Accuracy		0.03mm
Repositioning Accuracy		0.02mm

Core Component Advantages

Switzerland Raytools Auto Focus Laser Head

Modular design offering straightforward, simple maintenance.
Equipped with dual water cooling circuits for persistent temperature control.
Auto-focus functionality reduces manual adjustment requirements, maximizing piercing and cutting speeds.
Includes 3 durable cover glasses (top, middle, and bottom) protecting collimation and focus lenses.
IP65-rated dustproof build with patented cover plate prevents ambient particulates from entering.

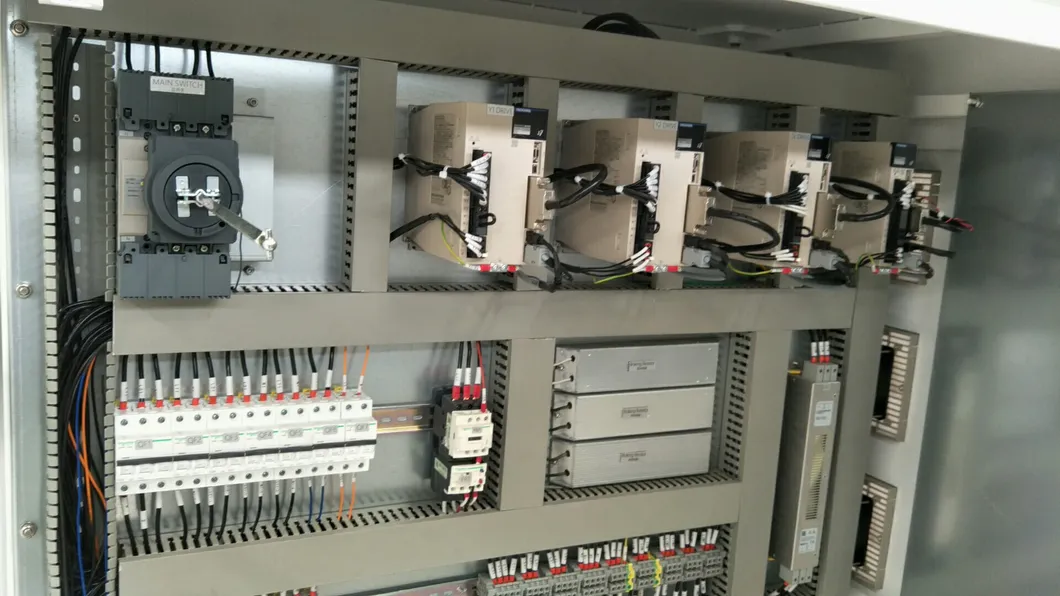

Japan YASKAWA Servo Motor and Driver

Closed-loop control mechanics ensure strict positioning and dynamically responsive target accelerations.
Delivers a smooth, highly reliable, and virtually maintenance-free automatic positioning system.
High-power motor configuration on X, Y, and Z axes drives fast linkage speeds up to 1.5G acceleration.

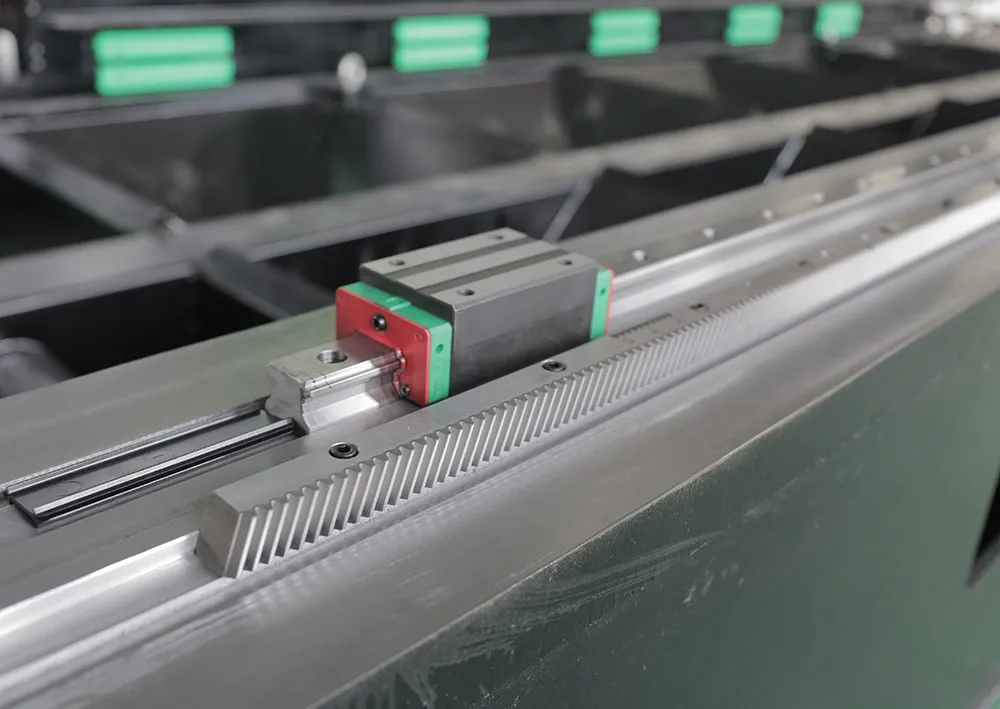

Taiwan HIWIN Rail & YYC Rack

Ensures outstandingly high positional and long-term motion accuracy.
High-speed kinematics are achieved seamlessly with low mechanical driving force.
Features equal loading capacities in all physical directions.
Simplified installation, convenient lubrication processes, and strong interchangeability.

Automatic Rotary and Chuck

Powered electric chuck system driven by sensitive, adjustable, and highly stable DC motor claws.
Wider overall clamping range with non-destructive pipe handling and swift automatic centering.
Compact dimensions allow for exceptionally low rotational inertia, optimizing dynamic processing.
Self-centering electric gears deliver improved transmission efficiency and long structural lifespans.

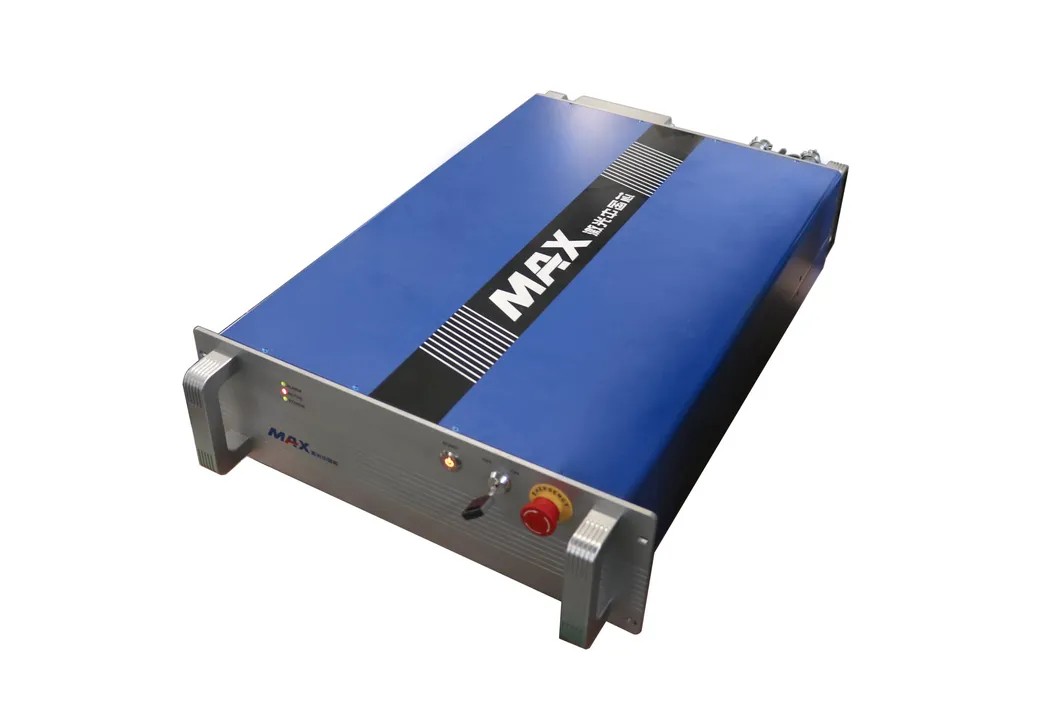

Max Laser Source

Utilizes a top-tier laser source brand renowned for solid quality and stable long-term outputs.
Highly resilient design optimized for rigorous, 24-hour continuous production schedules.
Robust build backed by an extensive 3-year components warranty program.

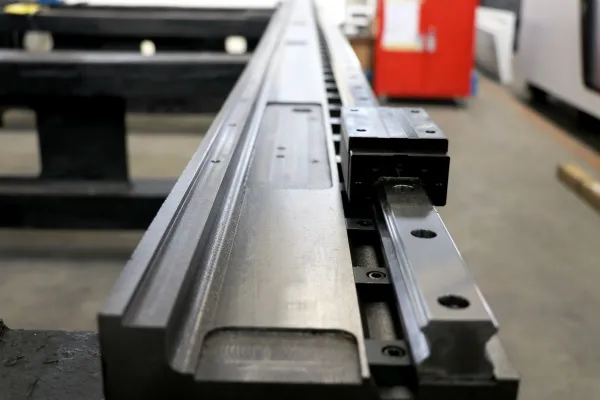

Heavy Duty Welded Machine Bed

Engineered with exceptional compressive strength, rigidity, and anti-wear resistance.
Outstanding vibration dampening ensures exact cut path tracking during heavy shifts.
Minimal thermal distortion maintains reliable cutting accuracies over years of system use.

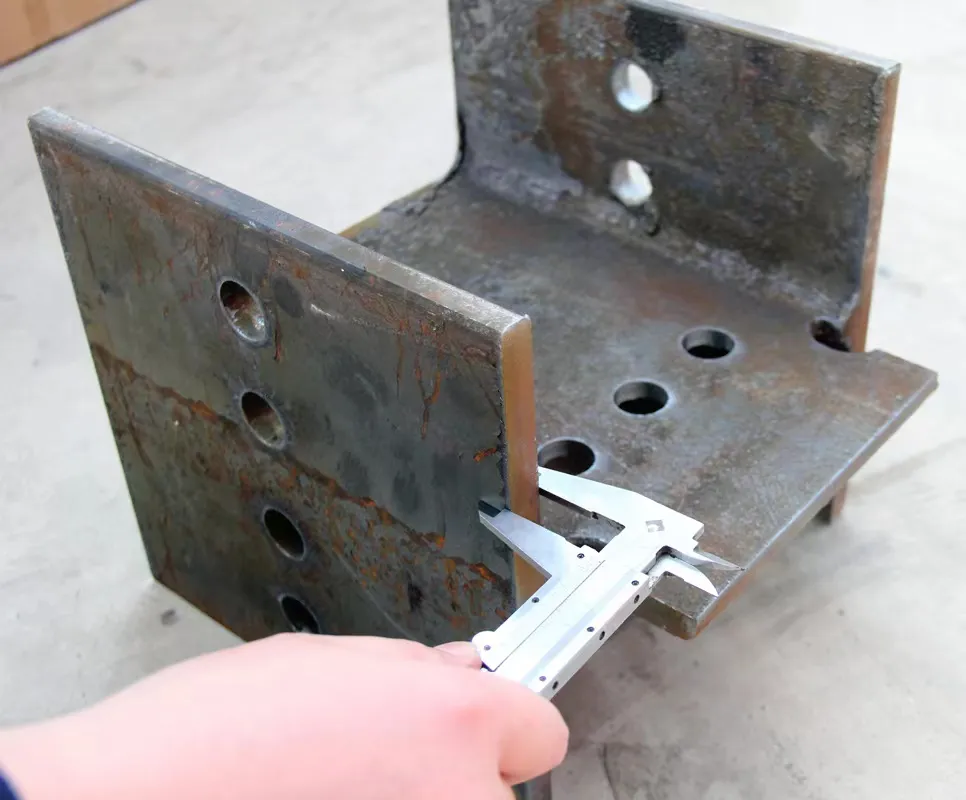

Precision Cutting Samples

Packaging & Logistics

Our standard multi-layered shipping protection guards against environmental and transit stresses. Customized layout packages are available based on specific customer requirements.

Outer Protection Standard Marine-Grade Plywood Cases

Inner Protection Stretchy Waterproof Moisture-Barrier Film

Professional Industrial Plywood Crating packaging

Global Customer Support

We are committed to maximizing your up-time. Our global support services ensure that your systems operate continuously at optimal parameters.

3-Year structural guarantee across the machine with lifetime maintenance support.
Complimentary training at our site to ensure absolute operational proficiency.
24/7 online technical support channels (via popular messaging apps and email).
Experienced technicians available for deployment, overseas setup, and on-site instruction.
Comprehensive operational user guides and visual instructional materials are supplied.

After-Sales Technical Assistance Program

Industrial Capabilities & Vision

We are one of the world's leading manufacturers of high-tech industrial laser solutions, dedicated to providing laser intelligent equipment solutions and enabling our customers in various branches around the world to become more efficient and competitive. With more than 15,000 laser cutting systems in the market and a rapidly increasing global base, we serve a vast international customer base, guaranteeing high quality and short response times in more than 100 countries. Our focus is on innovation, continuous improvement, and the rapid development of technologies—all aimed at increasing efficiencies and flexibility, minimizing costs, and generating high levels of environmental friendliness and sustainability.

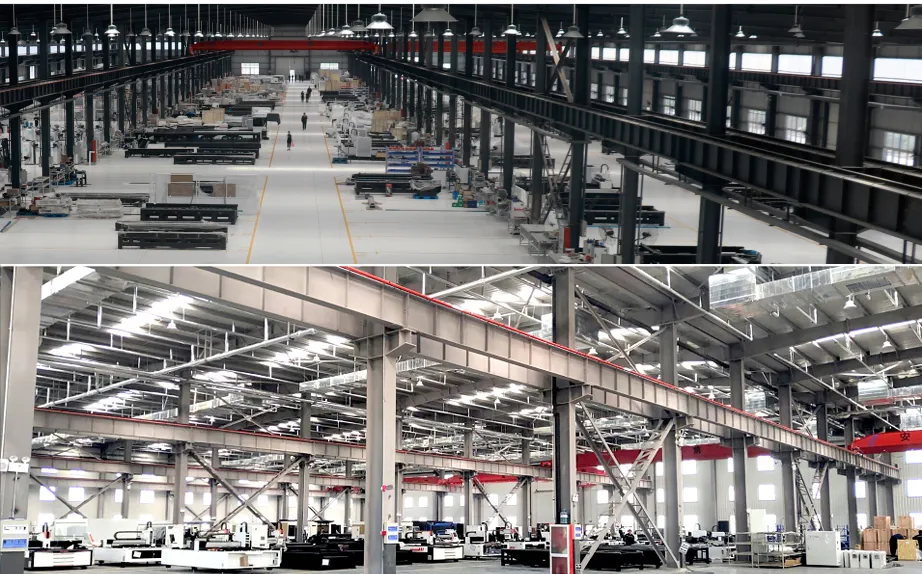

Advanced Intelligent Factory Manufacturing Plant

Frequently Asked Questions

1. Which metal materials can the fiber laser cutting machine process? +

This fiber laser cutting system is engineered to cut a wide variety of metals, including carbon steel, stainless steel, aluminum, brass, copper, and other highly reflective alloys.

2. What is the standard warranty period for this industrial laser? +

We offer a comprehensive 3-year warranty covering key structural and mechanical components, alongside lifetime technical support at no additional charge.

3. What advantages does the Switzerland Raytools Auto Focus Laser Head offer? +

The Raytools Auto Focus Laser Head features a modular, easy-maintenance architecture with dual cooling circuits. The automated focus minimizes human interventions while significantly increasing pierce and cutting efficiency.

4. Can your technical engineers provide on-site setup abroad? +

Yes, we offer complete after-sales support including technical engineer deployment for overseas on-site machine assembly, commissioning, and operational training.

5. What are the key power options and tube diameters available? +

Power ranges from 1000W up to 20KW utilizing Raycus or Max sources. Supported tube cutting lengths range from 6m to 12m, with clamping diameters accommodating 20mm up to 520mm.

6. How is the machine protected against shifting or damage during shipping? +

We utilize a dual-protection packaging protocol: standard marine export-grade plywood crates on the exterior, and thick moisture-resistant stretch film wrap on the interior.
