📋 Basic Info.
| Model NO. | LR-2260-T |
| Application | Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry |
| Cooling System | Water Cooling |
| Technical Class | Continuous Wave Laser |
| Applicable Material | Metal |
| Structure Type | Gantry Type |
| Laser Classification | Solid Laser |
| Laser Technology | Laser Control Fault Cutting |
| Weight | 5500kg |
| Dimensions | 9400*1850*2150mm |
| Laser Head | Raytools |
| Operating Voltage | AC380V |
| Origin | China |
⚙️ Product Parameters
| Model | LR-2260-T |
| Cutting Area | 200mm * 6000mm (processing size can be customized) |
| Bed Frame/Gantry | High-strength heavy-duty bed support, aviation-grade aluminum alloy gantry |
| Driving Mode | servo motor * 4 |
| Transmission Mode | Taiwan Hiwin high precision linear square rail, Taiwan Hiwin slider |
| Reducer | France Motoreducer reducer |
| Laser Generator | Raycus CE |
| Laser Head | Raytools |
| Fiber Laser Power | 1500W/2000W/3000W etc. |
| Control System | FSCUT laser tube cutting machine dedicated system |
| Max Moving Speed | 100m/min |
| Maximum Acceleration | 1.0G |
🔍 Details Images

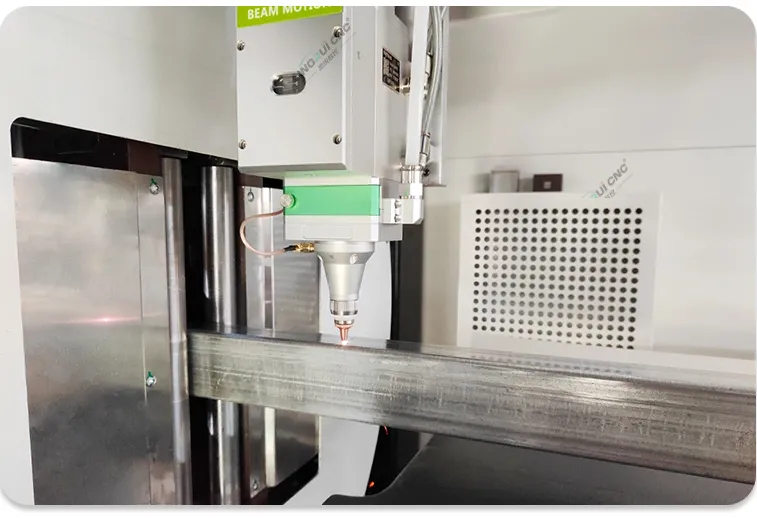

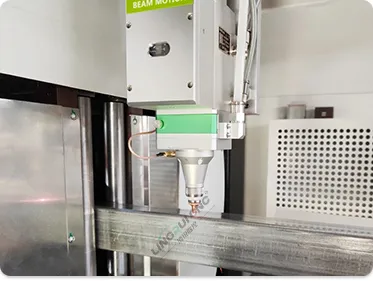

The Raytools autofocus laser head features flexible scale adjustment for a consistent zero focus position, eliminating adjustment hassles.

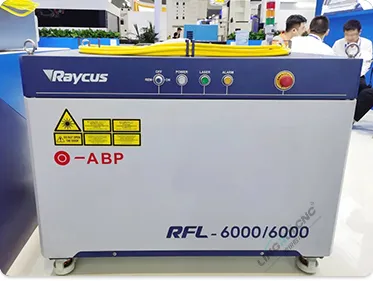

The Raycus fiber laser generator utilizes a modular design, featuring a highly integrated internal laser unit and adjustable power.

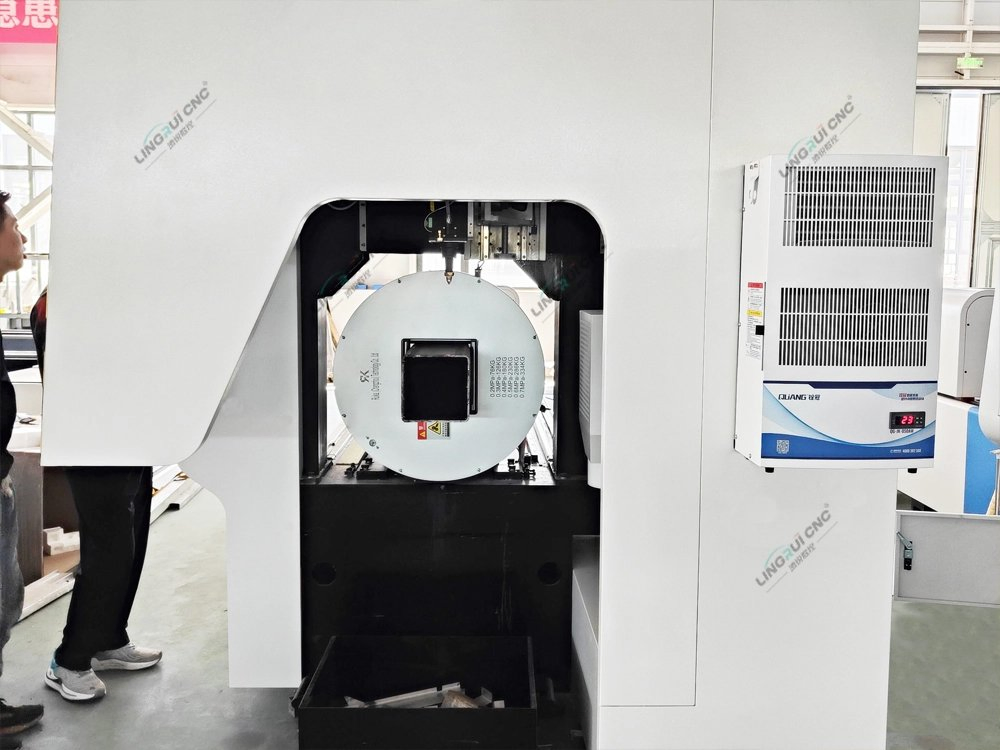

Fully automatic rotary axis designed specifically for large-diameter metal tubes (20 to 300 mm).

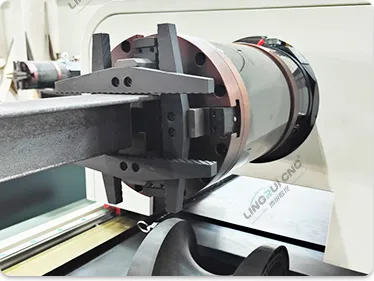

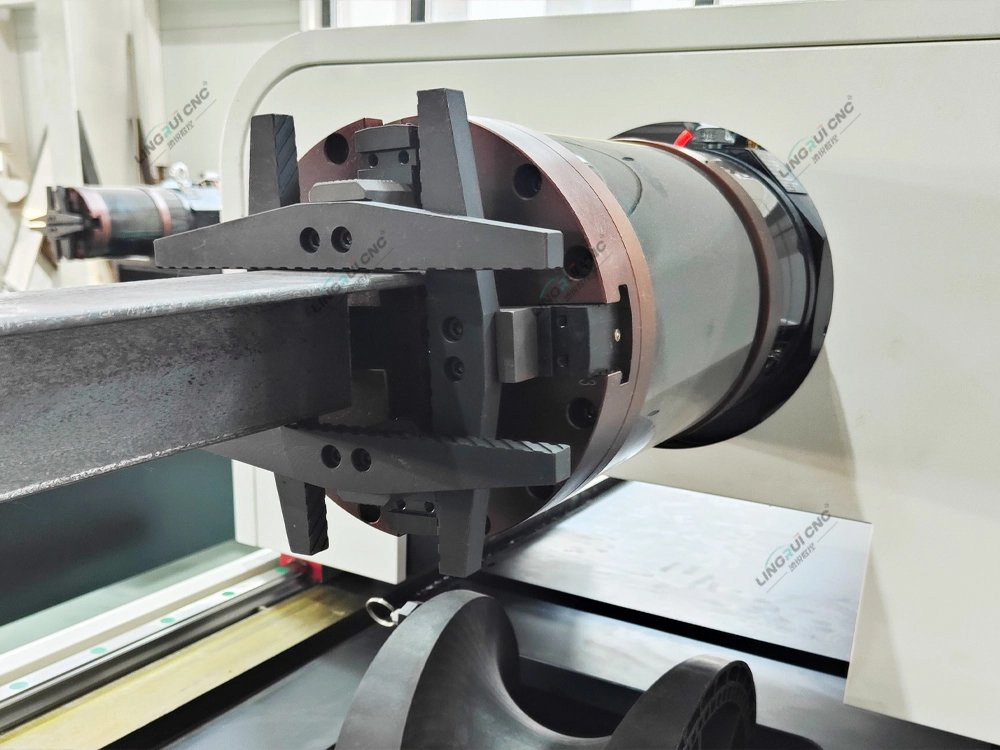

The rear pneumatic chuck securely grips most pipe diameters and shapes for efficient feeding.

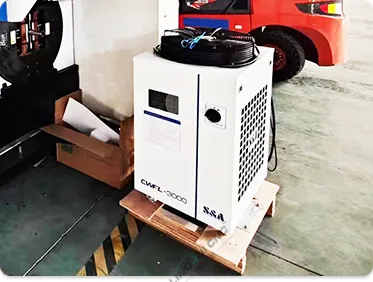

S&A water chiller controls circulating water temperature to ensure optimal laser condition.

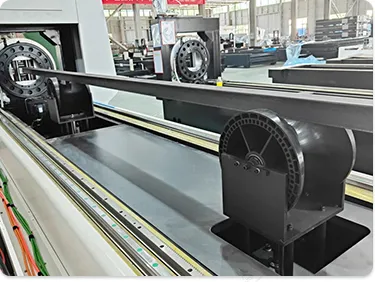

Floating pipe support ensures stability during cutting, reducing vibration and improving accuracy.
✨ Sample Display

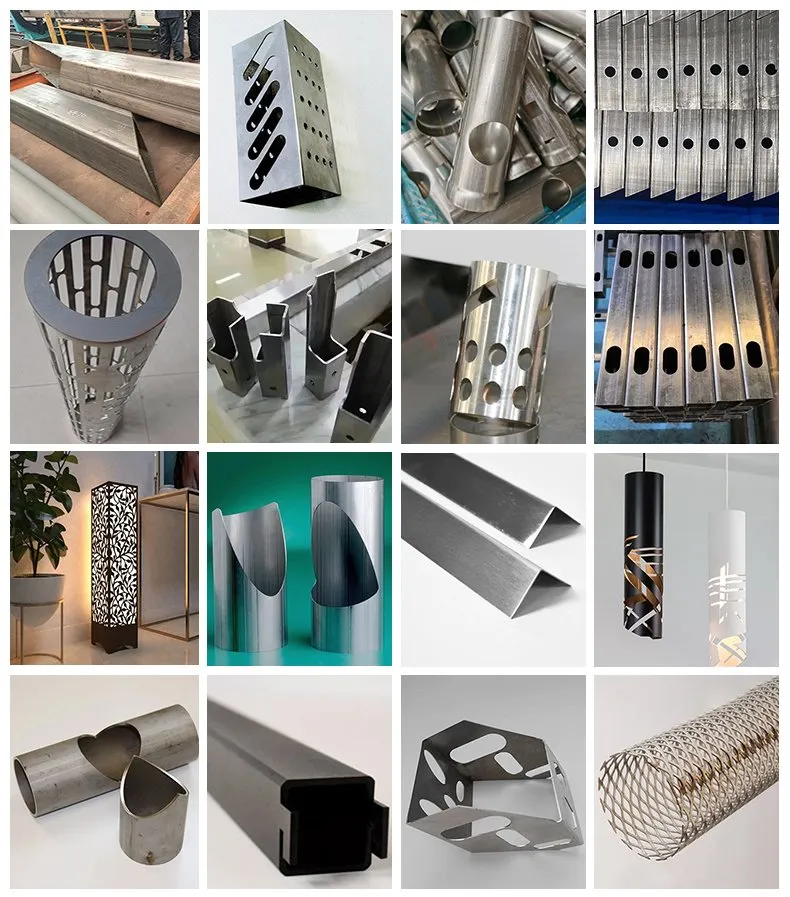

Materials: Stainless steel, carbon steel, alloy steel, silicon steel, aluminum alloy, titanium, copper, manganese steel, etc.
Shapes: Square, round, rectangular, oval, flat, polygonal tubes, channels, angles, and I-beams.
❓ FAQ
Are you a factory or trading company?
We are a certified factory with export licenses and specialized manufacturing facilities.
Do you offer OEM services?
Yes, we have 19 years of OEM experience collaborating with global trading partners.
What about after-sales service?
We provide a 3-year full machine warranty, 12-hour response time guarantee, and 24/7 technical support.
How to choose the right machine?
Provide your material specs and functional requirements. We'll recommend optimal solutions based on our 19+ years of expertise.
Do you provide installation services?
All machines are pre-tested and ready-to-use. We include operation manuals and video guides; onsite commissioning is also available globally.
Can machines be customized?
Yes, customization is supported by our professional engineering team to meet your specific production needs.
