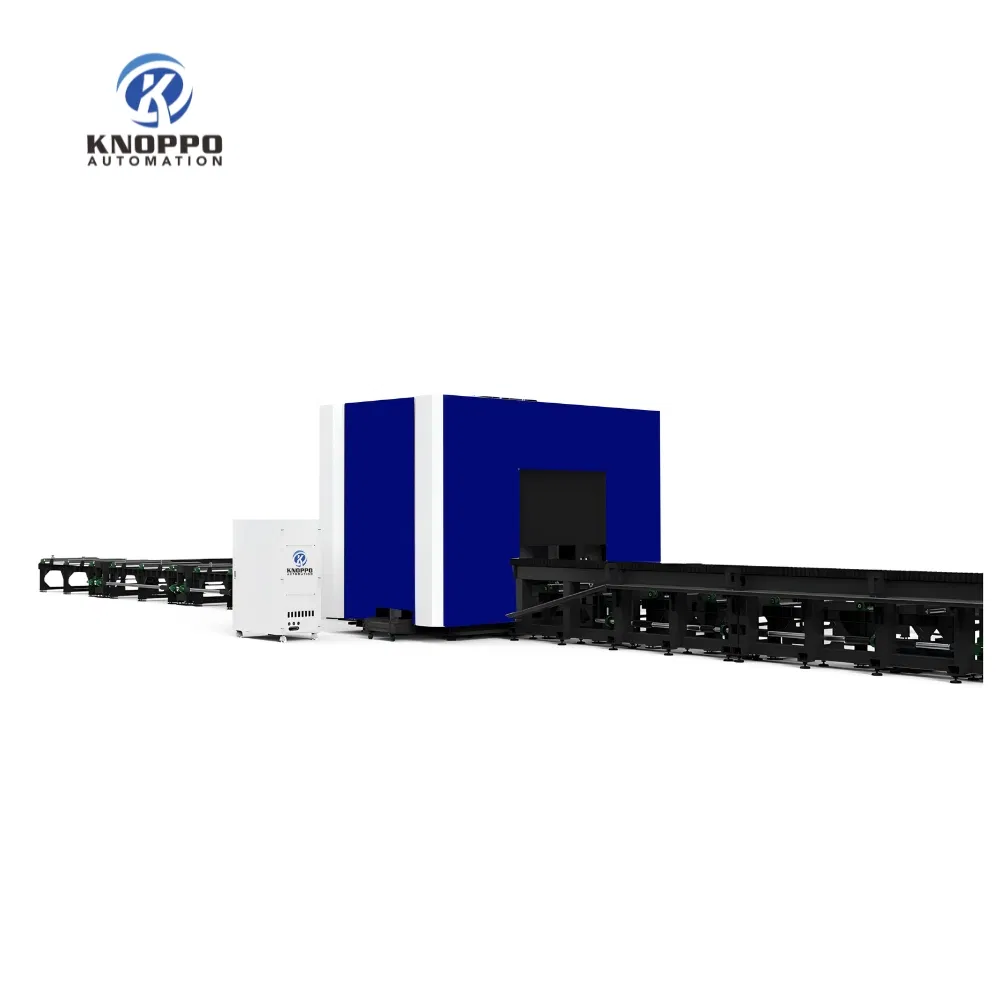

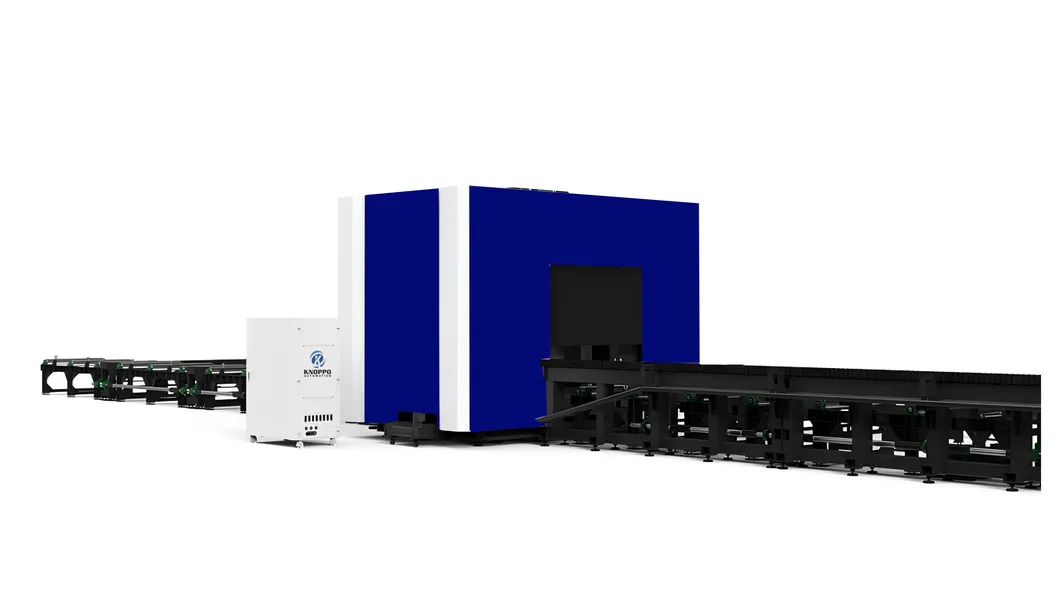

FIBER LASER CUTTING BEVELING MACHINE
3 YEARS WARRANTY

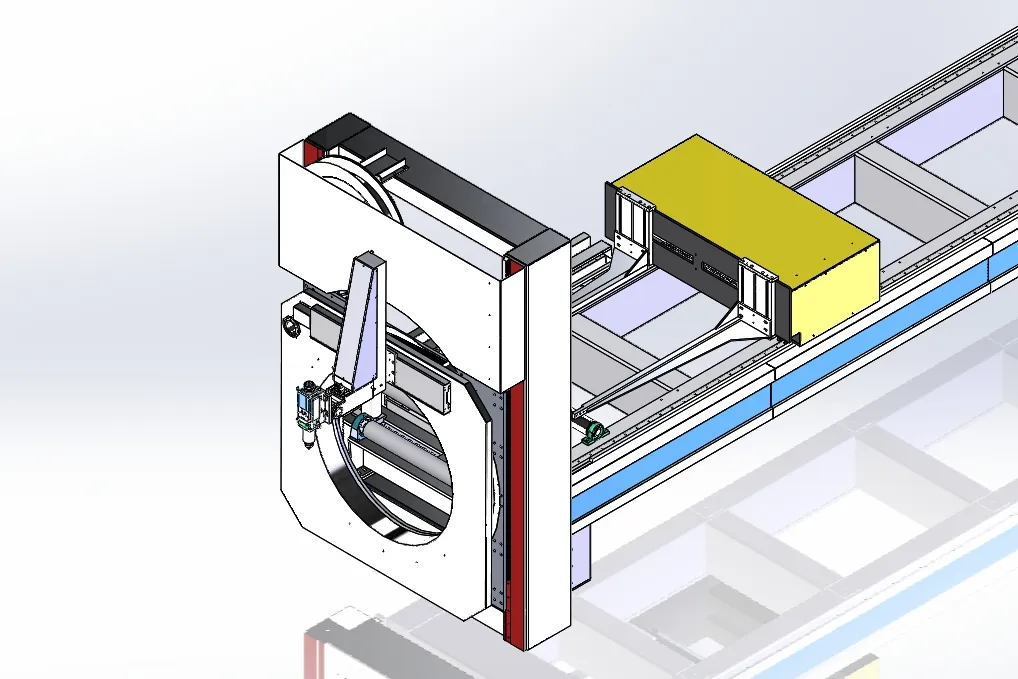

Model: KT12 rotary type laser cutting machine
Application: Primarily designed for high-precision cutting of H-shaped steel, square tubes, slot steel, corner steel, and round tubes. Supports Tekla data import, H-shaped steel circulating cutting, and over-welded hole processing.
| NO. | Main Technical Parameters | Range / Value |
|---|---|---|
| 1 | 500mm Chuck (No Bevel) | Max Round Pipe: 500mm; H steel/Square: 350*350mm; Min: 100*100mm |
| 2 | 900mm Chuck (With Bevel) | Max Round Pipe: 900mm; H steel/Square: 600*600mm; Min: 100*100mm |
| 3 | 1200mm Chuck (With Bevel) | Max Round Pipe: 1200mm; H steel/Square: 800*800mm; Min: 100*100mm |
| 4 | Feeding Travel | 12500mm |
| 5 | Rotary Axis Travel | -360° to +360° |
| 6 | Max Beveling Angle | -45° to +45° |
| 7 | Positioning Accuracy | ≤±0.25mm |
| 8 | Rapid Positioning Speed | 30m/min |
| 9 | Power Requirements | 3 Phase 380V / 120KVA Stabilizer |

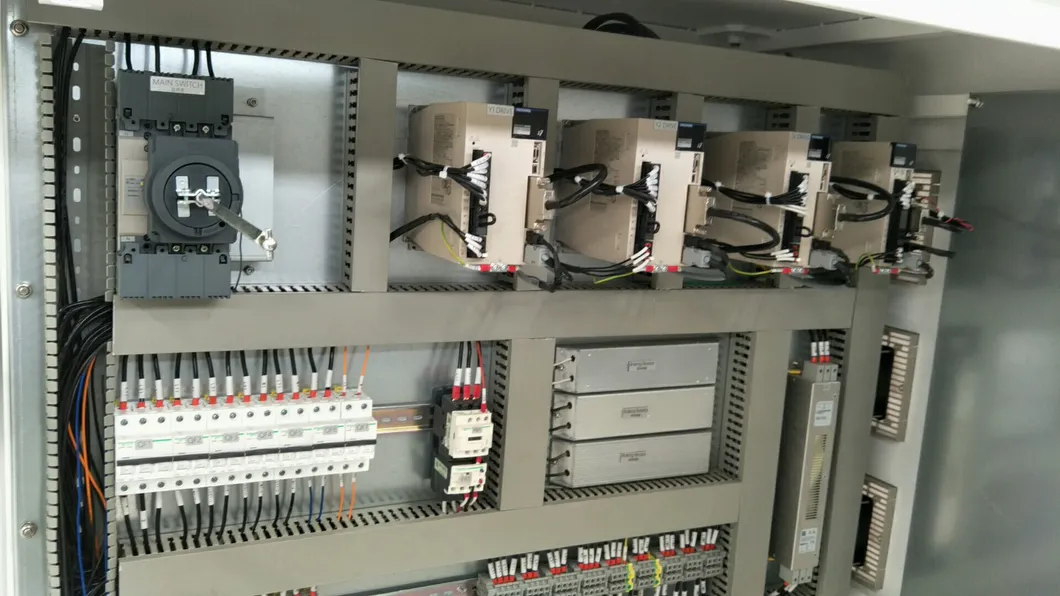

Utilizes high-power closed-loop control for accurate positioning and optimum dynamic response. Supports acceleration up to 1.5G on X, Y, and Z axes.

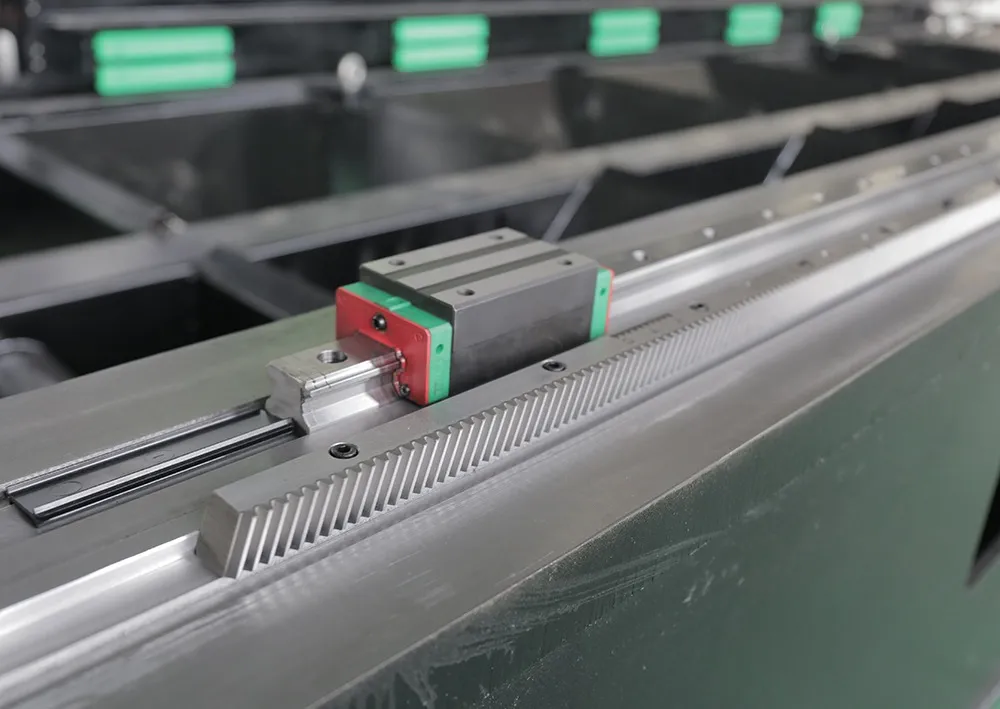

High positional accuracy and long service life. Low driving force allows for high-speed motion with equal loading capacity in all directions.

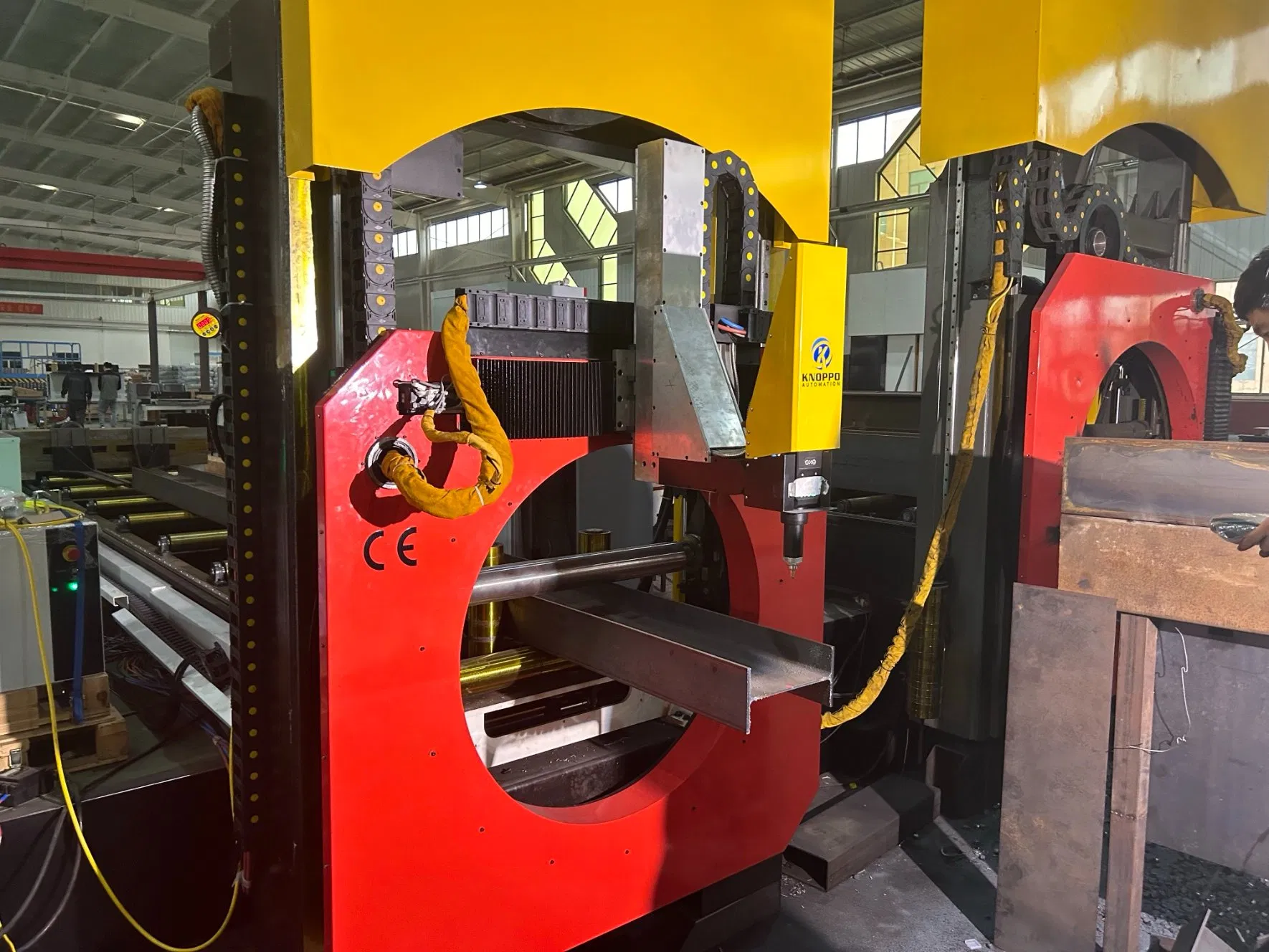

DC motor drive with sensitive adjustable clamping force. Fast automatic centering ensures non-destructive pipe clamping and strong dynamic performance.

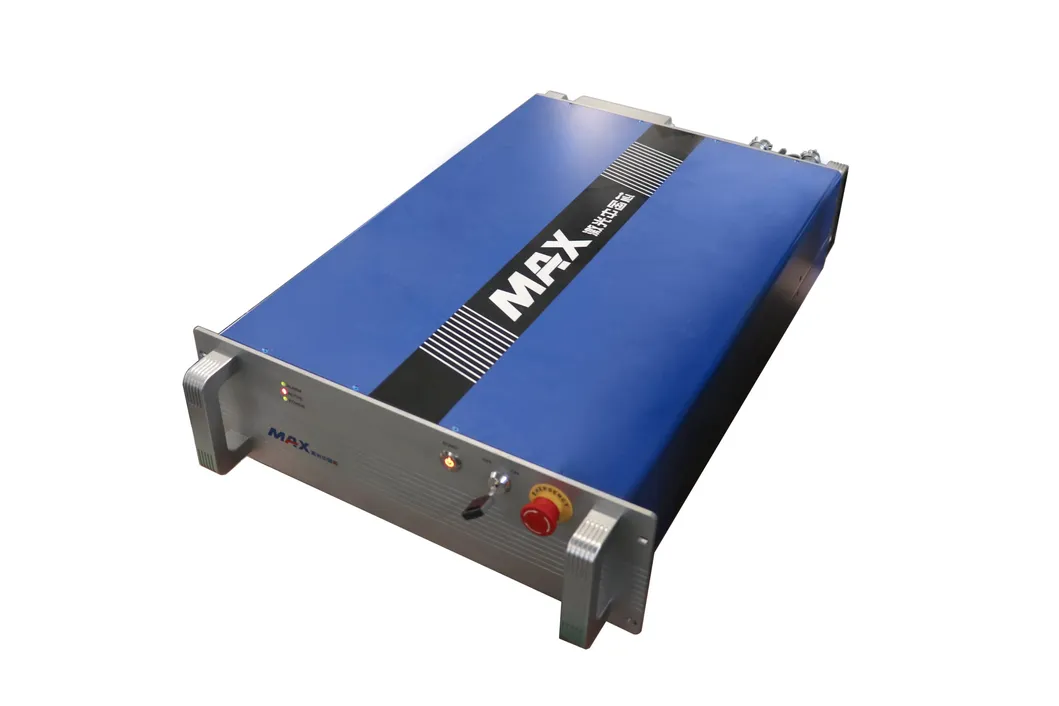

Top-tier brand laser source suitable for 24-hour continuous operation. Comes with a 3-year warranty for peace of mind.

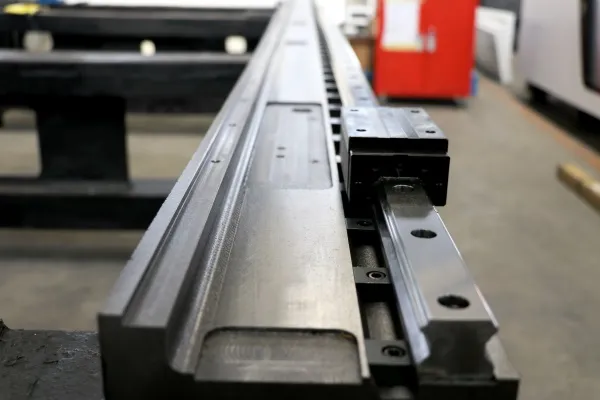

High hardness and compressive strength. Features strong shock absorption and wear resistance to maintain long-term accuracy without deformation.
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity protection.
