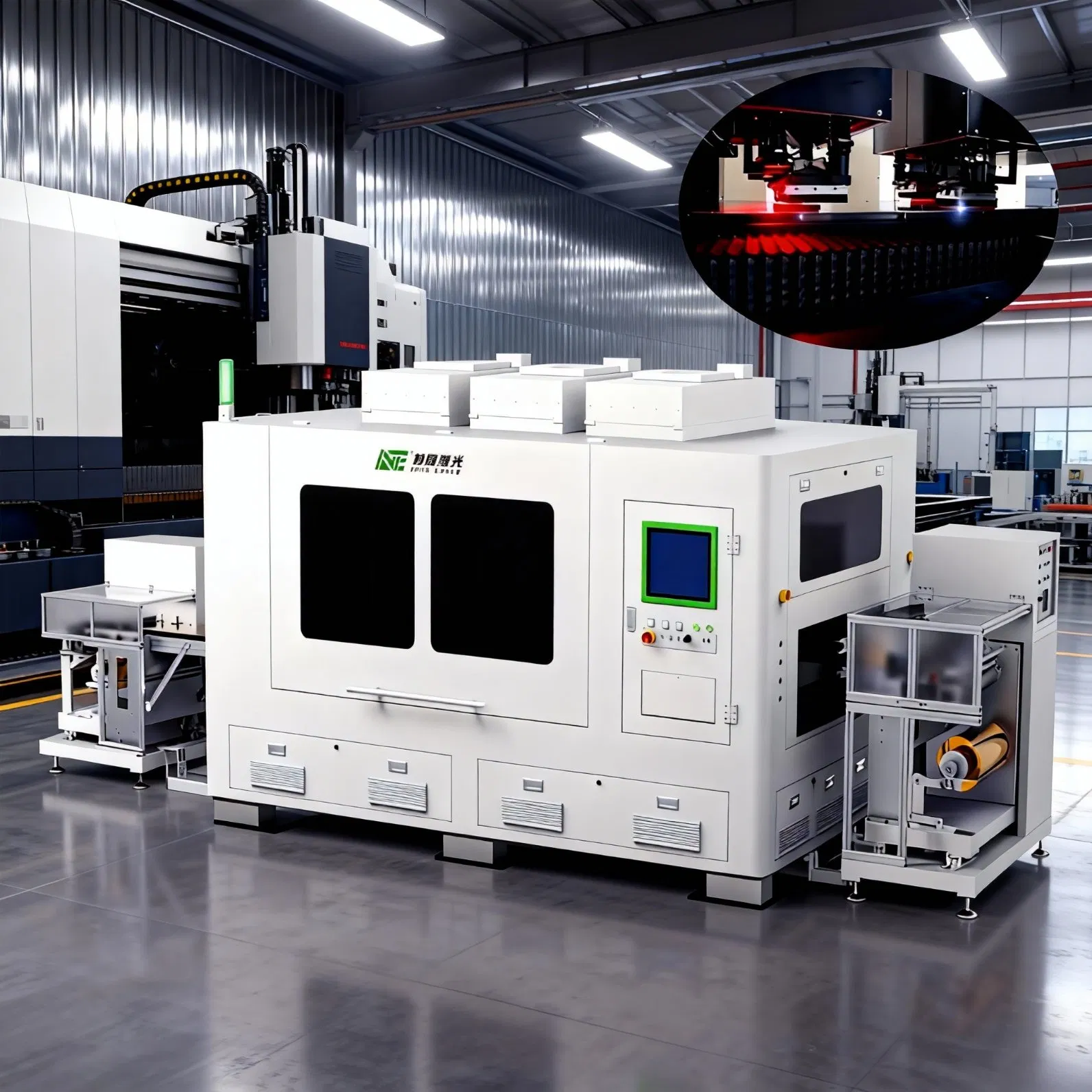

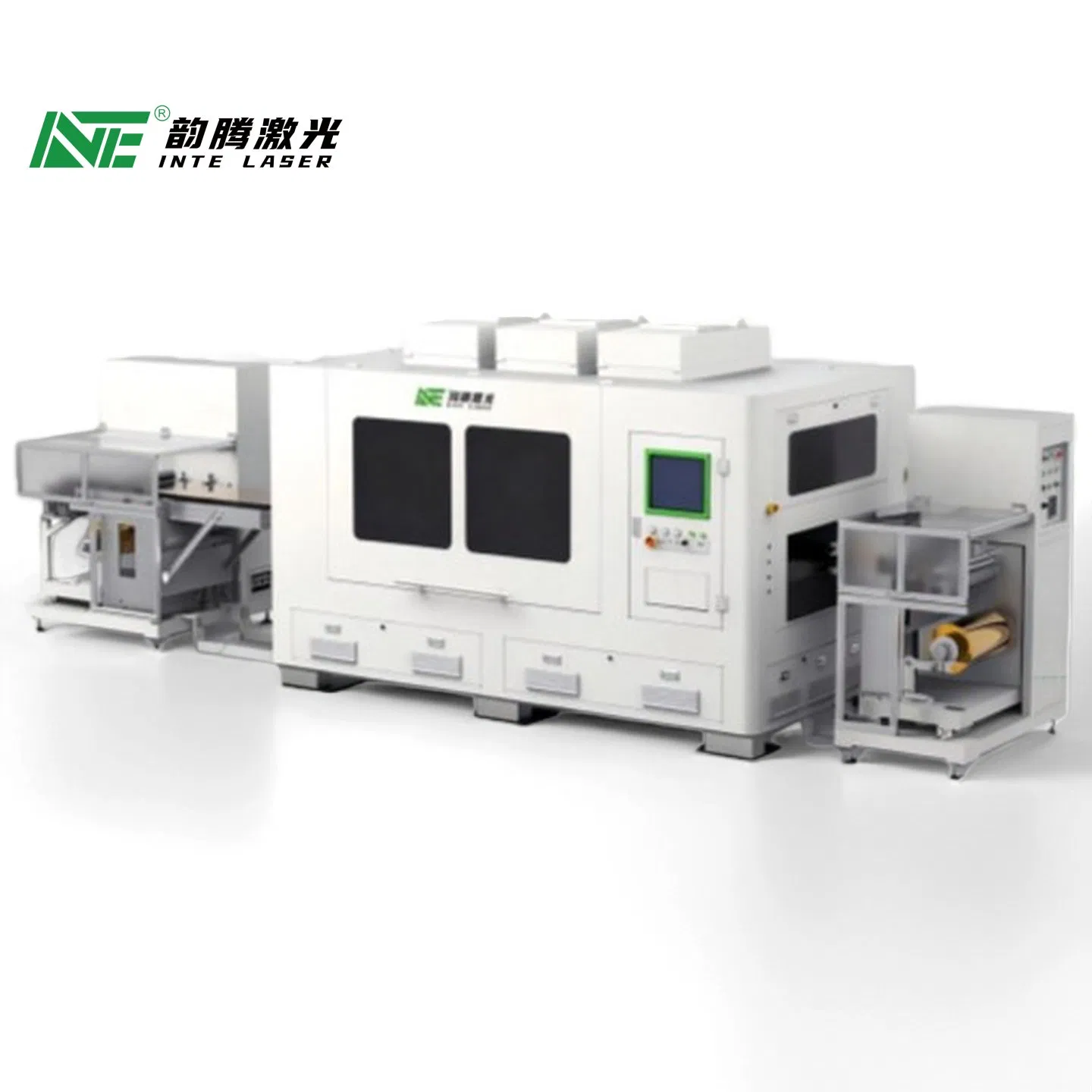

High-Efficiency Automatic 4-Head Roll-to-Roll Laser Drilling Machine

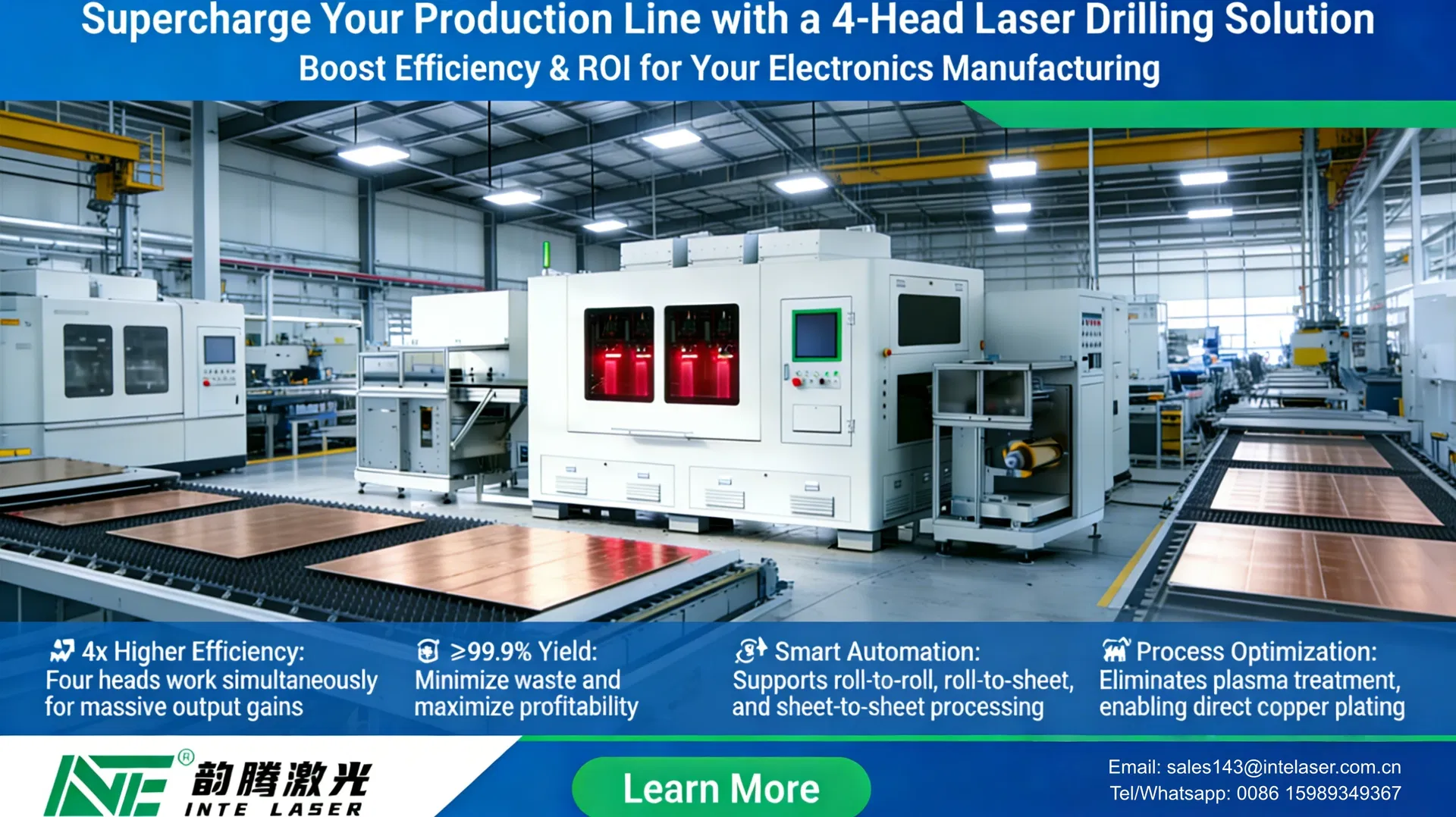

Laser Drilling Machine Banner
ⓘ

Basic Information

Model NO.
YT-D400
Structure
Laser Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
Multi-Axis
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Laser Heads
4 Heads (Synchronous/Independent)
Laser Type
Nanosecond/Picosecond UV, Green Laser
Efficiency Boost
300% Higher Output Than Single-Head
★

Product Description

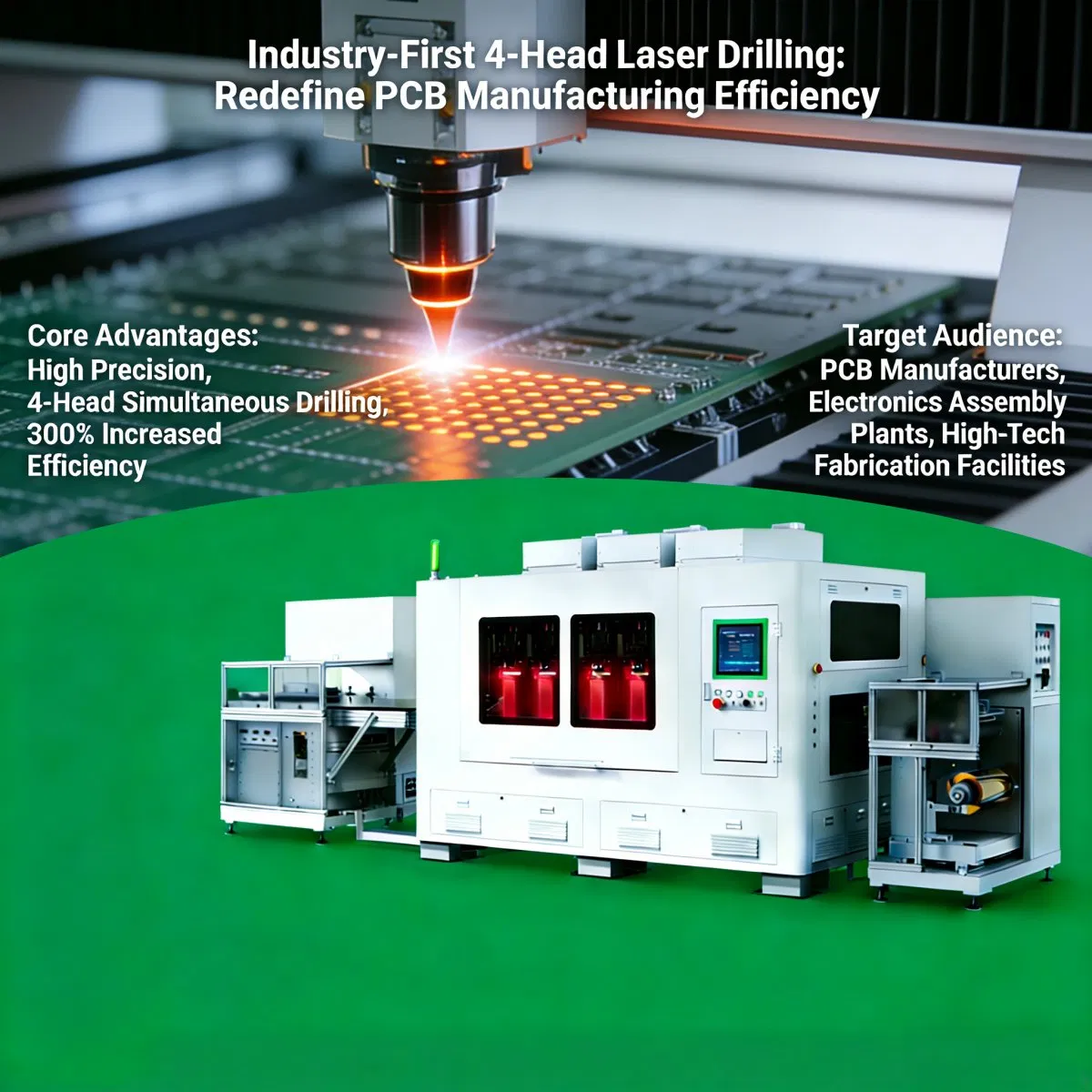

Revolutionize Your Production with Unmatched Efficiency

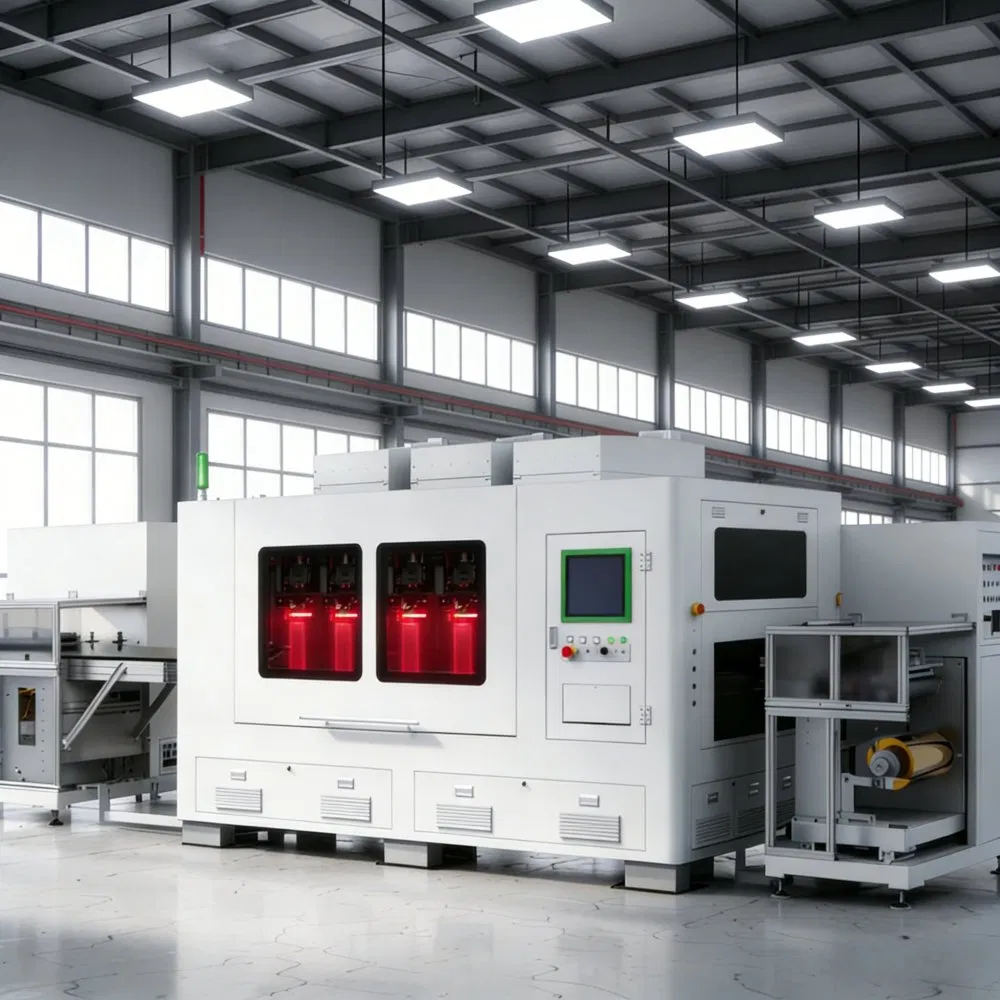

Introducing the groundbreaking Four-Head Roll-to-Roll Laser Drilling Equipment - the industry's first solution designed to revolutionize high-volume electronics manufacturing. As a pioneer in multi-head laser drilling technology, this equipment delivers unprecedented 4x efficiency improvements while maintaining superior precision standards.
Highlight 1 Highlight 2 Highlight 3
🚀 4-Head Synchronous

Massive 4X Efficiency Boost: Dramatically increase output and meet tight deadlines for large orders.

🛡️ Plasma-Free Process

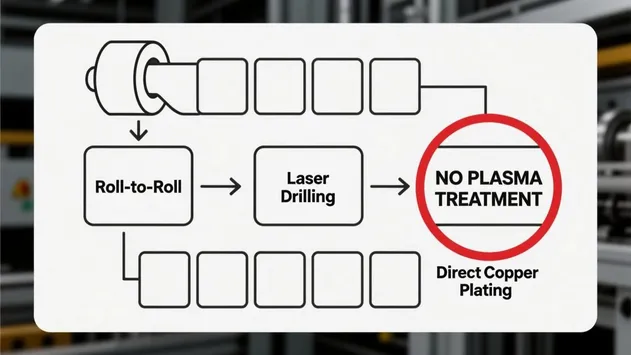

Laser parameters are fine-tuned to eliminate the need for post-drilling plasma treatment.

🎯 Superior Quality

No burrs, cracks, or thermal damage. Perfect for delicate materials like polyimide and glass.

◎

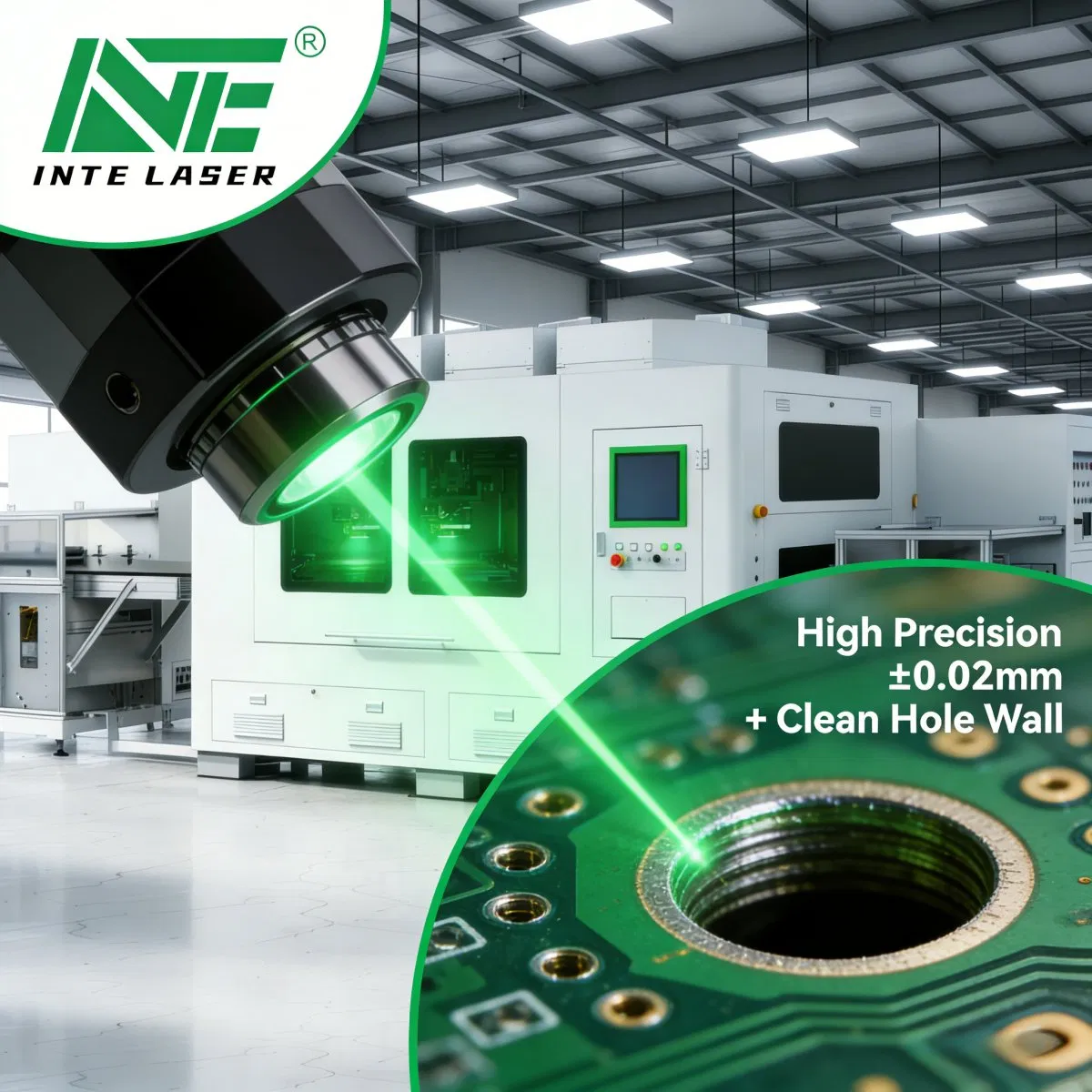

Precision & Quality Assurance

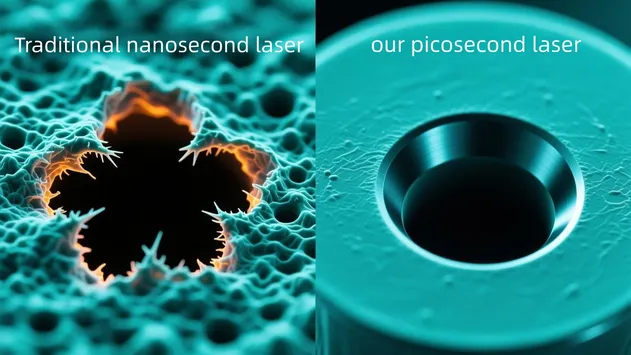

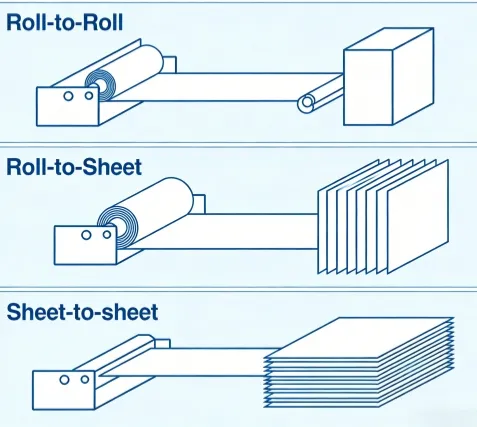

Drilling Result 1 Drilling Result 2

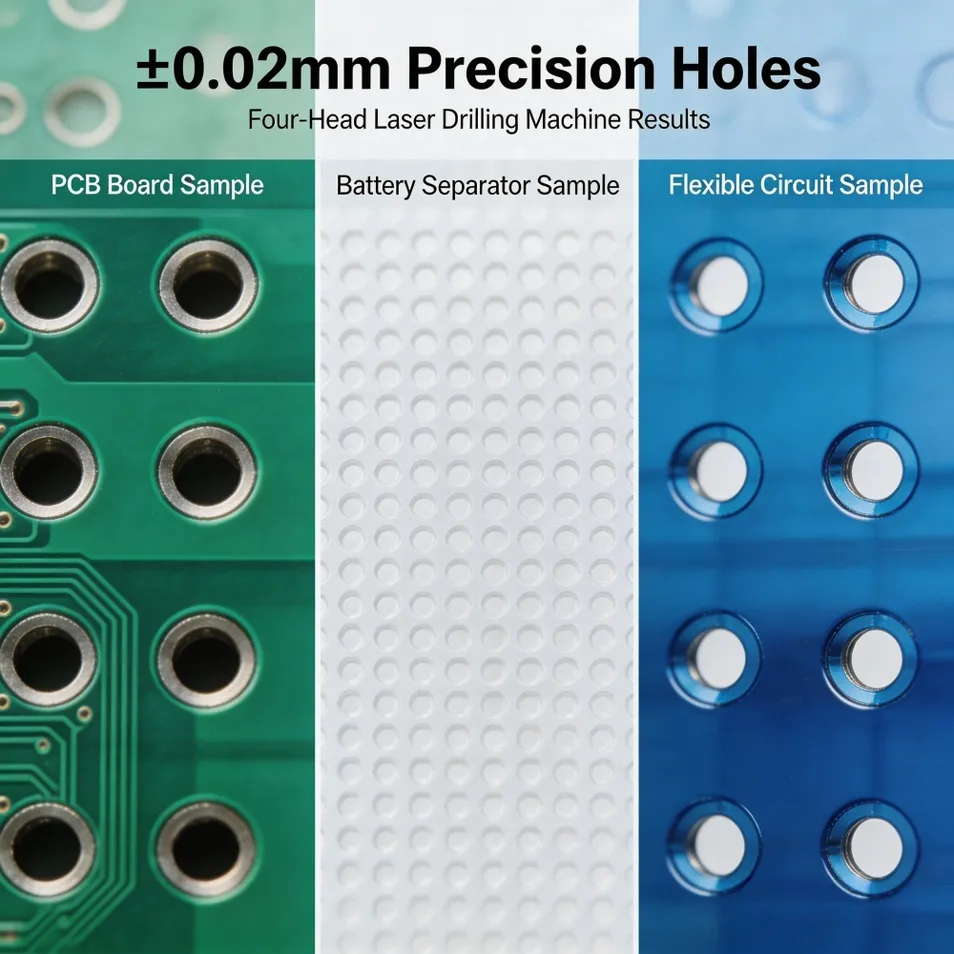

Our Four-Head Laser Drilling Machine delivers exceptional precision with microscopic accuracy. Each hole is perfectly round and uniform, showcasing the machine's ability to maintain consistent quality across high-volume production runs.

Efficiency Comparison Chart

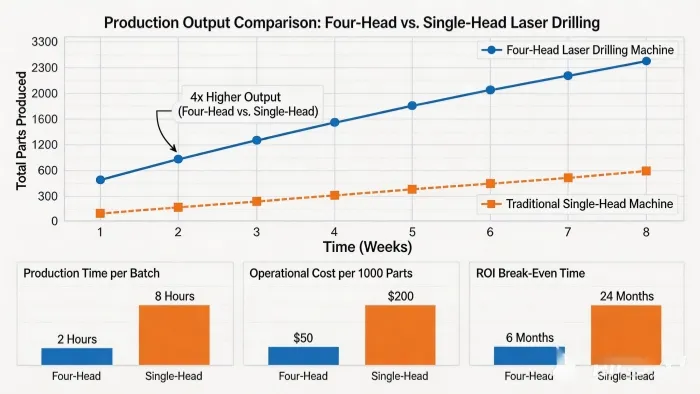

Efficiency Comparison
📋

Specifications

Laser TypeNanosecond UV, Picosecond UV, Picosecond green laser
Processing Area550mm × 1500mm (customized)
Machine Size7200mm × 2300mm × 2250mm
Processing Accuracy±0.02mm
Electric LoadingMain Unit +30kW Chiller +7kW Exhaust Fan +11kW
Machine Weight8000KG
EnvironmentHumidity: 40%-60%; Temperature: 22℃±2
🛠

Application Areas

Application Areas
  • ⚡ PCB Industry: HDI PCBs, Multi-layer Boards, High-speed through-hole & blind via drilling.
  • 📱 Flexible Circuits: FPC, Flex-Rigid Boards, Polyimide cutting & drilling.
  • 🔬 Semiconductor: IC Substrates, Lead Frames, Ultra-fine micro-vias (≤0.05mm).
  • ⌚ Consumer Electronics: Smartphones, Wearables, Mass production solutions.
👥

R&D and Production Capability

Established in 2013, our team specializes in independent research and development of laser generators, optical devices, and automation system integration. We provide innovative solutions for micromachining across industries such as PCBs, semiconductors, and new energy.

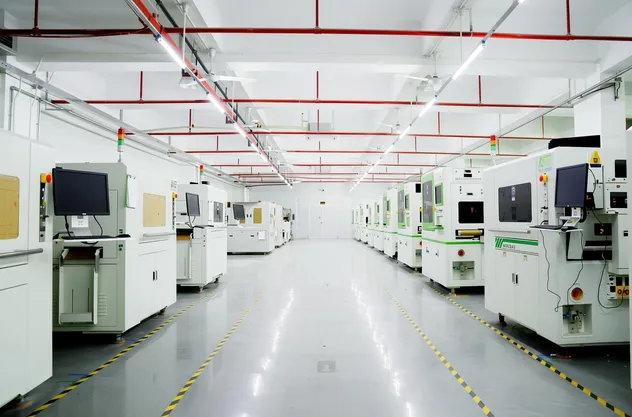

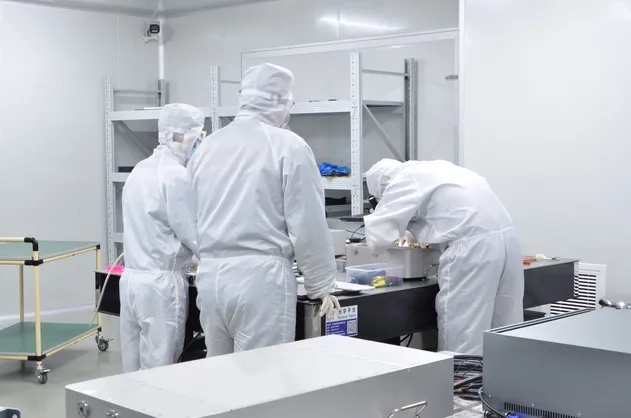

R&D Team Laboratory Production Base
📦

Packing & Delivery

Shipping

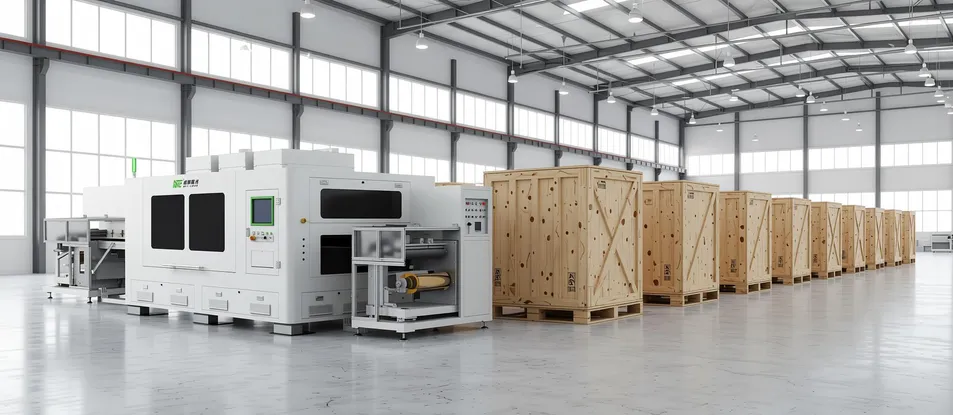

Packing: 1 Set / Wooden Case

Shipping: Sea freight is recommended due to equipment weight. International express available for urgent components.

Delivery: Standard goods (30-45 days); Customized solutions (45-90 days) after deposit confirmation.

?

Frequently Asked Questions

What is the advantage of the 4-head synchronous laser drilling machine?
The 4-head technology enables parallel processing, quadrupling throughput for HDI PCBs and Flexible Circuits (FPC) while significantly reducing cycle time.
What is the processing accuracy of this system?
The system features a positioning accuracy of ±0.02mm and ±0.01mm repeatability, ensuring precise micro-vias and blind holes at high speeds.
What materials can it process?
It is compatible with rigid PCBs, Flexible PCBs (FPC), polyimide, ceramic substrates, and copper clad laminates.
Does it support blind vias and buried vias?
Yes, it handles blind via drilling (BVB), buried vias, and through-holes with minimal Heat Affected Zone (HAZ) for clean sidewalls.
Is the operation fully automated?
Yes, it features CCD Vision Alignment and automated loading with real-time distortion correction for flexible boards.
Is beam quality consistent across all four heads?
Our advanced beam splitting technology ensures uniform energy distribution across all 4 heads, guaranteeing consistent hole quality.
