Fusai 550W High-Precision Laser Positioning Bench Drill Press Drilling Machine
Fusai 550W High-Precision Laser Positioning Bench Drill Press Drilling Machine
Fusai 550W High-Precision Laser Positioning Bench Drill Press Drilling Machine
Fusai 550W High-Precision Laser Positioning Bench Drill Press Drilling Machine
Fusai 550W High-Precision Laser Positioning Bench Drill Press Drilling Machine
1 / 5
Fusai 550W High-Precision Laser Positioning Bench Drill Press Drilling Machine
Fusai 550W High-Precision Laser Positioning Bench Drill Press Drilling Machine
Fusai 550W High-Precision Laser Positioning Bench Drill Press Drilling Machine
Fusai 550W High-Precision Laser Positioning Bench Drill Press Drilling Machine
Fusai 550W High-Precision Laser Positioning Bench Drill Press Drilling Machine

Fusai 550W High-Precision Laser Positioning Bench Drill Press Drilling Machine

Customization: Available
Structure: Vertical Drilling Machine
Layout: Vertical
Send Inquiry

Product Description

📋

Basic Information

Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Power Type
Electric
Drill Capacity
12mm-32mm
Drive Type
Gear/Belt
Trademark
BOLI
Origin
China
HS Code
8459290000
🛠️

Product Description

D320 Drilling Machine
D350 Drilling Machine

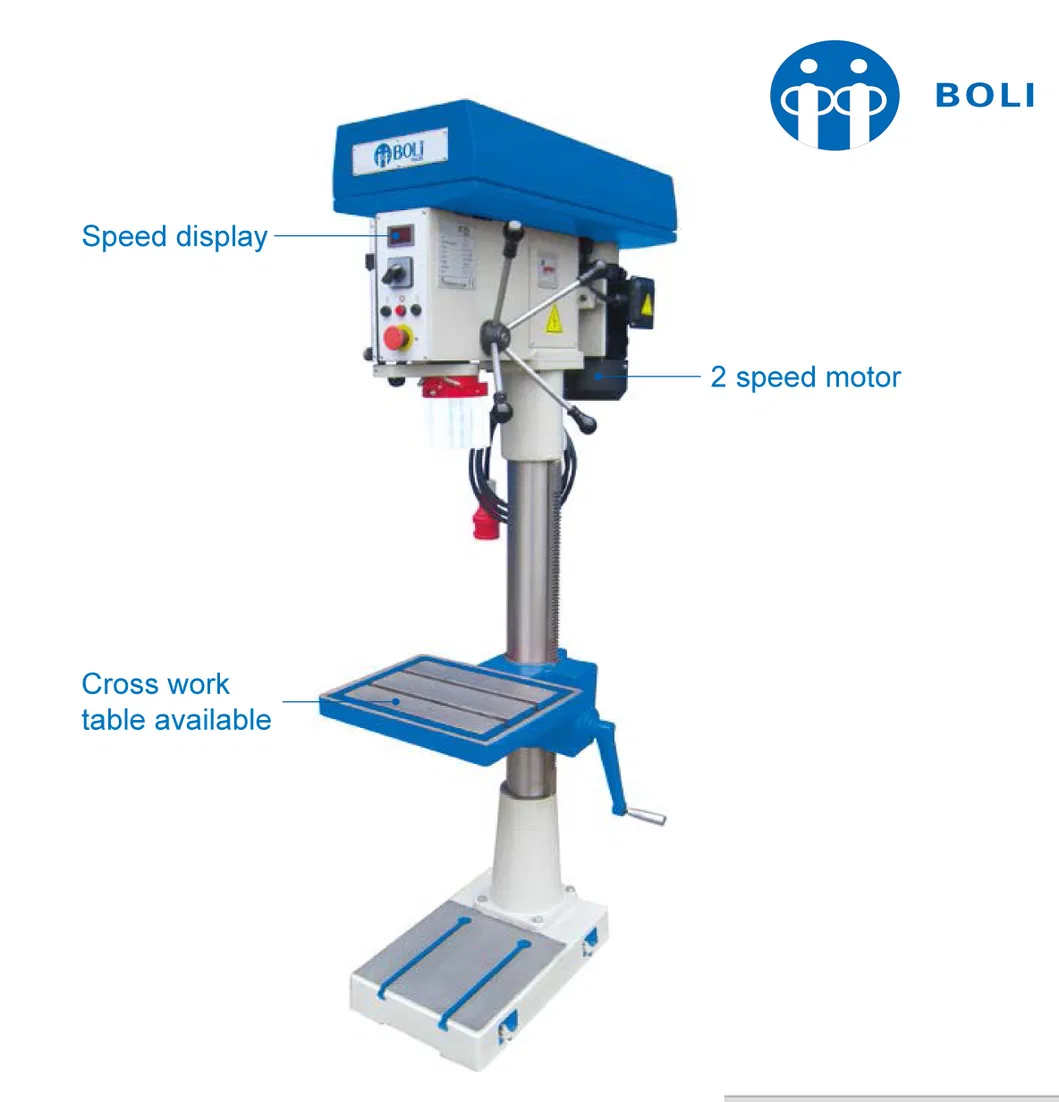

📌 Model D320
  • Two-speed motor
  • All main parts are made with quality cast iron
  • Wide belt stepless timing
  • Digital readout for the display of speed
  • With fender device
  • Supply 125mm precision vice and cross worktable as special accessories

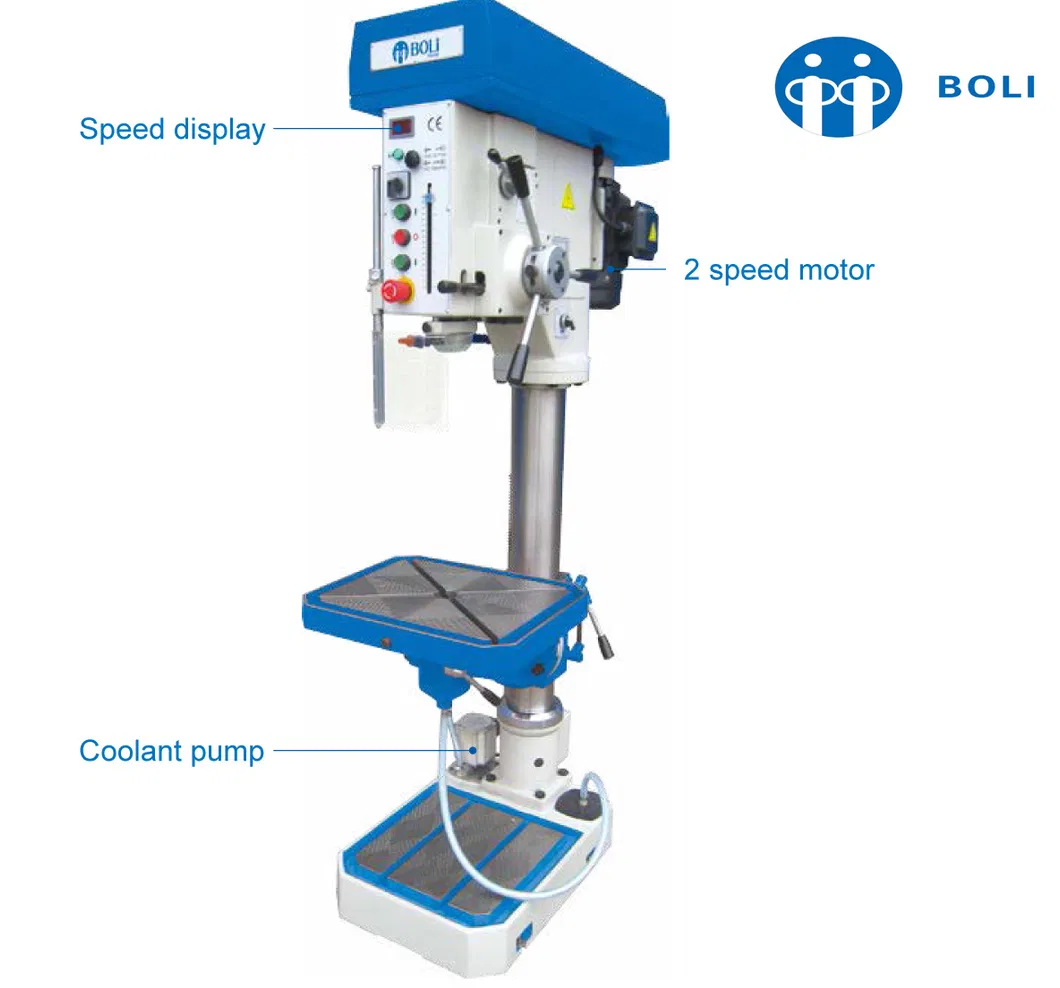

📌 Model D350
  • Two-speed motor
  • Aluminium belt wheel stepless timing
  • Mechanical feed
  • Particular device for dismounting cutters
  • Digital readout for the display of speed
  • With coolant device
  • With fender device
  • Supply 125mm precision vice and TS250 rotation worktable as special accessories
📌 DN4025 & DN5025 Series

DN4025 Bench Drilling Machine & DN5025 Column type of Vertical Drilling Machine designed for versatile industrial applications.

📊

Technical Parameters

Model No. Unit D320 D350 DN4025 DN5025
Max. drilling diameter(steel) mm Ø25(0.98") Ø35(1.38") Ø25(0.98") Ø25(0.98")
Max. tapping diameter - M12 M20 M16 M16
Max. travel of spindle mm 110(4.33") 160(6.30") 110(4.33") 110(4.33")
Distance: Spindle to Column mm 230(9.06") 320(12.60") 240(9.45") 240(9.45")
Spindle taper bore - MT3 MT4 MT3 MT3
Spindle speed steps steps Stepless Stepless 6 6
Spindle speed range r/min 80~1600 85~1800 125~2825 125~2825
Power of motor kw 0.70/1.3 1.0/1.7 0.75 0.75
N.W./G.W. kg 245/280 450/500 230/280 300/350
❓

Frequently Asked Questions

Q1: What are the main materials used in these drilling machines?
All main parts are manufactured using high-quality cast iron to ensure durability and high precision during operation.
Q2: Do these machines support speed monitoring?
Yes, models such as the D320 and D350 are equipped with a digital readout for the real-time display of spindle speed.
Q3: What is the power source for this series?
This equipment is electric-powered, utilizing either two-speed motors or standard high-efficiency motors depending on the model.
Q4: Are these machines certified for international standards?
Yes, the products carry multiple certifications including GS, CE, RoHS, and ISO 9001, ensuring compliance with global safety and quality standards.
Q5: Can these machines perform tapping operations?
Absolutely. These models support tapping with maximum diameters ranging from M12 to M20 depending on the specific machine model selected.
Q6: Is it possible to adjust the speed without steps?
Yes, the D320 and D350 models feature stepless timing (belt-driven), allowing for smooth and precise speed adjustments across the entire range.
