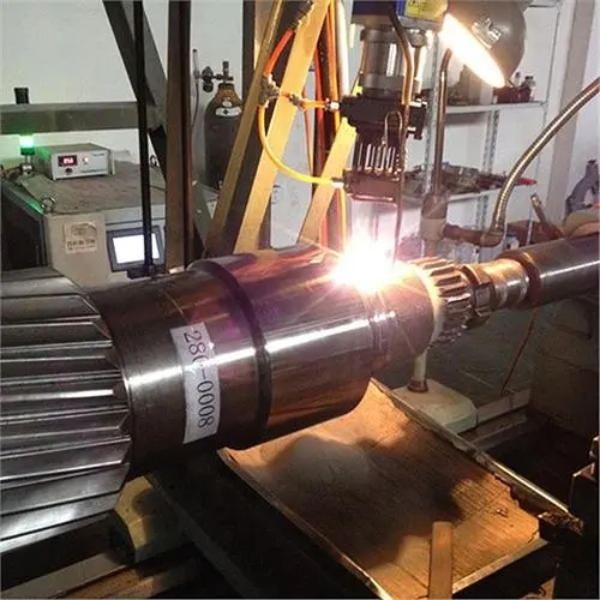

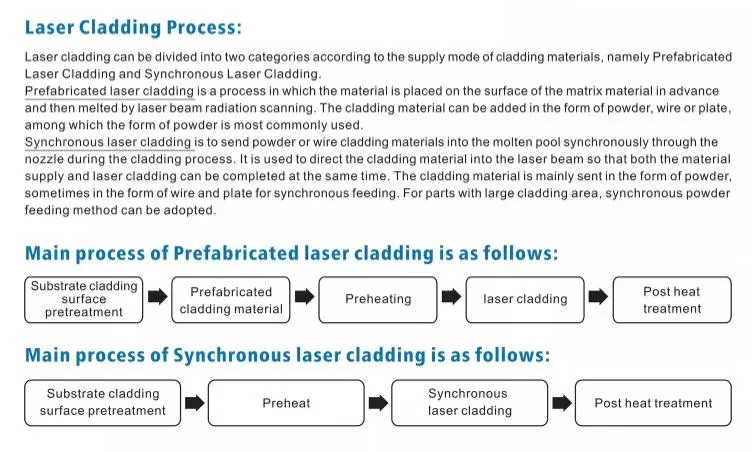

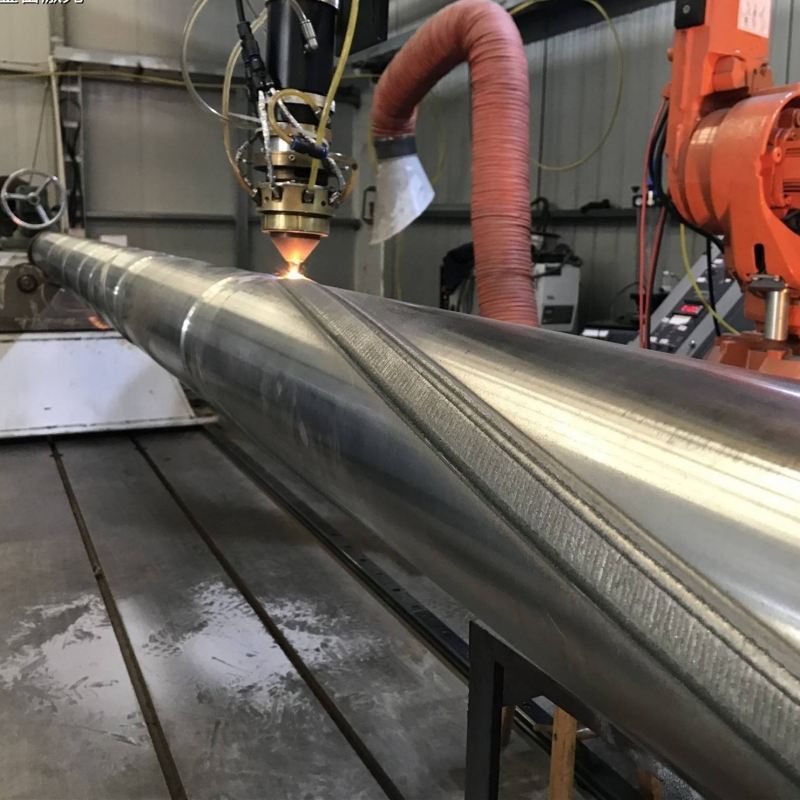

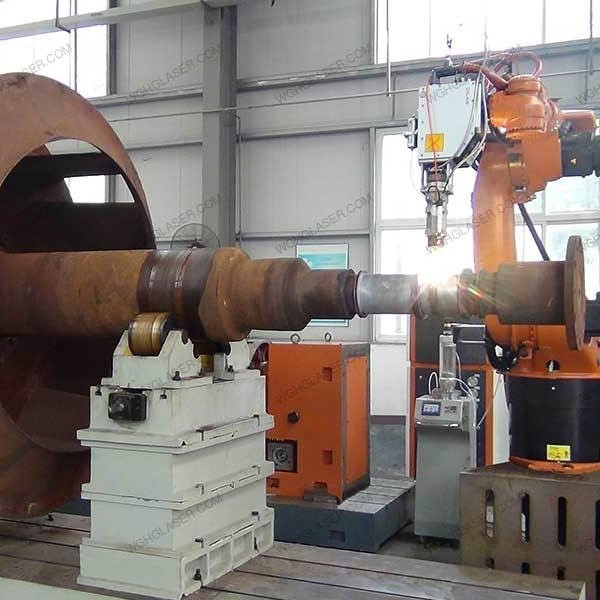

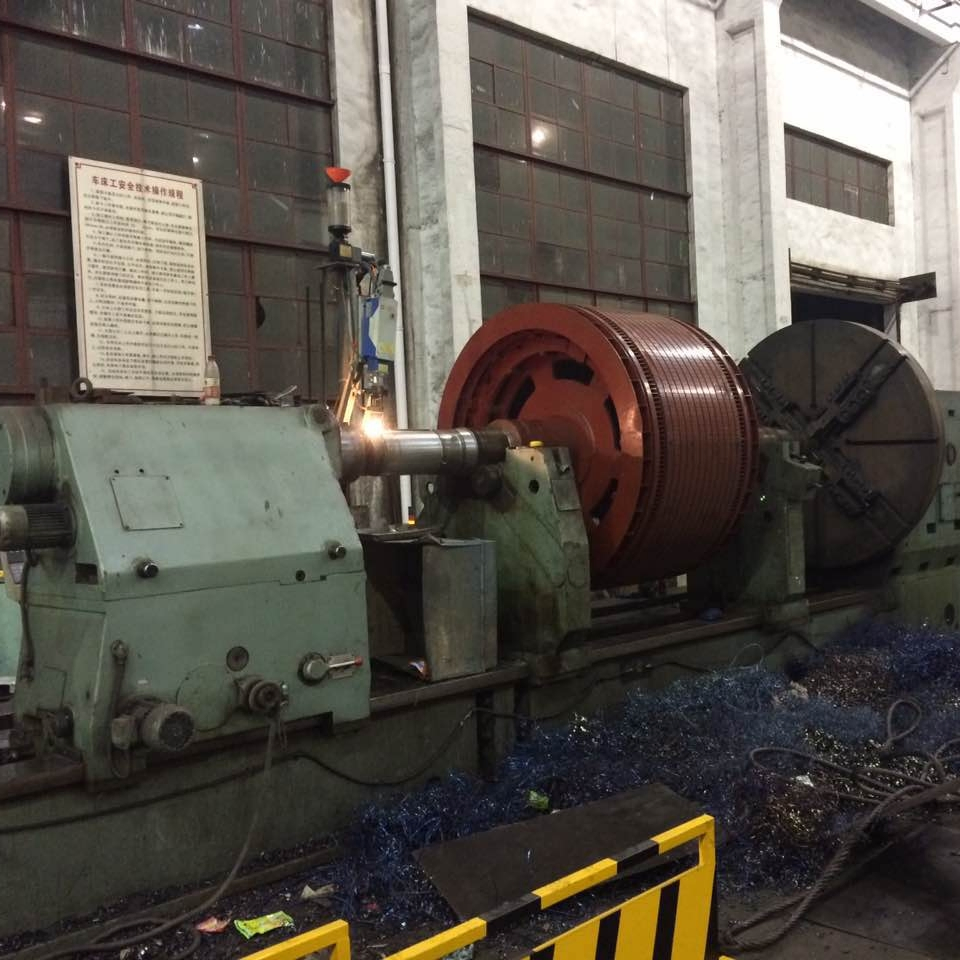

Laser cladding is a new surface modification technology. It forms a metallurgical bond on the surface of the base by adding cladding material on the surface of the base material and using a high energy density laser beam to melt it together with the thin layer on the surface of the base material.

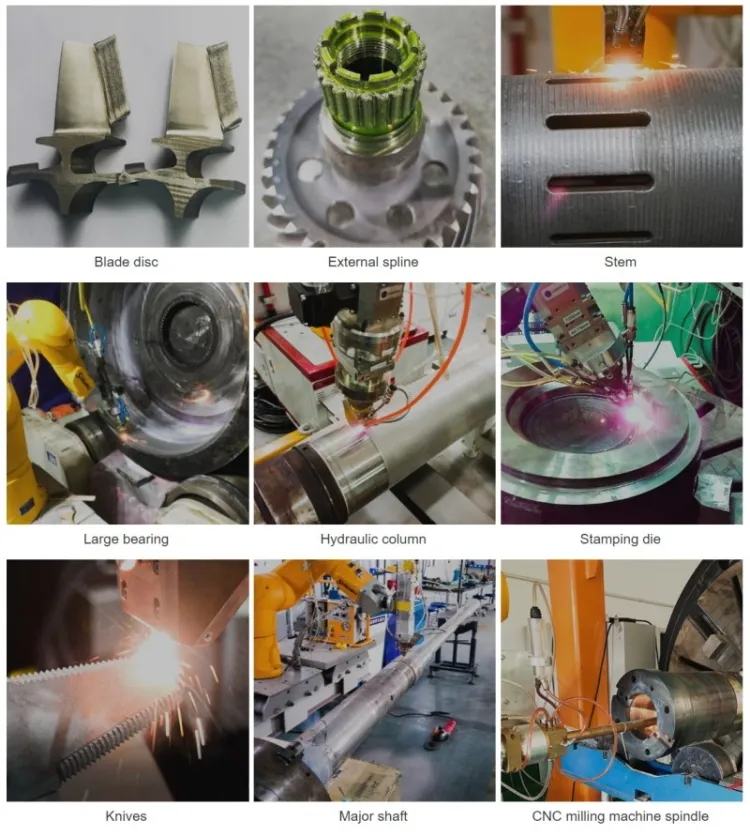

The cladding layer is metallurgically combined with the matrix, which can significantly improve the wear resistance, corrosion resistance, heat resistance, oxidation resistance or electrical properties of the surface of the matrix material, so as to achieve the purpose of surface modification or repair, and meet the specific performance requirements of the material surface. At the same time, it can save a lot of material costs.

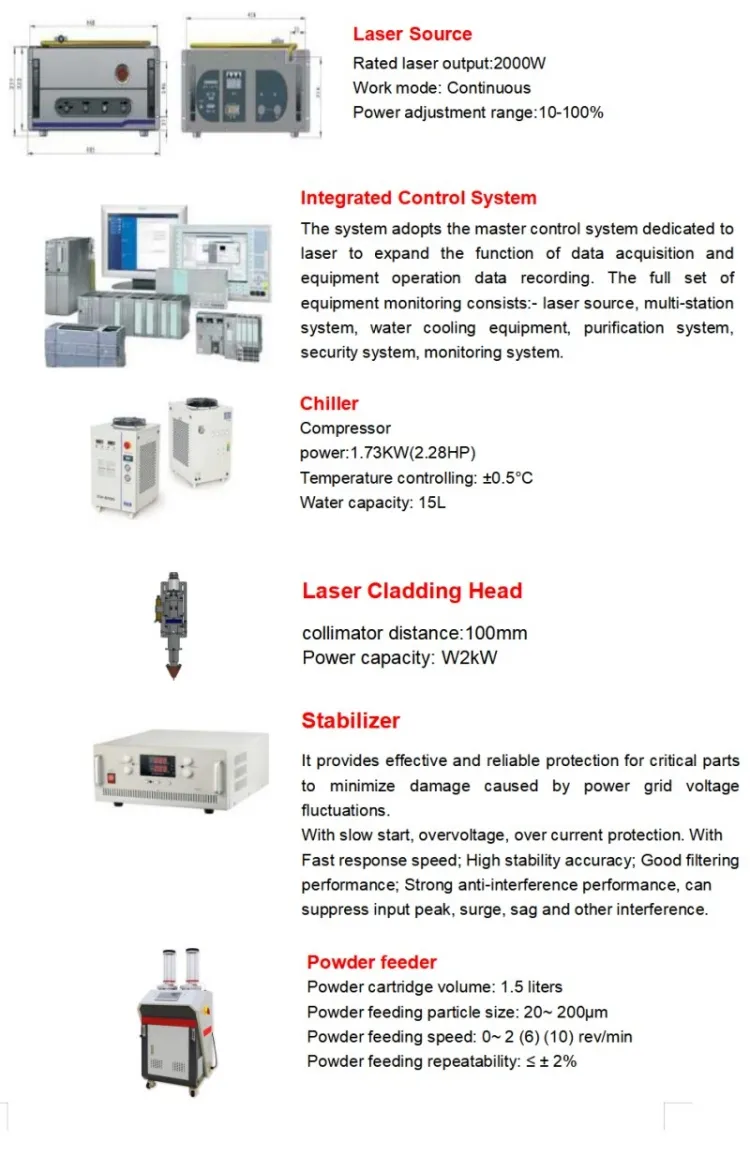

| Content | Parameters |
|---|---|
| Laser | 0.5-20kW, fiber, semiconductor, disc, etc. |

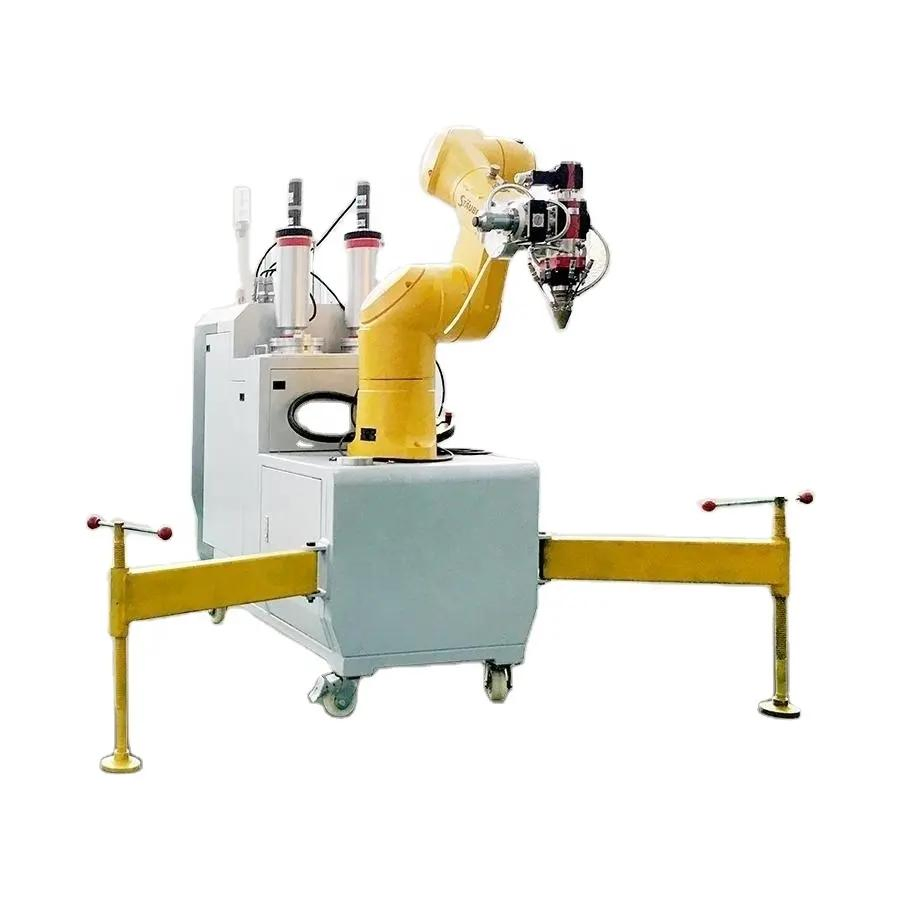

| Robot | Holding weight 16- 150kg, wingspan 1600-3700mm, KUKA, ABB, FANUC, YASKAWA, etc. |
| Laser Processing Head | 0.8-50mm round, square spot, size can be customized, coaxial, paraxonic powder feeder |
| Powder Feeder | Airborne, gravity conveying, powder feeding accuracy≤±2%,powder feeding amount 10-150g/min |
| Cooling-water Machine | Single temperature, dual temperature, cooling capacity according to laser selection |
| Input Voltage | 360-480V Three- Phase Five-Wire System @50 60Hz |
