Overview - Basic Info.
Model NO.
laser cutting machine
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Gantry Type
Laser Technology
Laser Flame Cutting
Laser Power
1500-3000W
X/Y Positioning Accuracy
0.03mm/M
Maximum Acceleration
1.2g
Maximum Movement Speed
200m/Min
Maximum Engraving Depth
100
Transport Package
Standard Package
Specification
8300*2300*2000mm
HS Code
8456110090
Production Capacity
30sets/Month
Package Size
830.00cm * 230.00cm * 220.00cm
Package Gross Weight
4000.000kg
Product Description
Laser cutting machine focuses the laser emitted from the laser into a high-power density laser beam through an optical path system. The laser beam is irradiated onto the surface of the workpiece, causing it to reach its melting or boiling point, while high-pressure gas coaxial with the beam blows away the melted or vaporized metal. As the position of the beam relative to the workpiece moves, a cutting seam is ultimately formed in the material, thereby achieving the purpose of cutting.
Laser cutting processing replaces traditional mechanical knives with invisible beams, and exhibits excellent industrial advantages:
- High precision and fast cutting speed not limited to specific cutting patterns.
- Automatic typesetting system designed to save raw materials.
- Smooth, scratch-free cutting surfaces with minimal processing costs.
- No mechanical contact with workpieces, preventing physical damage or surface scratches.
- Extremely narrow cutting seams (0.1mm ~ 0.3mm) with minor heat-affected zones, reducing board deformation.
- No mechanical stress or shear burrs, eliminating the need for further secondary processing.
- Advanced numerical control programming capable of processing any complex flat plan layout without molds.
Production Standards & Capabilities
As a leading manufacturer specializing in the design, production, and OEM services of high-efficiency electrical apparatus and laser cutting structures, compliance with safety and industrial benchmarks is built into every unit. Management systems are fully certified under ISO9001: 2015 and ISO14001: 2015.
Furthermore, products are verified under global certification programs, including: CE, CB, TUV, RoHS, and UL, guaranteeing high cost-efficiency and reliable industrial standards for global deployments.
Frequently Asked Questions

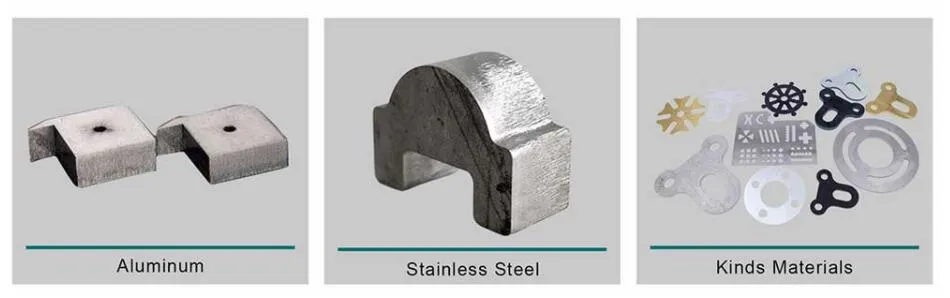

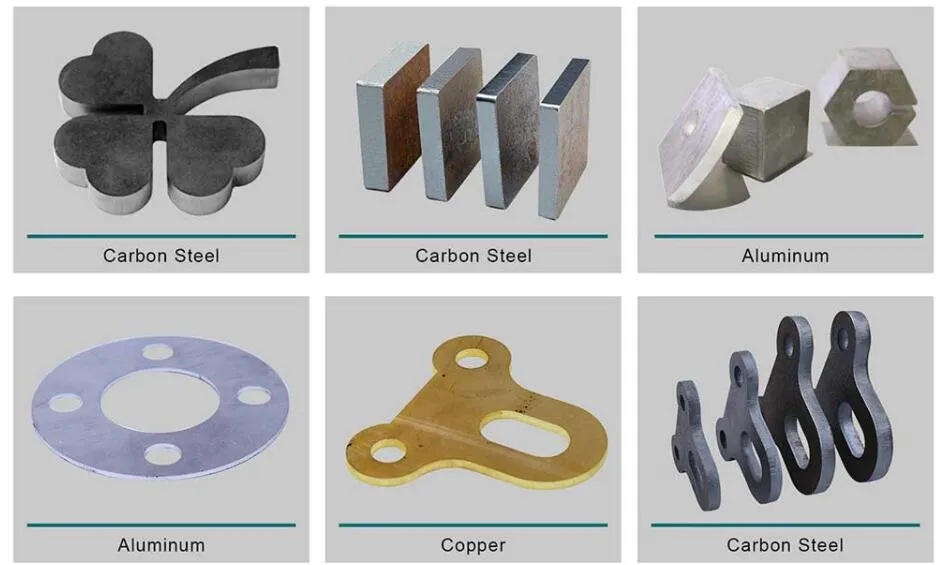

What materials can this laser cutting machine cut?

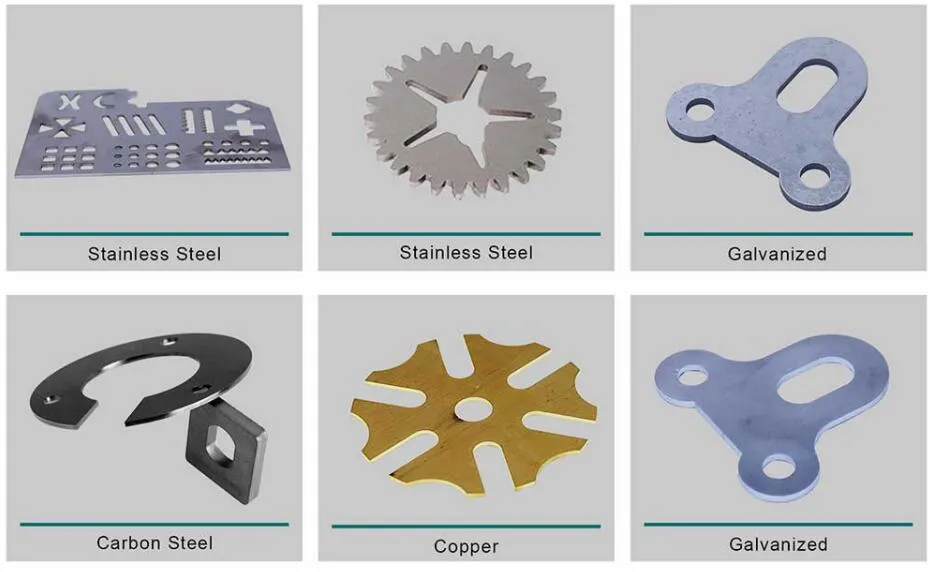

This versatile machine is primarily structured to cut metal sheets, including stainless steel, low-carbon steel, and aluminum. We also offer specialized configurations optimized for leather, fabrics, woven straps, and nylon.
What is the positioning accuracy and precision of the machine?
The machine delivers exceptional accuracy with an X/Y positioning precision of ±0.03mm/M. This ensures repeatable, flawless cuts, making it perfect for highly intricate designs and industrial engineering tasks.
How fast does the laser cutter operate?
The machine supports a maximum movement speed of up to 200 meters per minute and features a maximum acceleration rate of 1.2g. This ensures optimal production cycle times and maximum efficiency.
Does laser cutting cause surface damage to workpieces?
No. The non-contact nature of the laser beam ensures that there is zero physical tool contact with the workpiece. This prevents surface scratches, eliminates mechanical stress, and ensures no shear burrs.
What certificates and standards do these products comply with?
All manufacturing and design operations conform strictly to ISO9001: 2015 and ISO14001: 2015 management systems. In addition, the systems hold global market safety certifications including CE, CB, TUV, RoHS, and UL.
Does the machine require molds for custom shapes?
No. The machine runs on sophisticated numerical control programming. It can instantly process any flat structural plan, cutting entire boards directly from digital layouts without the need for expensive molds.
