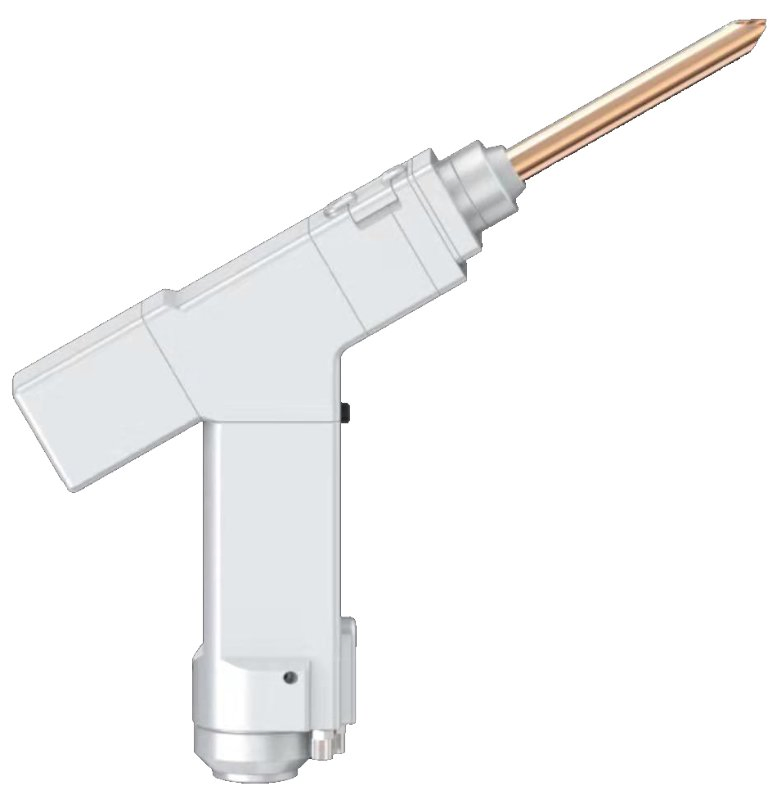

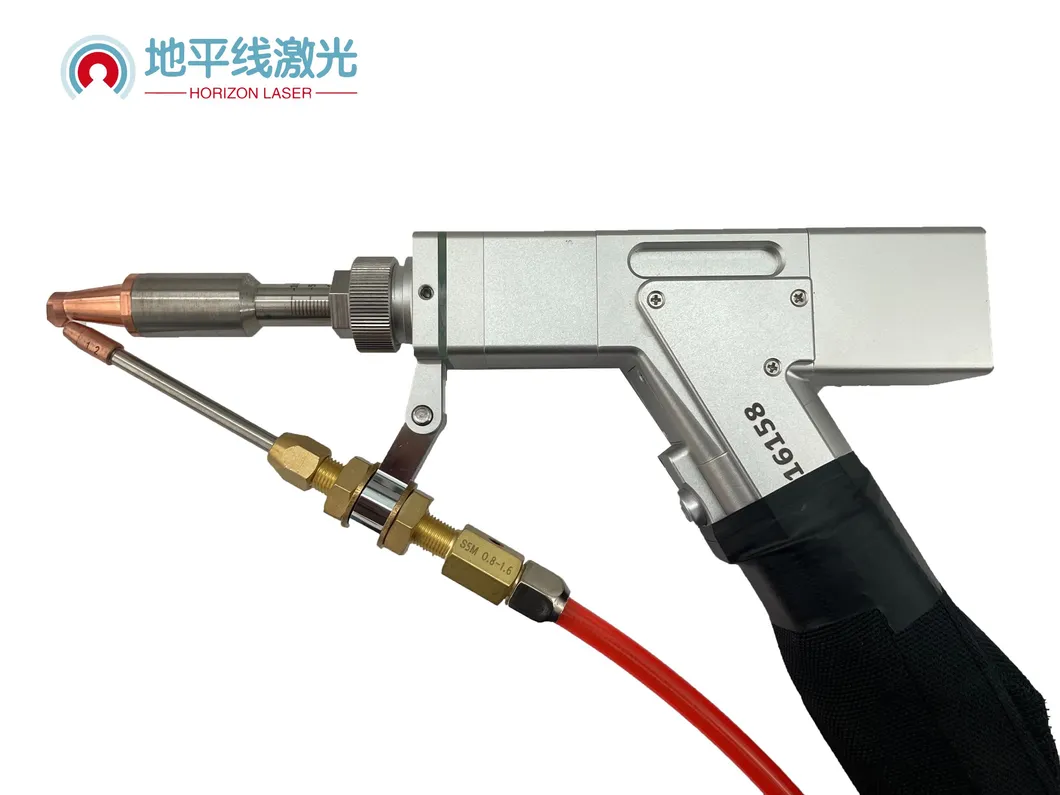

The hand-held laser welding machine adopts a fiber laser source and transmits high-brightness laser through the fiber, obtaining a high energy density output through the hand-held welding head. It is used for welding stainless steel, low carbon steel, aluminum alloy and other materials, and the operation is flexible and convenient.

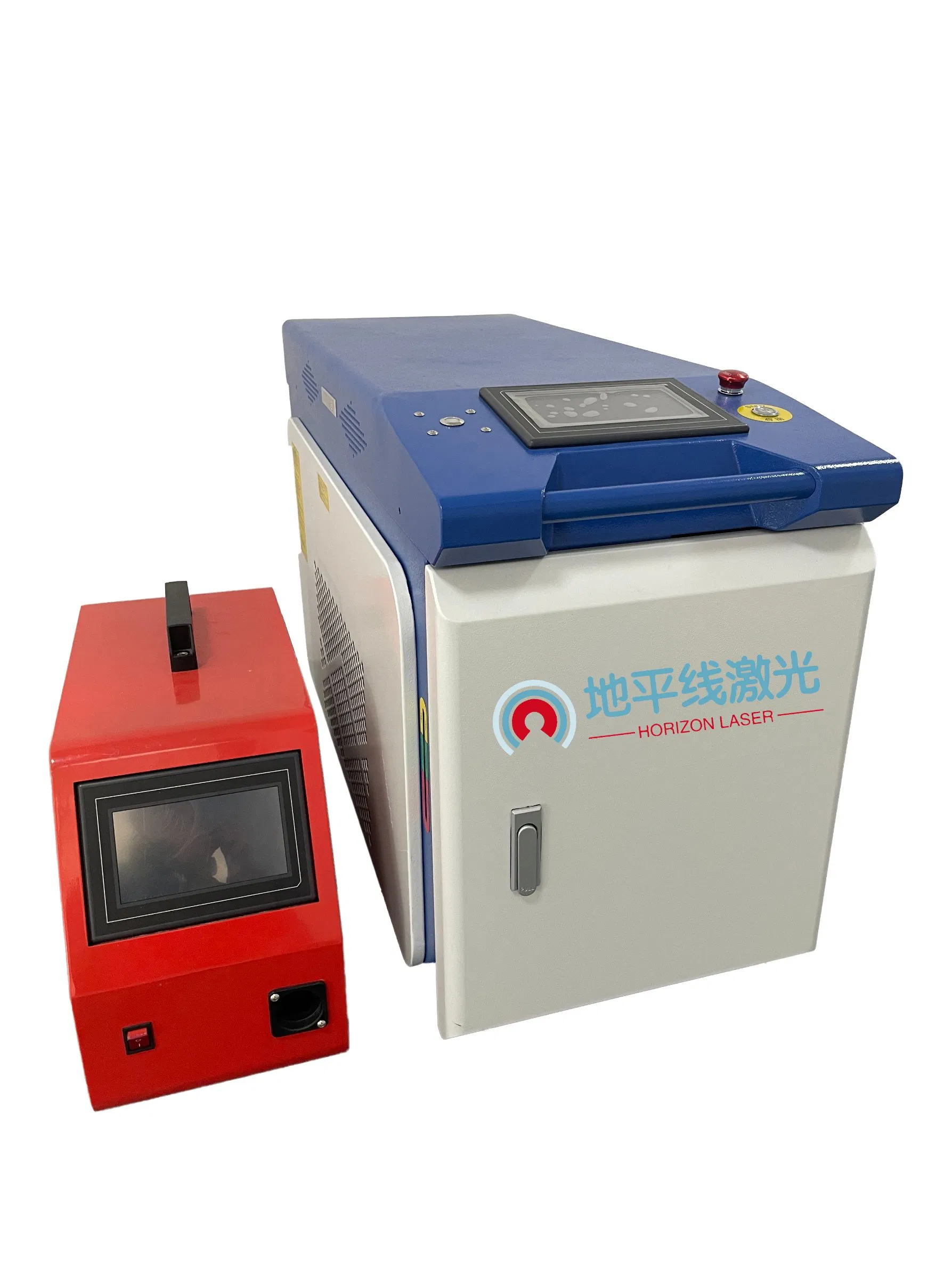

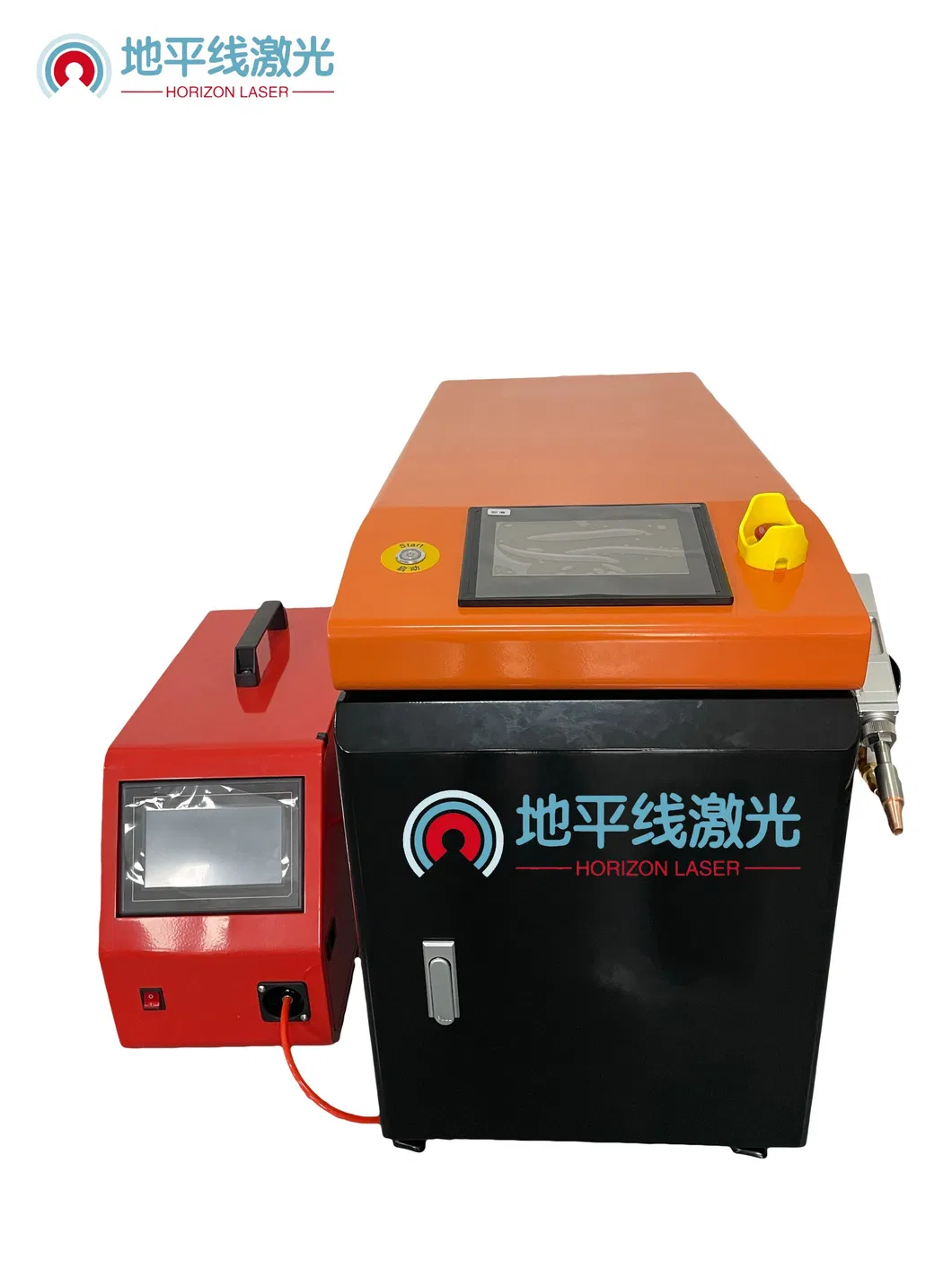

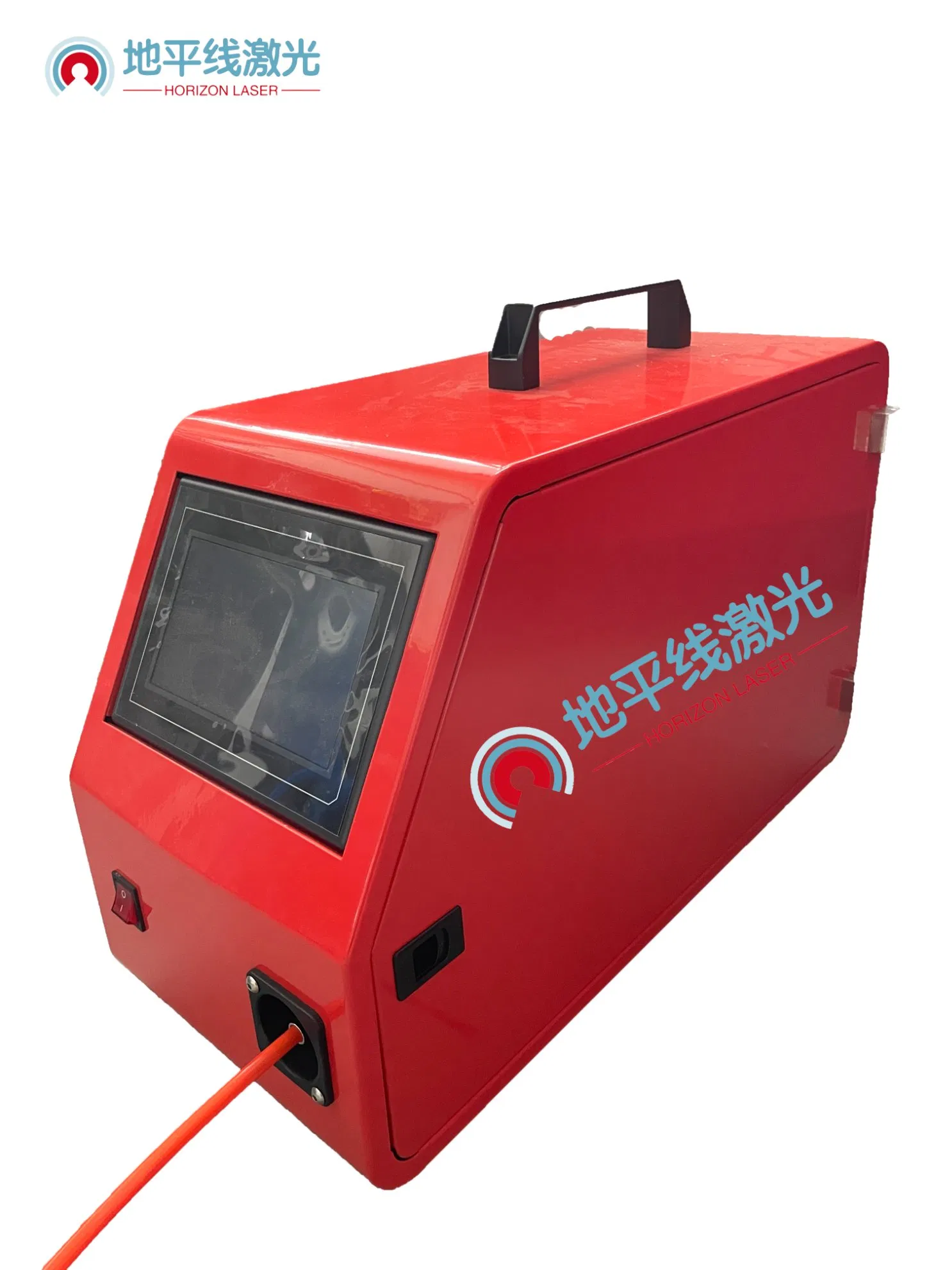

The hand-held laser welding machine is integrated with a fiber laser source, hand-held welding head, chiller, wire feeder, laser control system, and safety light-emitting system. The overall design is small, beautiful, and easy to move. It is convenient for customers to choose a working place without being limited by space and scope. This machine can be used for welding applications in billboards, metal doors & windows, sanitary ware, cabinets, boilers, frames and other industries.
| Feature | DPX-W1000 | DPX-W1500 |
|---|---|---|
| Laser Source | CW fiber laser (1080±3nm) | |
| Output Power | 1000W | 1500W |
| Welding Mode | Continuous, Spot | |
| Weld Width | 0-5 mm | |
| Torch Weight | <1.2 kg | |
| Power Consumption | <5kw | <7kw |
Welding speed is 4 times faster than argon arc welding; One-time welding forming with smooth bead, no grinding needed. Basically no consumables required, and the protective lens can be used for several weeks.
| Material | DPX-W1000 | DPX-W1500 |
|---|---|---|
| Stainless Steel | ≤3.0mm | ≤4.0mm |
| Mild Steel | ≤3.0mm | ≤4.0mm |
| Galvanized Sheet | ≤2.0mm | ≤3.0mm |
| Aluminum Alloy | ≤2.0mm | ≤3.0mm |
