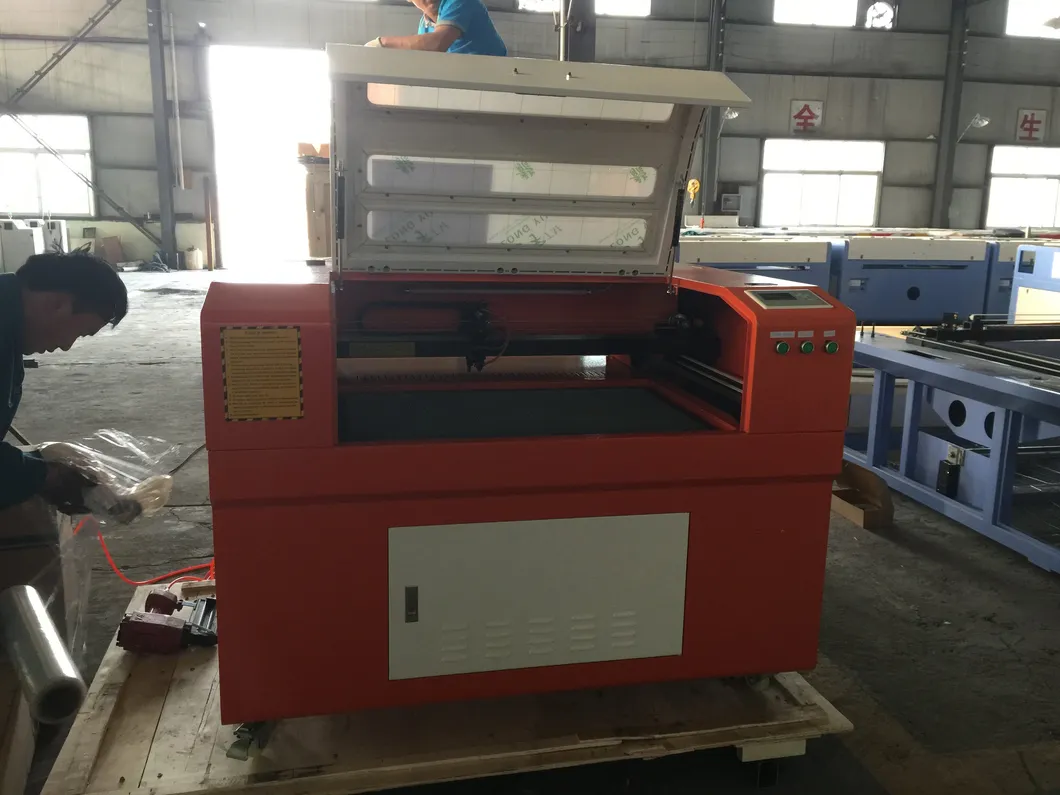

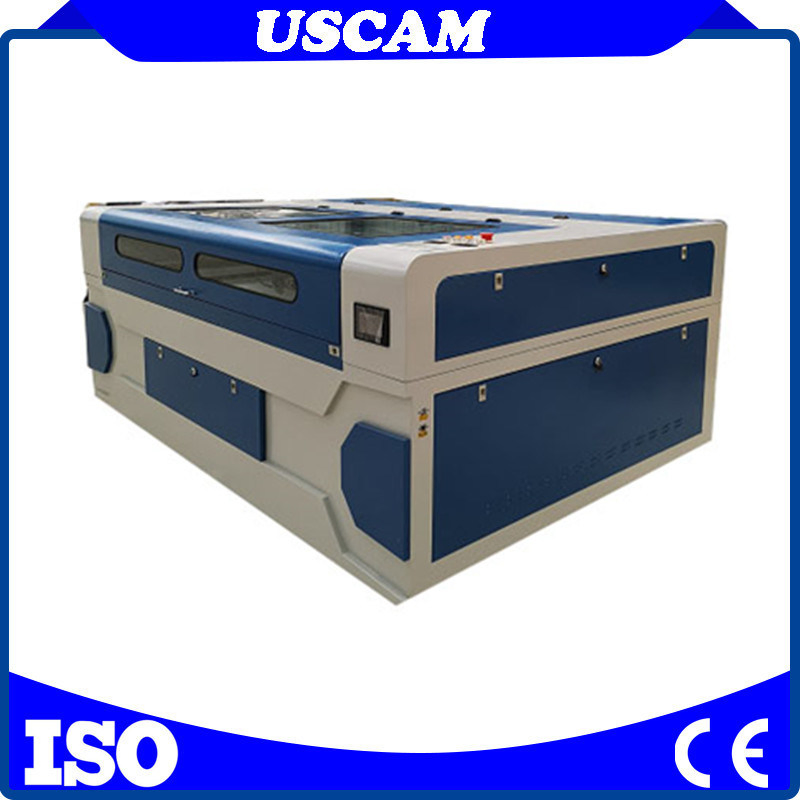

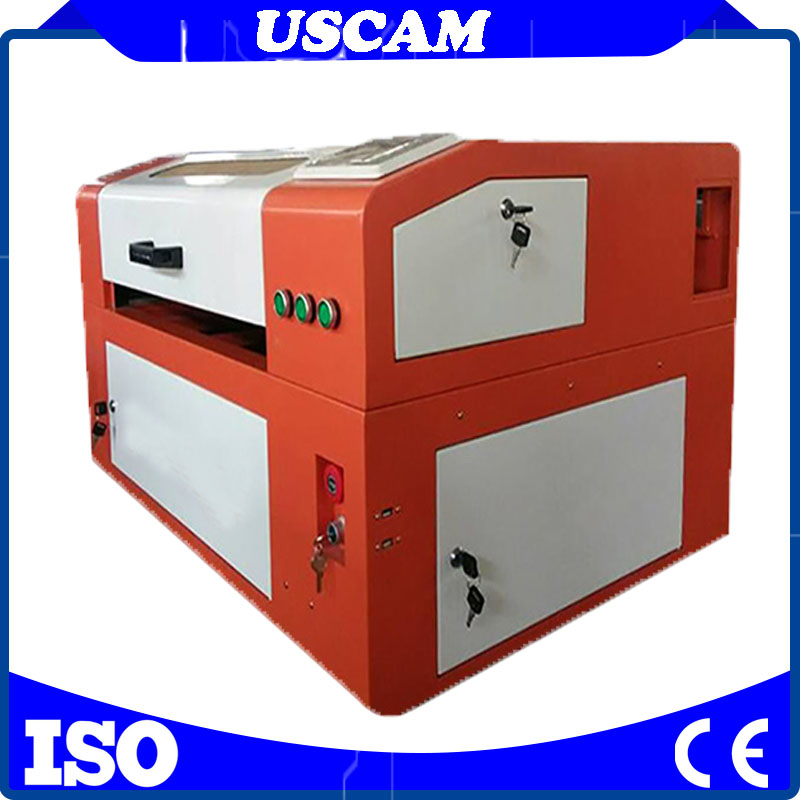

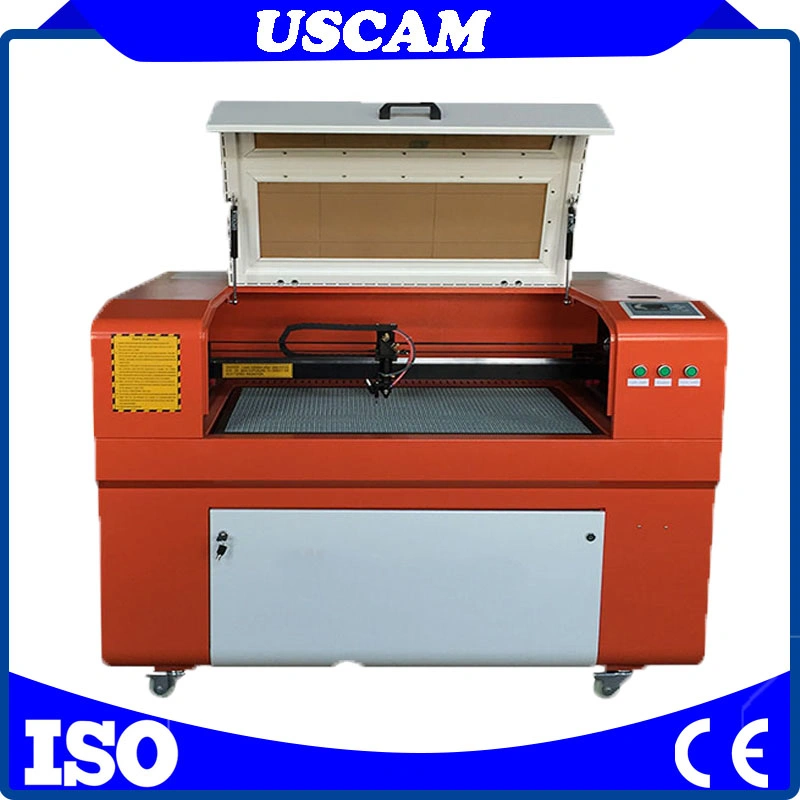

CO2 CNC Laser Cutting Engraving Machine for Wood Acrylic Engraver

★

Product Overview

This CO2 laser engraving machine is a versatile solution designed for cutting both metal and non-metal materials. For metal materials, it efficiently cuts carbon steel and stainless steel. Depending on the material type and thickness, the pulse width, current, frequency, and cutting speed are fully adjustable to ensure precision.

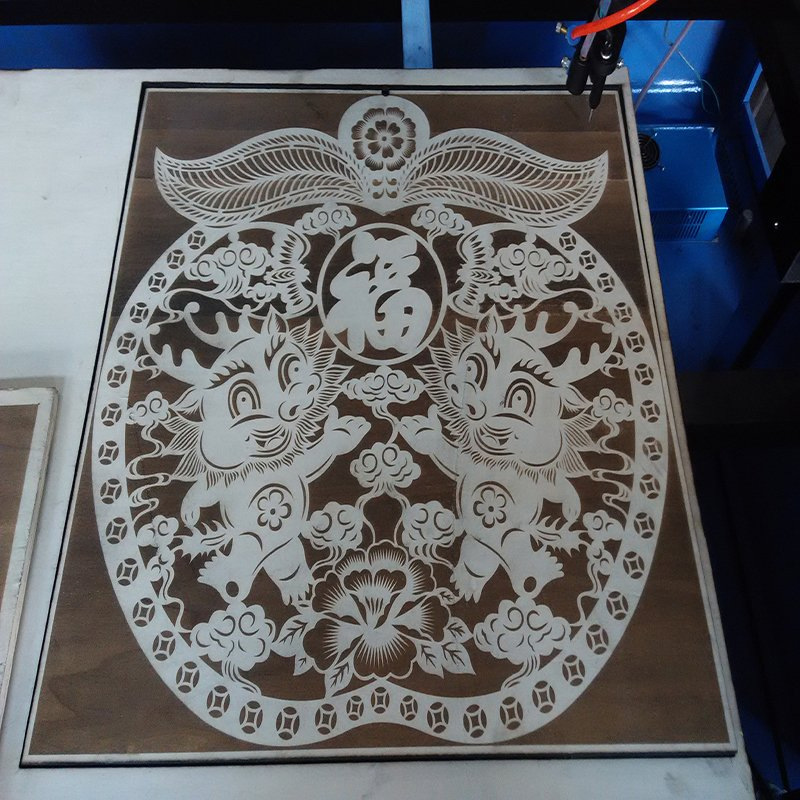

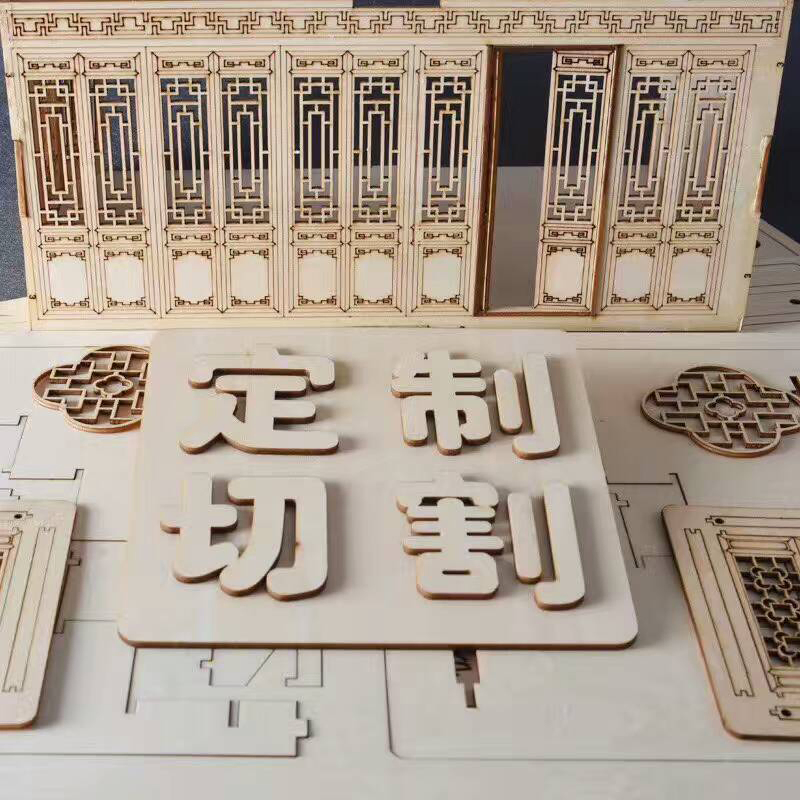

For non-metallic materials, the machine is capable of processing wood, bamboo, jade articles, stone (engraving only), organic glass, crystal (engraving only), rubber, plastic, and more.

⚙

Technical Parameters

Name	CO2 Laser Cutting Machine 6090
Processing area	900mm600mm (3feet2feet)
Laser power	80/100/130/150/180W
Laser type	Sealed CO2 laser tube
Positioning accuracy	±0.01mm
Compatible Software	Laser cut 5.3, CorelDraw, AutoCAD, Photoshop
Engraving speed	1-6000mm/min
Cutting thickness	0-20 mm acrylic (varies by material)
Position system	Red dot
Interface	USB
Driving mode	DC0.8A 24V stepper motor

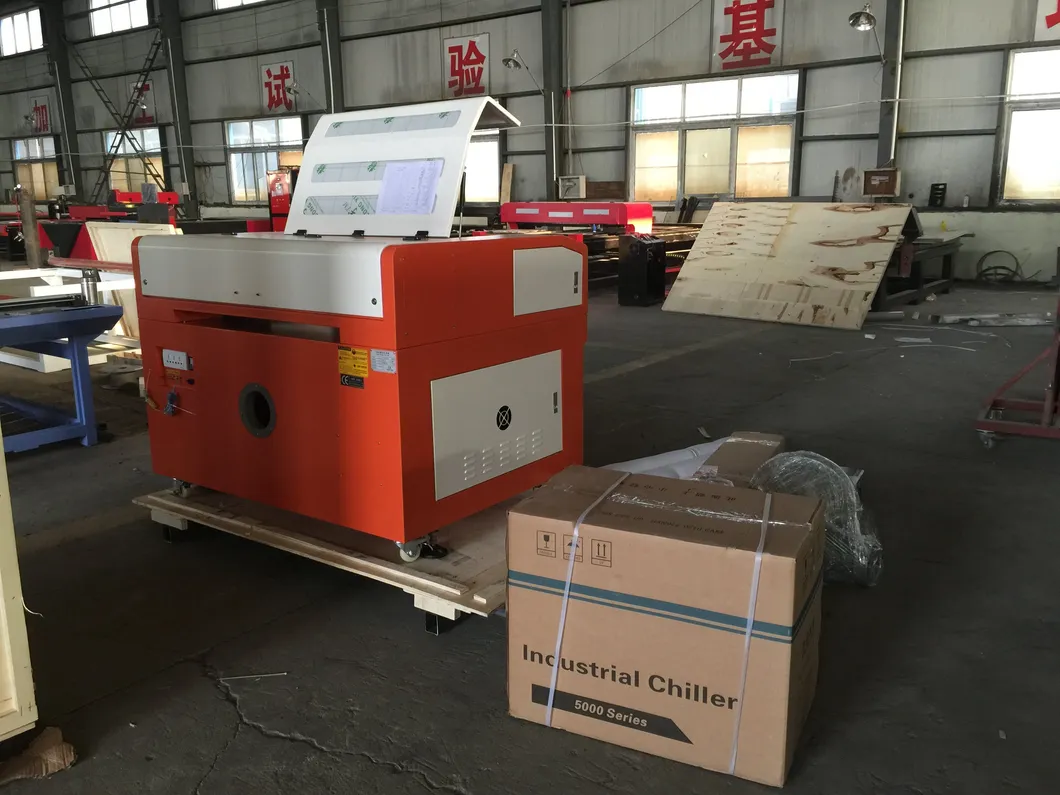

Cooling mode	Circulation water cooling
Working voltage	AC 110 - 220V±10%, 50 - 60Hz
Guarantee time	2 years (Laser tube 10 months)

✔

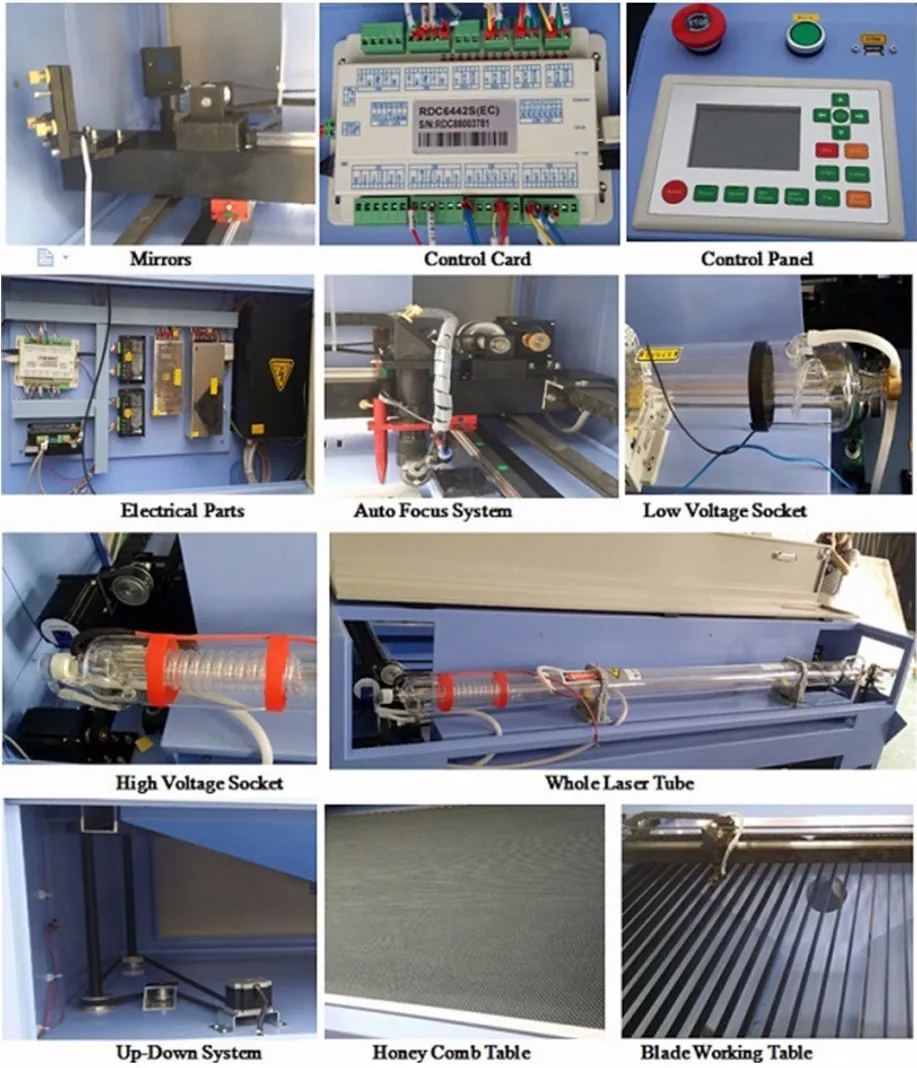

Key Features

Taiwan HIWIN Guide Rails: High-precision square linear guide rails on X&Y axis ensure stable and precise operation.

Reinforced Framework: Utilizes a square tube framework with 40% higher strength than standard iron sheets, preventing vibration and distortion.

High-Efficiency Laser Tube: Newly designed laser tube providing a more stable beam compared to traditional types.

Advanced DSP Control: Professional motion control chip supports high-speed curve cutting and shortest-path selection.

USB Offline System: Makes the operation faster and more convenient without needing a constant PC connection.

Red Dot Positioning: Standard configuration for simple and precise workpiece alignment.

✂

Applications & Cutting Thickness

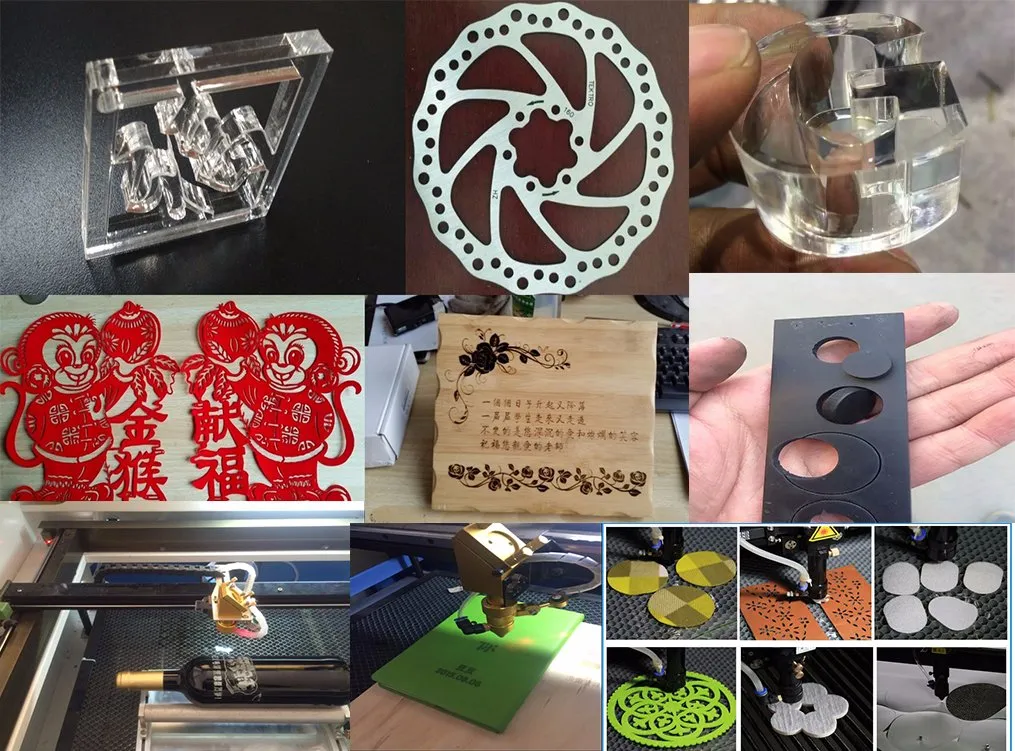

Widely used for engraving and cutting non-metal materials such as Acrylic, PVC, Rubber, Plastic, Crystal, Glass, Wood, Bamboo, Leather, and Cloth.

Material / Power	40W	60W	80W	100W	130W	150W
Acrylic	3mm	8mm	12mm	15mm	20mm	30mm
Wood	3mm	5mm	8mm	10mm	15mm	20mm
MDF	2mm	4mm	7mm	9mm	13mm	20mm
Leather	1mm	4mm	8mm	10mm	13mm	15mm
Metal	-	-	-	-	-	2mm (w/ Oxygen)

✈

Service & Logistics

Spare Parts Support: We provide replacement parts for all machines. New parts are posted with step-by-step PDF instructions for easy replacement.

After-Sales Service: 1.5 years quality guarantee for main parts. Lifetime maintenance, free training at our plant, and 24-hour online technical support.

Packaging: Standard plywood cases with high compressive strength. Fumigation-free for easy international import. Delivery usually within 7-15 days after payment.

?

Frequently Asked Questions

What materials can this CO2 laser machine process?

It can cut and engrave non-metal materials like wood, acrylic, leather, and plastic. With higher power and oxygen assistance, it can also cut thin metals like stainless steel and carbon steel.

How is the machine protected during international shipping?

The machine is packed in three layers: a waterproof plastic bag inside, a shock-absorbing foam middle layer, and a robust fumigation-free plywood case for the exterior.

Is it easy for a beginner to install and operate?

Yes. The machine is mostly pre-installed. We provide detailed training videos and user manuals. Approximately 95% of our customers successfully set up the machine independently.

What is the warranty period for the laser machine?

The main machine comes with a 2-year warranty (1.5 - 2 years depending on components), while the laser tube is covered for 10 months.

How do I get technical support if something goes wrong?

We offer 24-hour online technical support. Simply contact us, and our technicians will respond within 24 hours to help diagnose and solve the issue.

What payment terms do you accept?

We generally accept T/T (Telegraphic Transfer), with a 30% deposit in advance and the remaining 70% balance due before delivery after you have reviewed the testing video of your machine.
