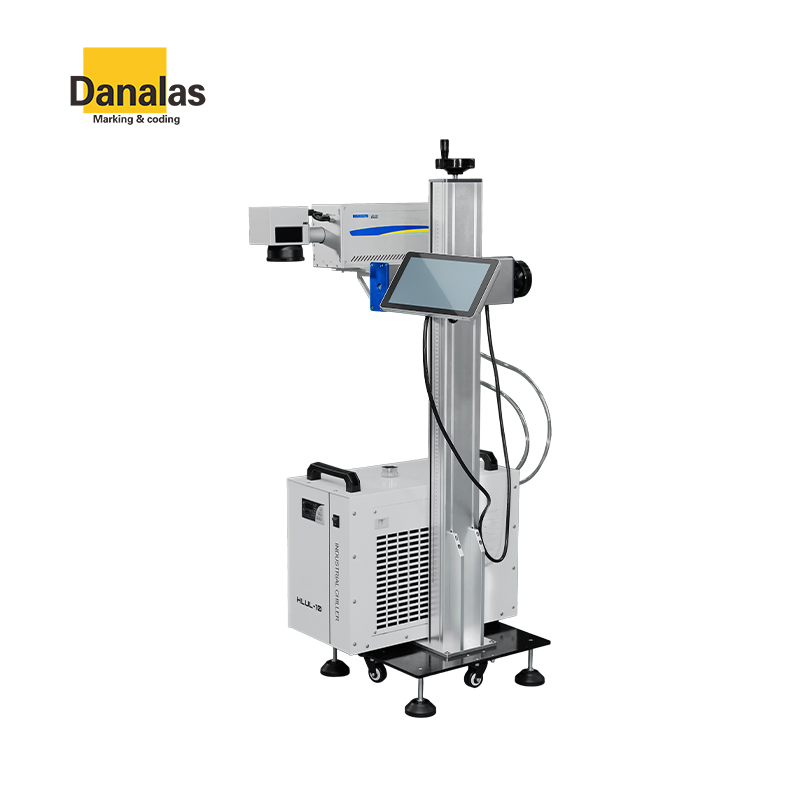

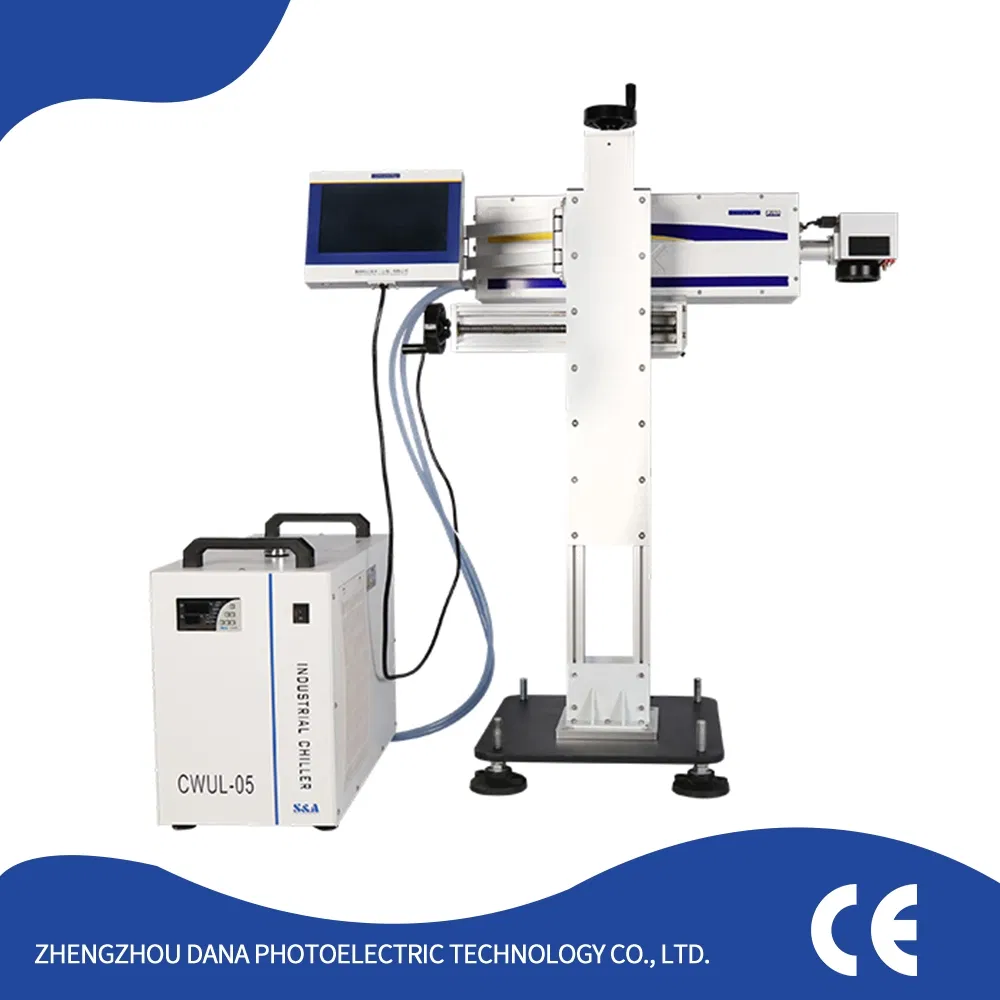

F20 series UV Laser Marking Machines
F20 series UV laser marking machine excels in ultra-fine marking on production line. The Ultraviolet laser's minute focus spot enables exceptionally fine printing, making it ideal for detailed marking on food and pharmaceutical packaging materials.

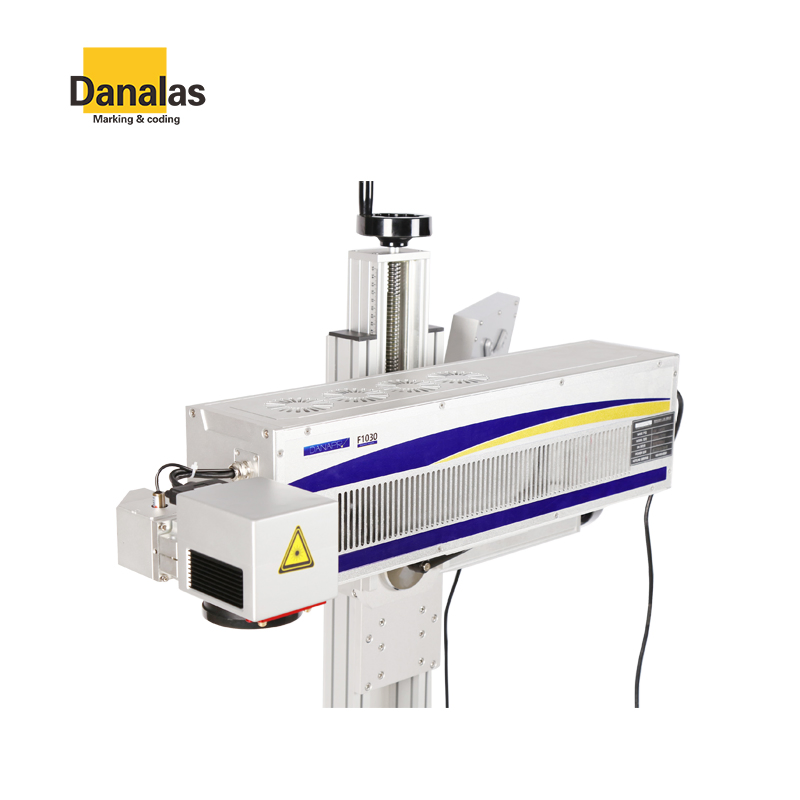

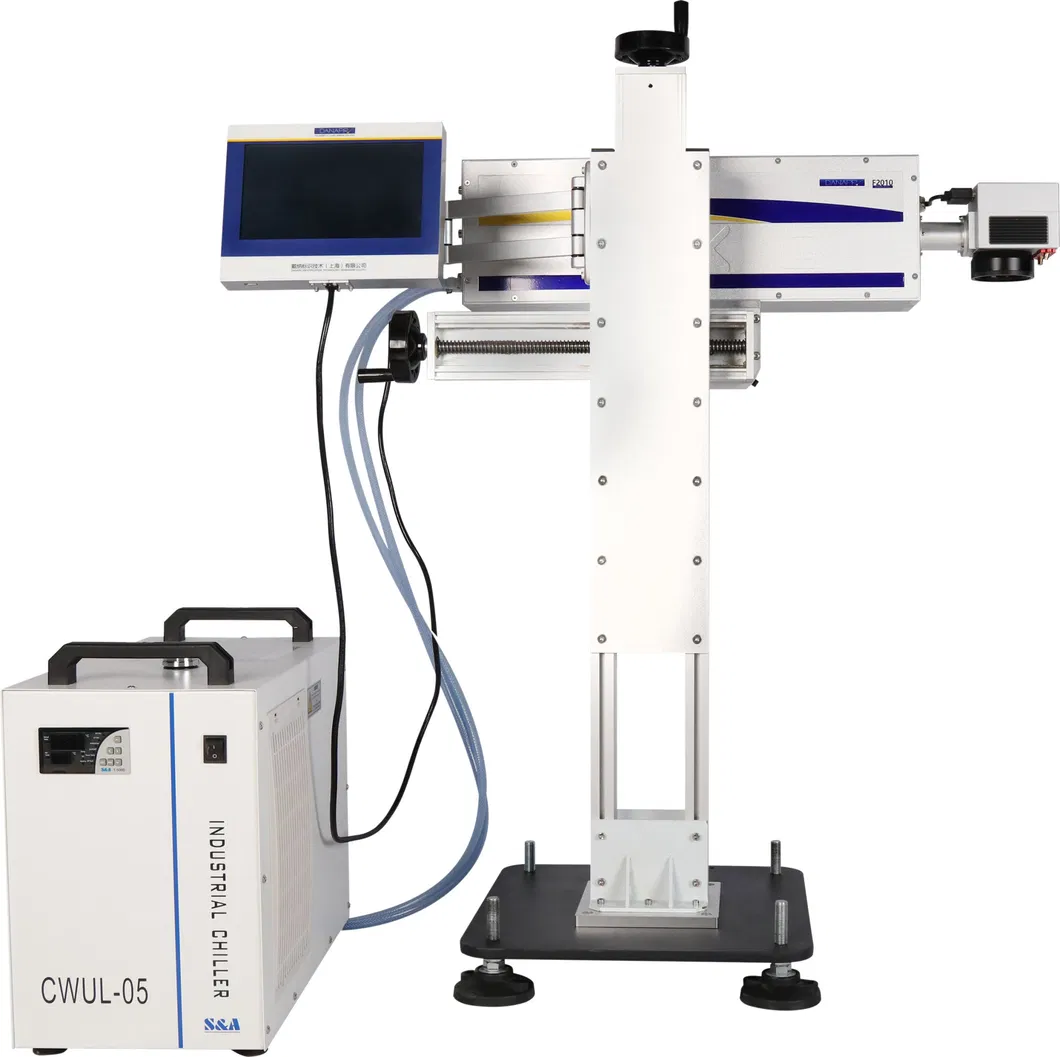

1. The F20 series UV laser marking machine comprises of a UV laser, Galvanometer, Field mirror, Touch-Screen Controller, and system support, with the aluminum shell for stability and durability. Additionally, it offers optional water cooling or air cooling systems tailored to environmental needs.
2. The ultraviolet laser, with a wavelength of 355nm, achieves its marking effect by directly interrupting the molecular chains of materials using short-wavelength light. This method significantly reduces mechanical and thermal deformation (cold processing), making it particularly suitable for materials that are sensitive to thermal radiation.
3. The system incorporates an automatic coding function, capable of generating variable data such as serial numbers, batch numbers, and dates. It is compatible with popular software applications including AUTOCAD, CORELDRAW, PHOTOSHOP, CAXA, and others. It supports a wide range of file formats including PLT, PCX, DXF, BMP, and more.
4. The machine offers four selectable power levels to meet the requirements of different materials, marking speed and marking effect.
Compared with CO2 laser and fiber laser, UV laser has thinner printing lines, and can print a small two-dimensional code on a small package.
Ultraviolet laser marking machine uses a narrow pulse width of laser, and the processing material action time is short, the thermal effect is small, the material is not deformed and not burnt.
Marking range up to 500*500 mm
Support marking content: bar code, text, graphics, two-dimensional code and other forms of free combination.
UV Laser Marking Machine is applicable for kinds of metal materials, widely used in industries like pipelines and files, food and beverages, pharmaceutical and medical, etc.
| UV Laser Marking Machine Specification | |
|---|---|
| Laser-type | Ultraviolet Laser Wavelength: 355nm, 30000hrs working time |
| Laser Power Class | 15W |
| Focal Length | 220mm(Standard) |
| Maximum line speed | 25m-30m/min |
| Marking Parameters | |
| Marking Field | 110mm×110mm; Max:500×500mm |
| Minimum Line Width | 0.01mm |
| Character Height | 0.4-70mm |
| Typeface | Single line, Dot matrix, True Type |
| Marking Content | Text, Graphics, Barcode, QR code, Serial number, etc. |
| Operation Interface | |

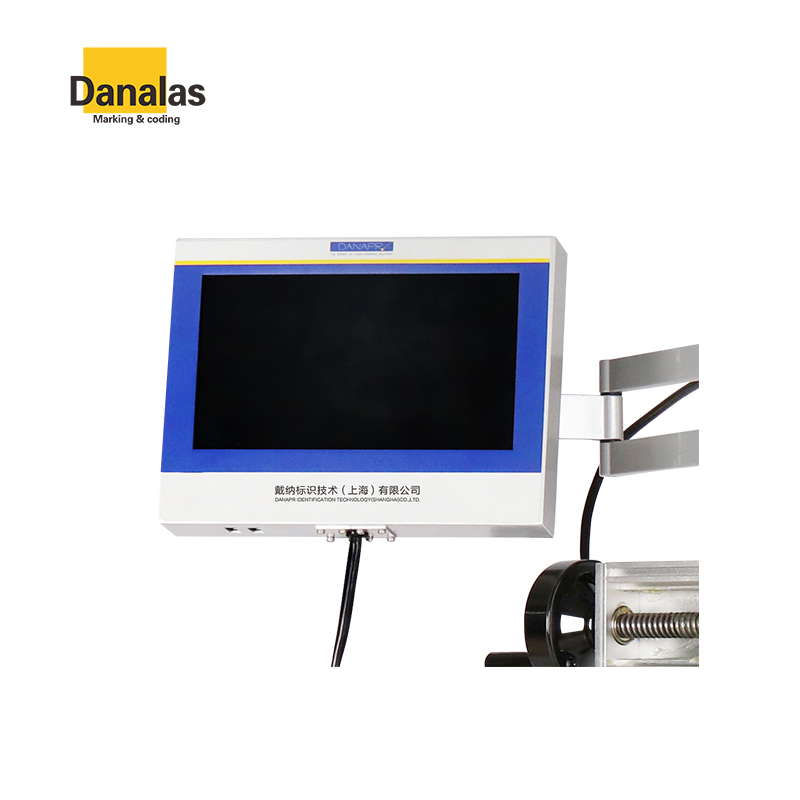

| Monitor | Industrial Touchscreen |
| Operating System | Linux |
| Environment Requirements | |
| Protection Degree | ≥IP54 |
| Cooling | Water-Cooling |
| Working Temperature | -5-45ºC |
| Power Supply | 220V, 1KVA |

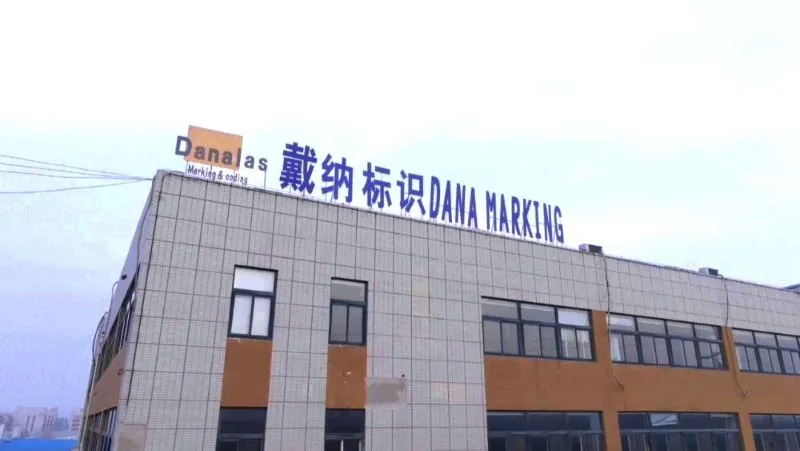

We are a leading manufacturer specializing in product marking and traceability solutions. With over ten years of experience in the coding printing field, we have served numerous customers across various industries. Our professional engineering service team provides customized coding solutions tailored to complex production environments.

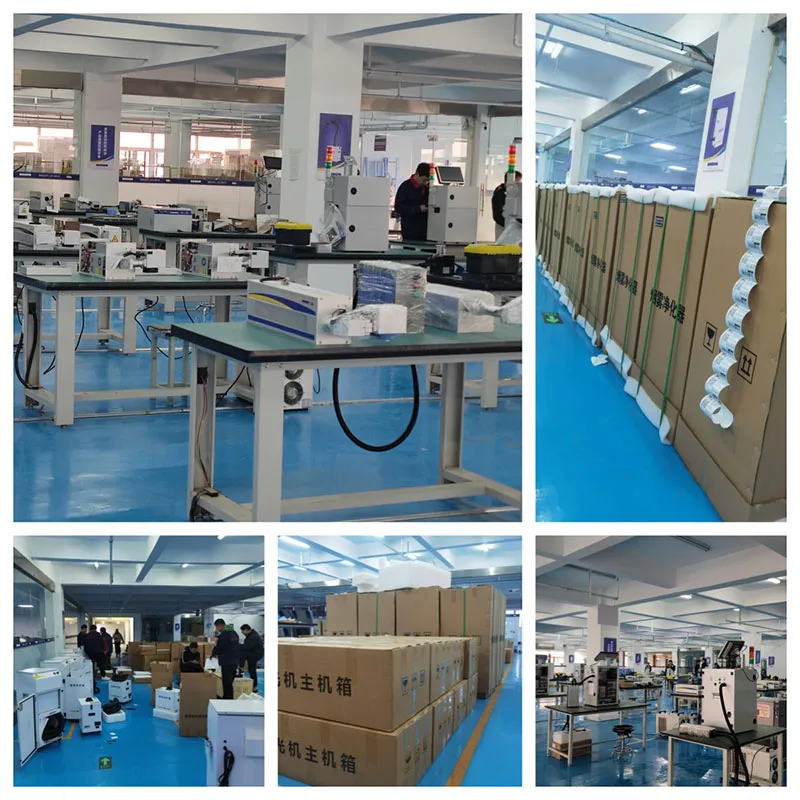

We cater to diverse industry demands with industrial packaging automation lines and unique one-item-one-code traceability solutions. Our services span sectors such as profiling & pipeline cable manufacturing, food & beverage, pharmaceuticals, packaging & printing, electronics, metal products, automotive parts, and more. Our technology excels in both static and dynamic production line applications.
We are committed to offering high-quality coding equipment at reasonable prices. Our product range includes CO2 laser marking machines, UV laser marking machines, Fiber laser marking machines, Thermal Inkjet (TIJ) coding machines, Handheld TIJ printers, Thermal Transfer Overprint (TTO) equipment, and ink consumables.
