📊 Basic Information
Laser Visibility
Invisible
Applicable Material
Nonmetal
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Working Method
on Line Marking
Marking Field
110mm*110mm; Max:500*500mm
🔍 Product Description

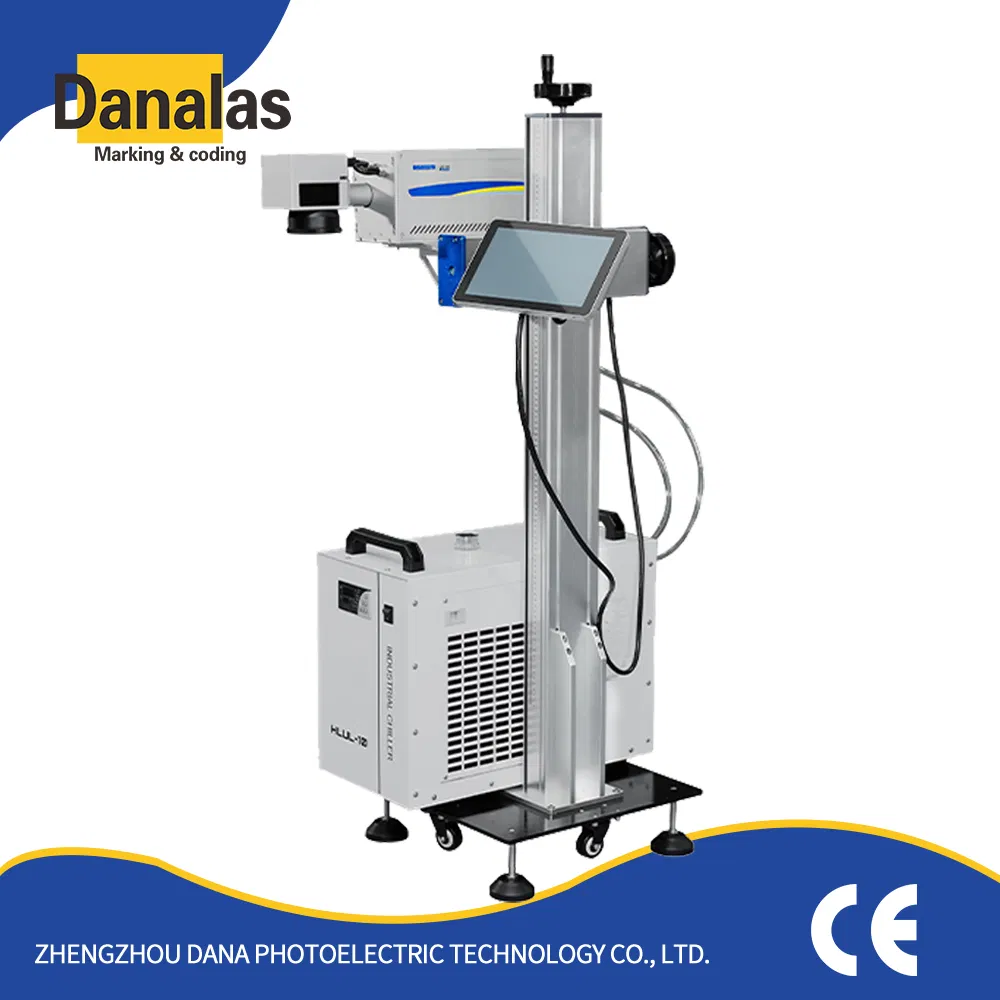

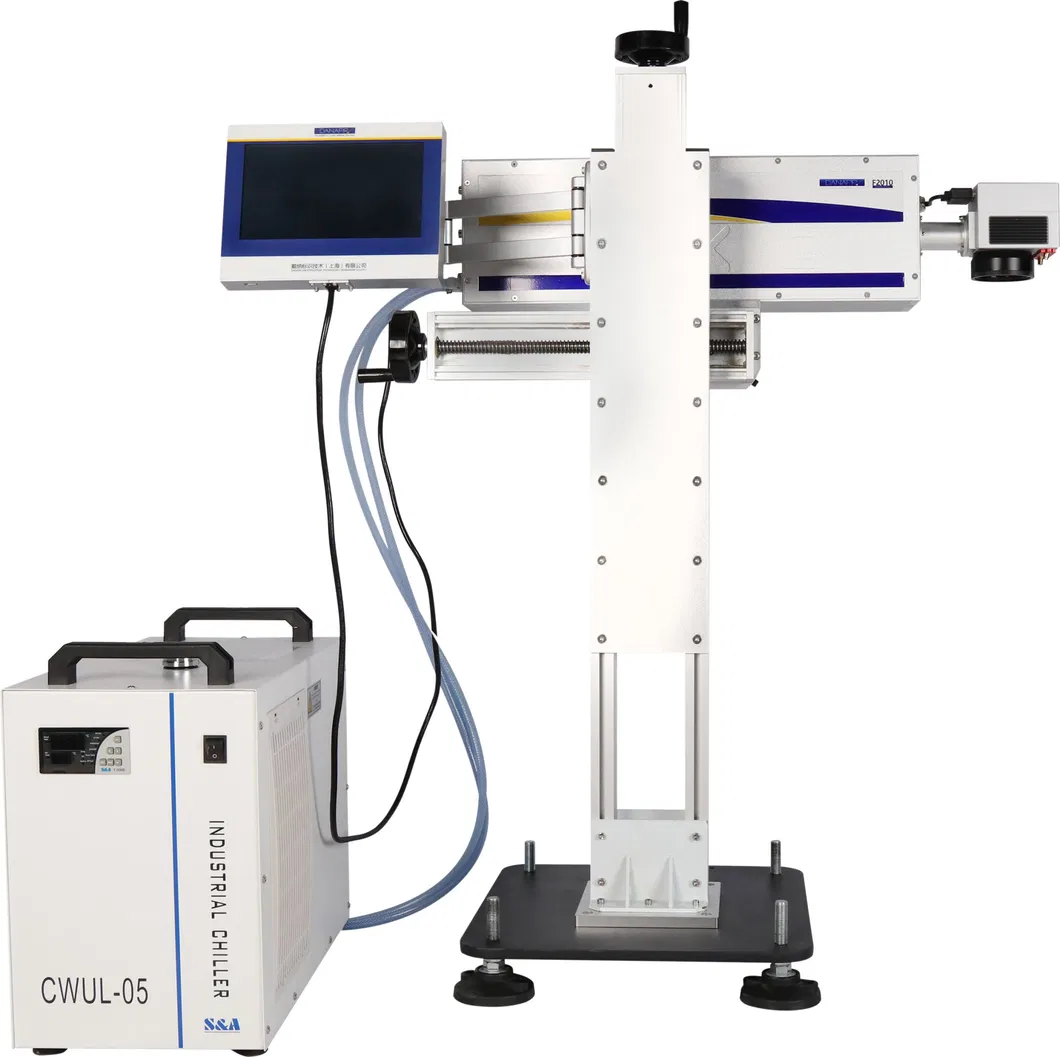

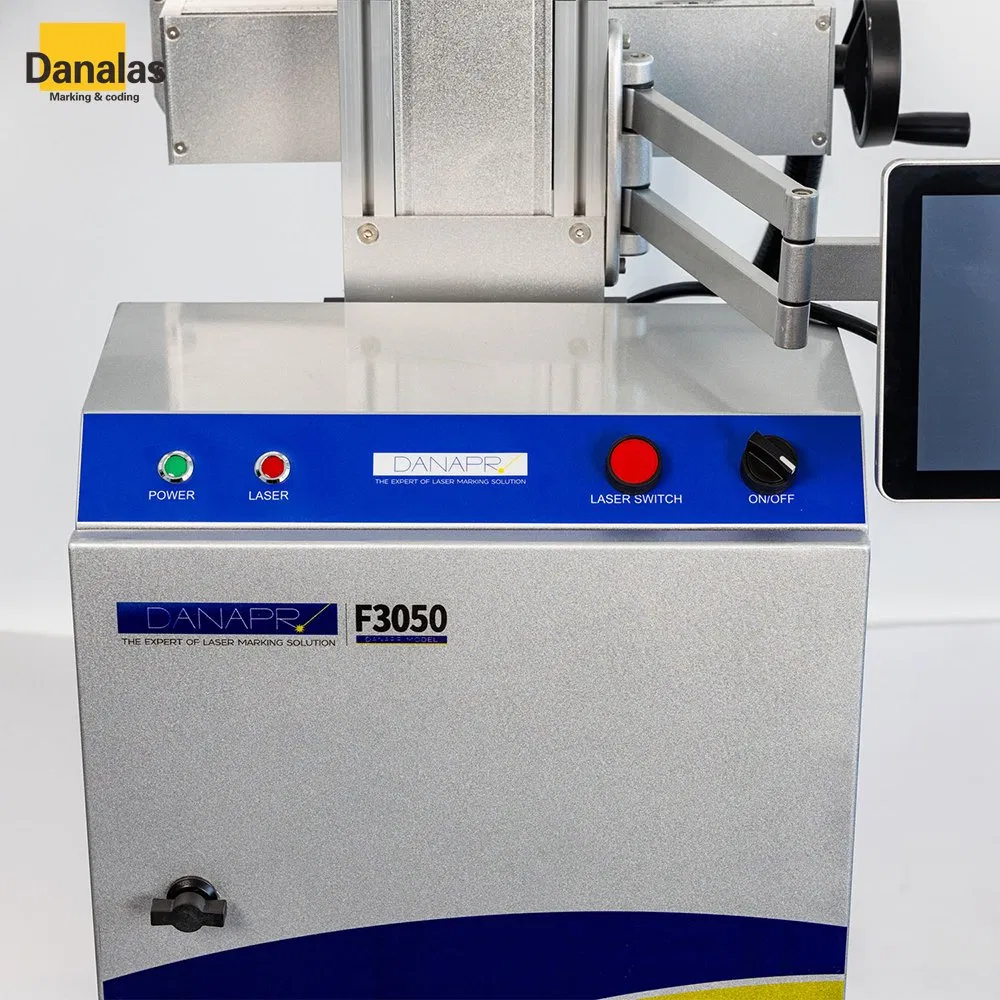

F20 series UV Laser Marking Machines
This series excels in ultra-fine marking on production lines. The Ultraviolet laser's minute focus spot enables exceptionally fine printing, making it ideal for detailed marking on food and pharmaceutical packaging materials.

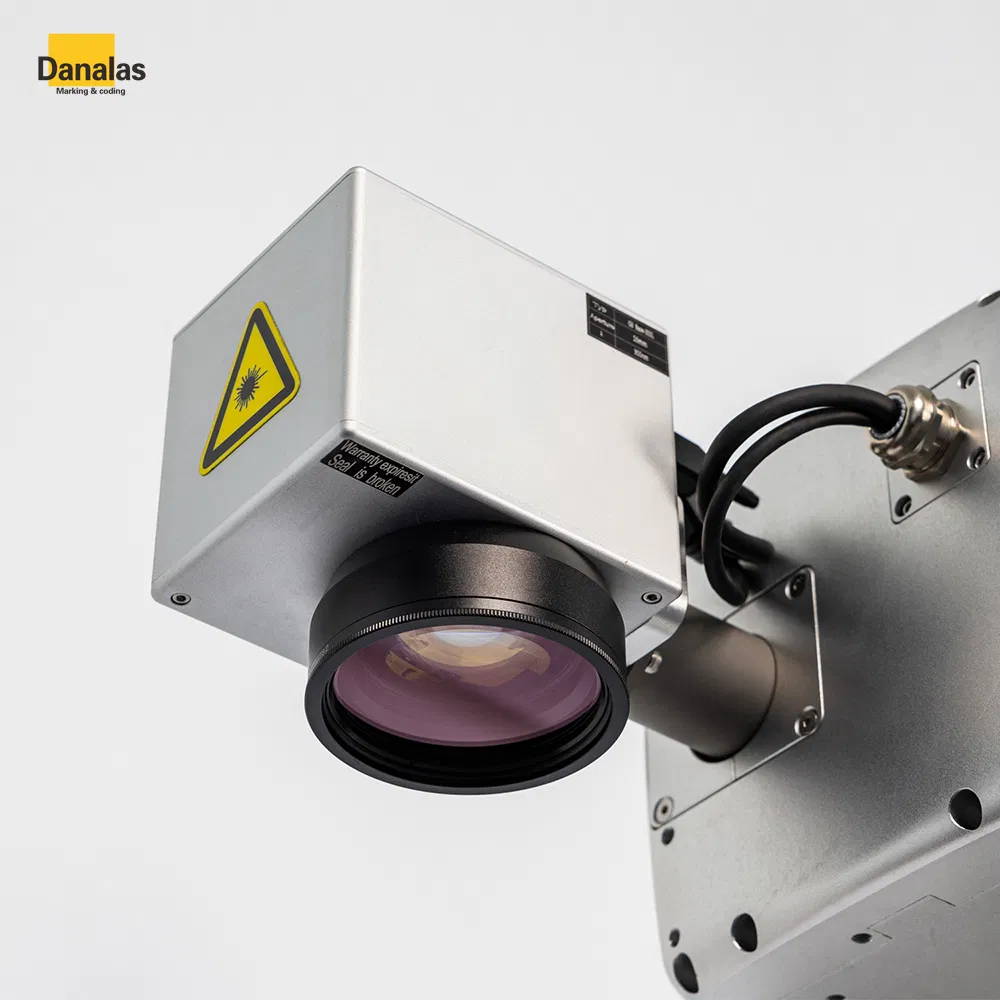

1. The system comprises a UV laser, Galvanometer, Field mirror, Touch-Screen Controller, and stable aluminum shell. Optional water or air cooling systems are available based on workshop requirements.
2. The 355nm wavelength ultraviolet laser works by interrupting molecular chains (cold processing), significantly reducing mechanical and thermal deformation, ideal for heat-sensitive materials.
3. Features automatic coding generation for variable data like serial numbers, batch numbers, and dates. Compatible with AutoCAD, CorelDraw, Photoshop, and supports PLT, DXF, BMP formats.
4. Offers four selectable power levels to optimize for different materials, speed, and desired marking effects.
⭐ Key Features
Ultra-fine Printing
Thinner printing lines than CO2 or fiber lasers; perfect for small packages and 2D codes.
Cold Processing
Narrow pulse width minimizes thermal effect, preventing material deformation or burning.
Large Field
Supports a marking range up to 500*500 mm for industrial scalability.
Free Definition
Combine barcodes, text, graphics, and QR codes freely within the software.
🚀 Industrial Application

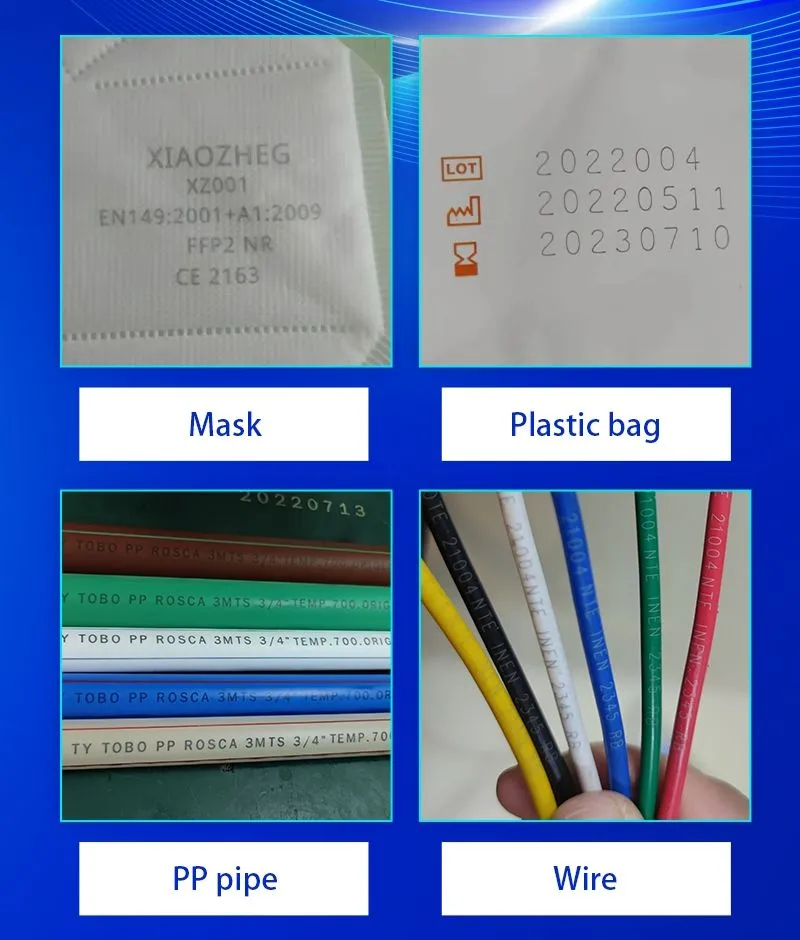

The UV Laser Marking Machine is applicable for various metal and non-metal materials. It is widely used in industries such as pipelines, cables, food & beverages, pharmaceuticals, and medical supplies.
📋 Technical Specifications
| DANA F2010 Specification |
|---|
| Laser-type | Ultraviolet Wavelength: 355nm, 30,000hrs life |
| Laser Power Class | 10W |
| Focal Length | 220mm (Standard) |
| Max Marking Speed | 25m - 30m/min |
| Marking Field | 110mm×110mm (Max: 500×500mm) |
| Minimum Line Width | 0.01mm |
| Character Height | 0.4 - 70mm |
| Operating System | Linux (Industrial Touchscreen) |
| Power Supply | 220V, 1KVA |
| Working Environment Requirements |
|---|
| Protection Degree | ≥IP54 |
| Cooling | Water-Cooling |
| Working Temperature | -5 to 45ºC |
| Working Humidity | 80% RH, Non-Condensing |

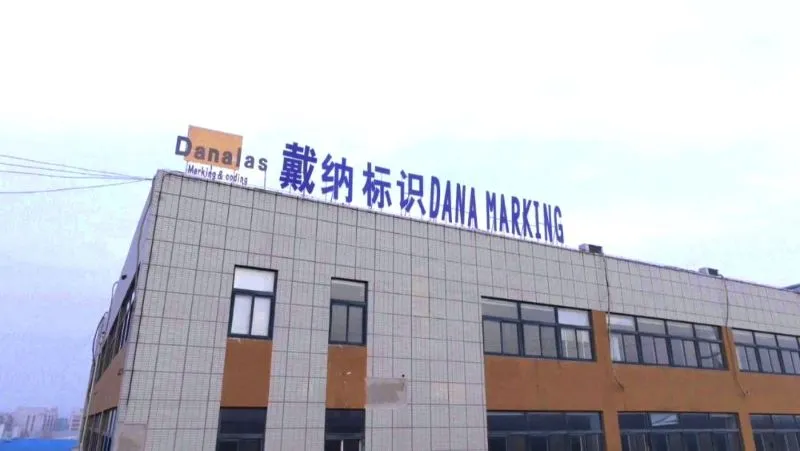

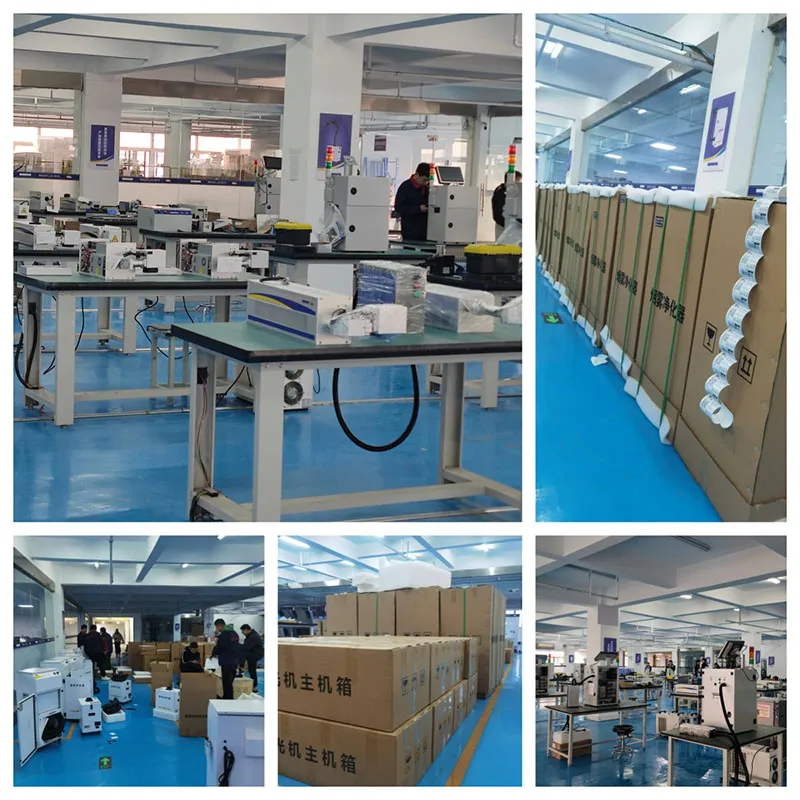

🏢 About Our Technology
We are a leading manufacturer specializing in product marking and traceability solutions. With over ten years of experience in the coding printing field, we provide customized solutions tailored to complex production environments. Our technology excels in both static and dynamic production line applications, enabling precise text, barcodes, QR codes, and trademark graphics printing.
Our expertise spans sectors such as pipeline manufacturing, food & beverage, pharmaceuticals, electronics, and automotive parts. We are committed to offering high-quality equipment, including CO2, UV, and Fiber laser marking machines, as well as TIJ and TTO equipment.
❓ Frequently Asked Questions
What materials are best suited for UV laser marking?
UV lasers are ideal for non-metal materials and heat-sensitive substrates like thin plastics, glass, and pharmaceutical packaging due to their "cold processing" capabilities.
How does the 355nm wavelength benefit marking?
The short 355nm wavelength provides a much smaller focal spot size, allowing for ultra-fine details and high-contrast marks without damaging the surrounding material.
Can this machine be integrated into a high-speed production line?
Yes, the F2010 supports "on-line marking" with speeds ranging from 25m to 30m per minute, depending on the complexity of the content.
What types of content can the system generate?
The system supports text, graphics, barcodes, QR codes, dynamic serial numbers, real-time clocks, and communication data via RS232.
What cooling system is required for the 10W UV laser?
The DANA-F2010 typically uses a water-cooling system to ensure stable operation during continuous industrial use.
Is the software user-friendly for non-technical staff?
The machine features an industrial touchscreen with a Linux-based interface that supports multiple languages and handwriting input for ease of use.
