Features: Very easy to operate, comes with user manual.
Users can design their graphics freely.
Various types of fonts are supported (SHX, JSF, DMF, One-Dimensional/Two-Dimensional bar code, etc.).
Flexible variable text: changes the text real time while in laser processing. Excel data sheet is supported.
Can through the serial port and network direct read text data.
Strong node editing function make the curve modification more easier.
The software can support 265 "pencils", which used to draw graphic and can be set different processing parameters.
Common types of images are supported (bmp, jpg, gif, tga, png, tif...).
Common vector images are supported (ai, dxf, dst, plt...).
Image processing (Grayscale, White / Black Transformations).
Powerful hatching functions, such as support round hatch.
More convenient IO operations and more easier to harmonize the auxiliary equipment.
Supports the dynamic focus (3 axis processing system).
An opening language supporting system makes it easy to run the software in various languages platform.
| Parameter Item | Specification Details |
|---|---|
| Model | Smart-F Series 10W/20W/30W /50W |
| Laser power | Fiber 10W/20W/30W/50W air cooling |
| Working area | 100*100mm (160X160 or 300x300mm or customized available) |

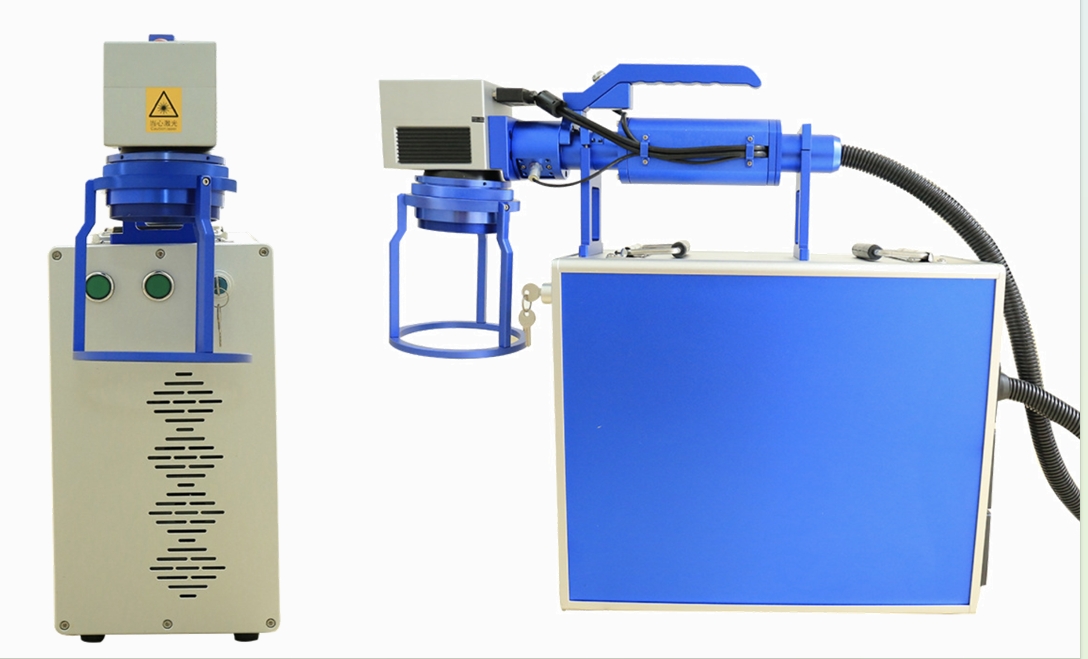

| Weight (Table model) | 350KG (table type) / 80KG (Portable type) |
| Power | Raycus / IPG / JPT / MAX / UV / CO2 |
| Laser / PC Connectivity | USB connection |

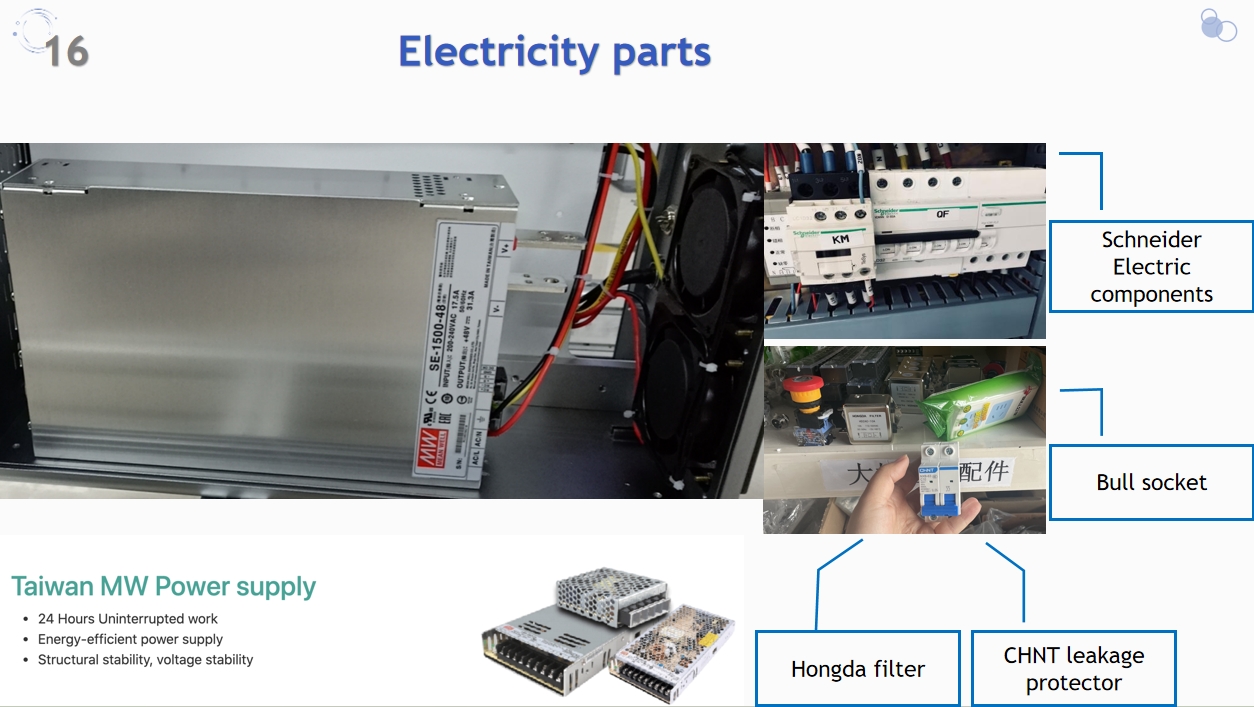

| Power supply | Taiwan Mean Well |
| Response time | 0.03ms |
| Frequency of pulse | 20-100KHz |
| Scanning Speed | 0-10000mm/s |
| Marking speed | ≤10000mm/s |
| Spot size | ≤40 micron (F-theta 160) |
| Marking lines | 1-10 lines (in the marking area) |
| Energy per pulse (PRR = 20 kHz) | 0.95 mJ |
| Laser switching ON/off time | 180 μsec |
| Marking content | Text, pattern, date, bar code, etc |
| Operation system | Original JCZ which support Win10/win8/win7/xp |
| Control software | EZCAD control software |
| Graphic format supported | bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt, PRN, PSD, TIFF and AI etc |
| Unit power | ≤1.2KW |
| Operation temperature | 5℃ - 40℃ |
| Continuous working time | ≥16h |
| Relative moisture | ≤ 90%, no fog |
| Supply Voltage | 220V/50Hz/10A / 380V/110V All available |
| Packing size | 900*790*1550mm / 870X500X720mm (Table type/portable type) |
The machine control software comes with comprehensive language support, including USA English, English, Japanese, Korean, Chinese, and complex Chinese, making international operations easy and seamless.
The software supports standard image formats like bmp, jpg, gif, tga, png, and tif. For vector designs, it works perfectly with ai, dxf, dst, and plt formats, allowing for absolute flexibility in your marking designs.
Yes. While the standard working area is 100*100mm, we offer customized options including 160*160mm and 300*300mm configurations to suit different material sizes and applications.
Absolutely. The system features flexible variable text capability, which enables real-time changes to the marking content during processing. It fully supports Excel data sheets and can direct-read text data via serial ports and network protocols.

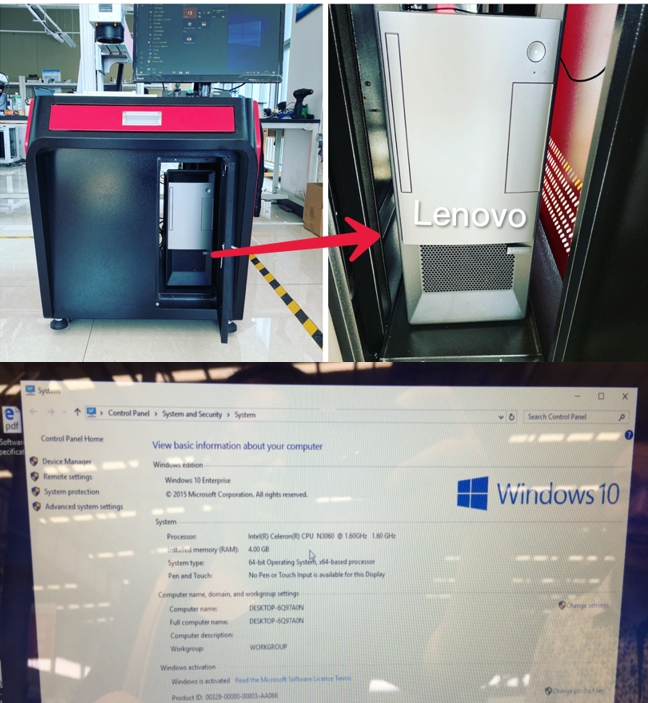

The machine uses the original EZCAD control software powered by a JCZ card, which fully supports standard Windows configurations including Windows 10, Windows 8, Windows 7, and Windows XP.
Designed for industrial high-capacity environments, the machine supports a continuous working time of ≥16 hours under optimal operating temperatures ranging between 5℃ and 40℃.
