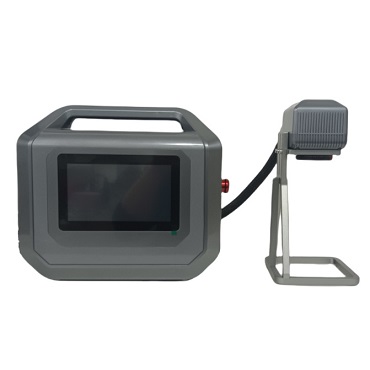

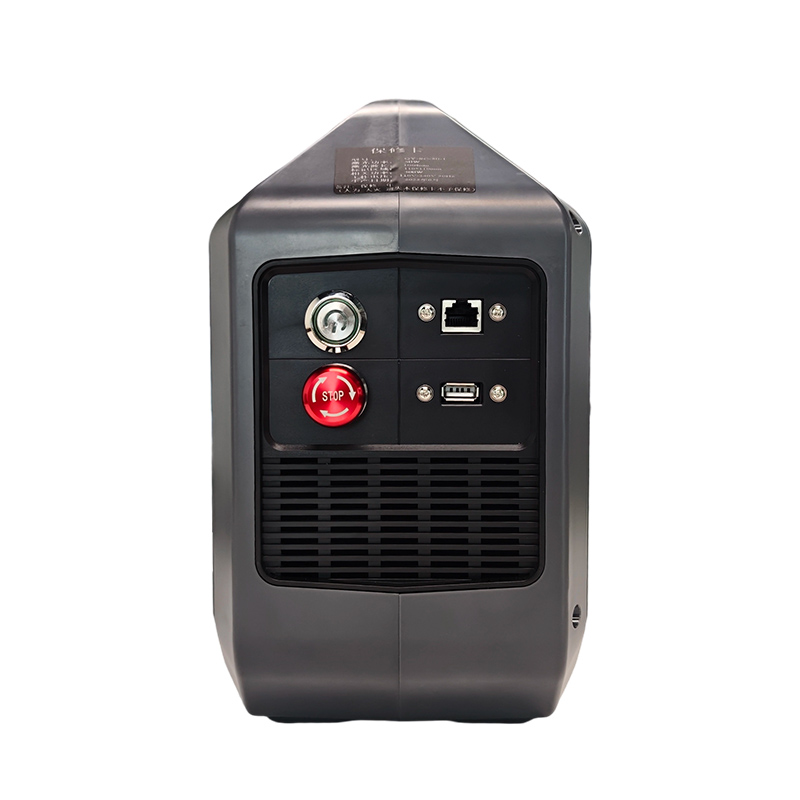

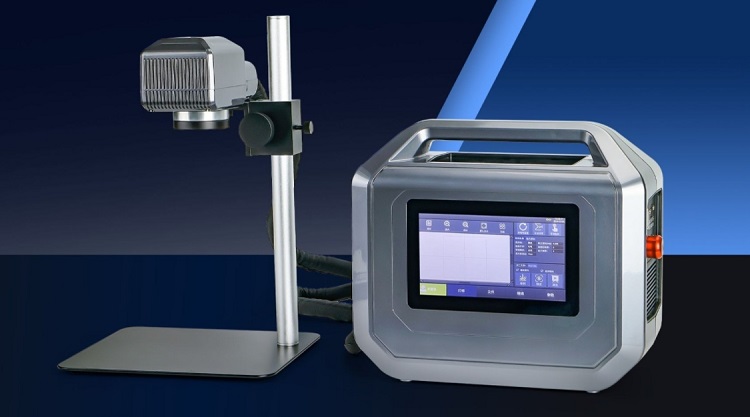

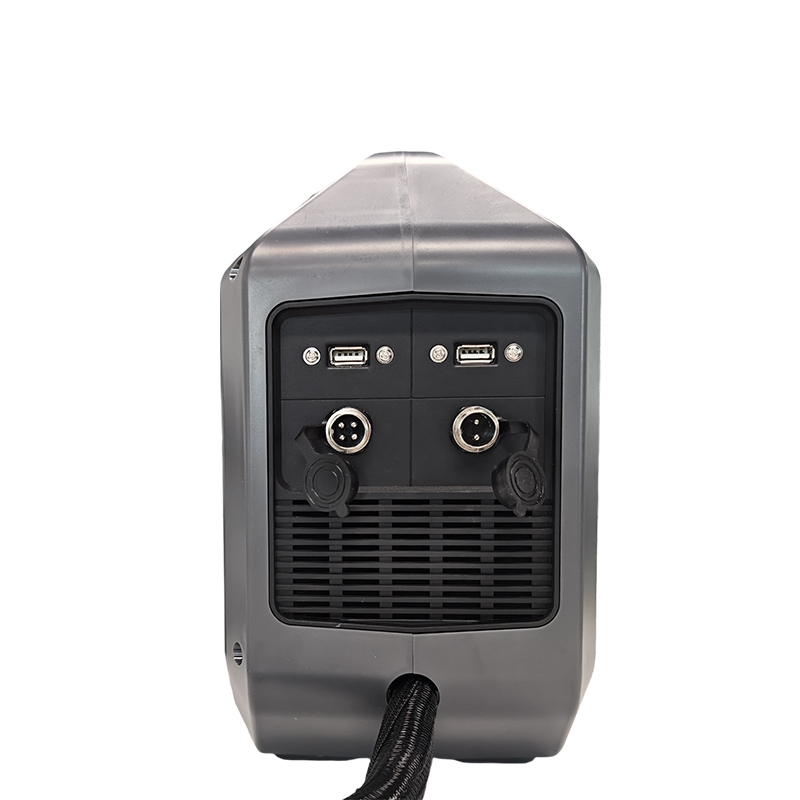

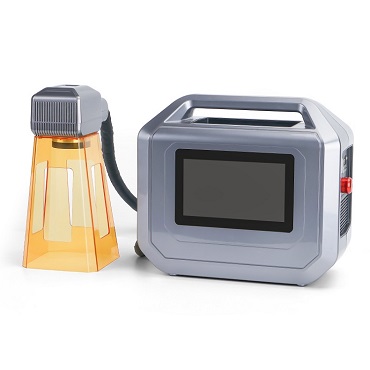

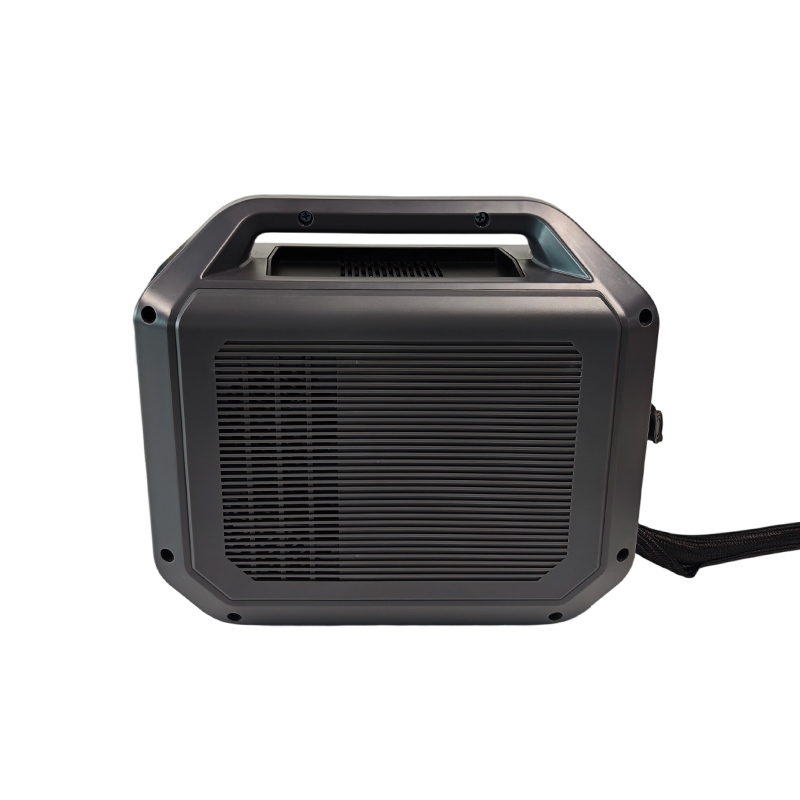

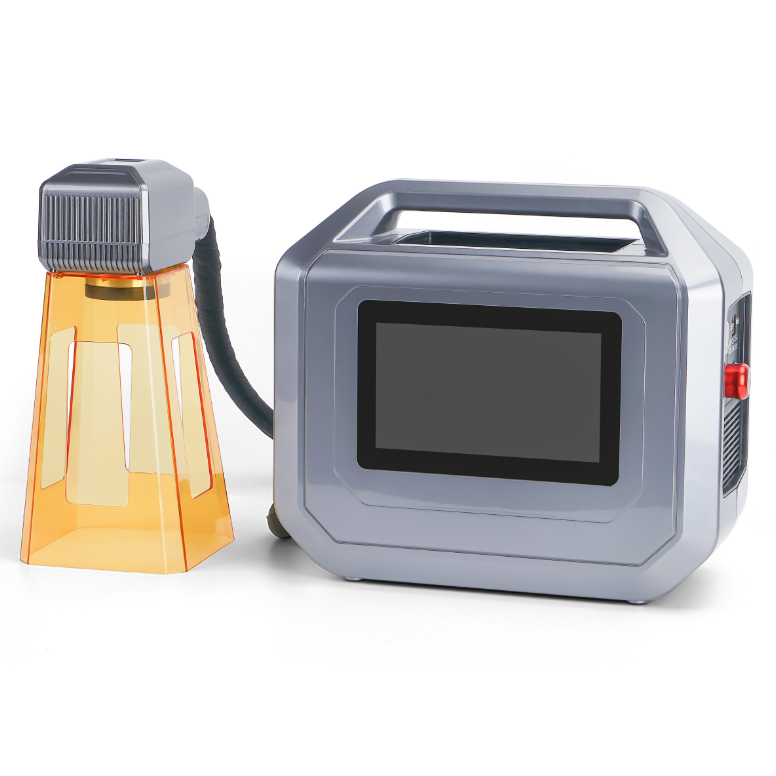

50W Handheld Fiber Laser Marking Machine
Technical Specifications
| Type | Fiber Laser |
| Wavelength | 1064nm |
| Power | 50W |
| Marking Size | 100*100mm |
| Galvanometer | High-precision dual-dimensional scanning galvanometer |
| System | Linux system |
| Marking Type | Dot matrix, vector |
| Line Width | 0.03mm |
| Repeat Positioning Accuracy | 0.01mm |
| Positioning Method | Red light positioning |

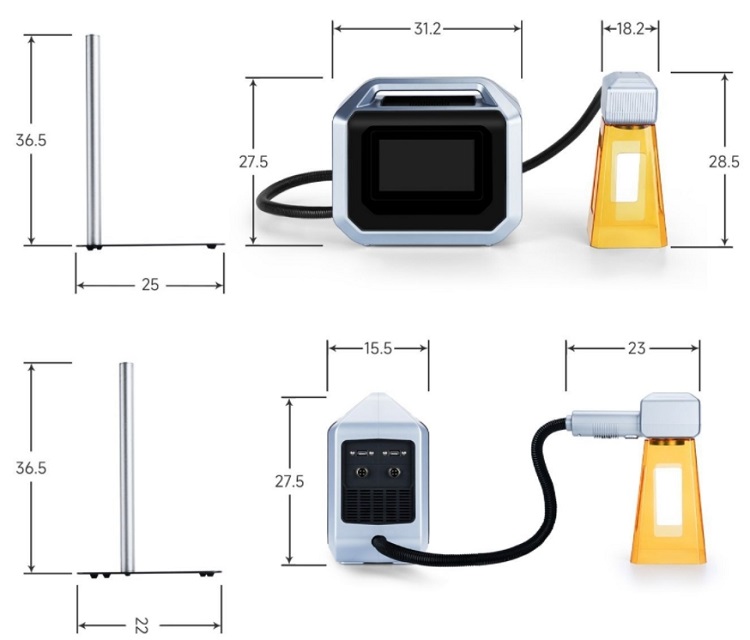

| Dimensions (L*W*H) | 32*28*16cm |
| Net Machine Weight | 7.1KG |
| Gross Weight | 8.4KG |
| Character Lines | Any distance within effective marking range; 800 characters speed |
| Fonts | Standard font library (English, Numbers, etc.) |
| File Formats | BMP, DXF, HPGL, JPEG, PLT |
| Barcodes | CODE39, CODE128, CODE126, QR, etc |
| Power Supply | 222Wh 10AH |
| Total Power Consumption | >7000mm/s |
| Cooling System | Air Cooling |

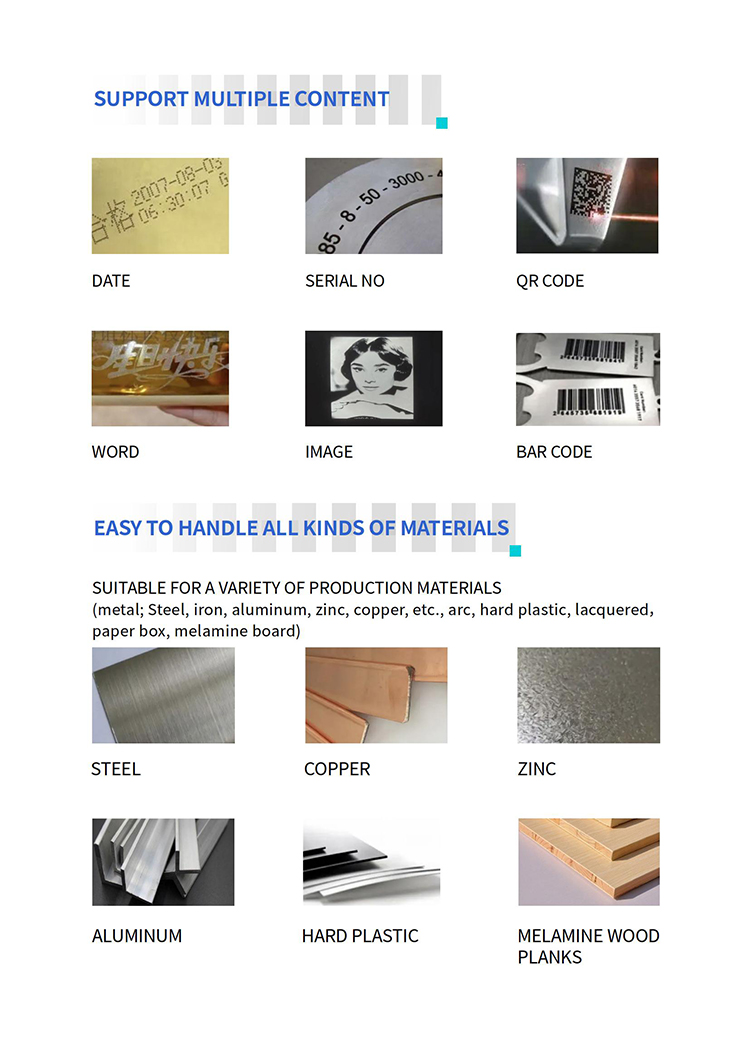

Application Gallery
🏆
The manufacturer has obtained 50 patents and 6 software copyrights, passing major international standards including CE, RoHS, FCC, REACH, MSDS, TUV Rheinland, SGS and ISO9001.
Product Overview
These laser marking machines have quickly taken over the market by virtue of their superior quality and advanced laser marking system. Exported to more than 60 countries across various industries, these machines deliver the highest quality laser marking with unsurpassed care.
Global Presence & Exhibitions
As a leading company in the laser equipment industry, the trademark has been registered in 50 countries with 43 distributors worldwide including Canada, USA, Korea, India, Brazil, and Mexico.
- 2022 - LASER World of PHOTONICS, Messe München, Germany
- 2019 - ITMA, Bienvenido, Spain
- 2019 - FESPA, Sao Paulo, Brasil
- 2018 - Media Expo, Mumbai, India
- 2017 - LASER PHOTONICS, Munich, Germany
- 2016 - EXPO PUBLICITAS, Mexico City, Mexico
Frequently Asked Questions
What materials can this 50W fiber laser mark?
It is designed for high-precision marking on various metals (stainless steel, aluminum, copper) and certain plastics, supporting both dot matrix and vector marking.
Is the machine easy to transport?
Yes, the machine weighs only 7.1KG and has compact dimensions of 32*28*16cm, making it highly portable and suitable for handheld operations.
What software system does the machine use?
The machine operates on a stable Linux system and supports various file formats including BMP, DXF, HPGL, JPEG, and PLT.
Does it require a separate cooling system?
No, the machine features a built-in air cooling system, ensuring stable performance within an operating temperature range of 0-40°C.
What is the marking speed and accuracy?
The machine offers a high marking speed of up to 7000mm/s with a repeat positioning accuracy of 0.01mm.
Can it mark barcodes and QR codes?
Yes, it supports multiple barcode standards including CODE39, CODE128, CODE126, and QR codes.
