Various metals: Marking, engraving, and cutting stainless steel, carbon steel, aluminum, brass, gold, silver, etc.
Some non-metal: Marking and engraving stone, plastic, leather, rubber, etc.

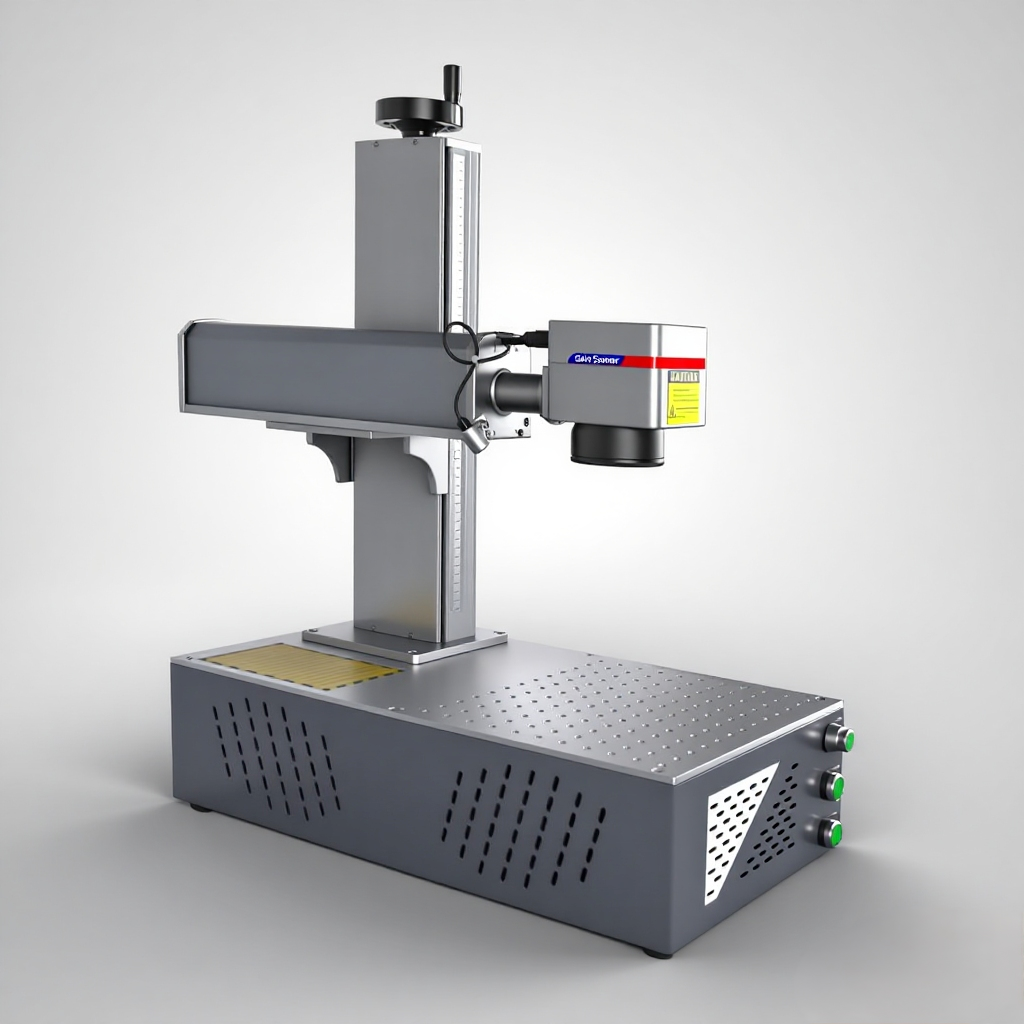

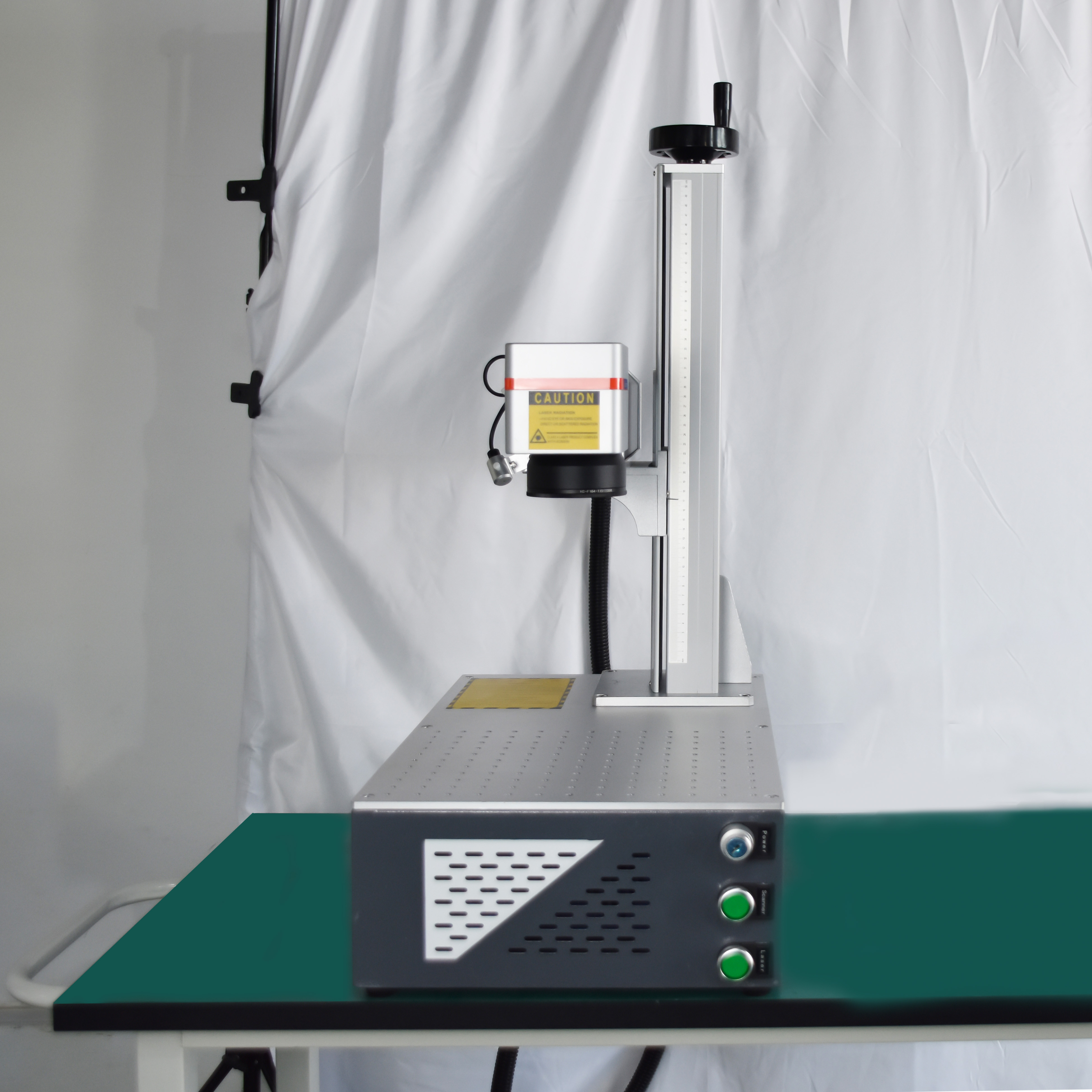

Integrated Lightweight design for desktop setup or flexible movement.
Simply connect to a computer, import your design, and adjust parameters through EZCAD software.
No consumables required, ensuring low maintenance and cost efficiency.
Delivers high-precision, permanent marking with consistent quality during long-term operation.
Offers 20W–300W power options, different marking area, optional rotary devices, 2D workbenches, cutting fixtures, etc.
Customizable Z motor, autofocus, 2.5D/3D engraving, high speed, large format, LOGO, etc.
All metal materials: carbon steel, stainless steel, copper, aluminum, gold, silver, platinum, titanium, alloys. Various metals with coatings, etc.
Partial non-metallic materials: hard plastics (ABS, PP, PE, PC, PVC, etc.), leather, rubber, silicon, ceramics, etc.

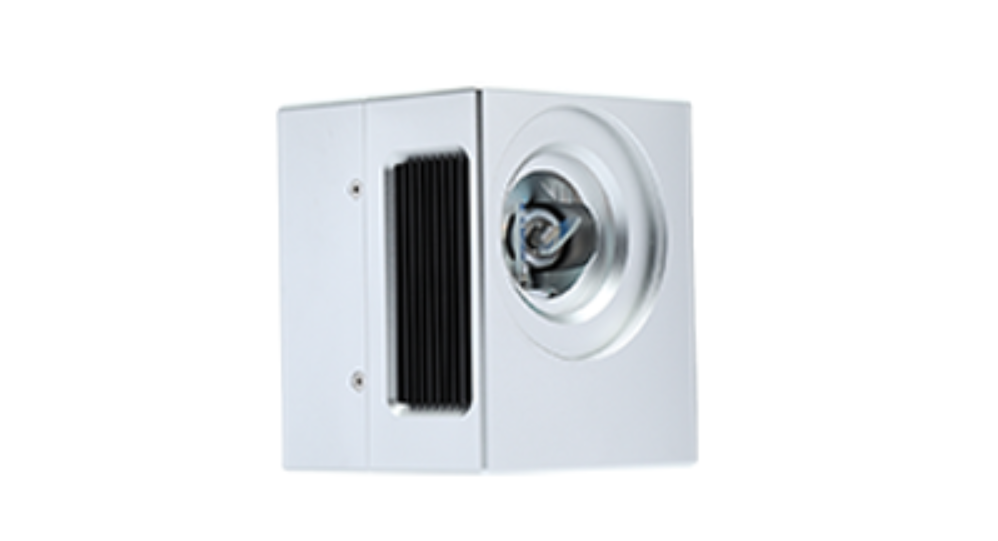

High speed, high precision, and very stable and reliable performance. Multiple models available according to your needs.

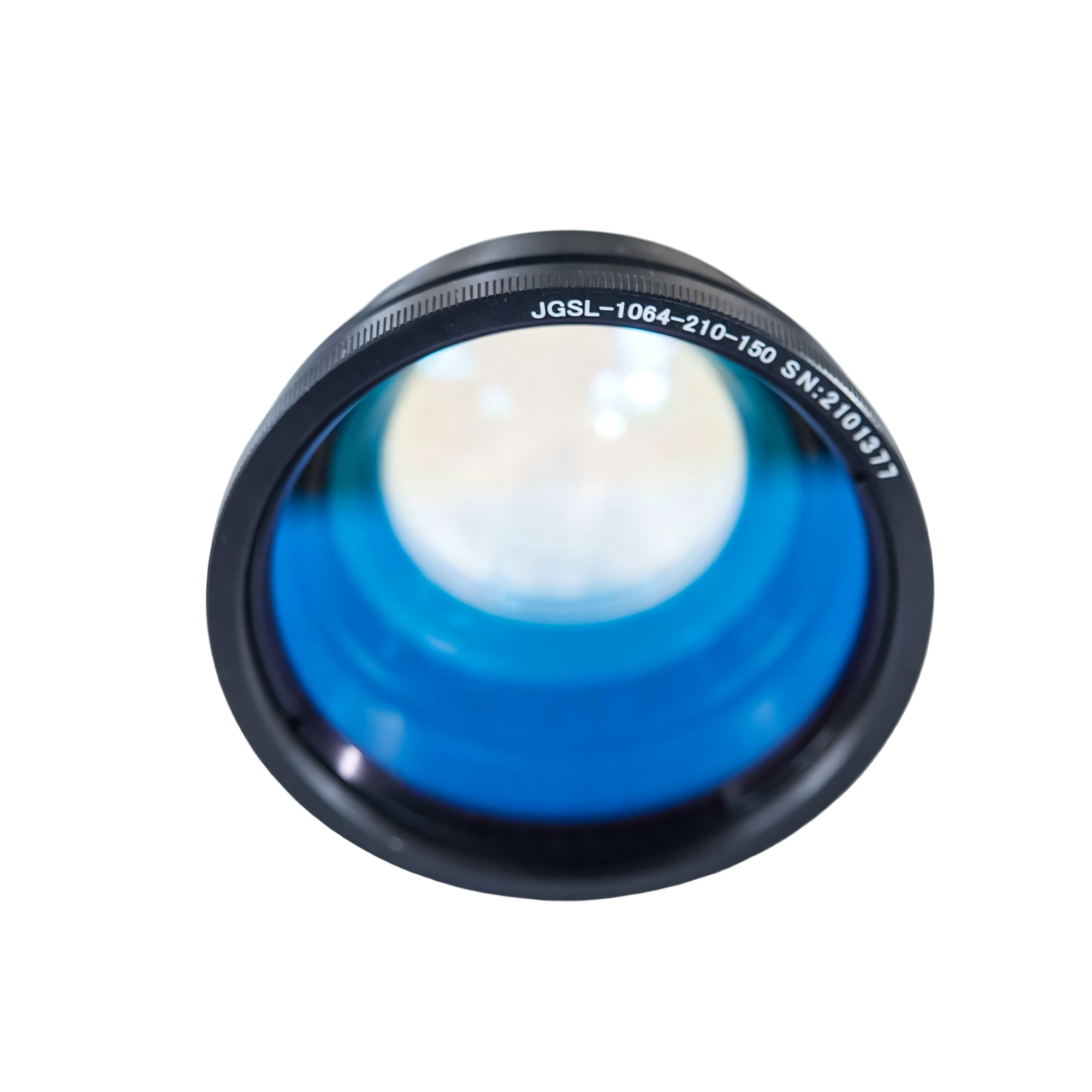

Made of high-quality optical glass or quartz, high transmittance. Options: 70*70, 110*110, 150*150, 175*175, 200*200, 300*300, etc.

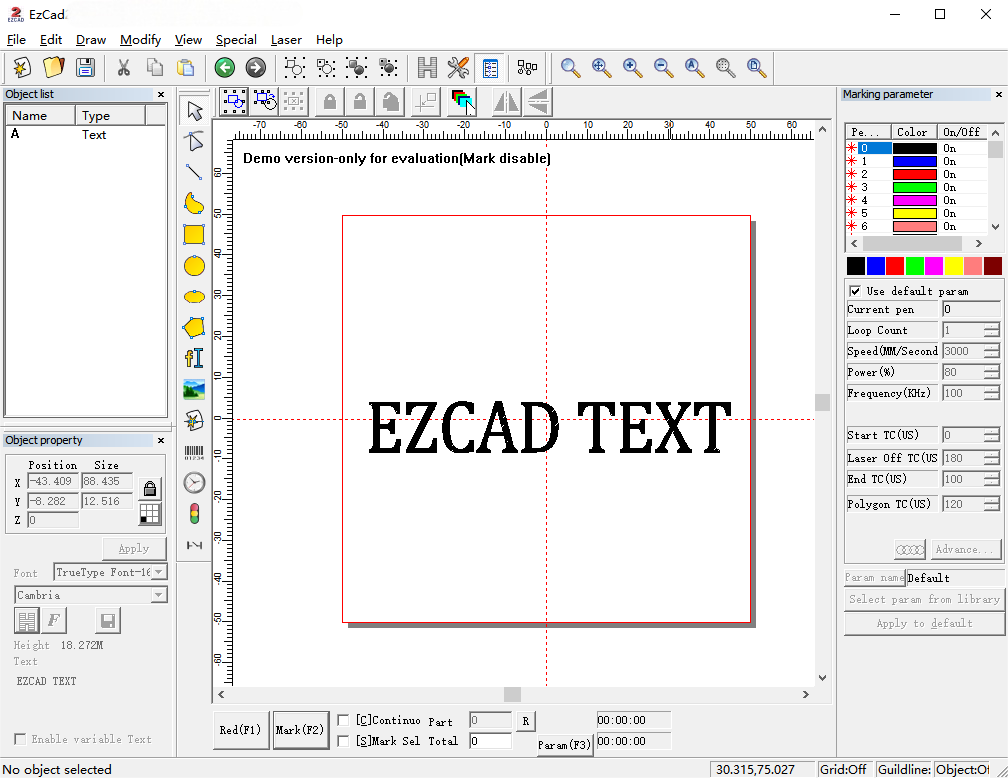

Leading technology, comprehensive functions, user-friendly and easy to use.
Supports free design graphics, various fonts, variable text, QR codes, LOGO, pictures, barcodes, etc.
| Laser Power | Customized 20-300W |
| Laser Wavelength | 1064nm |
| Marking Area | Customized 75*75-300*300mm |
| Theoretical Scanner Speed | Customized 4000-12000mm/s |
| Actual Marking Speed | 2000–5000mm/s (Depends on font, pattern, and material) |
| Minimum Line Width | 0.02mm |
| Repeated Accuracy | ＜8μRad. |
| Cooling Method | Air-cooling |
| Positioning Method | Double Red light |
| Supported Formats | AI, DXF, PLT, BMP, JPG, PNG, GIF, TrueType fonts |
| Support Languages | Chinese, English, German, Arabic, Russian, Turkish, etc. |
| Power Supply | 110V/220V±10% 50Hz/60Hz Customized Plug |
| Working Condition | 0~40℃, humidity ＜85% |
| Machine Size | 35*60*81cm |
| Machine Weight | 35KG |
| Package Size | 76*46*57cm |
| Package Weight | 45KG |

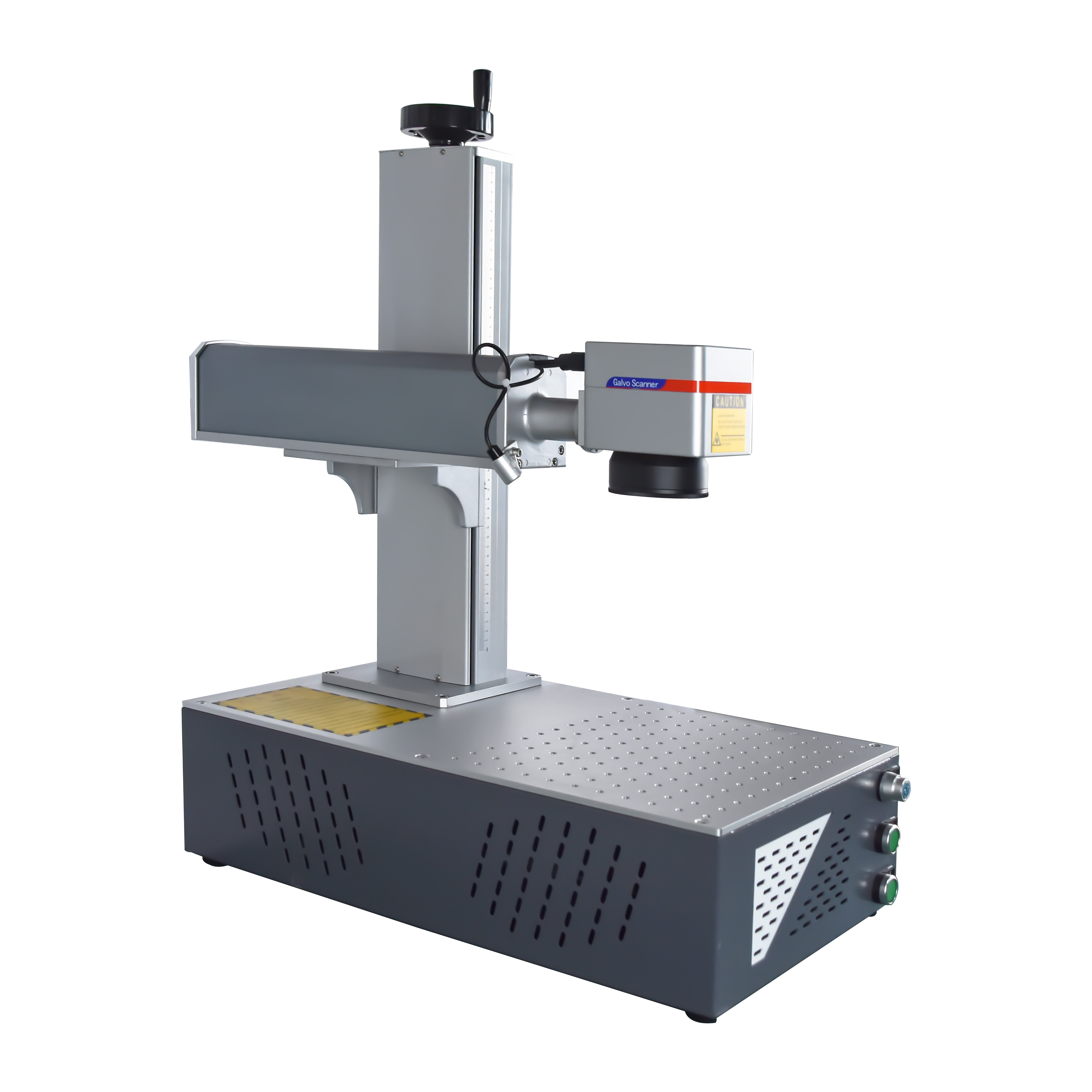

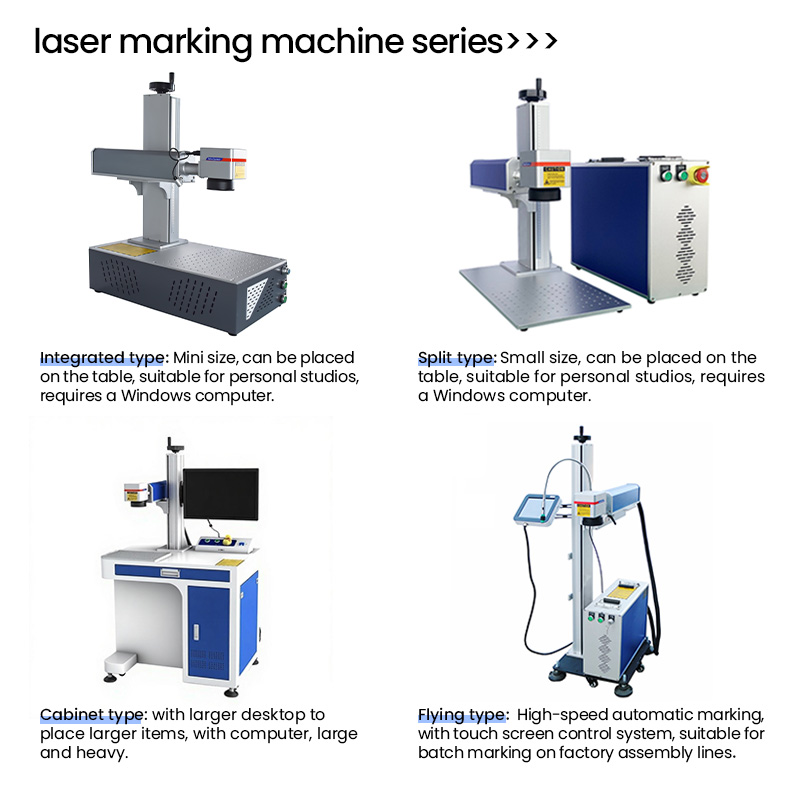

Fiber Integrated Type

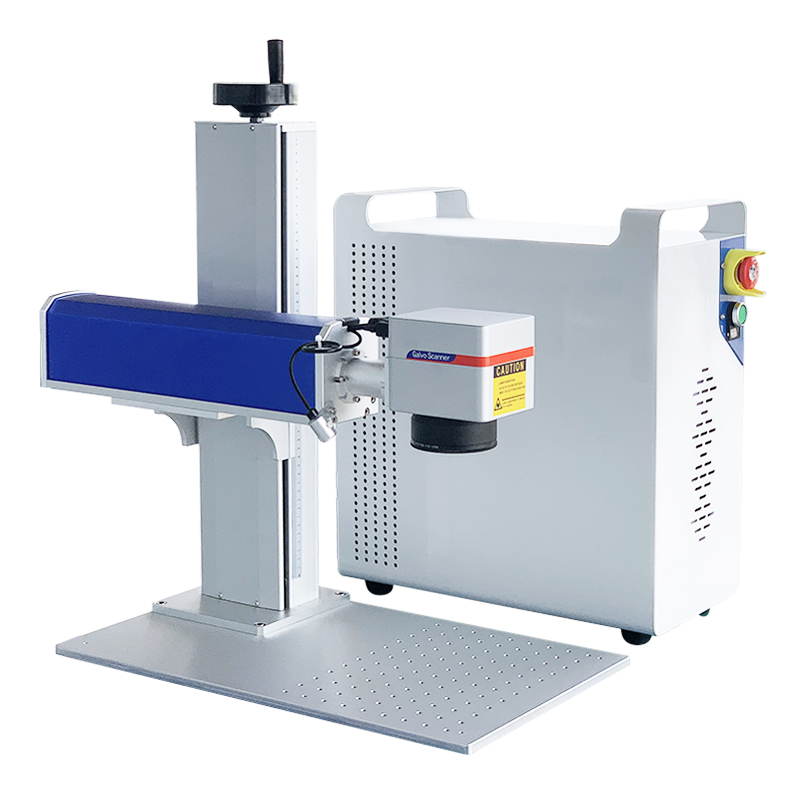

Fiber Split Type

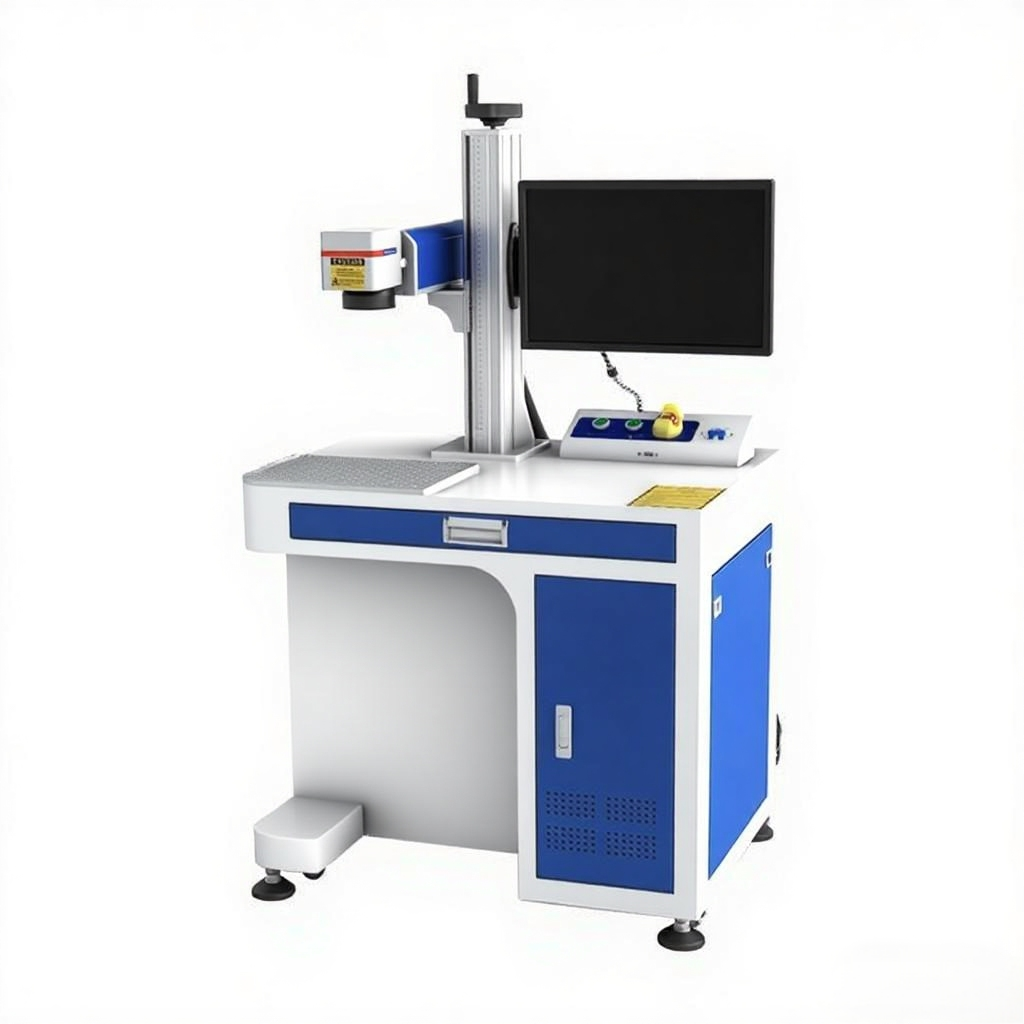

Fiber Cabinet Type

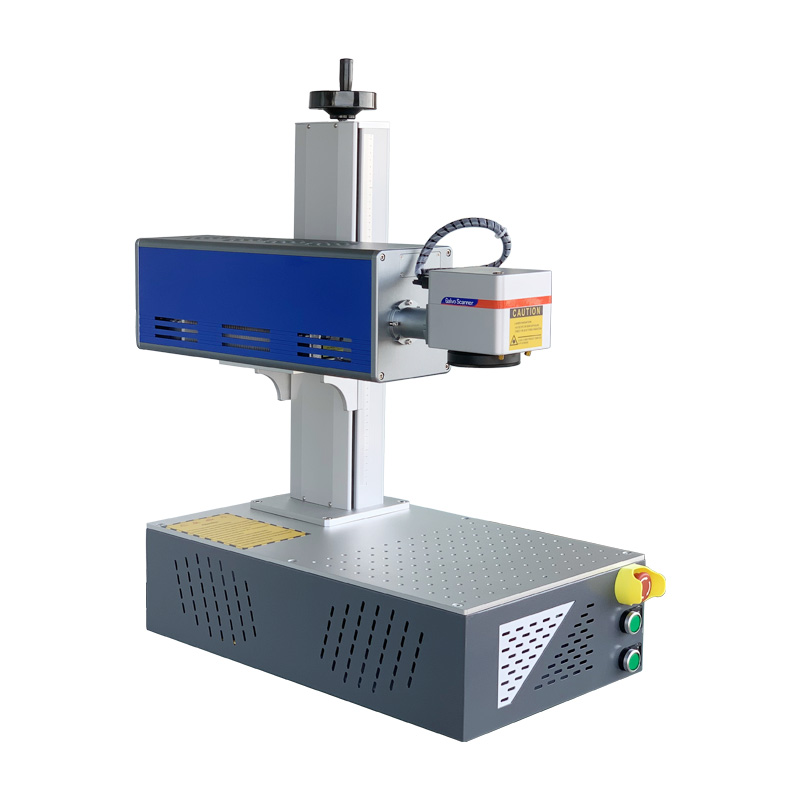

CO2 Integrated Type

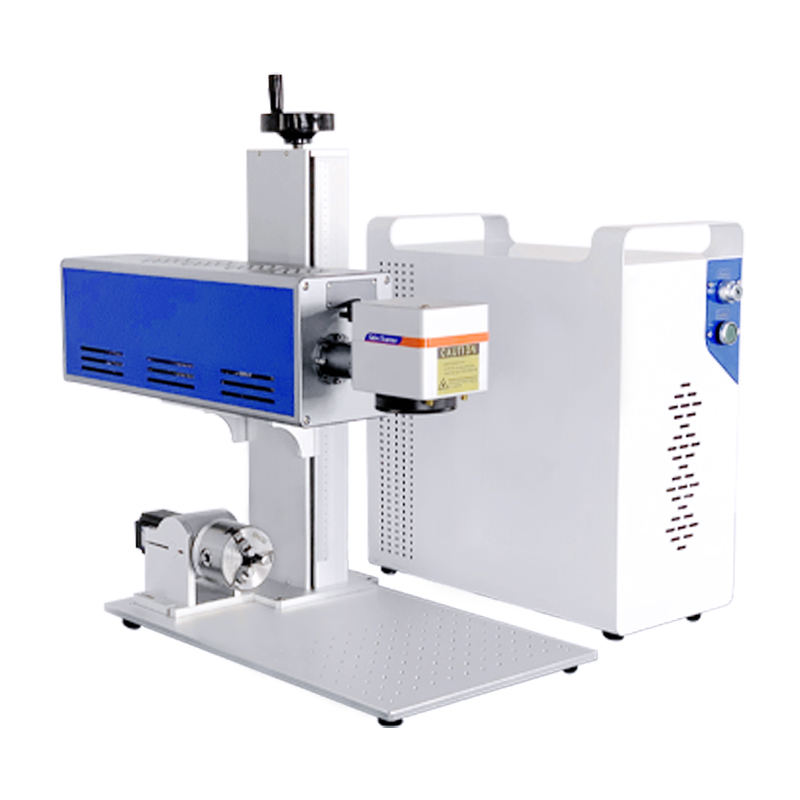

CO2 Split Type

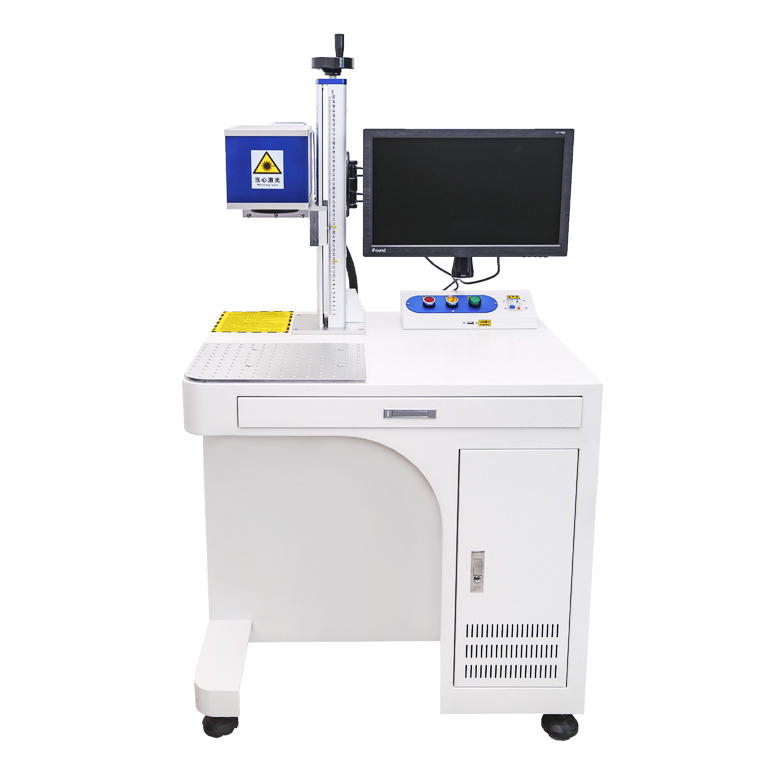

CO2 Cabinet Type
Metals, Hard Plastics, Rubber, Silicon, Ceramics.
Leather, Paper, Cloth, Acrylic, Silicone, Plastics (HDPE/PET).
PCB, Glass, Electronic Components, Delicate Materials.
| Machine | 1 | Ruler | 1 |
| Goggles | 1 | Positioning Bar | 2 |
| Power Cord | 1 | Hexagon wrench | 1 |
| Foot Switch | 1 | Test Card | 1 |
| USB Drive | 1 | Instruction manual | 1 |
Our machine packaging uses waterproof film, anti-collision foam and wooden boxes to ensure maximum protection during transportation. We provide sea, railway, express, and air transportation services through experienced freight partners.

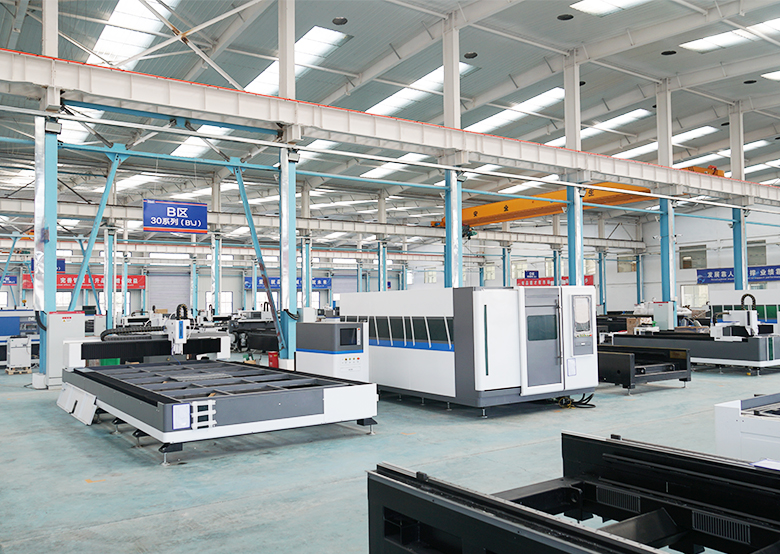

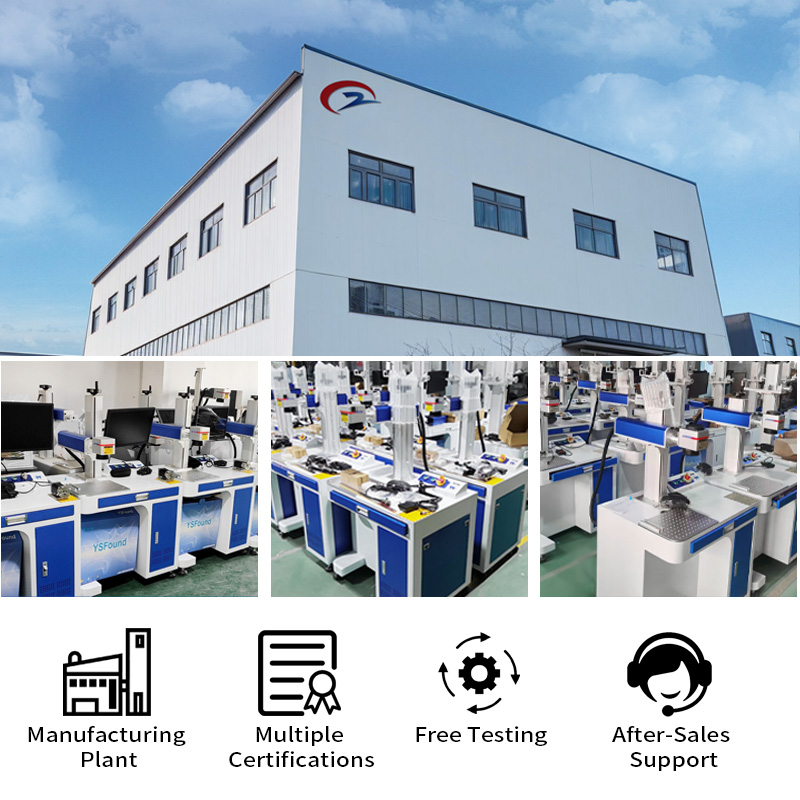

We are a professional laser equipment manufacturer in China. Our factory was established in 2011 with rich production experience and advanced manufacturing technology. We provide laser welding, marking, cleaning, cutting, and engraving machines, manufactured in accordance with American and European quality standards.
