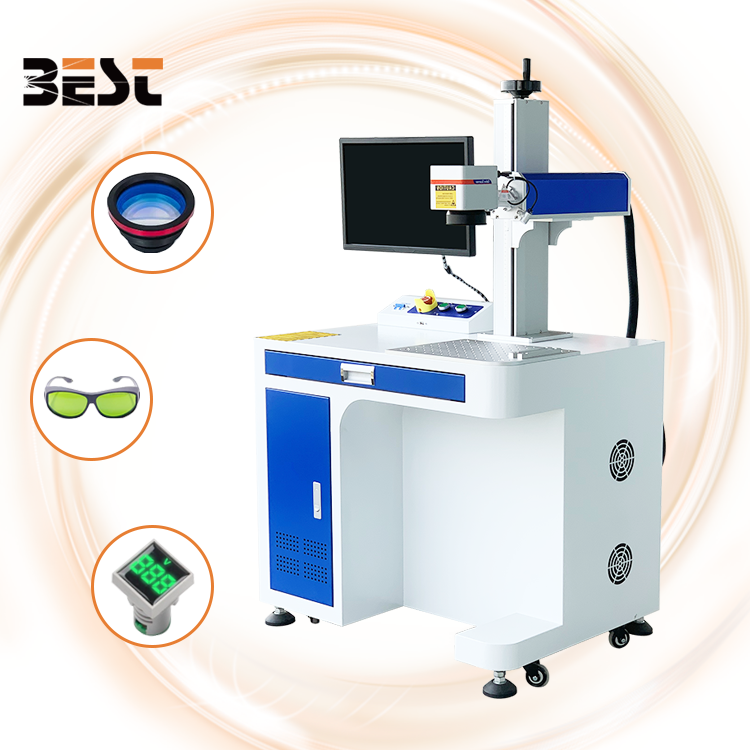

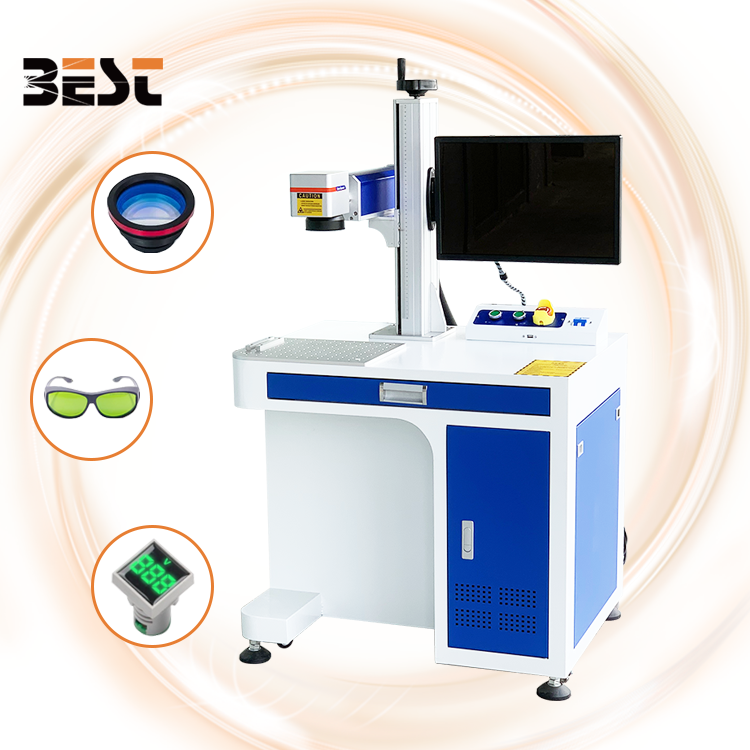

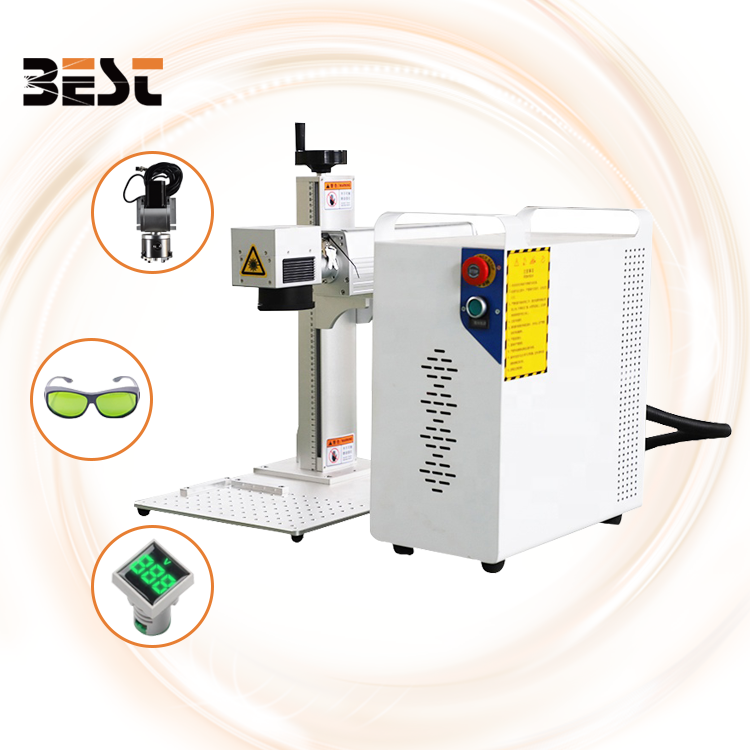

BEST 30W/100W/60W/50W/100W Fiber Laser Marking Machine 3D JPT Mopa Metal/Aluminum Deeply Laser Engraving
BEST 30W/100W/60W/50W/100W Fiber Laser Marking Machine 3D JPT Mopa Metal/Aluminum Deeply Laser Engraving
BEST 30W/100W/60W/50W/100W Fiber Laser Marking Machine 3D JPT Mopa Metal/Aluminum Deeply Laser Engraving
BEST 30W/100W/60W/50W/100W Fiber Laser Marking Machine 3D JPT Mopa Metal/Aluminum Deeply Laser Engraving
BEST 30W/100W/60W/50W/100W Fiber Laser Marking Machine 3D JPT Mopa Metal/Aluminum Deeply Laser Engraving
1 / 5
BEST 30W/100W/60W/50W/100W Fiber Laser Marking Machine 3D JPT Mopa Metal/Aluminum Deeply Laser Engraving
BEST 30W/100W/60W/50W/100W Fiber Laser Marking Machine 3D JPT Mopa Metal/Aluminum Deeply Laser Engraving
BEST 30W/100W/60W/50W/100W Fiber Laser Marking Machine 3D JPT Mopa Metal/Aluminum Deeply Laser Engraving
BEST 30W/100W/60W/50W/100W Fiber Laser Marking Machine 3D JPT Mopa Metal/Aluminum Deeply Laser Engraving
BEST 30W/100W/60W/50W/100W Fiber Laser Marking Machine 3D JPT Mopa Metal/Aluminum Deeply Laser Engraving

BEST 30W/100W/60W/50W/100W Fiber Laser Marking Machine 3D JPT Mopa Metal/Aluminum Deeply Laser Engraving

Send Inquiry

Product Description

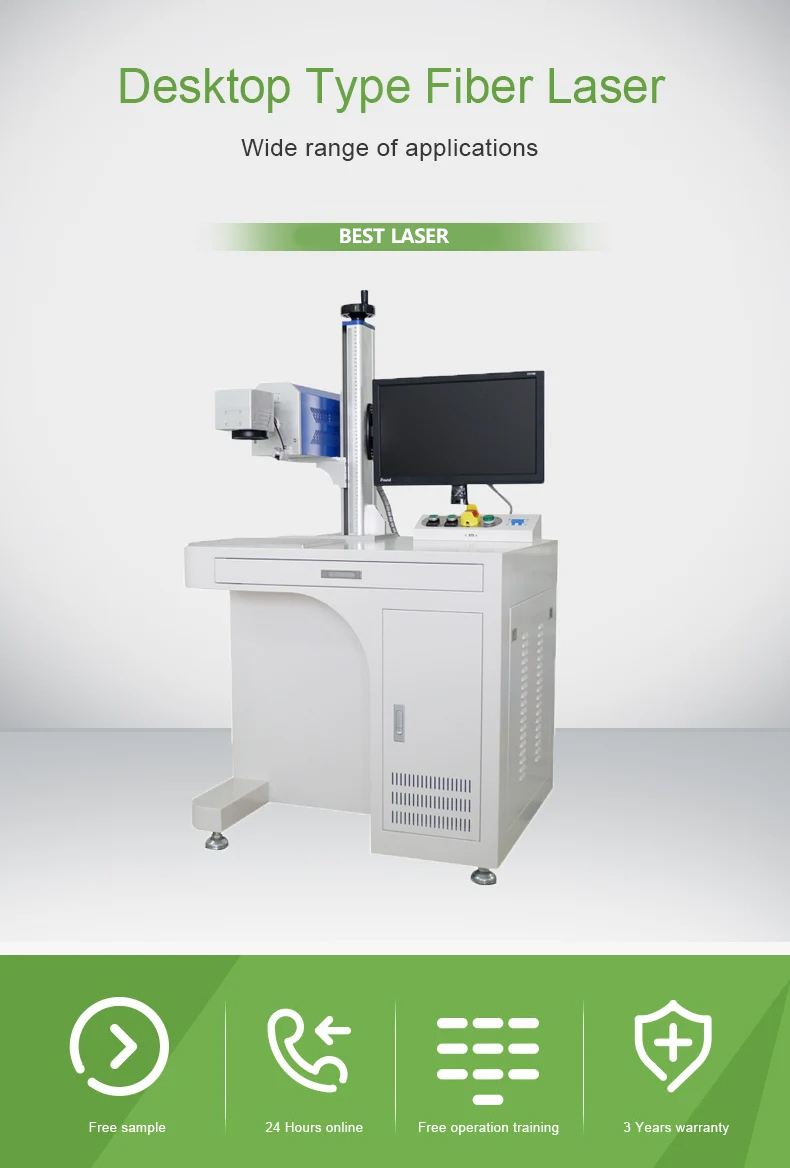

Fiber Laser Marking Machine Overview

Technical Specifications

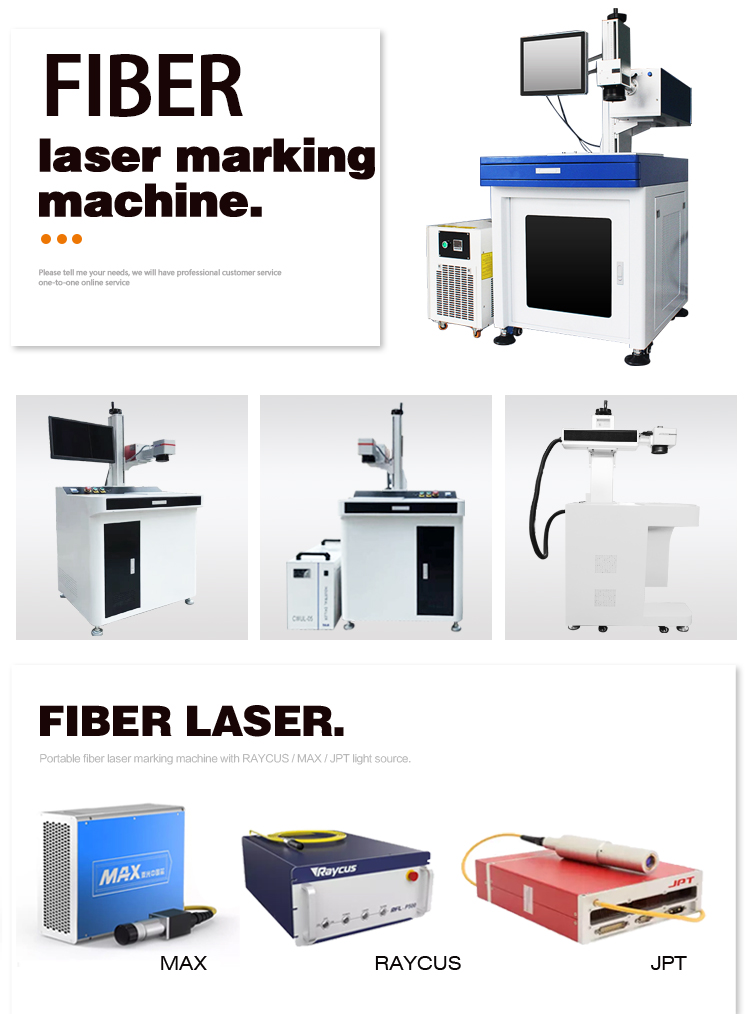

Model BL-FB Laser Source Raycus/MAX/JPT
Laser Type Fiber Positioning Way Red Light
Laser Power 20W/30W/50W/100W Laser Module Life 100000h
Weave Length 1064nm Cooling Style Air cooling
Marking Area ≤200*200mm Total Power Customized
Marking Speed ≤7000mm/s Operating Voltage Customized
Marking Depth ≤1mm Supported Windows Windows XP, 7, 8, 10
Repetition Precision 0.001mm Certificate CE, CCC, ISO
Control Software EZCAD Supported Format BMP/GIF/JPG/PCX/TGA/TIFF/PLT
Machine weight 90kg Packing weight 110kg
Optional Rotary Device, Moving Table, other customized Automation Packing size 92L*76W*110H (cm)
Machine Configuration Structure

Key Components & Features

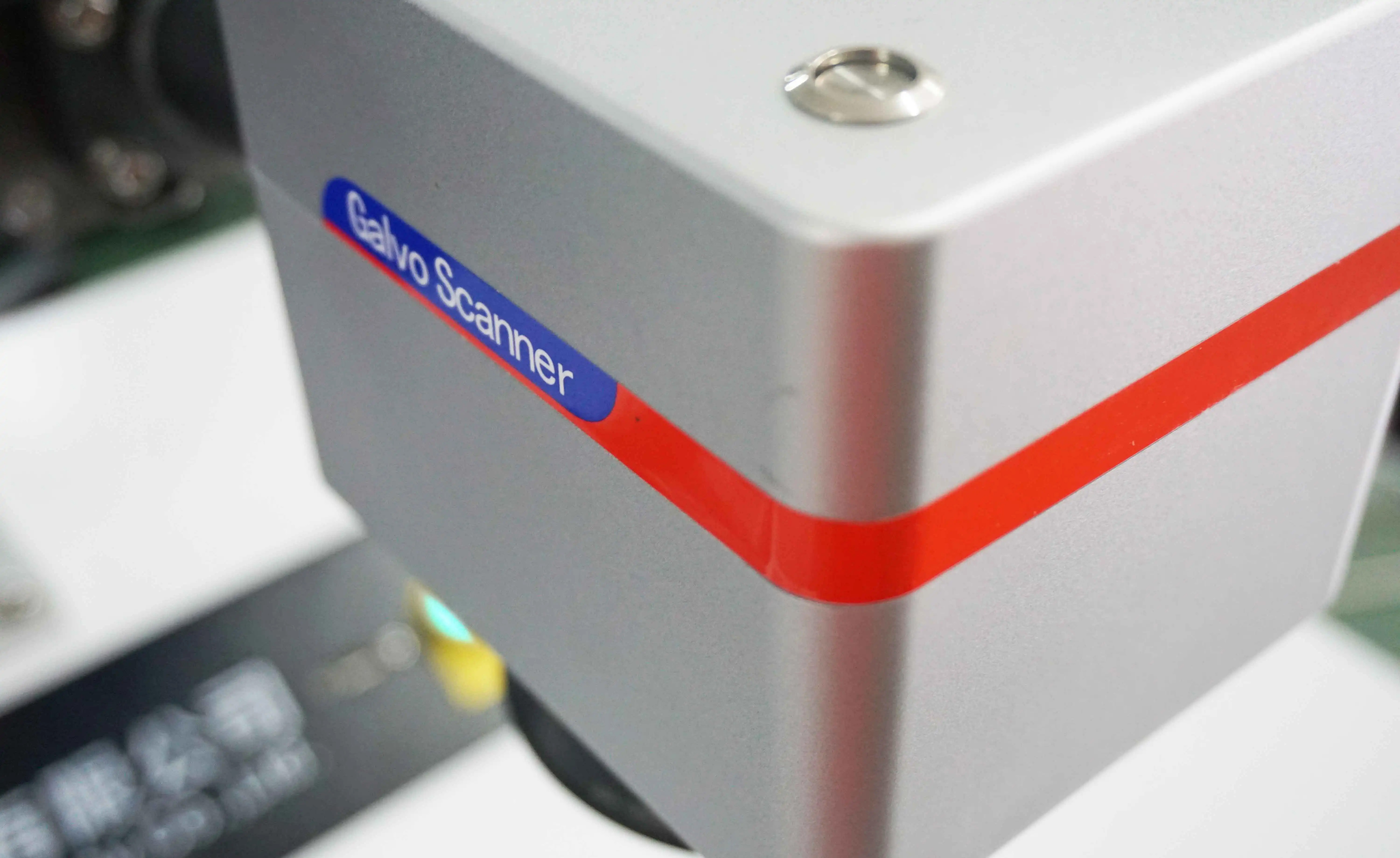

Galvanometer
Scanning Galvanometer
Scanning galvanometer, full digital signal, super anti-interference ability. High precision, short delay, fast speed, small temperature drift, especially suitable for all kinds of high precision, high speed marking requirements. The fiber wavelength is 1064nm.

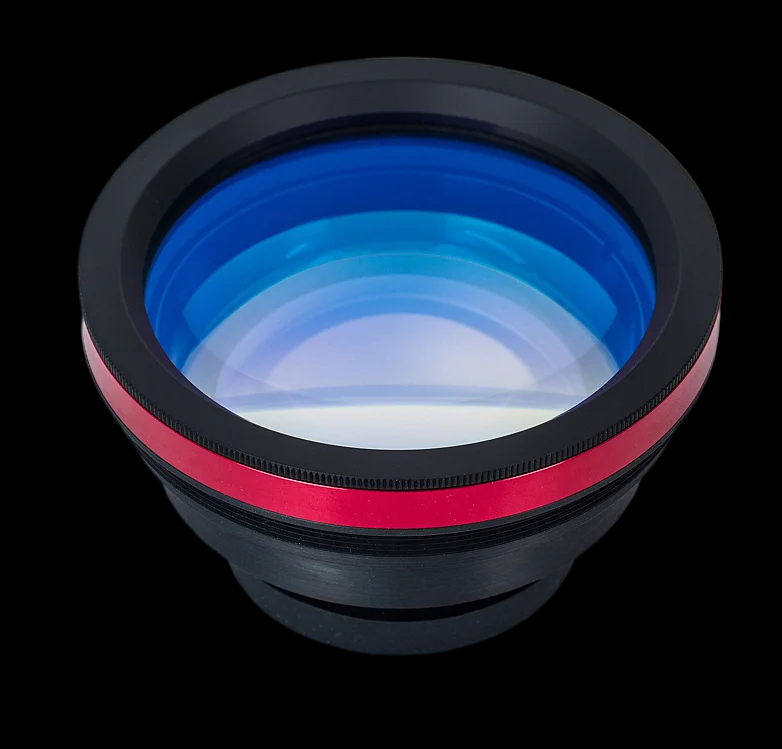

High Quality Field Lens
Field Lens
Famous brand field lens wavelength. Higher energy conversion rate, fast speed and long life. Supporting working areas: 75MM*75MM, 100*100MM, 150*150MM, 200*200MM, 300*300MM. For the same laser power (e.g. 20W), a smaller working area yields a greater single-pass marking depth.

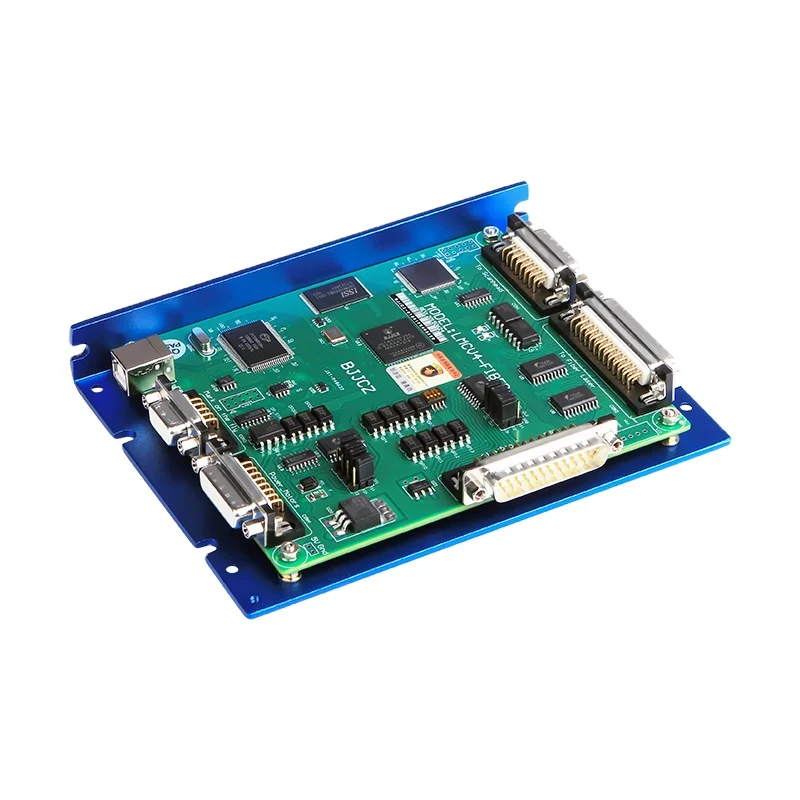

JCZ Control Board
JCZ Main board
Configured with high precision and matched with stable Meanwell power supply, ensuring consistent processing outputs.

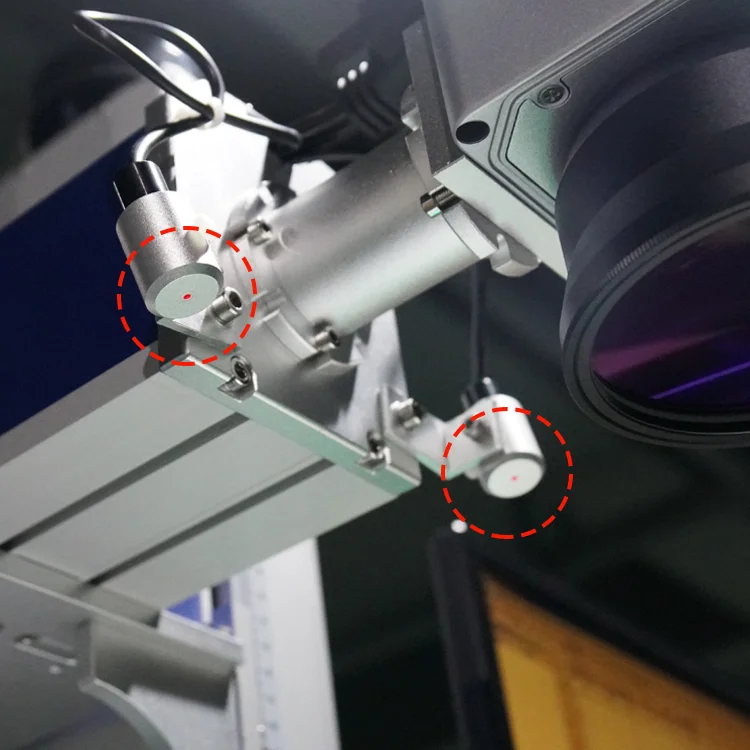

Double Red Light Alignment
Double red light
Configure with double light path alignment system; extremely easy to quickly locate and adjust to the correct focal length.

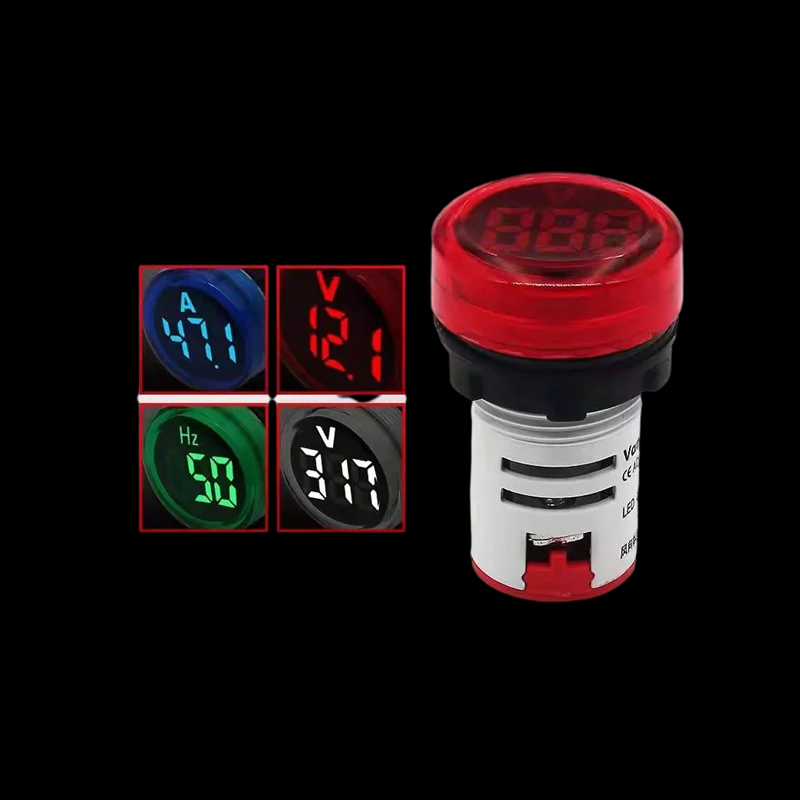

Voltage Test Indicator
Voltage test lamp
The machine is equipped with a voltage test demonstration light. If there is a voltage irregularity, it helps to quickly analyze and identify system issues.

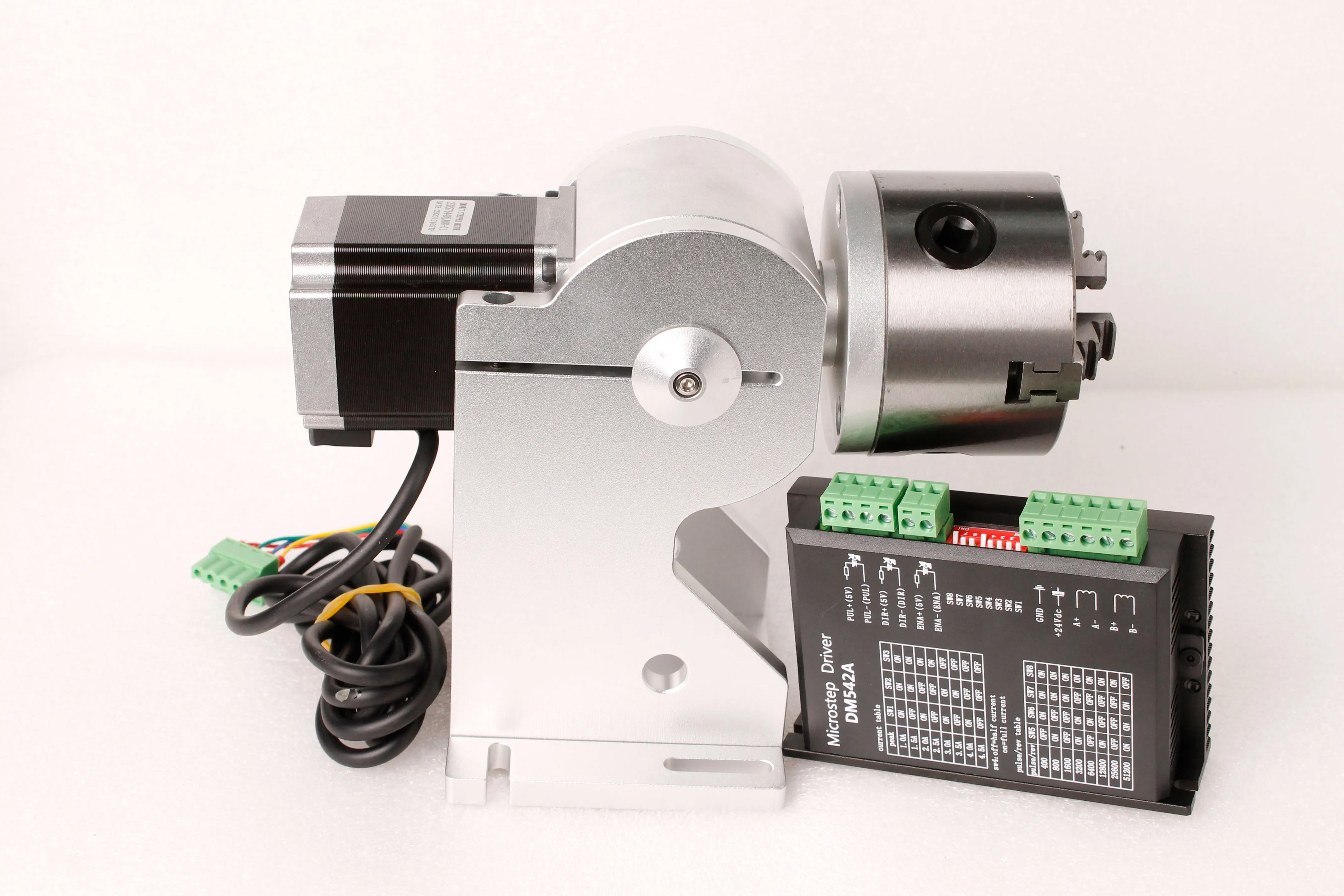

Rotary Axis Device
Rotary device
The rotating device is suitable for marking cylindrical or round objects, such as rings, glass bottles, metal tubes, etc. Operating speed is controlled freely through the computer.

Application Samples

Sample Display 1 Sample Display 2 Sample Display 3

Industrial Scope & Utility

A world leading manufacturer of industrial laser machinery. Laser systems mainly include Laser Cutting Machine Series, Laser Marking Machine Series, Laser Engraving Machine Series and Laser Cleaning Machine Series. Widely used in textiles, leather, clothing, industrial fabrics, advertising, technology products, printing, packaging, electronics, furniture, hardware tools, molds, and other manufacturing sectors.
Industry standard testing environment

Frequently Asked Questions

Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you marking engraving and the depth of marking / engraving.
Q2: When I got this machine, but I don't know how to use it. What should I do?
We will send operation video and manual for the machine. Our engineer will do training online. If needed, you can send the operator to our factory for training.
Q3: If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q4: What's the consumables of a laser marking machine?
It does not have consumables. It's very economical and cost effective.
Q5: How is the effect of the laser marking?
If you want to know the effect, you can send the sample or drawing to us. We will do the free sample for you and show you in a video how it performs.
Q6: What's the delivery time?
Commonly, the lead time is within 5 working days after receiving payment.
