Advanced Water-Cooled Handheld Laser Welder for Precision Welding

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	1 Year

Basic Info.

Model NO.

1200W 1500W 2000W 2500W 3000W

Application

Electronic Industry, Automotive Industry, Powder Metallurgy, Manufacturing Industry

Technical Class

Continuous Wave Laser

Control

Manual

Power Density

Deep Fusion Welding

Laser Classification

Optical Fiber Laser

Type

Portable Welding Machine

OEM

Support

Center Wave Length

1080 Nm

Output Fiber Length

10 M

Water Tank Capacity

13 L

Welding Wire

φ0.8, 1.0, 1.2, 1.6, 2.0

Cooling System

Water Cooling

Transport Package

Wooden Case

Specification

1140mm*530mm*1040mm

Product Description

💡

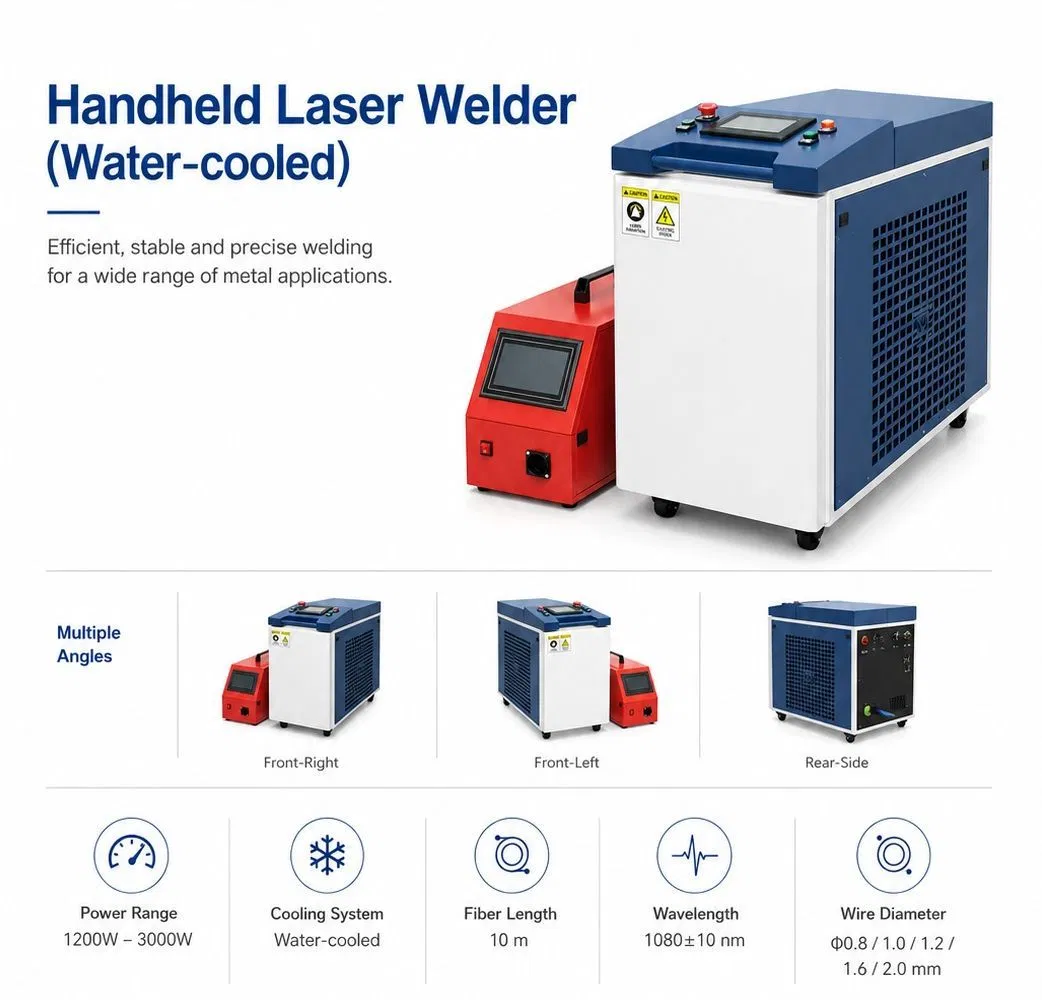

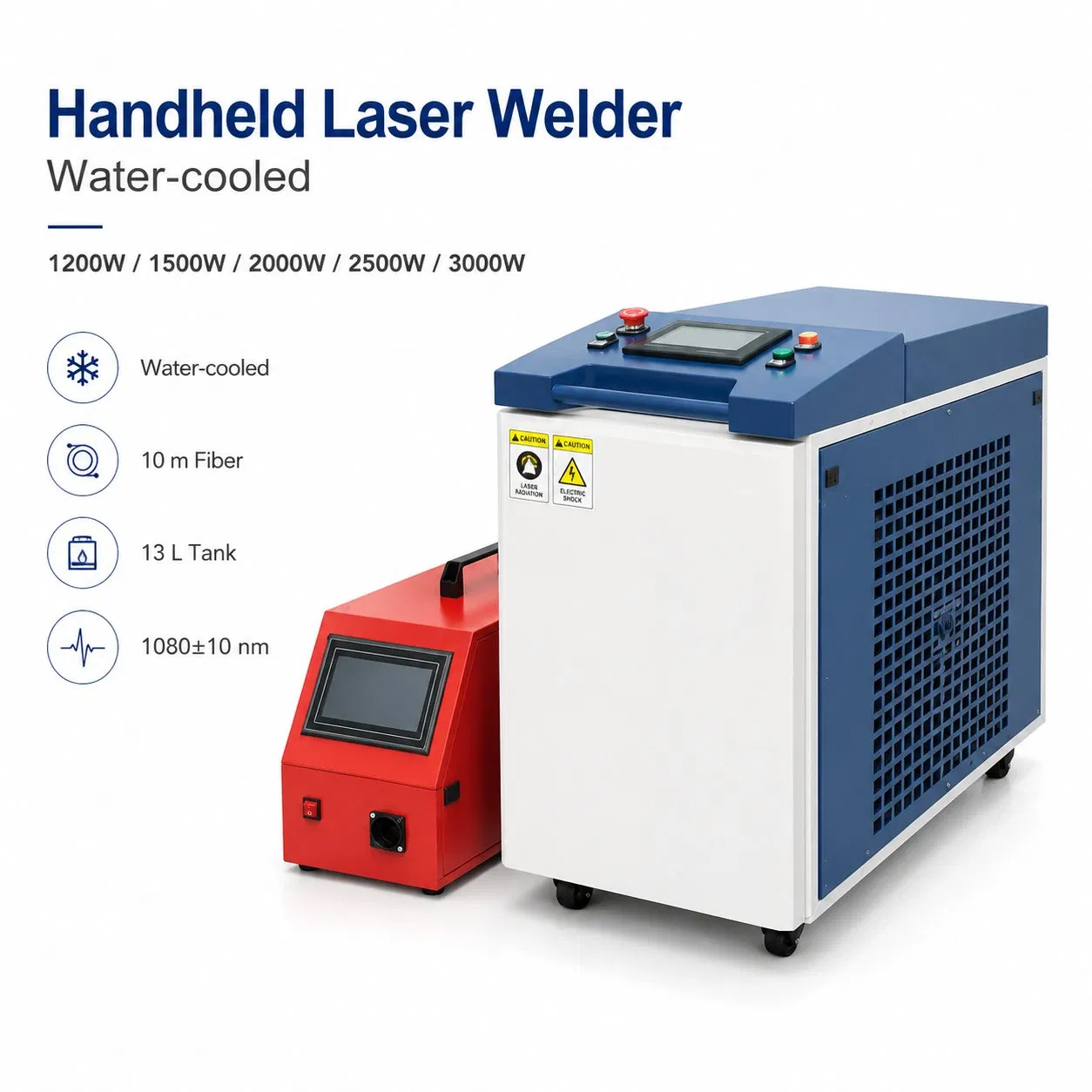

The water-cooled handheld fiber laser welder is a high-efficiency industrial welding solution available in 1200W, 1500W, 2000W, 2500W, and 3000W power options. Adopting advanced continuous fiber laser technology, it features stable performance, deep welding penetration, and small thermal deformation. Equipped with a portable handheld welding gun and 10-meter fiber cable, it supports flexible on-site welding for various metal materials, widely used in automotive, electronic, hardware, and general manufacturing industries.

Product Features

✔ Fast Welding Speed

✔ Smaller Size, Lighter Weight, More Convenient to Move

✔ Simple Operation, Flexible and Convenient

✔ No Welding Deformation

Advanced Water-Cooled Handheld Laser Welder for Precision Welding

Product Parameters

Parameter	1200W	1500W	2000W	2500W	3000W
Operating Voltage	220V	220V	220V	220V	380V
Center Wavelength	1080±10 nm	1080±10 nm	1080±10 nm	1080±10 nm	1080±10 nm
Output Power	1200W	1500W	2000W	2500W	3000W
Output Fiber Length	10 m	10 m	10 m	10 m	10 m
Machine Dimensions (mm)	1010×400×710	1010×400×710	1010×400×710	1140×530×1040	1140×530×1040
Machine Weight (kg)	160	160	160	180	180
Water Tank Capacity (L)	13	13	13	13	13
Cooling Method	Water-cooled	Water-cooled	Water-cooled	Water-cooled	Water-cooled
Operating Temperature	0-40ºC	0-40ºC	0-40ºC	0-40ºC	0-40ºC
Welding Wire Diameter (mm)	φ0.8-2.0	φ0.8-2.0	φ0.8-2.0	φ0.8-2.0	φ0.8-2.0
Power Consumption (kW)	≤4.8	≤6	≤8	≤10	≤12

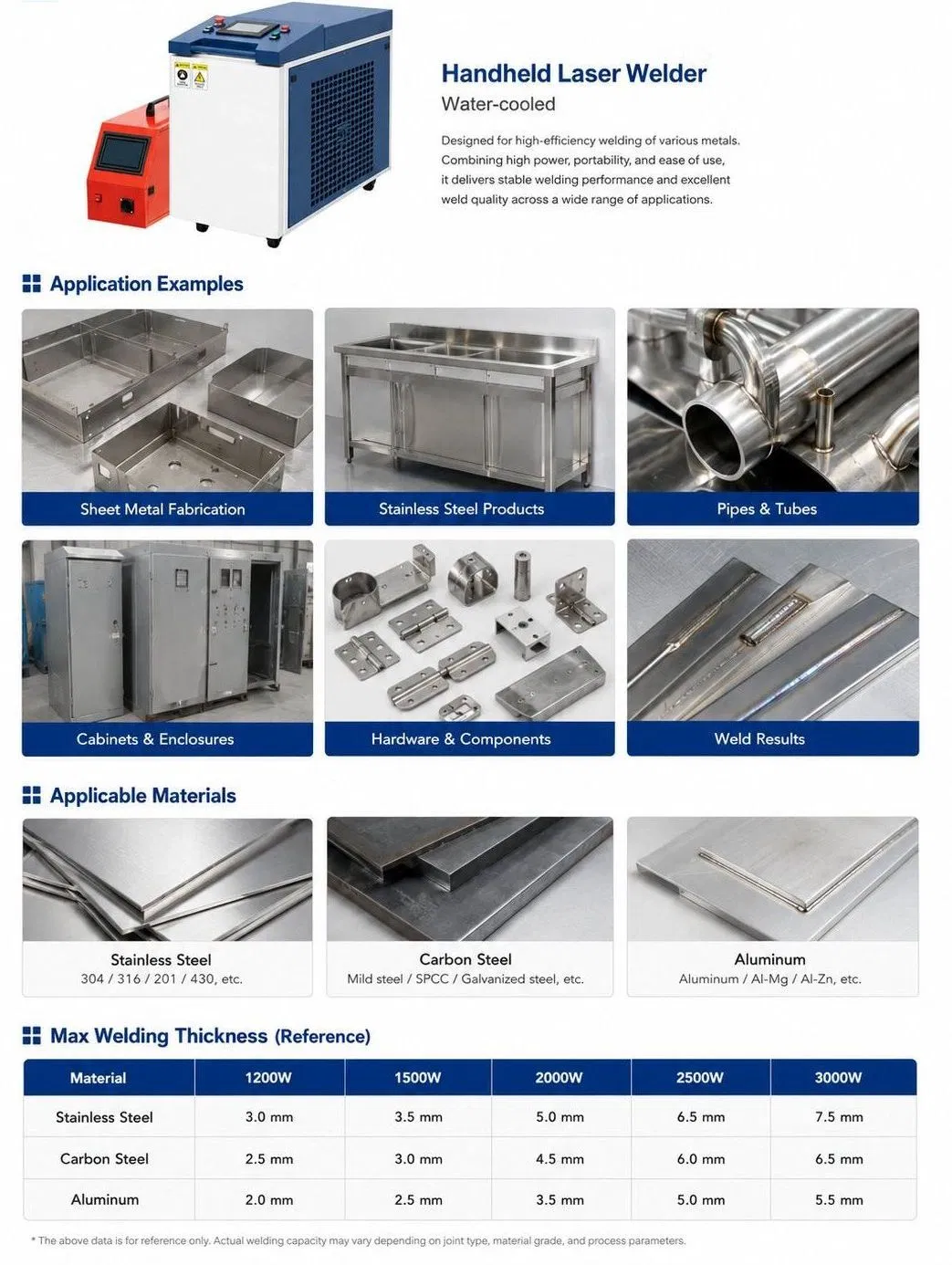

Max Welding Thickness - Stainless Steel (mm)	3.0	3.5	5.0	6.5	7.5
Max Welding Thickness - Carbon Steel (mm)	2.5	3.0	4.5	6.0	6.5
Max Welding Thickness - Aluminum (mm)	2.0	2.5	3.5	5.0	5.5
Shield Gas	Argon / Nitrogen / Helium	Argon / Nitrogen / Helium	Argon / Nitrogen / Helium	Argon / Nitrogen / Helium	Argon / Nitrogen / Helium
Working Mode	Continuous / Modulation	Continuous / Modulation	Continuous / Modulation	Continuous / Modulation	Continuous / Modulation

Applications

⚙

Automotive Industry, Electronic Industry, Powder Metallurgy, General Manufacturing Industry, Hardware Processing, Sanitary Ware Production, Sheet Metal Fabrication, Home Appliance Manufacturing, Construction Hardware and Other Industrial Fields.

Frequently Asked Questions

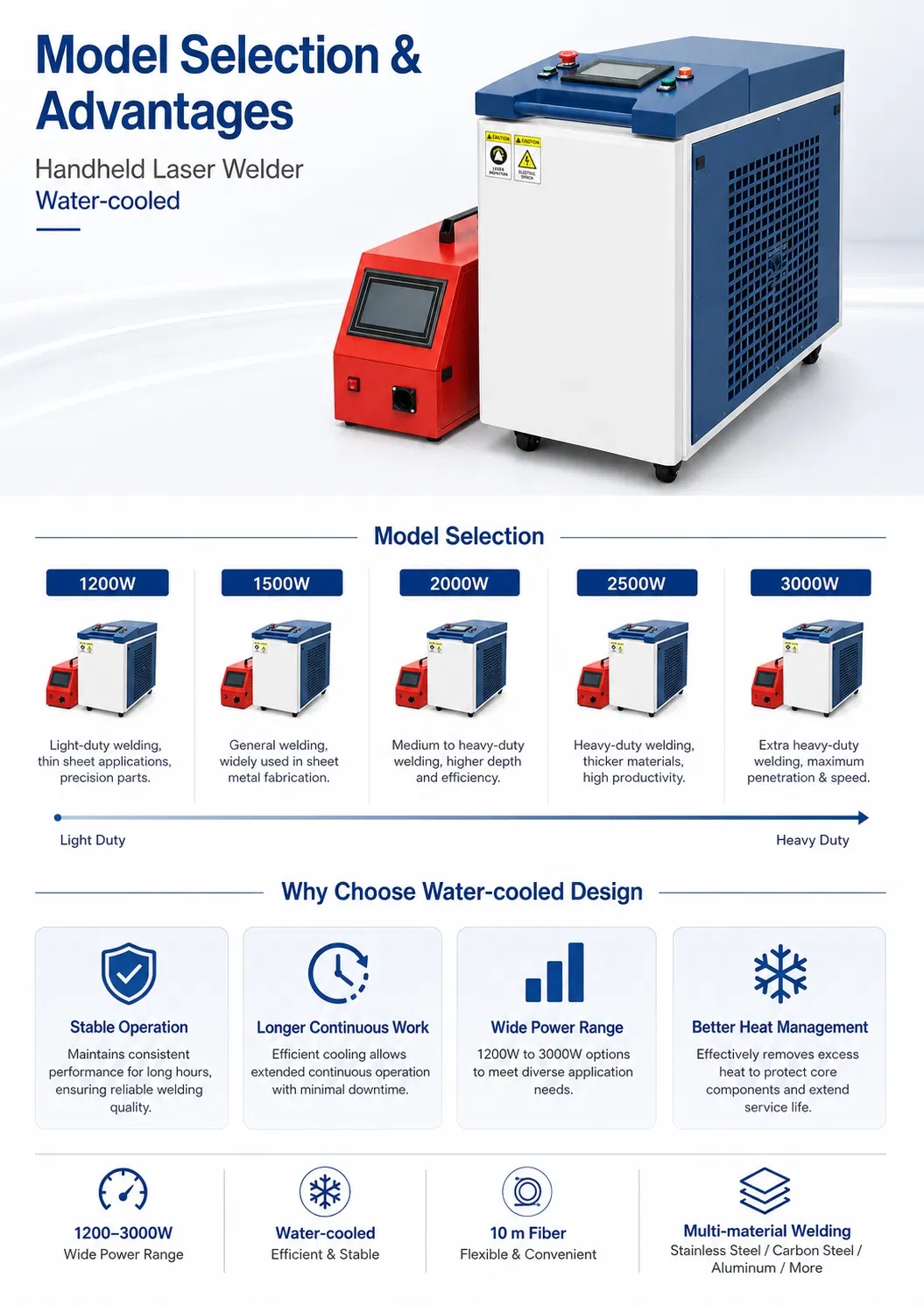

Q What power models are available for the handheld laser welder?

The laser welding system offers five distinct power configurations: 1200W, 1500W, 2000W, 2500W, and 3000W, allowing users to match their specific industrial capability needs.

Q What is the maximum welding thickness for different materials?

Depending on the power source model, the welding capabilities range up to 3.0mm to 7.5mm for Stainless Steel, 2.5mm to 6.5mm for Carbon Steel, and 2.0mm to 5.5mm for Aluminum materials.

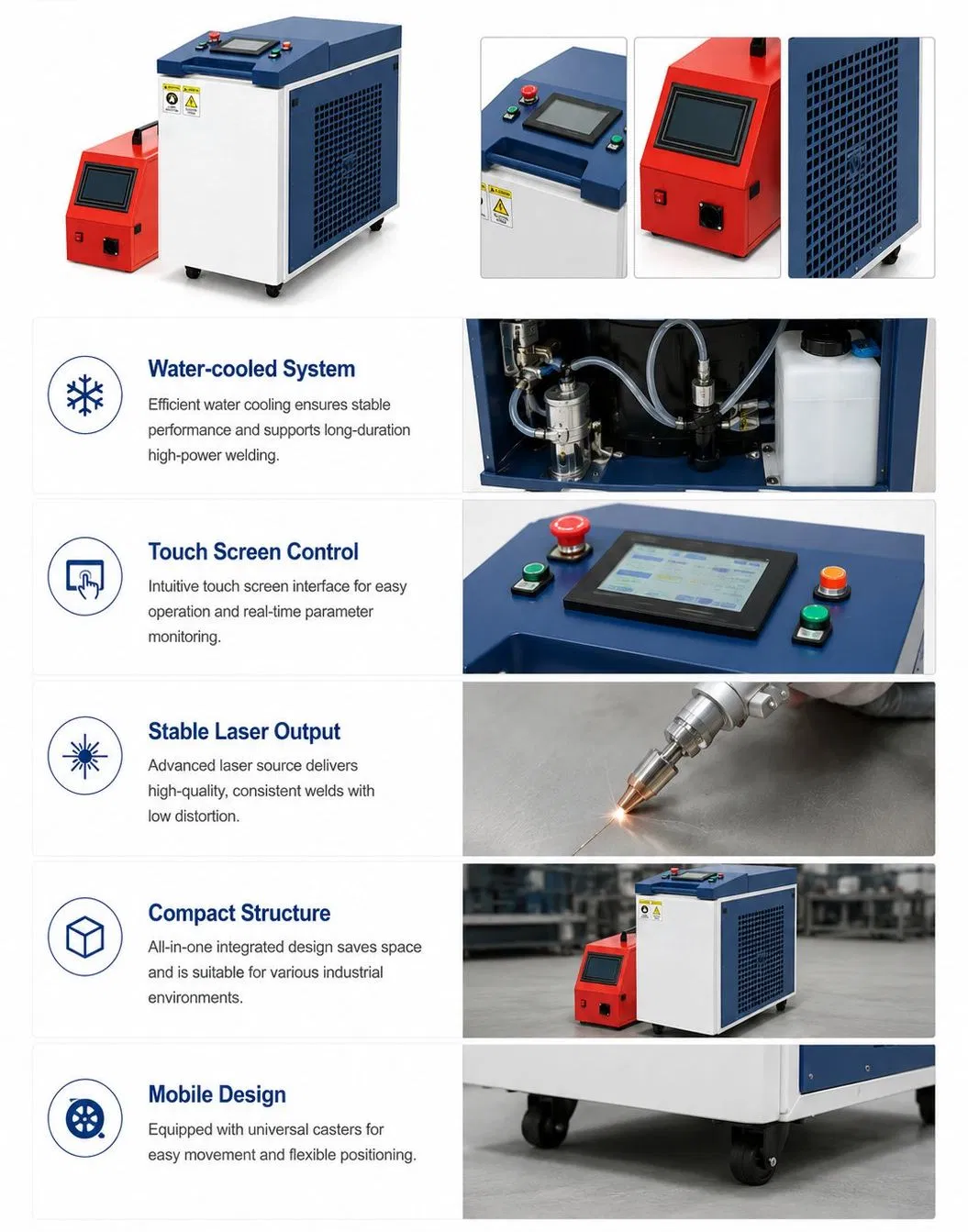

Q What type of cooling system is integrated, and what is its capacity?

It is engineered with a high-performance built-in water-cooling system that has a tank capacity of 13 liters, facilitating continuous, stable, and long-lasting industrial welding operations.

Q What diameters of welding wire can this machine support?

The handheld laser welder is highly versatile and supports various welding wire diameters, including φ0.8mm, 1.0mm, 1.2mm, 1.6mm, and 2.0mm.

Q Which industrial fields is this laser welder commonly applied to?

This unit is widely utilized in the automotive industry, electronic manufacturing, powder metallurgy, general sheet metal fabrication, home appliance production, sanitary ware, and structural hardware processing.
