This Fiber Laser welding solution can be used in welding stainless steel, aluminum, copper, gold, silver, chromium, nickel, titanium and other metals or alloys. It is also suitable for welding between different materials such as copper-brass, titanium-gold, titanium-molybdenum, and nickel-copper.
Welding Range: Carbon steel 0.5~8mm, Stainless steel 0.5~4mm, Aluminium alloy 0.5~6mm, Brass 0.5~4mm.
Hand-held welding takes into account flexibility and high weld quality. 3-5 times faster than traditional arc welding.
Multiple safety alarms; the light is automatically locked after the workpiece is removed.
Beautiful weld seams with no consumables, no weld marks, no discoloration, and no need for post-grinding.

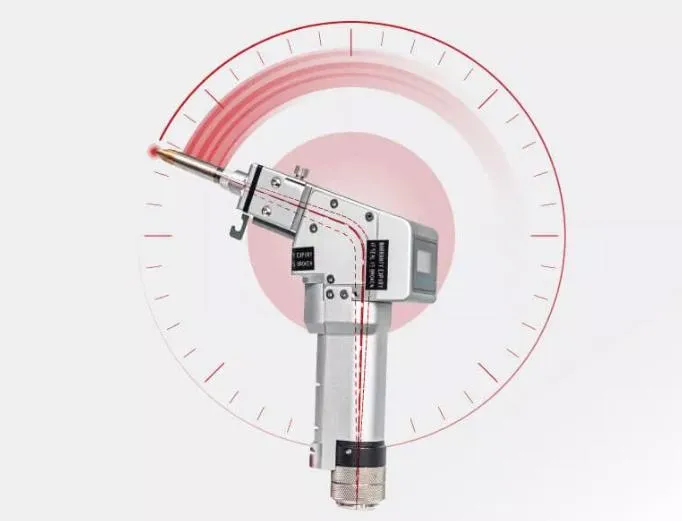

Body engineering design for a comfortable grip. Simple operation without needing a high-skilled certificate.

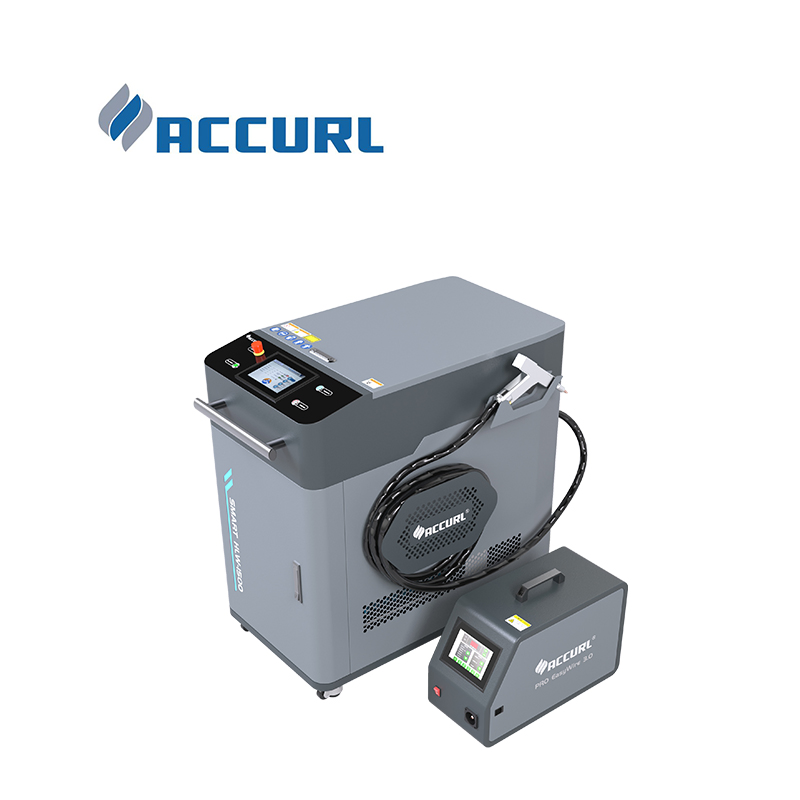

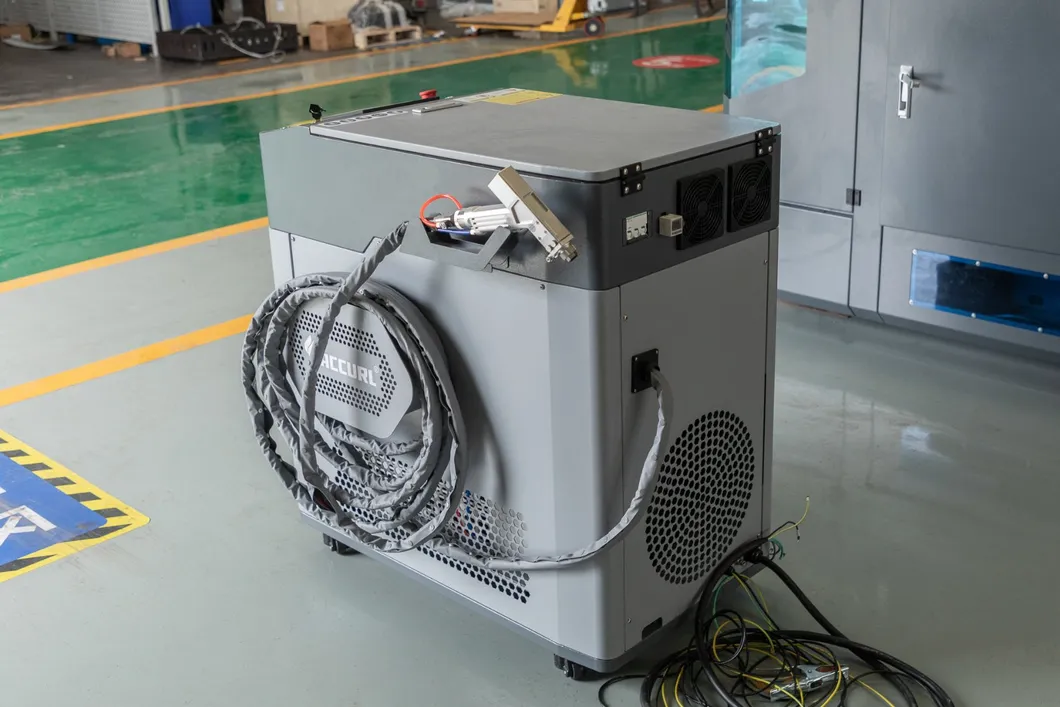

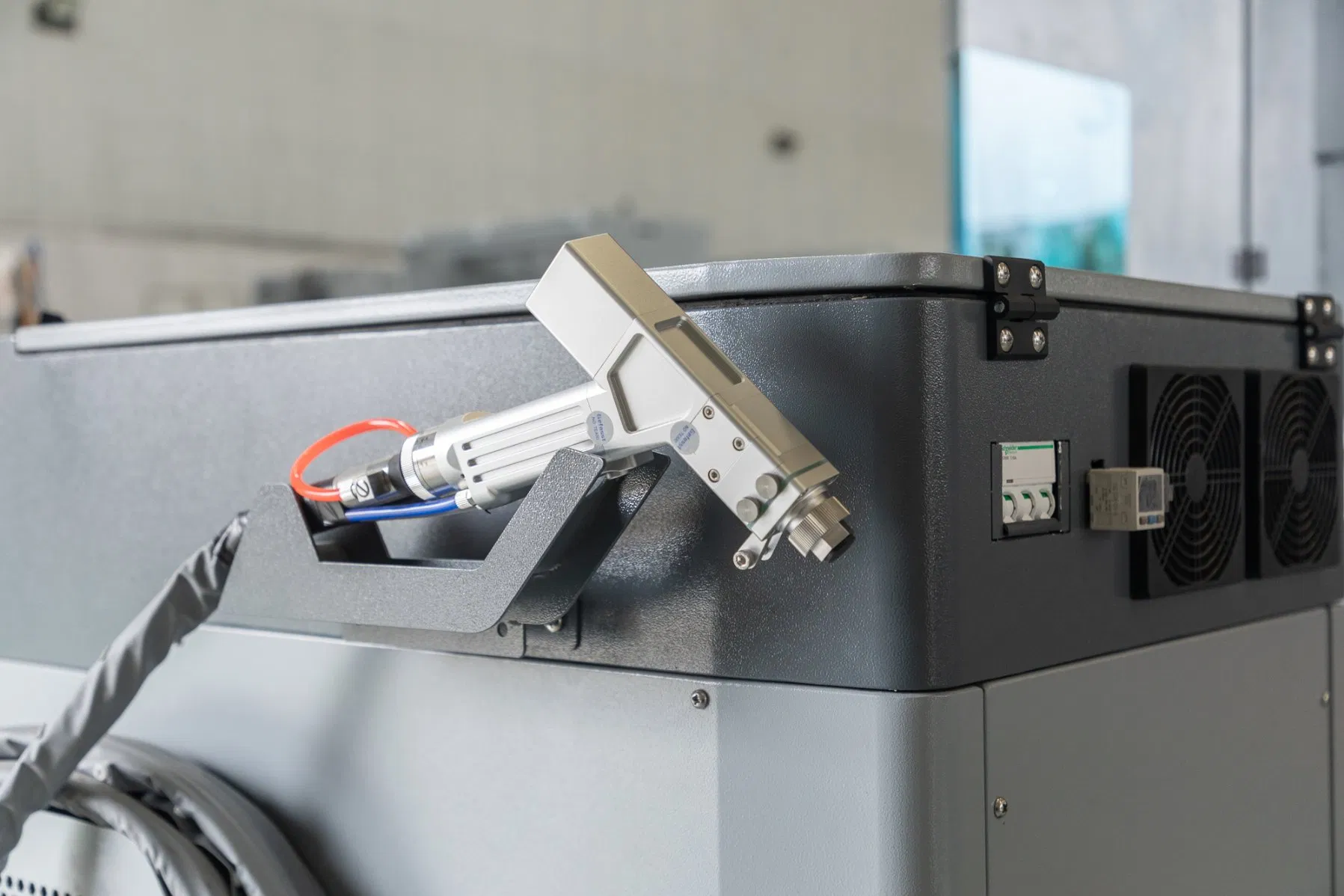

The handheld laser welding machine is compact in design, occupying only 1/3 of the space required for solid YAG laser equipment. The transmission fiber can be optional on demand from 5 to 30 meters, providing a free-to-adjust range for large workpieces.
| Laser Power | 1000W / 1500W / 2000W |
|---|---|
| Laser Wave Length | 1080nm |
| Welding Speed | 0-120mm/s |
| Fiber Length | Standard 15m (Max 30m) |
| Cooling System | Dedicated Water Chiller |
| Total Power | 6KW |
| Dimensions | 1300 x 650 x 1100mm |
| Weight | 150KG |
