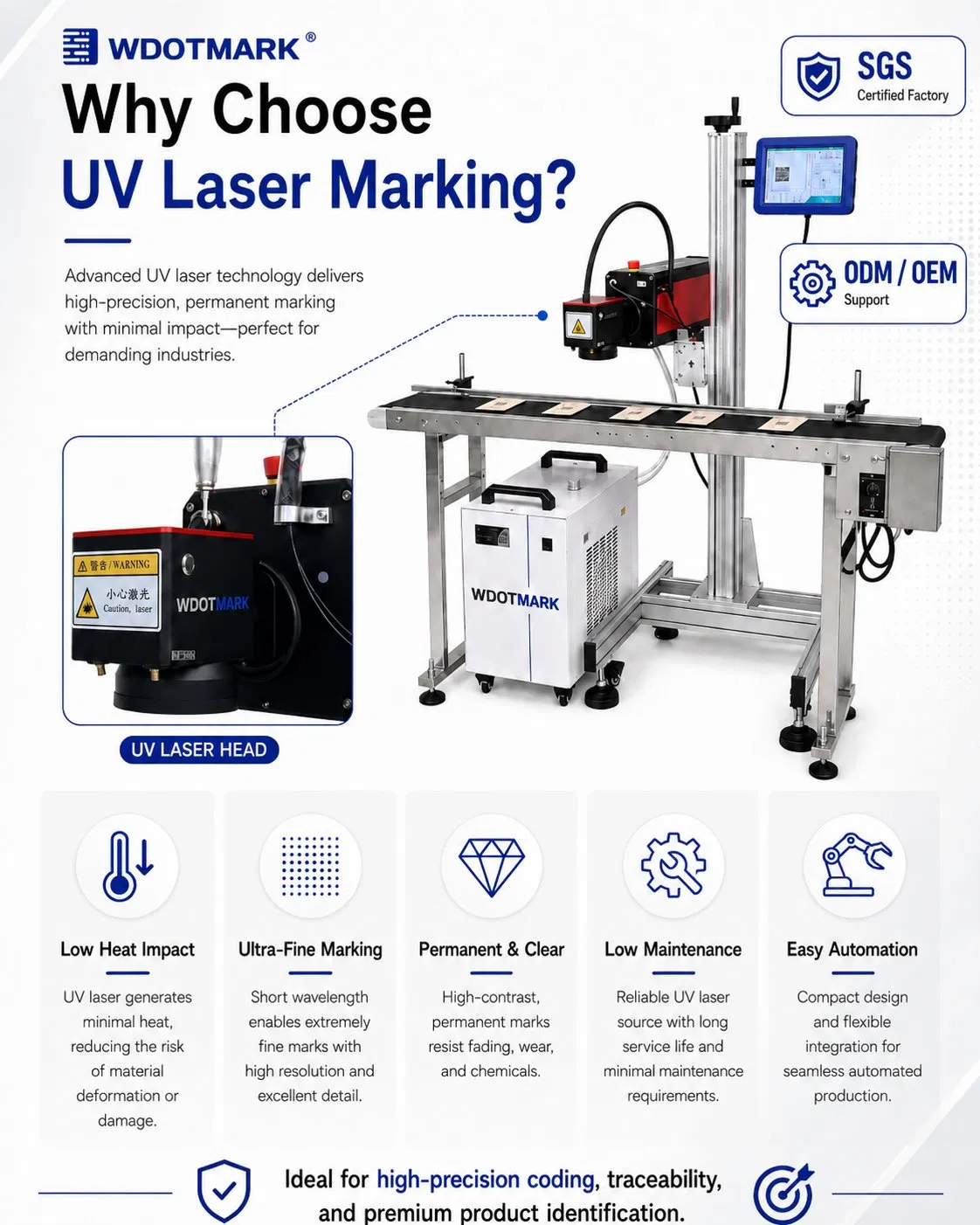

| Parameter Model | YT-U5, YT-U10 | Marking range | 110mm×110mm (Standard) |
| Output Power | 5W/10W | Positioning mode | Dual red light focusing indicator |
| Machine Material | All aluminum sandblasting oxidation | Production line speed | 0~130m/min |
| Laser Source | CRS | Operating system | Linux system |
| Laser Wavelength | 355nm | Service Life | More than 30000 hours |
| Marking Speed | ≤8000mm/S | Marking depth | ≤0.5 mm |
| Controller | 10.2 inch touch controller | Operating Environment | 0°C-45°℃; humidity ≤95% |
| Cooling System | Water cooling | Power Supply | 110V/220V, 50/60HZ |
| Bar Code | CODE39, CODE128, QR, etc. | Language | Multi-language support (English, Russian, Japanese, etc.) |
| File format | BMP/DXF/HPGL/JPEG/PLT | Applications | Glass, PP, PVC, HDPE, Plastics, Wood, etc. |
| Carton Box | Machine | Frame | Chiller |
| Package Size(cm) | 77*33*27cm | 134*35*24 cm | 66*36*55cm |
| Gross Weight(KG) | 25 KG | 18 KG | 26 KG |

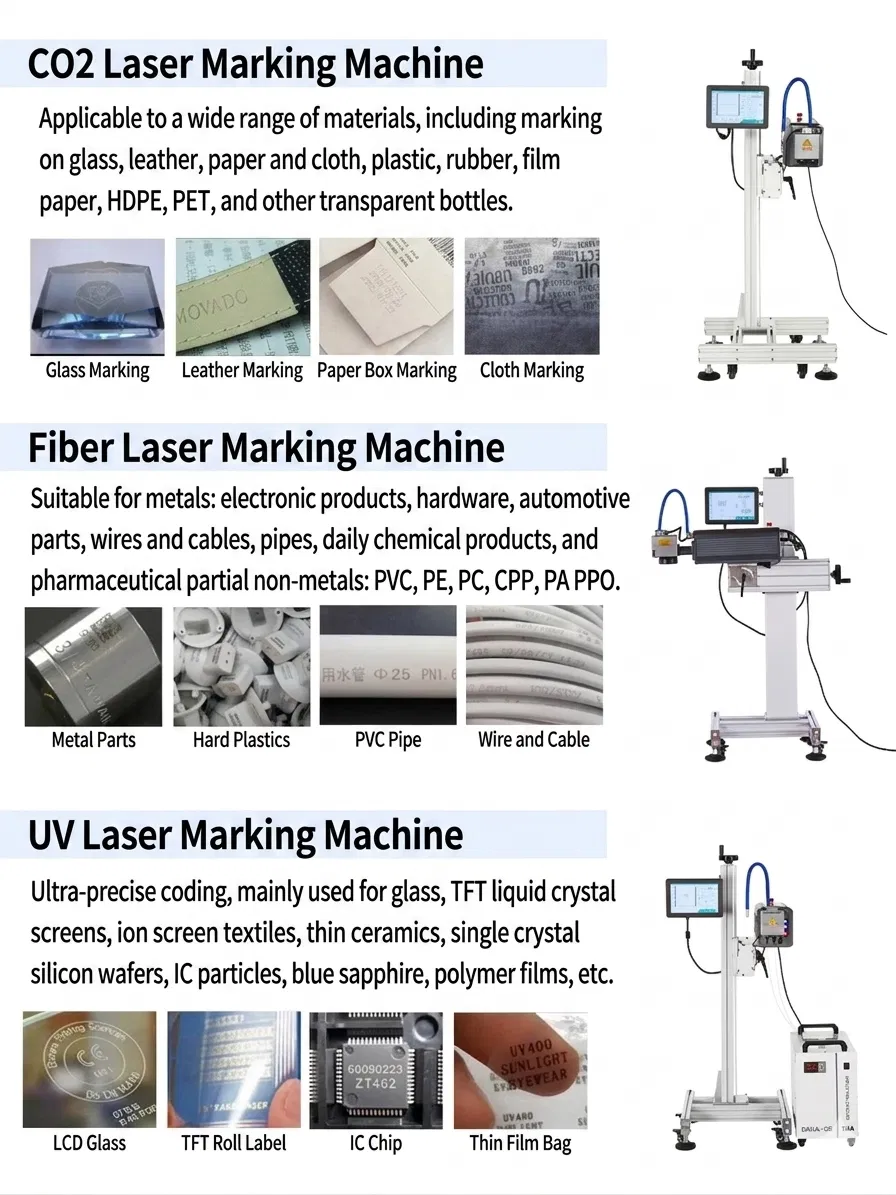

Supported Materials: Metal, Aluminum, Stainless Steel, Copper, PP, PVC, HDPE, Plastics, Resin, Paperboard, Film, Foils, Rubber, Wood.
