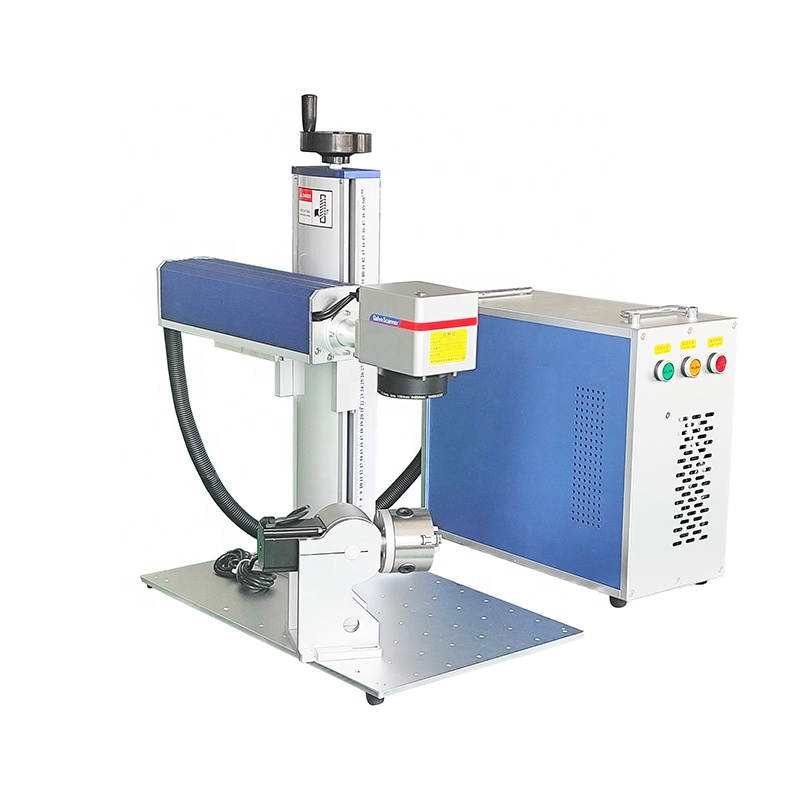

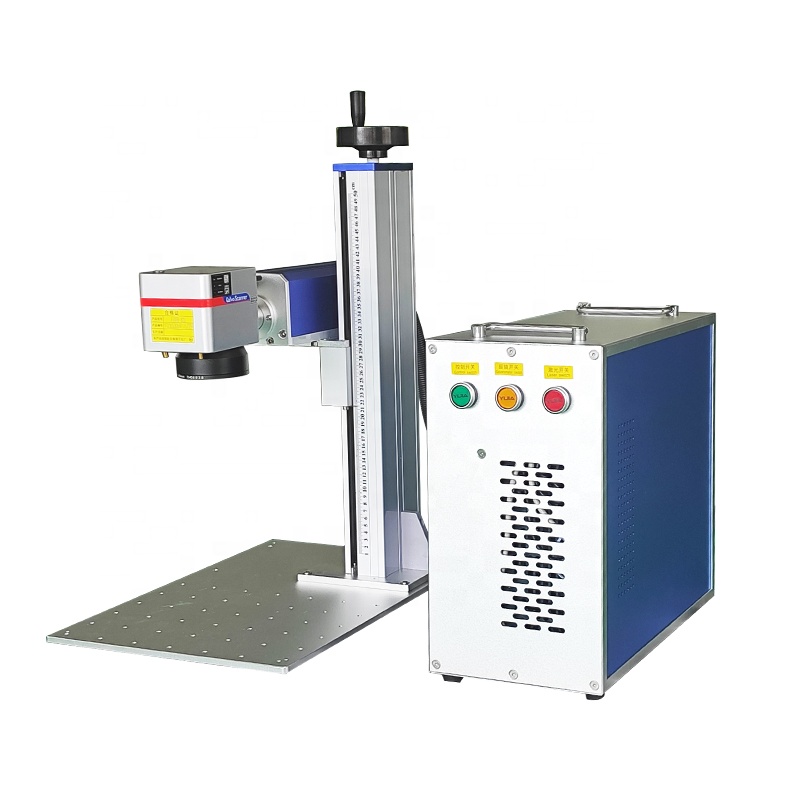

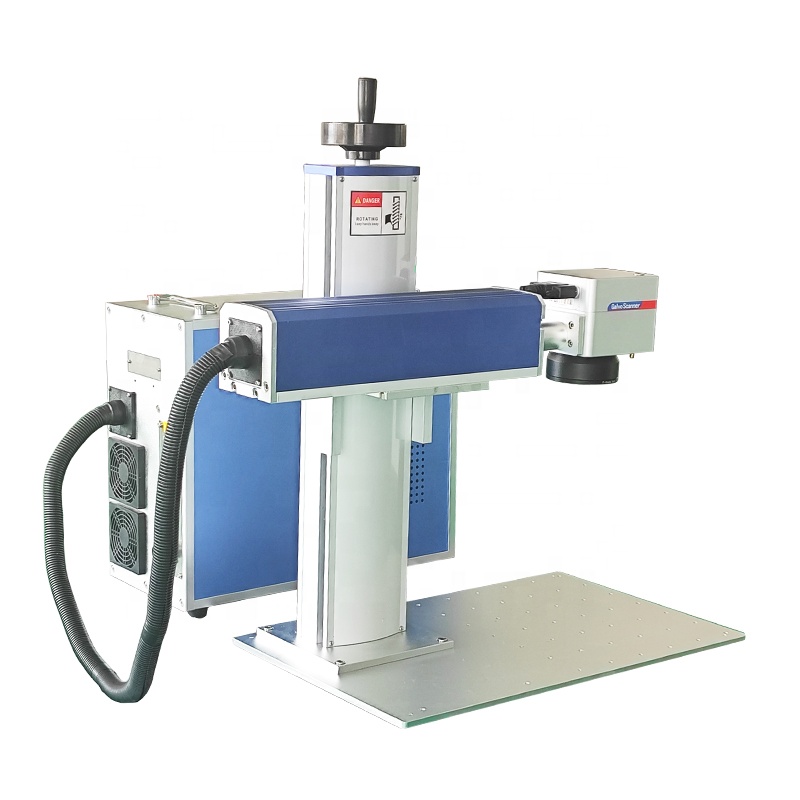

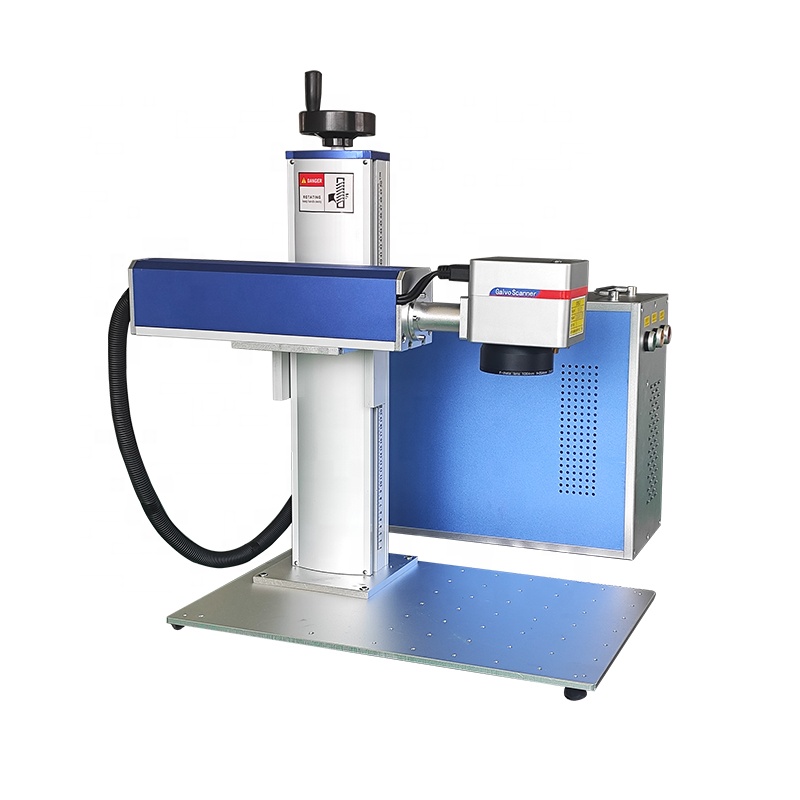

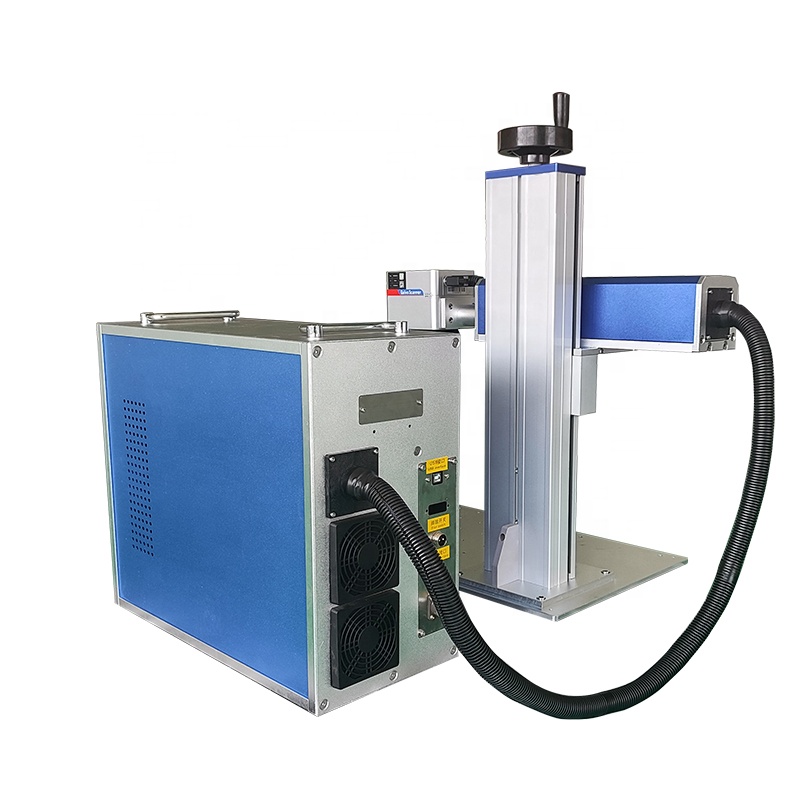

30W Fiber Laser Marking Machine with F-Theta-Lens150x150mm

Send Inquiry

Product Description

Products Description

1. The fiber laser marking machine is a device that uses a high-energy laser beam generated by a fiber laser to create permanent marks on the surface of an object. It has a wide range of applications and is suitable for various materials and industries.

2. Fiber laser marking machines are characterized by high precision, high speed, and high stability, making them suitable for both mass production and small-batch customization. Their working principle involves using a laser beam to induce physical or chemical changes on the material surface, creating a permanent mark.

Product Main Configuration

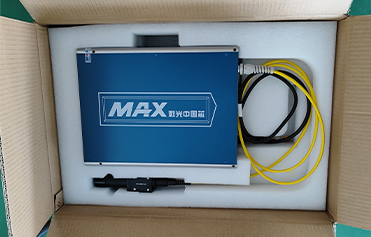

MAX Laser Source

It can be used for fine marking, laser drilling, laser scribing, laser cleaning, laser deep engraving, etc., and is applied in industries such as home appliances, 3C electronics, chips, and packaging.

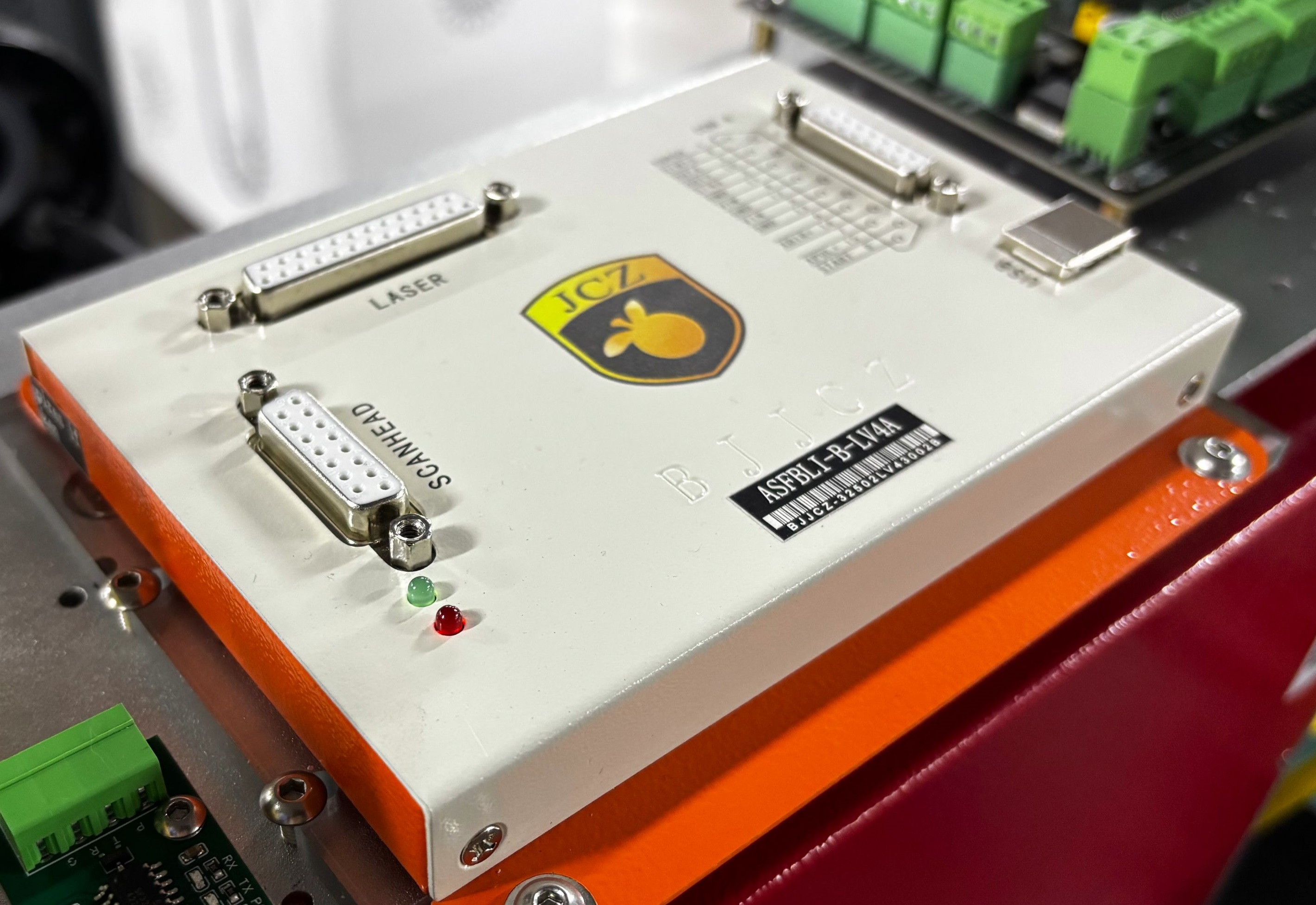

EZCAD 2 Control Card

It is a high-quality machine system control motherboard from China.

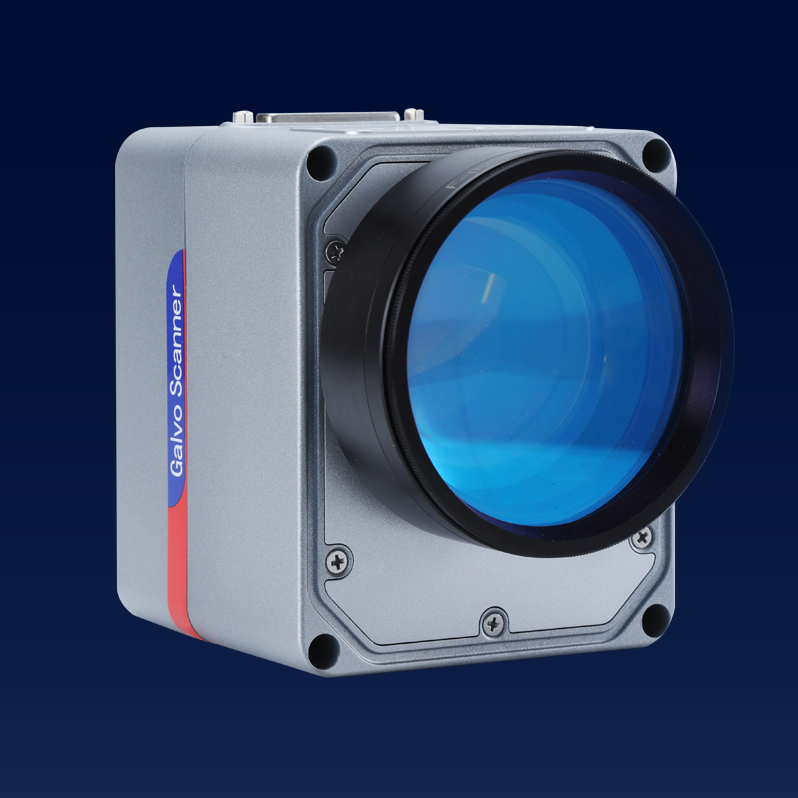

Sino Scan Head RC1001C

This is a high-speed galvanometer that provides excellent laser marking quality. It features a built-in red light indicator to help you find the laser marking focus more easily.

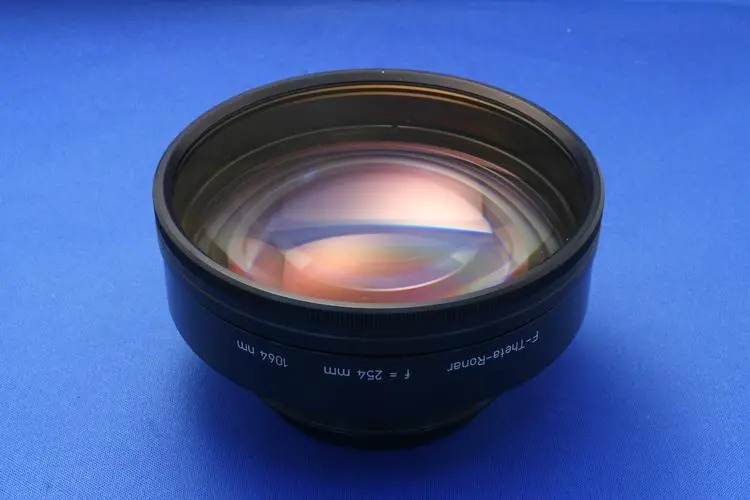

F-Theta-Lens

Selectable working areas: 70x70mm / 110x110mm / 150x150mm / 175x175mm / 200x200mm

Machine parameters

Parameter Specification	Value Details
Product Name	Fiber Laser Marking Machine
Machine Power	30w
Laser Source Brand	MAX
Minimum character	0.2 mm (0.008 inches)
Marking speed	≤ 8000 mm/s
Laser Wavelength	1064nm
Marking Area	0-200x200mm
Scan Head	Sino Scan Head RC1001
Machine Control	EZCAD 2
Voltage	220v/50HZ or 110V/60HZ

Machine application

The following are the main applications of fiber laser marking machines:

1
Industrial Manufacturing: Marking materials such as metals, plastics, and ceramics, including automotive parts, electronic components, and hardware tools.
2
Electronic Products: Marking serial numbers, QR codes, and other information on circuit boards, chips, mobile phone casings, and other products.
3
Jewelry: Marking intricate patterns or text on precious metals and gemstones.
4
Medical Devices: Marking surgical instruments, implants, and other medical devices to ensure traceability.
5
Packaging and Printing: Marking production dates, batch numbers, and other information on food, pharmaceutical, and cosmetic packaging.
6
Crafts: Marking personalized patterns or text on wood products, leather, glass, and other materials.

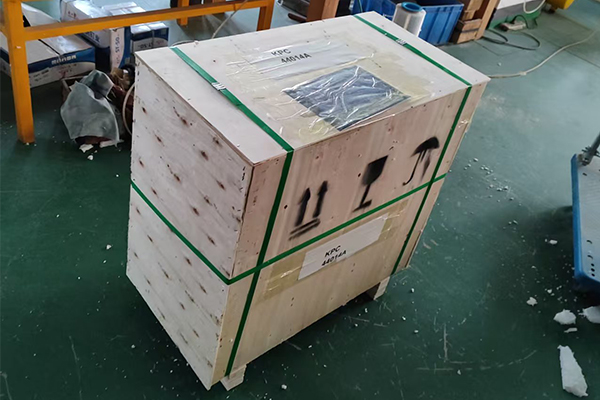

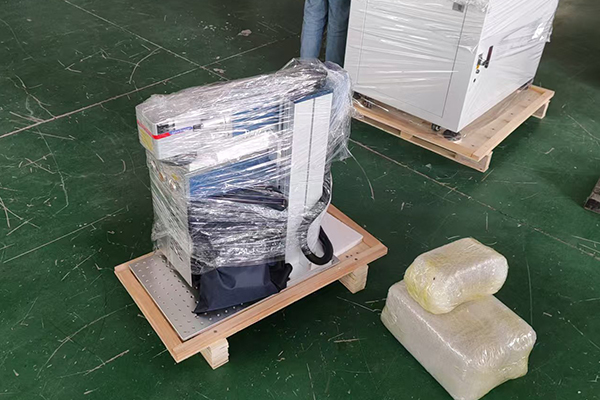

Machine packing

1. Pack the machine with foam plastic to prevent scratches.
2. Place the machine in a wooden crate, then insert white rigid foam inside the crate to prevent it from moving.
3. Finally, secure the crate tightly and then ship the machine out of the factory.

Our services

1. Online Video Guidance

We will guide you on how to use the machine through online videos and written instructions.

2. 2-Year Warranty

The machine has a 2-year warranty. If any machine parts have quality problems, we will send you new parts free of charge.

3. Free Custom Logo

We can provide you with free custom logo services.

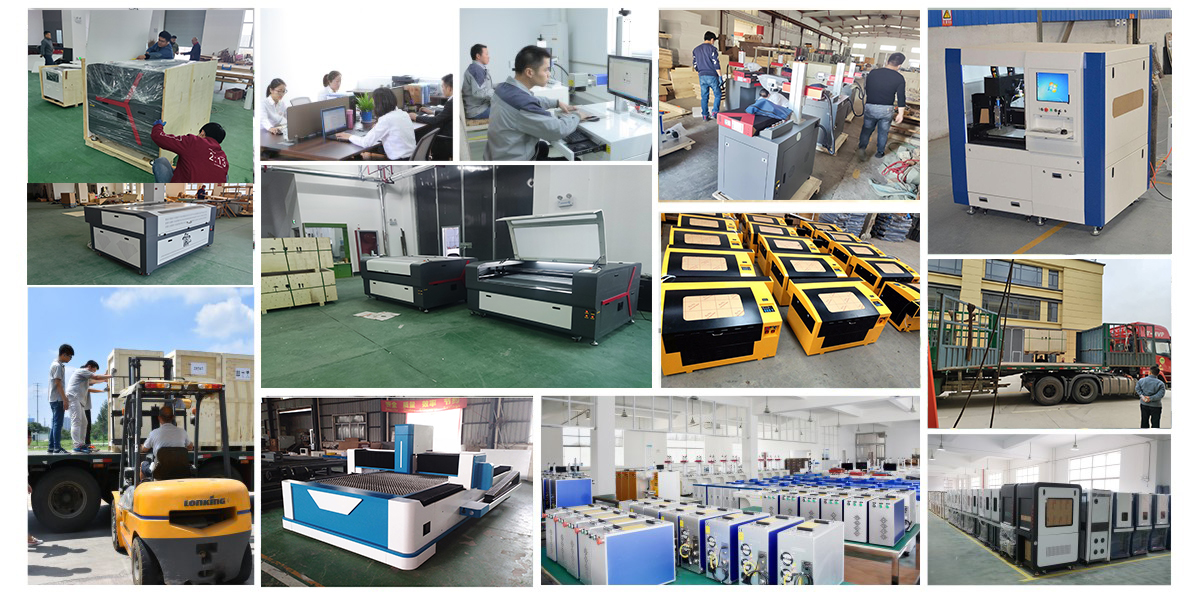

Our factory

Frequently Asked Questions (FAQ)

Q What materials can this fiber laser marking machine mark?

This machine is highly efficient for marking all kinds of metals (including steel, aluminum, brass, copper, titanium) and various engineered plastics, ceramics, and coated materials.

Q How long is the lifespan of the MAX laser source?

The high-quality MAX fiber laser source features an impressive working lifetime of up to 100,000 hours, offering stable performance and long-term reliability.

Q What is the difference between a fiber laser and a CO2 laser?

Fiber lasers use optical fibers doped with rare-earth elements to mark metals and hard plastics. CO2 lasers are gas-based lasers designed primarily for organic materials like wood, acrylic, paper, and leather.

Q Is the marking created by this fiber laser permanent?

Yes, the marks created by the fiber laser are permanent. They are engraved directly on the surface, making them exceptionally resistant to wear, heat, chemicals, and abrasion.

Q Does the machine require complex maintenance?

No, the fiber laser marking machine requires almost no routine maintenance. It does not use any consumables (like ink or ribbons) or require mirror adjustments, which drastically lowers operating costs.
