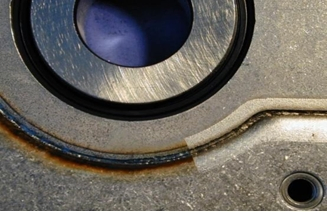

Laser cleaning is a new technology based on the interaction of laser and material, which can achieve the effect of removing surface pollution and attachment. Compared with traditional cleaning methods, laser cleaning has the advantages of non-contact, no damage to the substrate, accurate cleaning, "green" environmental protection and on-line, especially suitable for high-speed on-line cleaning in designated areas.

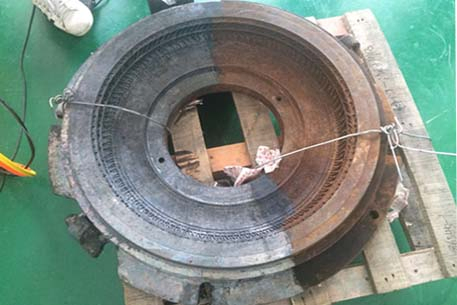

The laser cleaning equipment produced is a new generation of high-tech products for surface treatment, which is easy to install, control and realize automation. Simple operation, power supply, open equipment, can be no chemical reagent, no medium, no dust, no water cleaning, can fit surface cleaning, cleaning surface cleanliness is high, can remove object surface resin, paint, oil stains, dirt, rust, coating, coating and oxidation layer, and the industry is widely used, covering ships, auto repair, rubber mold, high-end machine tools, tracks and environmental protection.
| Content | LS-HCT200ML |
|---|---|
| Operating Environment | |
| Supply voltage | Single phase 220V±10%, 50/60Hz AC |
| Power consumption | ≤1500W |
| Working environment temperature | 5℃~40℃ |
| Working environment humidity | ≤80% |
| Optical Parameters | |
| Average laser power | ≥200W |
| Power instability | <5% |
| Laser Working Mode | Pulse |
| Pulse width | 2-500ns |
| Maximum monopulse energy | 5mJ |
| Power regulation range(%) | 0-100 (Gradient Adjustable) |
| Repeat frequency (kHz) | 1-4000 (Gradient Adjustable) |
| Fiber length | 5m |
| Cooling mode | Air cooling |
| Cleaning Head Parameters | |
| Scan range (length * width) | 0mm-145mm, continuously adjustable (supporting 9 scanning modes) |
| Scanning frequency | The maximum is not less than 300Hz |
| Field mirror focal length(mm) | 210mm (Optional 160mm/254mm/330mm/420mm) |
| Depth of focus | About 5 mm |
| Mechanical Parameters | |

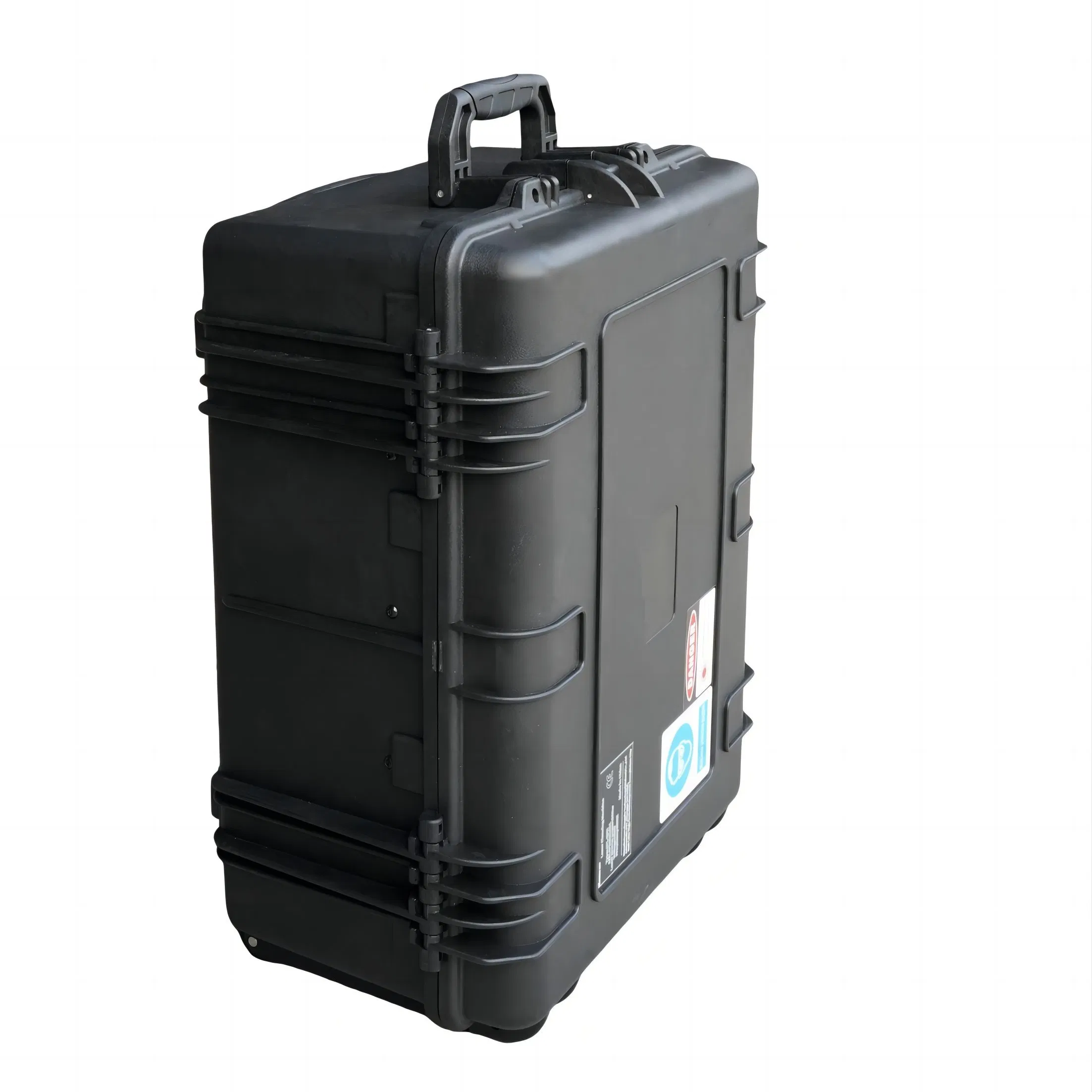

| Machine size (L*W*H) | About 617mm*469mm*291mm |
| Size after packing (L*W*H) | About 760mm*560mm*480mm |
| Machine Weight | About 28Kg |
| Weight after packing | About 48.2Kg |
| Cleaning head weight (excluding optical head) | <0.9Kg |
| Mode of operation | Handheld |

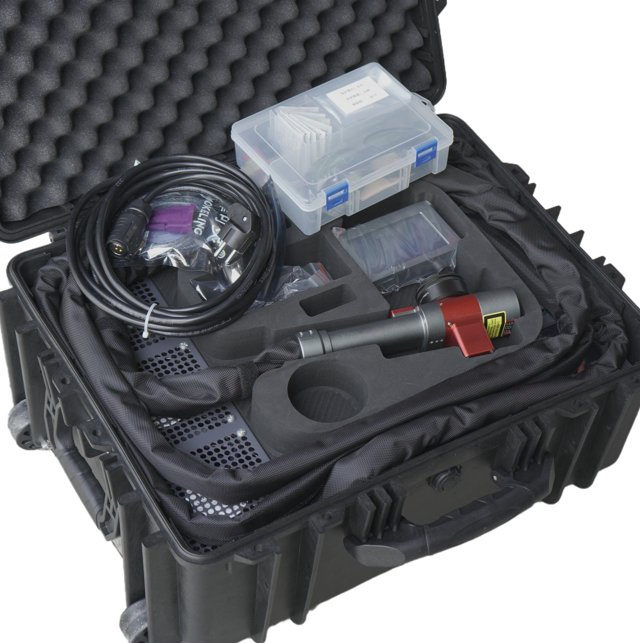

| Name of Component | Model Specifications | Units | Quantity | Remarks |
|---|---|---|---|---|
| Laser cleaning mainframe | LS-HCT200ML | Table | 1 | - |

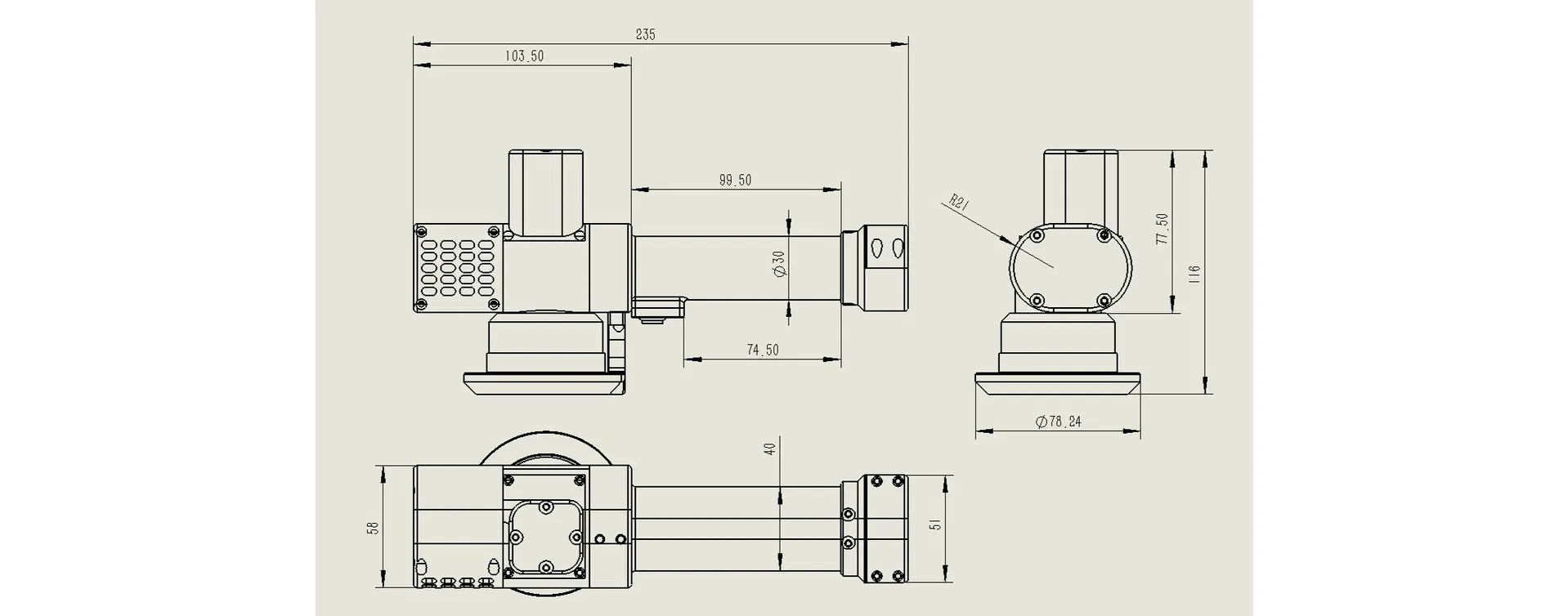

| Laser cleaning head | LS-QCDXYP200 | Sets | 1 | - |
| Process database | Built-in | Sets | 1 | - |
| Laser protective glasses | SD-3 | Payment | 1 | - |
| Protect the lens | 48*3 | Pcs | 5 | - |
| Lens cleaning kit | - | Pcs | 10 | - |
