High photoelectric conversion, better and more stable laser beam. Raycus / Max multiple choice. Different brands, different laser power are available.

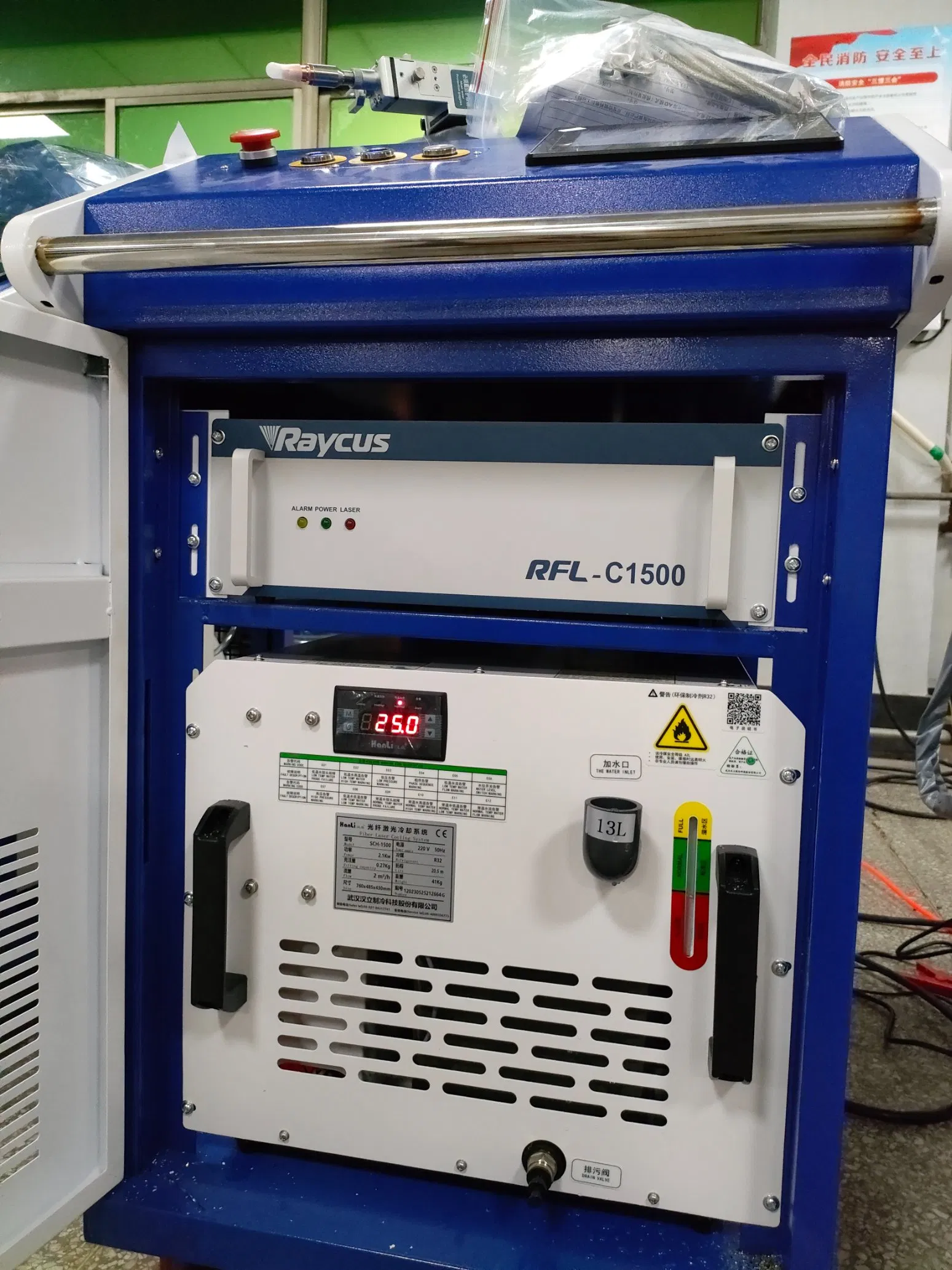

The Raycus laser source is the top brand in China. It's high quality and has a long life time around 100,000 hours. We have long cooperated with them. At the same time, it introduces the optimized second generation fiber transmission system to ensure more stable and precise welding effect in plate welding.
Brand: Hanli or S&A
| Model | RL-500 | RL-1000 | RL-1500 | RL-2000 |
|---|---|---|---|---|
| Maximum laser power | 500 | 1000 | 1500 | 2000 |
| Laser frequency | 50-5000HZ | 50-5000HZ | 50-5000HZ | 50-5000HZ |
| Power adjustment range | 10-100% | 10-100% | 10-100% | 10-100% |
| Power instability | <3% | <3% | <3% | <3% |
| Welding penetration (stainless steel) | 1.2mm | 2.0mm | 2.5mm | 3.0mm |
| Welding penetration (carbon steel) | 0.8mm | 1.5mm | 2.5mm | 3.0mm |
| Welding penetration (aluminum steel) | 1mm | 2mm | 3mm | 4mm |
| Swing welding spot | Solder spot 2-4mm | Solder spot 2-4mm | Solder spot 2-4mm | Solder spot 2-4mm |
| Input voltage | 220V/50HZ | 220V/50HZ | 380V/50HZ | 380V/50HZ |
| Total power | ≤3KW | ≤3KW | ≤3KW | ≤3KW |

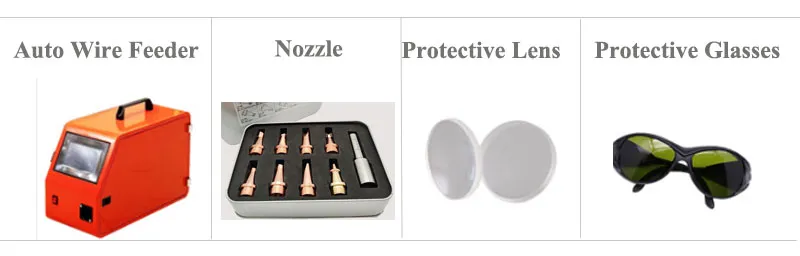

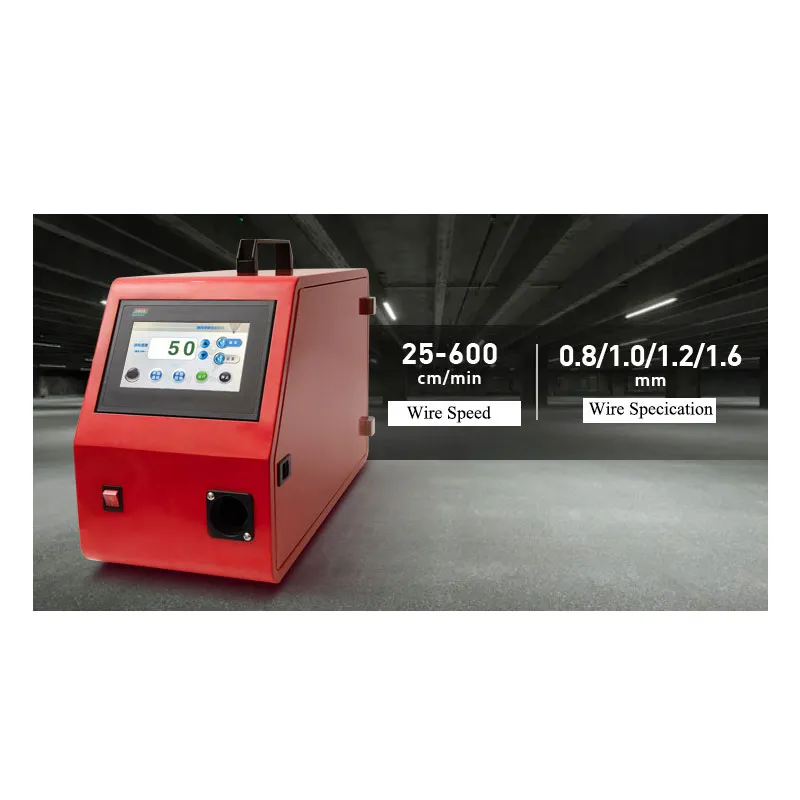

| Automatic wire feeding | Optional | Optional | Optional | Optional |
| Feature | Traditional Welding Methods | Laser Welder |
|---|---|---|
| Speed | Average | Up to 4X Faster than TIG |
| Quality | Depends on the user experience | Consistent high-quality results |
| Learning Curve | Steep | Quick and easy |
| Materials Flexibility | Limited with consumables changes | Wide range with no set up |
| Distortion and Deformation | High | Very low |
| Heat Affected Zone | Large | Small |
| Wobble Welding | No | Yes - up to 5mm additional weld width |
| Pre and Post Weld Cleaning | No | Yes - up to 15mm cleaning path |

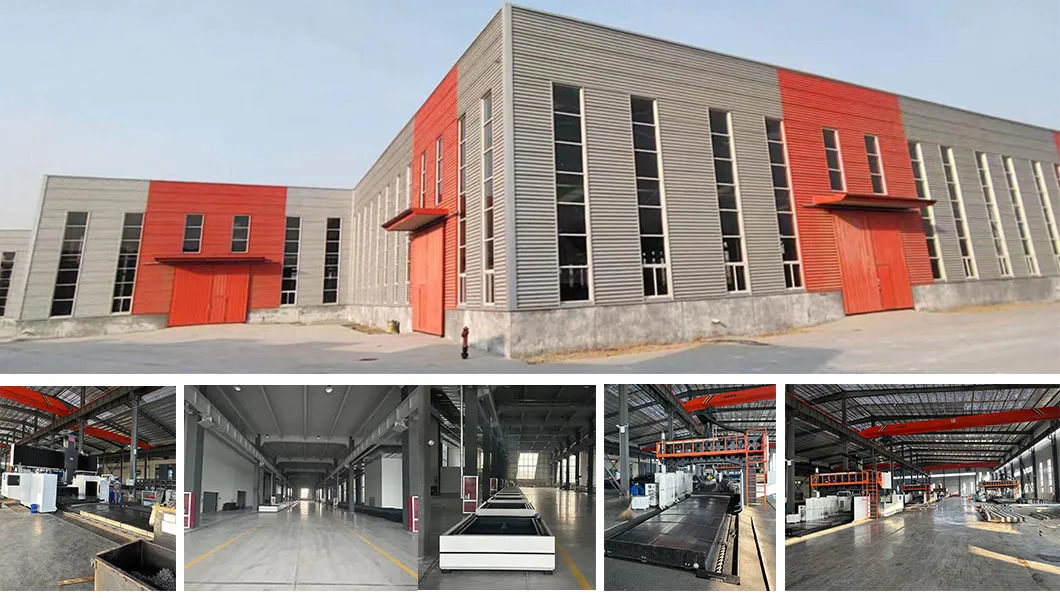

Founded in 2011, we are a professional manufacturer specialized in the research, development, and production of laser cutting machines, laser welding machines, and CNC aluminum profile cutting machines for windows and doors. On the basis of technology development, we have gathered a group of experienced personnel who are talented in senior management, marketing, and advanced production skills. All our products are CE certified, complying with international quality standards, and are highly appreciated across a variety of different markets worldwide.
Please share the following information so we can suggest:
1) The exact metal materials you need to weld.
2) The thickness of the welding materials (to determine the laser power capacity).
3) Your specific line of business so we can advise best practices.
Yes, we provide full CE certification. We offer a comprehensive service where we show you the qualifications initially, and after shipment, we will provide you with the CE, Packing List, Commercial Invoice, and Sales Contract required for customs clearance.
Yes, absolutely. We provide comprehensive online training via highly detailed instructional videos, and we also offer free professional training courses directly at our facilities.
Every machine comes packed with a thorough instruction book, operational manual, and quick-start training videos. In addition, our engineers provide free setup support and online training whenever required.
For Stainless Steel and Carbon Steel, the maximum penetration starts at 1.2mm for 500W models, up to 3.0mm for 2000W models. For Aluminum, the penetration ranges from 1mm up to 4mm depending on the power rating selected.
The system utilizes advanced Water Cooling, integrating high-performance chillers (Hanli or S&A brands). This provides intelligent, self-adaptive hot and cold dual temperature regulation, ensuring independent cooling for both the cleaning/welding head and the laser source.
