The laser cleaning equipment is a new generation of surface cleaning high-tech products. An environmentally friendly laser ablation method replaces traditional chemical and mechanical cleaning methods, featuring simple installation, high automation, and straightforward manipulation.
It efficiently removes rust, resin, stains, oil, dirt, coatings, and paint from surfaces. Recognized as a highly reliable and effective solution due to its non-abrasive, non-contact, and non-thermal properties, it is applicable to various industrial substrates.
Welcome to send us inquiry now, discounts will be available.

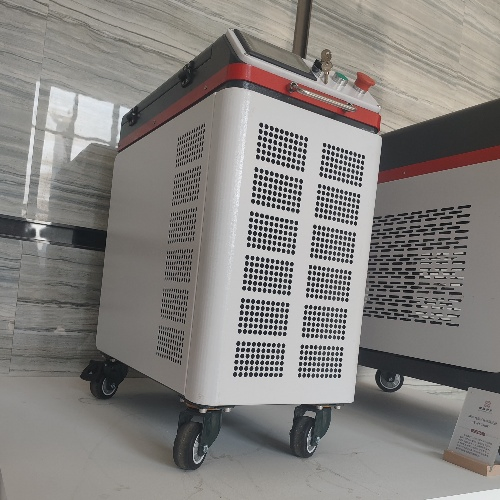

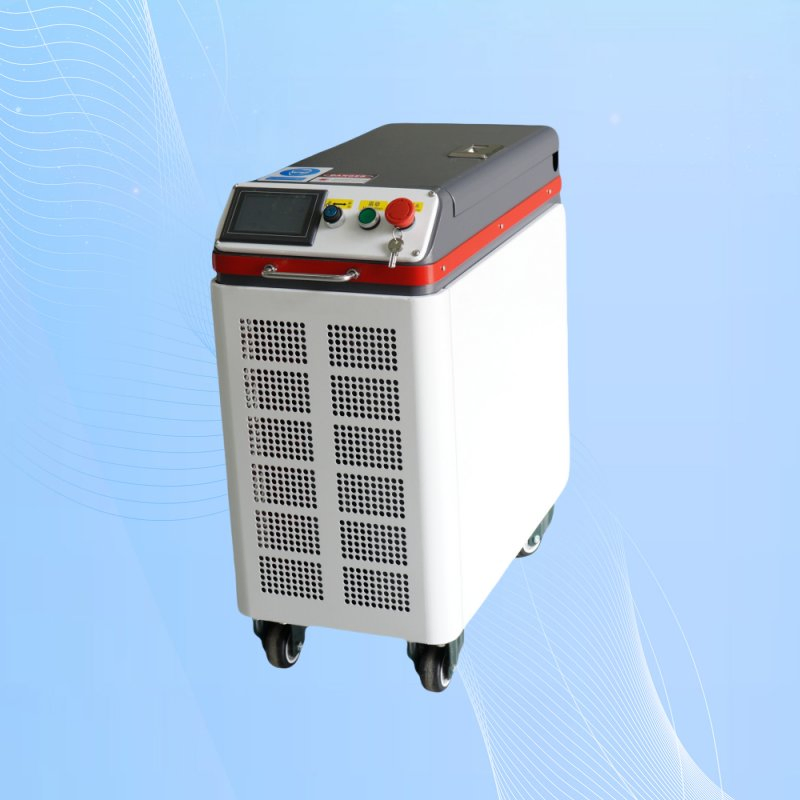

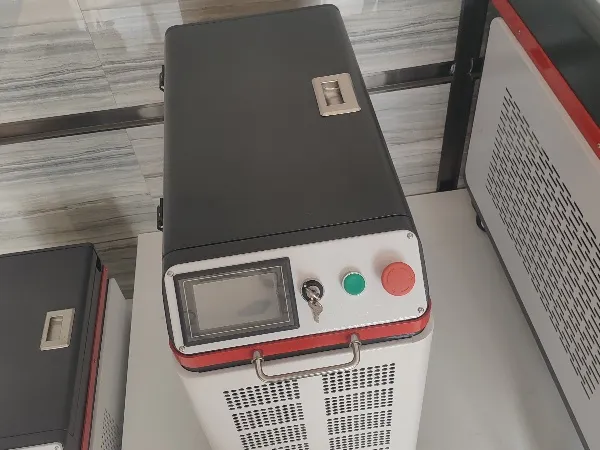

HZ-200M is a 200W air-cooled cabinet-type pulse laser cleaning machine. This hand-held system features small dimensions and low weight (about 52kg) to support exceptionally fast and simplified rust removal. Designed as an all-in-one cabinet system, all functional accessories can be stored inside the cabinet for quick handling and transportation. Equipped with a compact cleaning head to minimize operator workload, the interface supports 16 languages.

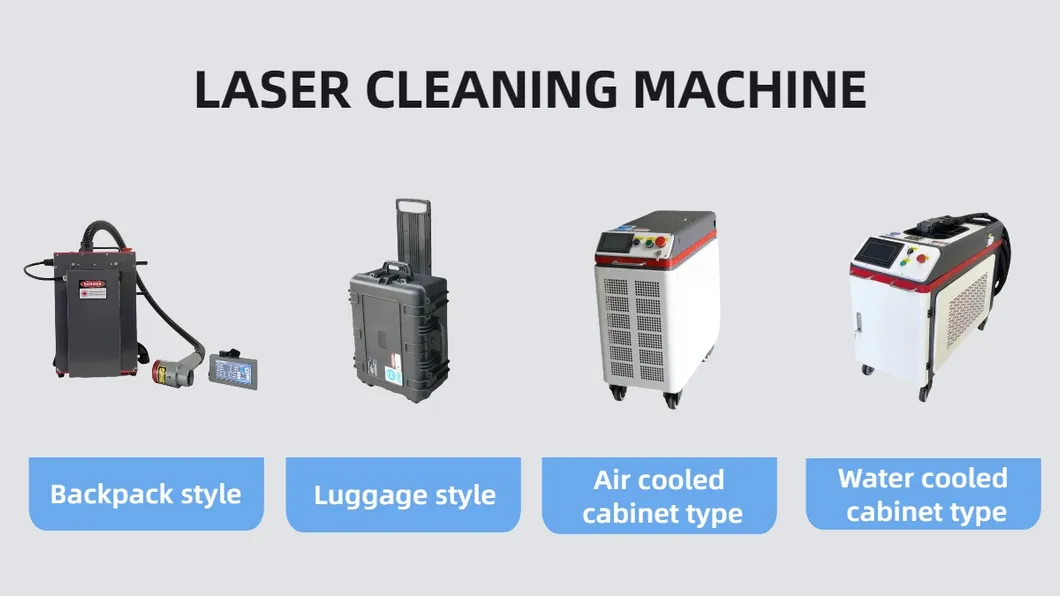

1. Pulsed Laser Cleaning Machine:

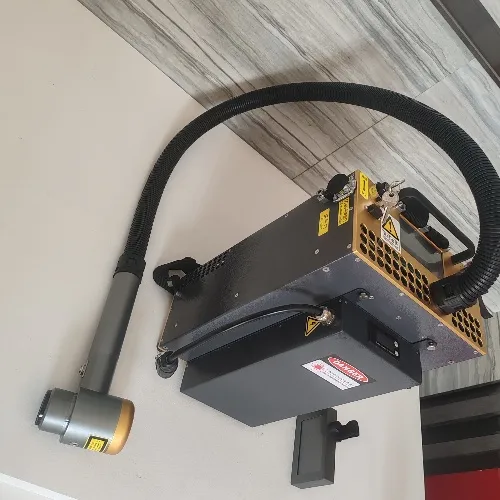

Uses a pulse laser source and galvo cleaning head. Recommended for high-value products where base material integrity must be preserved, as continuous-wave (CW) lasers can damage delicate substrates. Excellent for oil fouling, blotches, and mold cleaning. Available in 50W, 100W, and 200W variants.

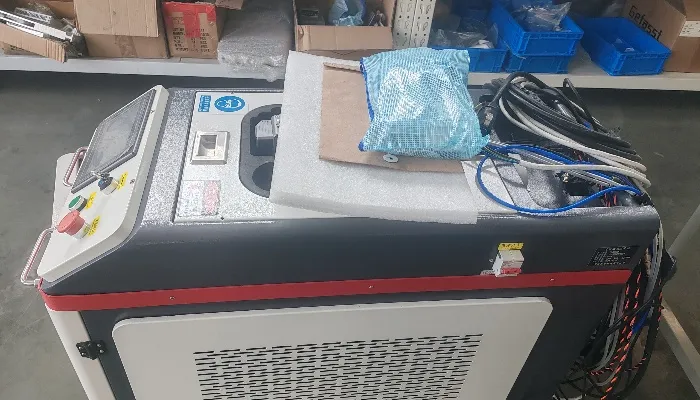

2. CW (Continuous Wave) Fiber Laser Cleaning Machine:
Employs a handheld cleaning head with a continuous laser source. Known for exceptional cost-performance efficiency. Ideal for robust metal cleaning targets like rust or thin paint removal on stainless steel, mild steel, and iron. Available in 1000W, 1500W, and 2000W configurations.

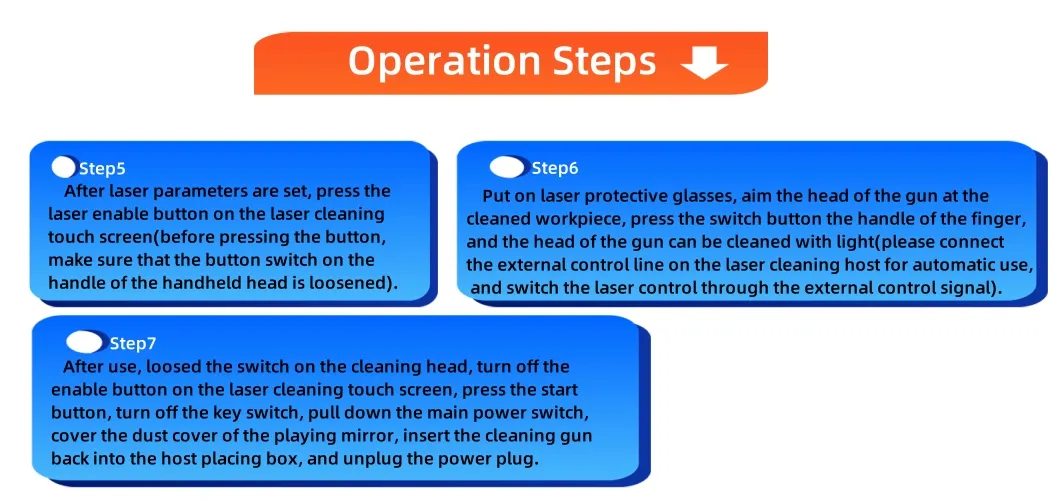

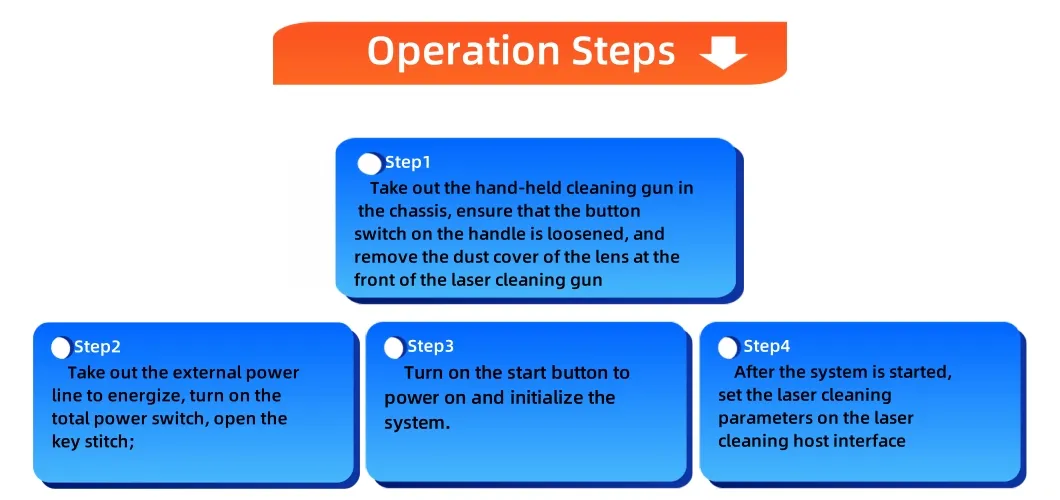

The laser cleaning machine heats the surface material using a continuous or pulsed laser beam, causing surface contaminants to rapidly evaporate or sublimate. Operation is non-contact: simply aim the cleaning head at the target area and press the trigger to remove surface contaminants instantaneously.
| Operating Environment | |
|---|---|
| Content | HZ-200M Parameters |
| Supply Voltage | Single Phase AC220V±10%, 50/60Hz AC |
| Power Consumption | ≤1500W |
| Working Environment Temperature | 5ºC ~ 40ºC |
| Working Environment Humidity | ≤80% |
| Optical Specifications | |
|---|---|
| Average Laser Power | ≥200W |
| Power Instability | <5% |
| Laser Working Mode | Pulse |
| Pulse Width | 2-500ns |
| Maximum Monopulse Energy | 5mJ |
| Power Regulation Range | 0-100% (Gradient Adjustable) |
| Repeat Frequency | 1-4000 kHz (Gradient Adjustable) |
| Fiber Length | 5m |
| Cooling Mode | Air Cooling |
| Cleaning Head Settings | |
|---|---|
| Scan Range (Length * Width) | 0mm~145mm, continuously adjustable; supporting 9 scanning modes |
| Scanning Frequency | Maximum ≥300Hz |
| Field Mirror Focal Length | 210mm (Optional 160mm/254mm/330mm/420mm) |
| Mechanical & Physical Data | |
|---|---|
| Machine Size (L*W*H) | About 629*341*734mm |
| Size After Packing (L*W*H) | About 740*430*890mm |
| Machine Weight | About 52kg |
| Weight After Packing | About 67kg |
| Cleaning Head Weight (excluding optical head) | <0.9kg |
| Mode of Operation | Handheld / Automated |

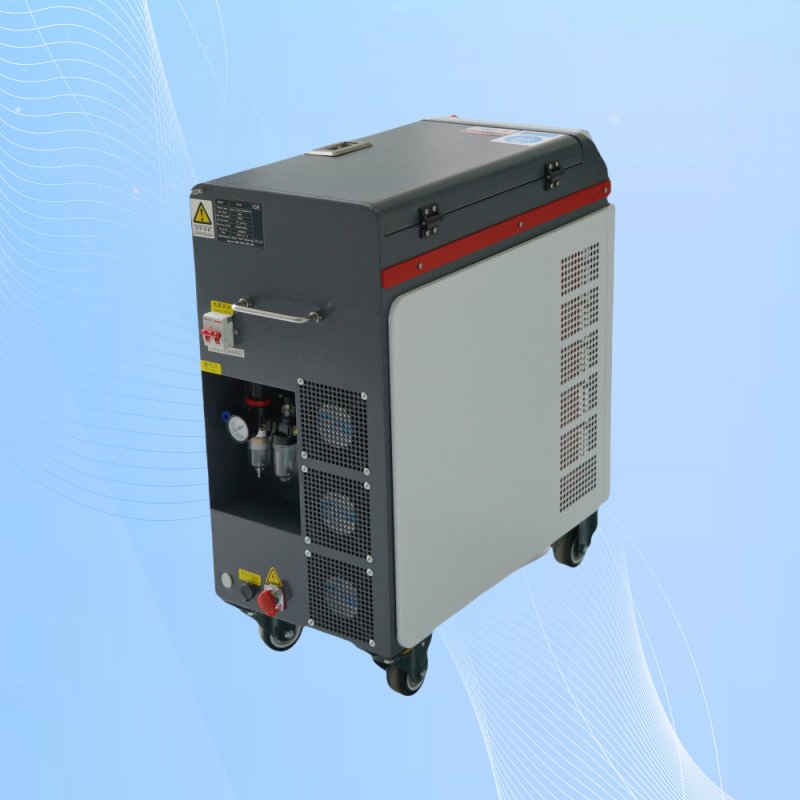

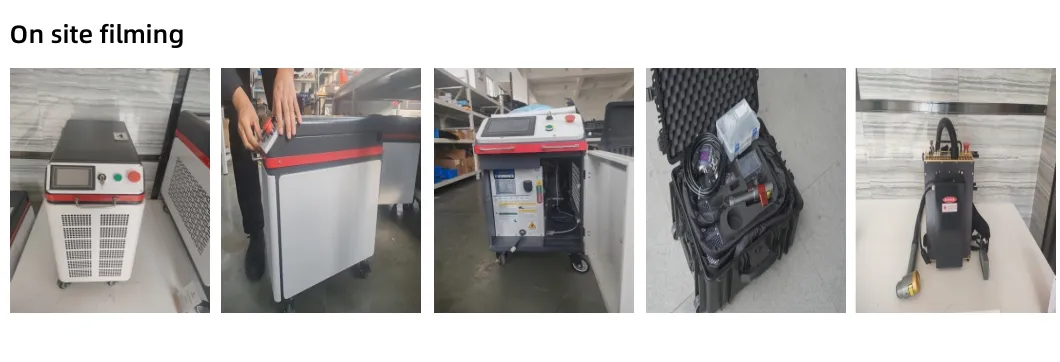

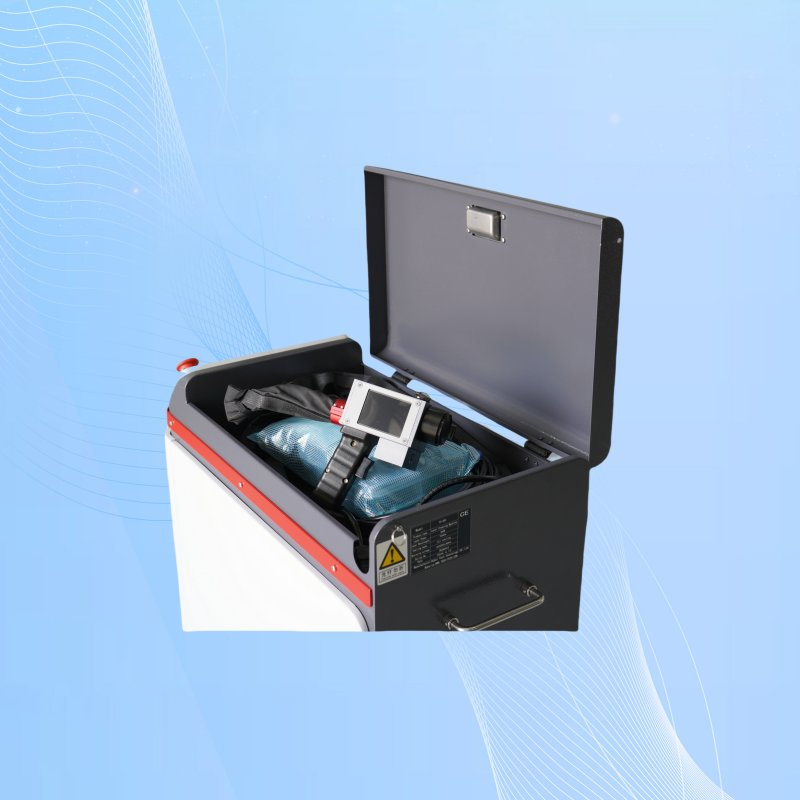

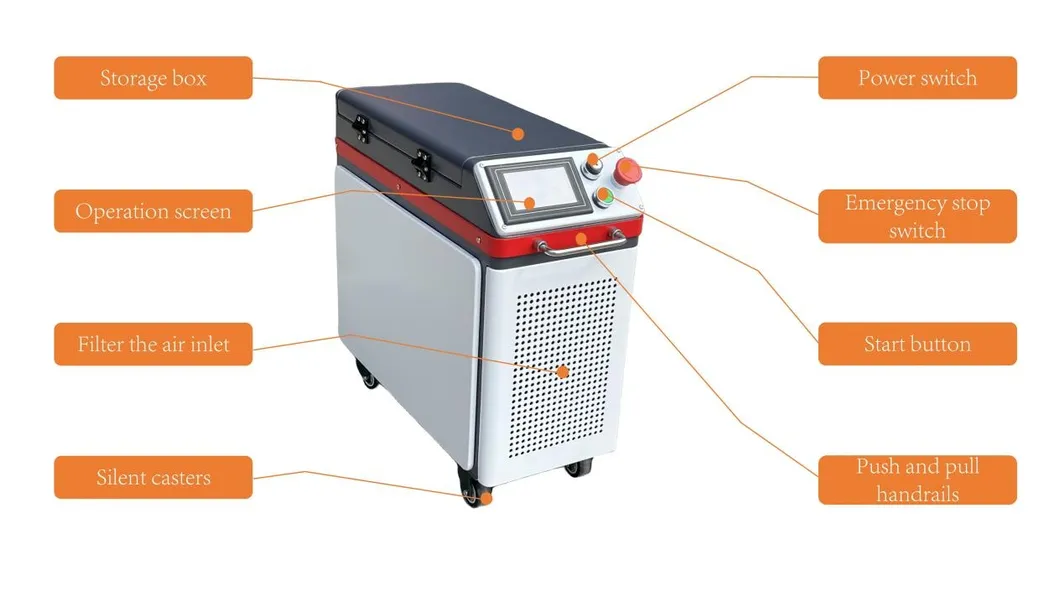

The unified cabinet configuration stores the cleaning head, safety cable, power connections, support tools, and safety eyewear directly within the structural framework. Mobility handles allow quick transit across industrial working floors.
| Part Name | Model Specifications | Units | Quantity | Remarks |
|---|---|---|---|---|
| Laser cleaning mainframe | HZ-200M | Table | 1 | / |
| Laser cleaning head | HZ-QCDXYP200 | Sets | 1 | / |
| Process database | Built-in | Sets | 1 | / |
| Laser Protective glasses | SD-3 | Payment | 1 | / |
| Protect the lens | 48*3 | Pcs | 5 | / |
| Lens cleaning kit | Chassis | Pcs | 10 | / |

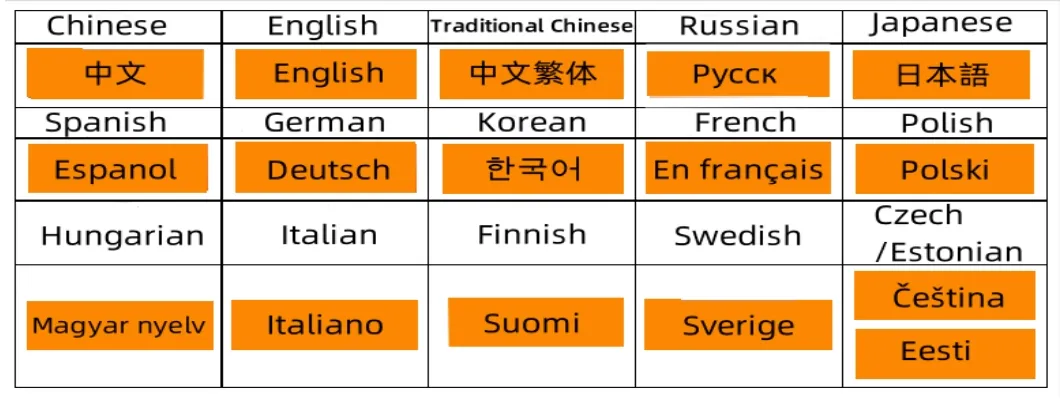

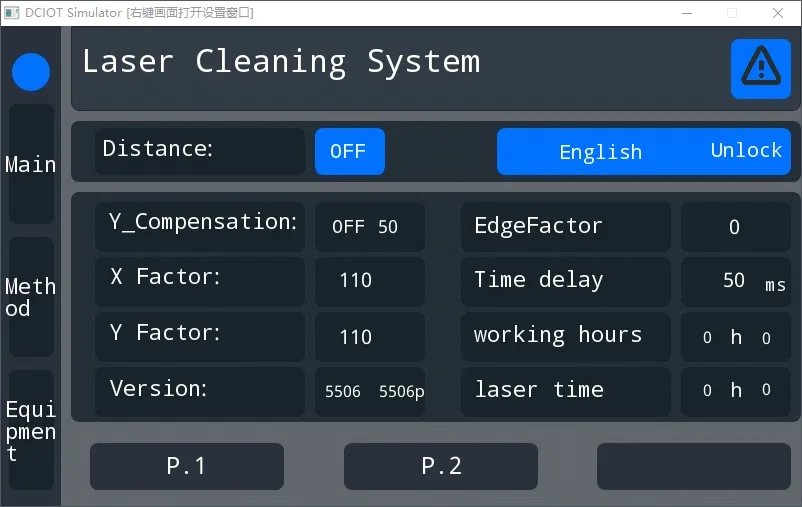

The control system interface supports 16 dynamic language systems including English, Chinese, Russian, Spanish, French, and others, facilitating seamless global application.
| Item | Traditional Cleaning | New Generation | |
|---|---|---|---|
| Dry Ice Cleaning | Mechanical Polishing | Laser Cleaning Machine | |
| Workpiece Damage | Damaged | Damaged | No Damage |
| Side Effect | No Pollution | Polluted | No Pollution |
| Operation | Simple | High-intensity work | Simple |
| Contact Mode | No contact | Touch and grind | Non-contact |
| Cleaning Size Accuracy | No limit | No limit | Accurate selective cleaning |
| Consumables | Dry Ice | Sandpaper, grinding wheels, oil stones | Only electric power |
| Efficiency | Slow | Generally | Fast (improved by 6 times) |
| Operating Cost | Initial: Middle | Initial: Low | Initial: High |
| Later: High | Later: High | Later: Low | |

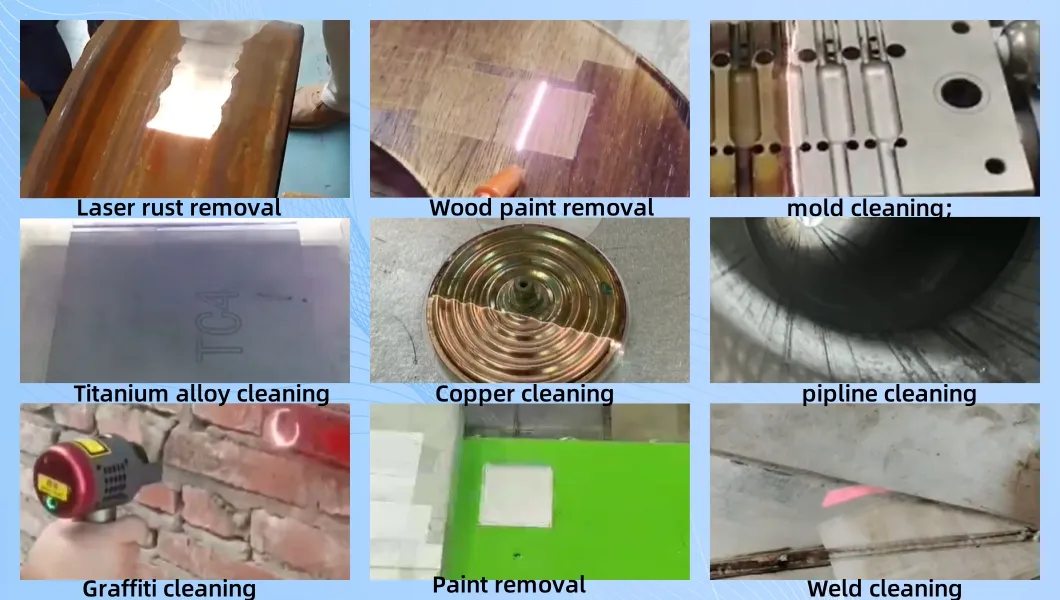

This equipment is widely utilized in structural maintenance, machine repair shops, advertisement manufacturing, building materials processing, automotive components, shipbuilding, rubber mold production, high-end machine tool manufacturing, track assembly, and environmental protection lines.
Flexible operations allow selective targeting. The pollutant area will be cleaned effectively regardless of workpiece dimensions or geometrical form.
