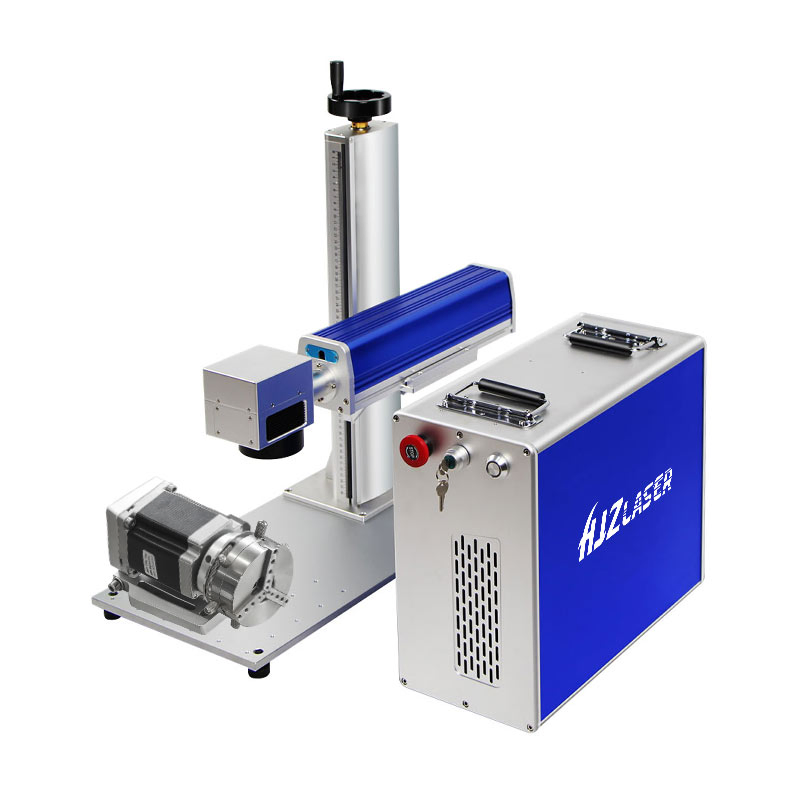

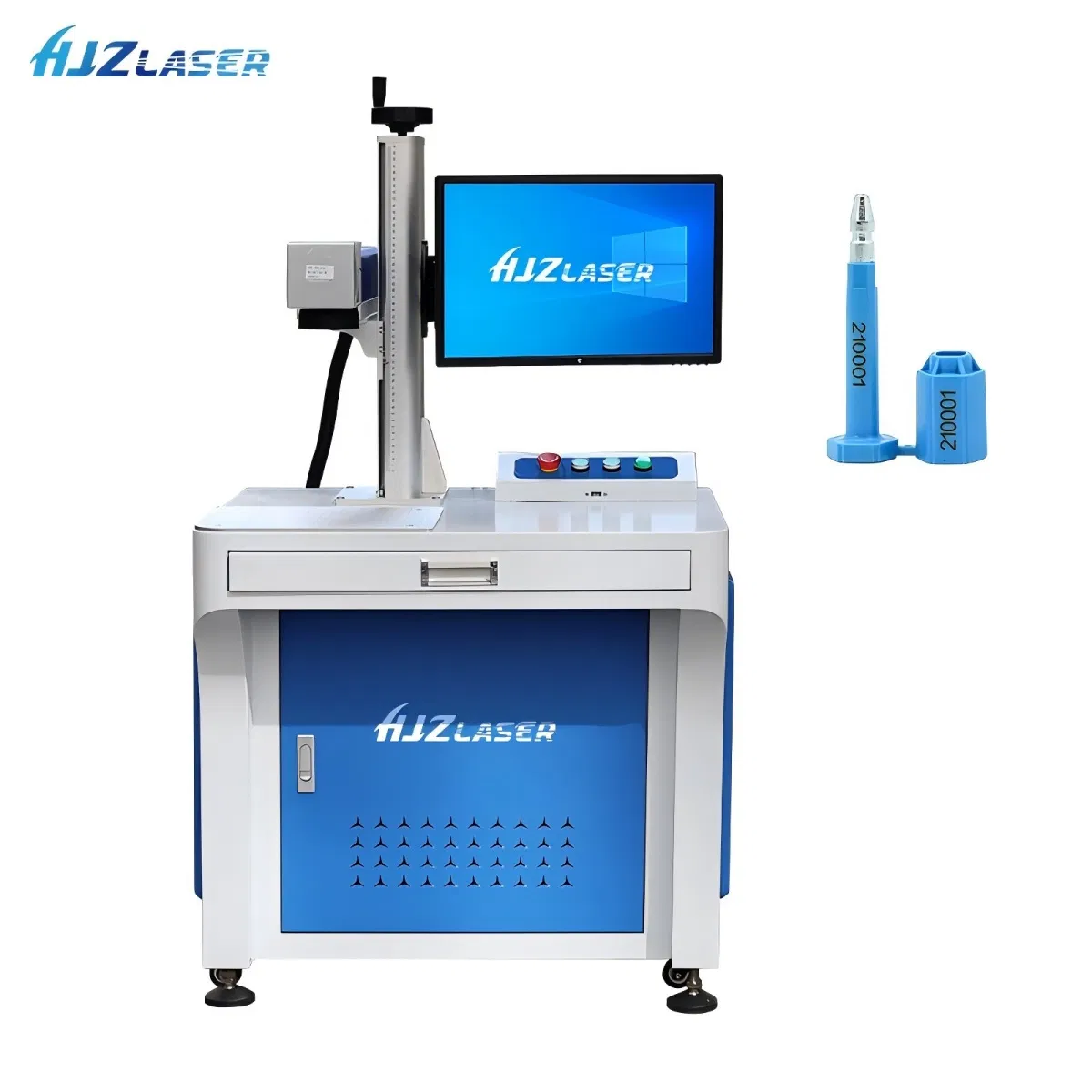

30W 50W 60W 100W 3D 2.5D Portable Mini CNC Metal Plastic Fiber 3W 5W 10W UV CO2 Mopa Fiber Laser Marking Printing Deep Jewelry Engraving Machine
30W 50W 60W 100W 3D 2.5D Portable Mini CNC Metal Plastic Fiber 3W 5W 10W UV CO2 Mopa Fiber Laser Marking Printing Deep Jewelry Engraving Machine
30W 50W 60W 100W 3D 2.5D Portable Mini CNC Metal Plastic Fiber 3W 5W 10W UV CO2 Mopa Fiber Laser Marking Printing Deep Jewelry Engraving Machine
30W 50W 60W 100W 3D 2.5D Portable Mini CNC Metal Plastic Fiber 3W 5W 10W UV CO2 Mopa Fiber Laser Marking Printing Deep Jewelry Engraving Machine
30W 50W 60W 100W 3D 2.5D Portable Mini CNC Metal Plastic Fiber 3W 5W 10W UV CO2 Mopa Fiber Laser Marking Printing Deep Jewelry Engraving Machine
1 / 5
30W 50W 60W 100W 3D 2.5D Portable Mini CNC Metal Plastic Fiber 3W 5W 10W UV CO2 Mopa Fiber Laser Marking Printing Deep Jewelry Engraving Machine
30W 50W 60W 100W 3D 2.5D Portable Mini CNC Metal Plastic Fiber 3W 5W 10W UV CO2 Mopa Fiber Laser Marking Printing Deep Jewelry Engraving Machine
30W 50W 60W 100W 3D 2.5D Portable Mini CNC Metal Plastic Fiber 3W 5W 10W UV CO2 Mopa Fiber Laser Marking Printing Deep Jewelry Engraving Machine
30W 50W 60W 100W 3D 2.5D Portable Mini CNC Metal Plastic Fiber 3W 5W 10W UV CO2 Mopa Fiber Laser Marking Printing Deep Jewelry Engraving Machine
30W 50W 60W 100W 3D 2.5D Portable Mini CNC Metal Plastic Fiber 3W 5W 10W UV CO2 Mopa Fiber Laser Marking Printing Deep Jewelry Engraving Machine

30W 50W 60W 100W 3D 2.5D Portable Mini CNC Metal Plastic Fiber 3W 5W 10W UV CO2 Mopa Fiber Laser Marking Printing Deep Jewelry Engraving Machine

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

ℹ Basic Info.
Model NO.
DB-01
Laser Visibility
Invisible
Applicable Material
Metal
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Fiber Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Laser Output Power
20W, 30W, 50W
Engraving Speed
9000mm/S
Operating Voltage
110-240V
Graphic Format Supported
Ai, BMP, Dst, Dwg, Dxf, Dxp
Marking Area
110*110mm, 175*175mm, 220*220mm, 300*300mm
Certification
CE, SGS
Condition
New
Application Material
0.1-2mm
Process Material
Metal and Some Non-Metal
Delivery Time
1-3days
Laser Source
Raycus, Max, Ipg, Jpt
Lifespan
Over 20,000hours
Control Software
Ezcad Software
Name
30W Metal Engraving Machine
Transport Package
Standard Plywood Packing for Export
Specification
650*300*500mm
HS Code
84561000
Production Capacity
500 Sets/Month
📦 Packaging & Delivery
Package Size
75.00cm * 45.00cm * 50.00cm
Package Gross Weight
45.000kg
Lead Time
3 days (1 - 1 Pieces)
To be negotiated ( > 1 Pieces)
📝 Product Description
Fiber/CO2/UV Laser Marking Machine 3D Printing/Laser Marker/Engraving Equipment/Logo Printing Machine Laser Etching Coding Machine for Metal/Plastic/Wood
Laser Marking Machine Showcase

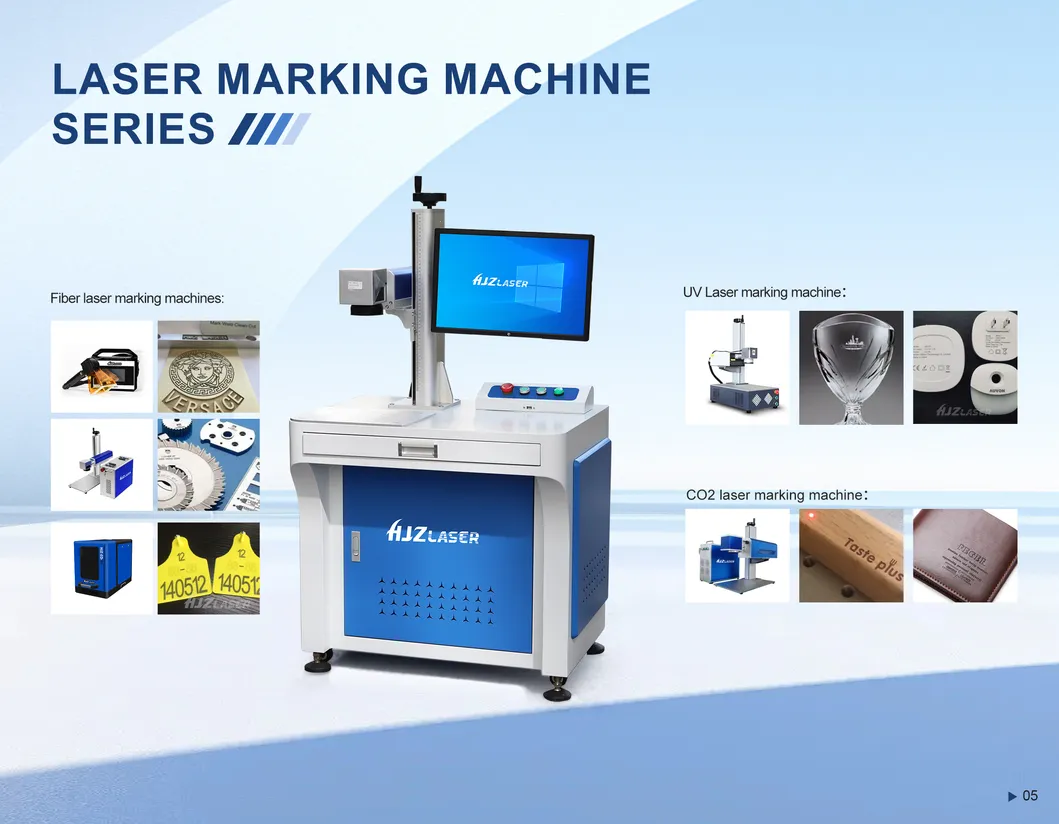

Laser Marker Details

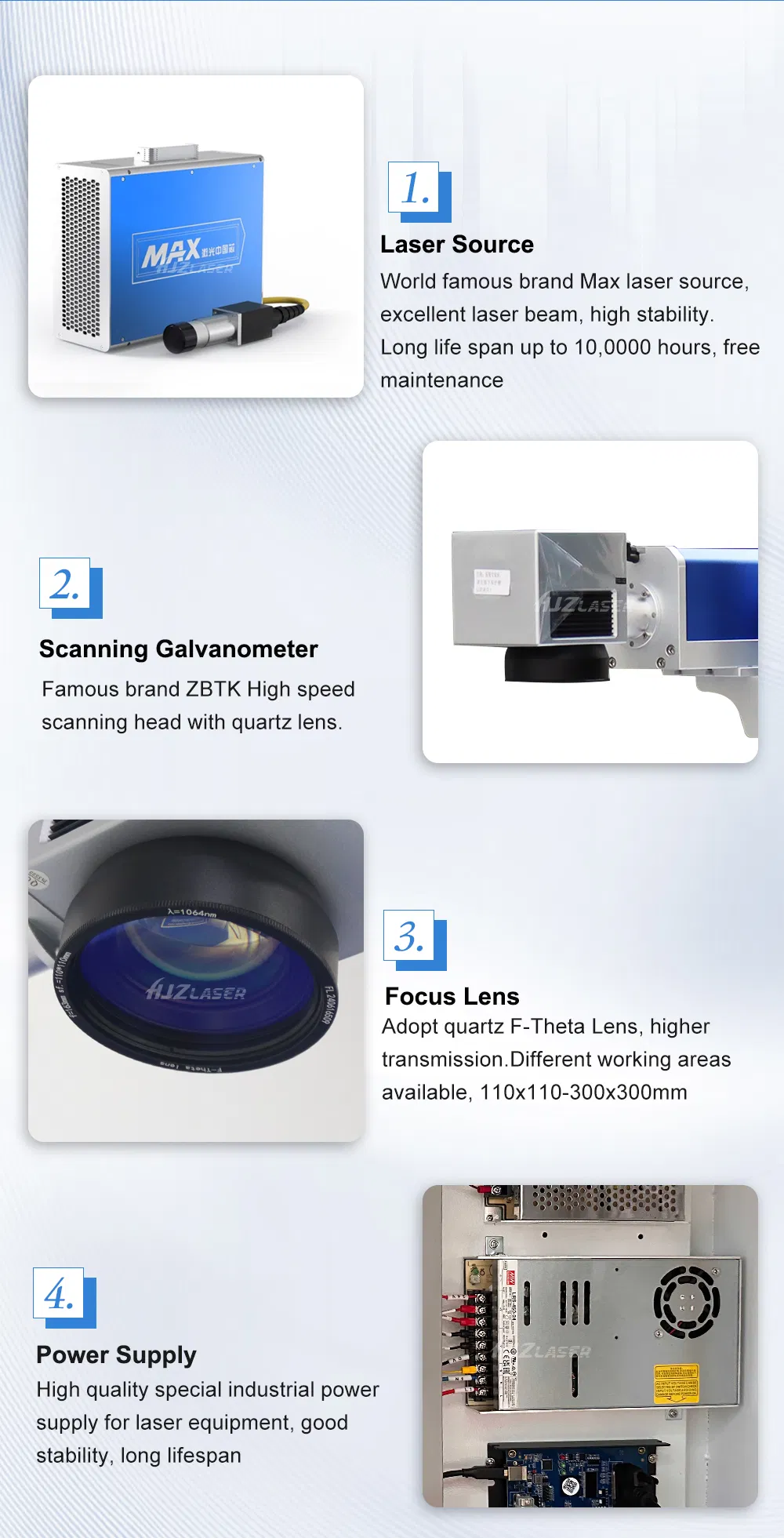

Fiber Laser Marking Machine - Main Features:

  • Laser Source: Raycus / JPT / IPG / MAX brand.
  • Control Card: Original EZCAD 2.14.9 / EZCAD 3 version.
  • Laser Power: 20w 30w 50w 60w 70w 100w.
  • Marking Area: 110*110mm / 150*150mm/ 175*175mm/200*200mm/300*300mm.
  • Galvo Head: Sino-galvo JD2206 / 3D Feeltek / 3D JCZ.
  • Column Stand: Manual / Electric , 50cm / 68cm / 80cm.
  • Optional Rotary Fixture: 50mm, 69mm, 80mm, 100mm, 120mm, 160mm, 200mm etc.
  • Cyclops Camera optional: Camera can automatic recognize the marking position.

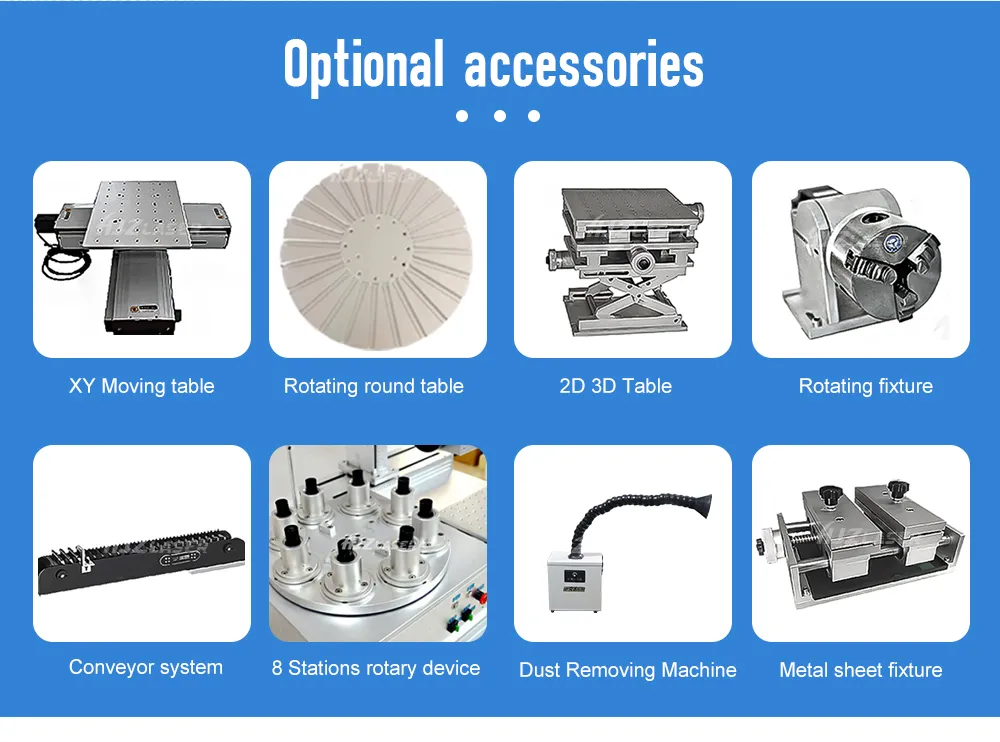

  • More optional Parts: Conveyor table / Vacuum system / Electric XY table.

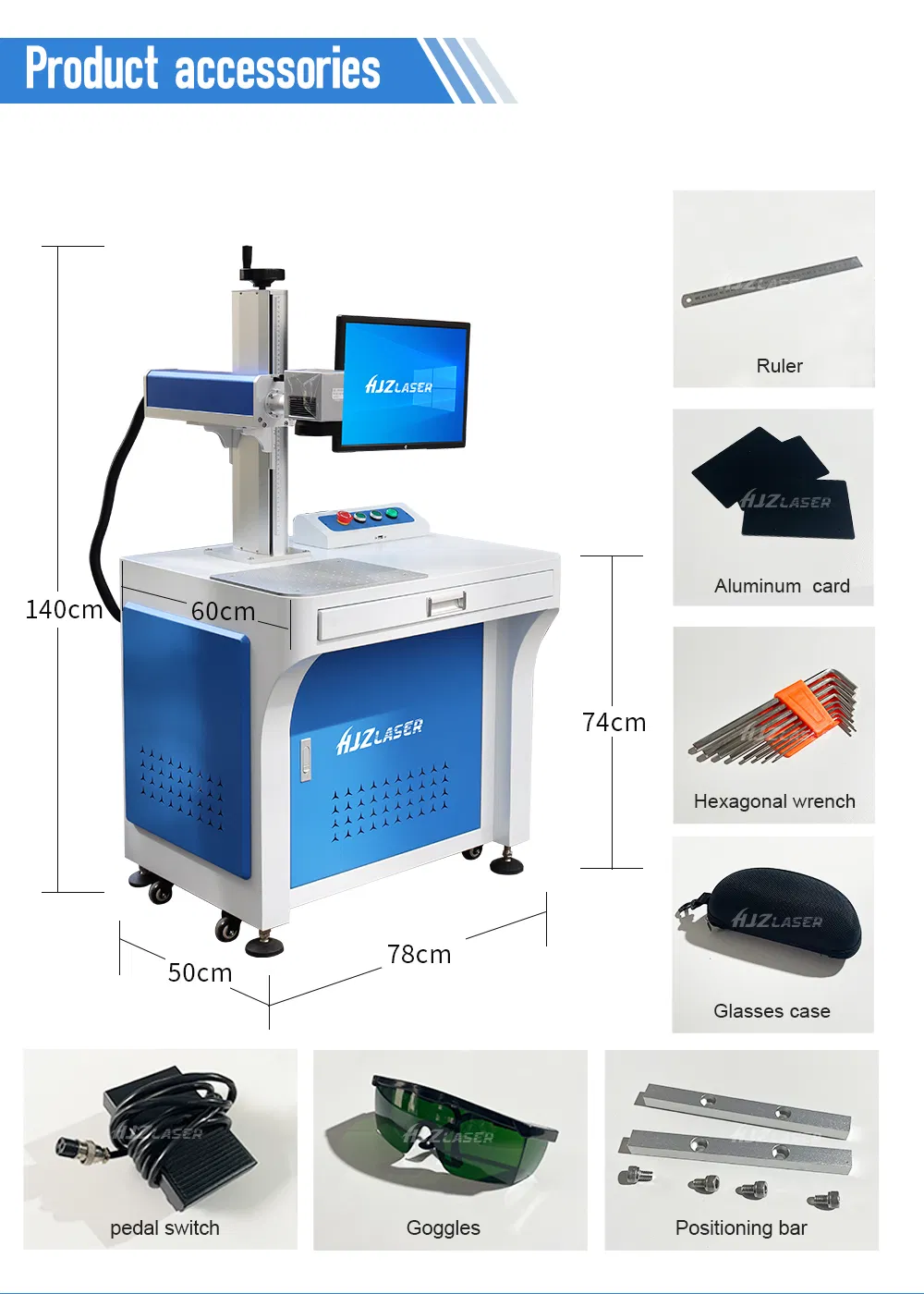

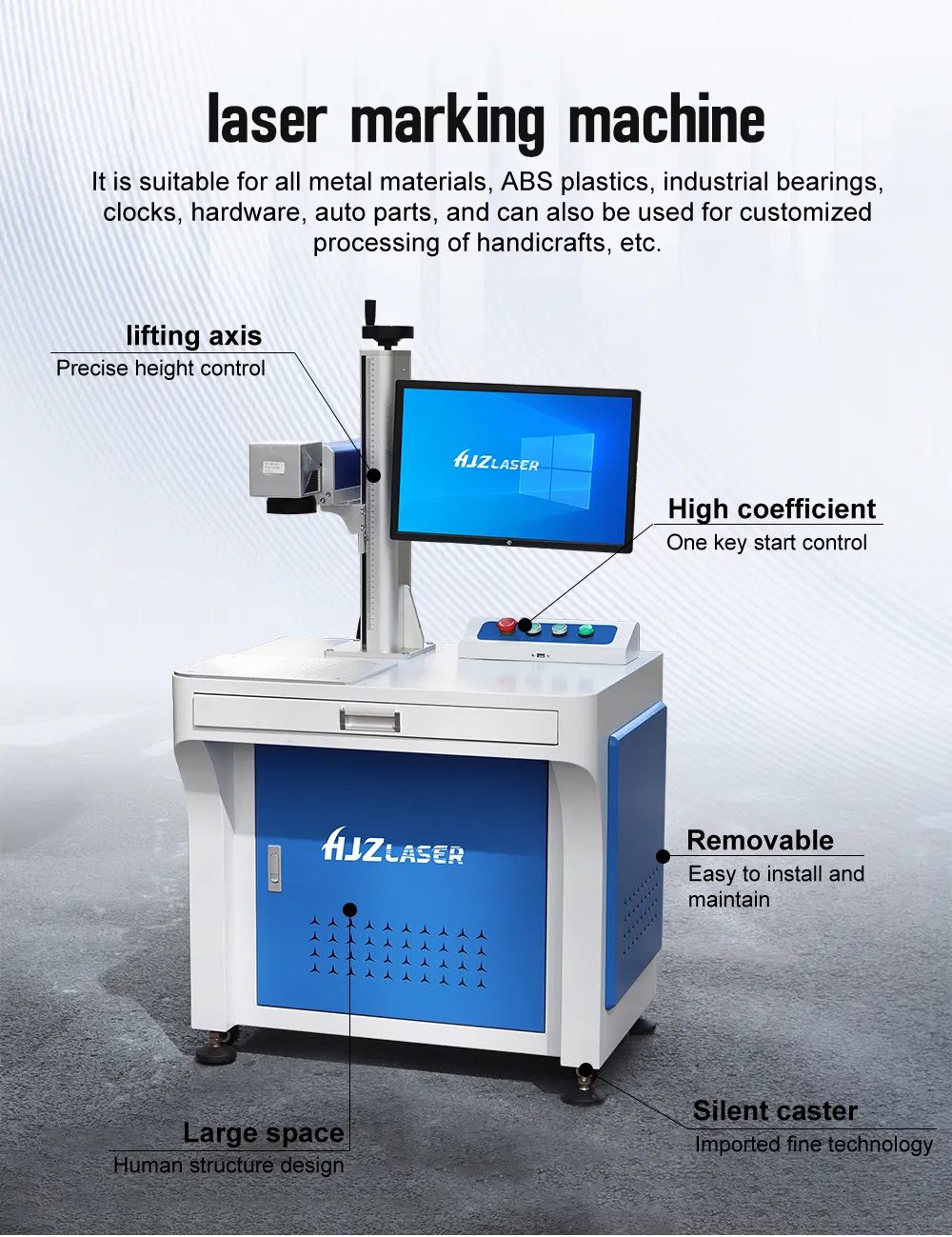

Laser Marking Machine Structure

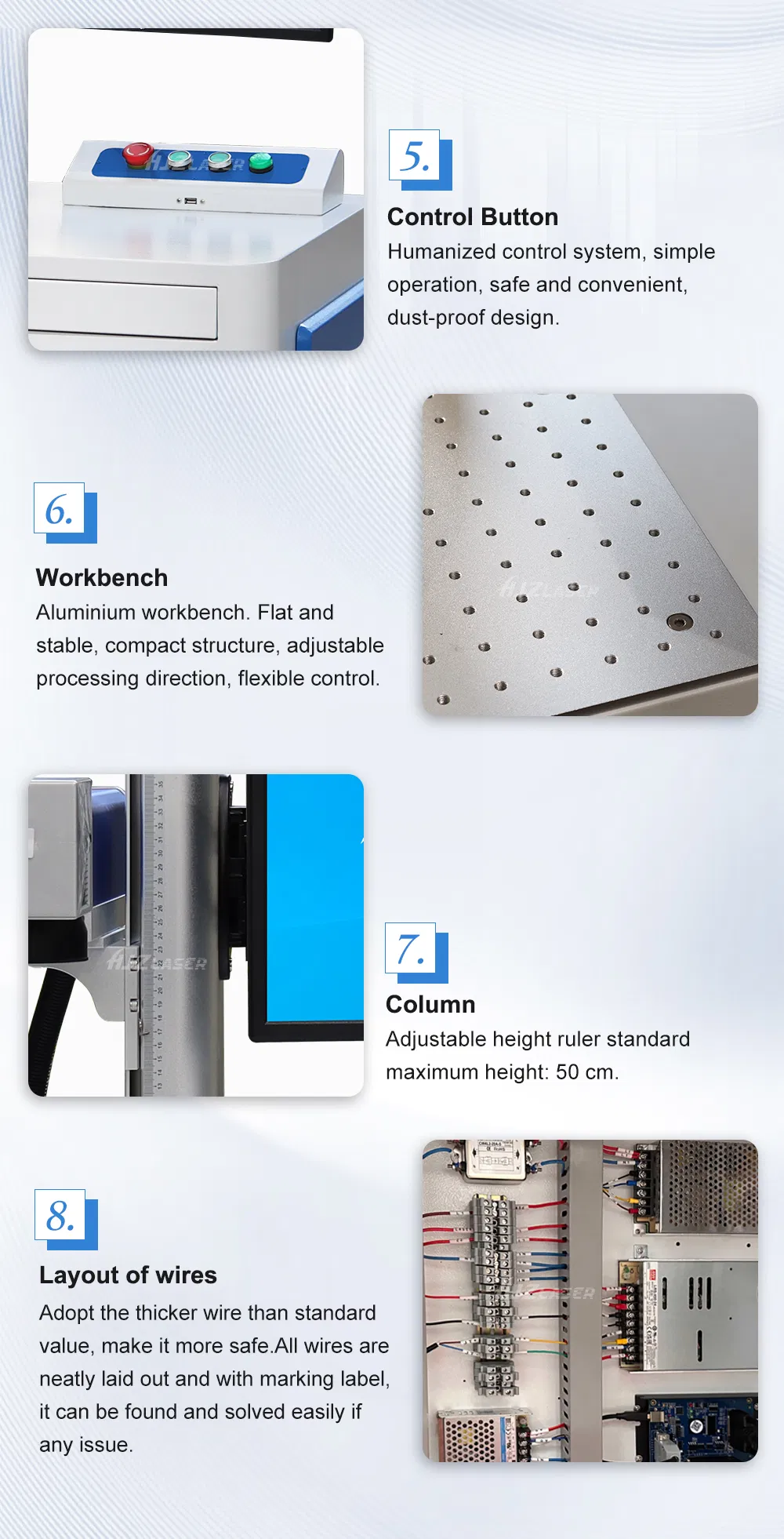

Laser Engraving Details
Laser Coding Machine

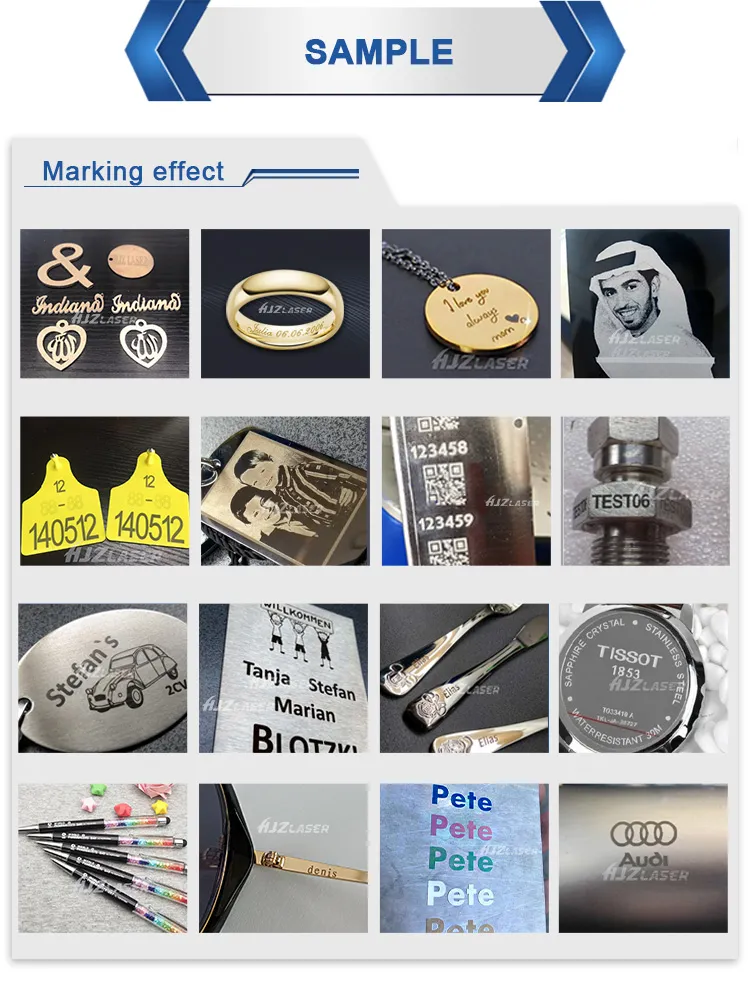

Marking Samples Metal
Marking Samples Plastic
Marking Samples Colors
Precision Engraving
Industrial Laser Marker
Laser Etching Machine
⚙ Technical Data

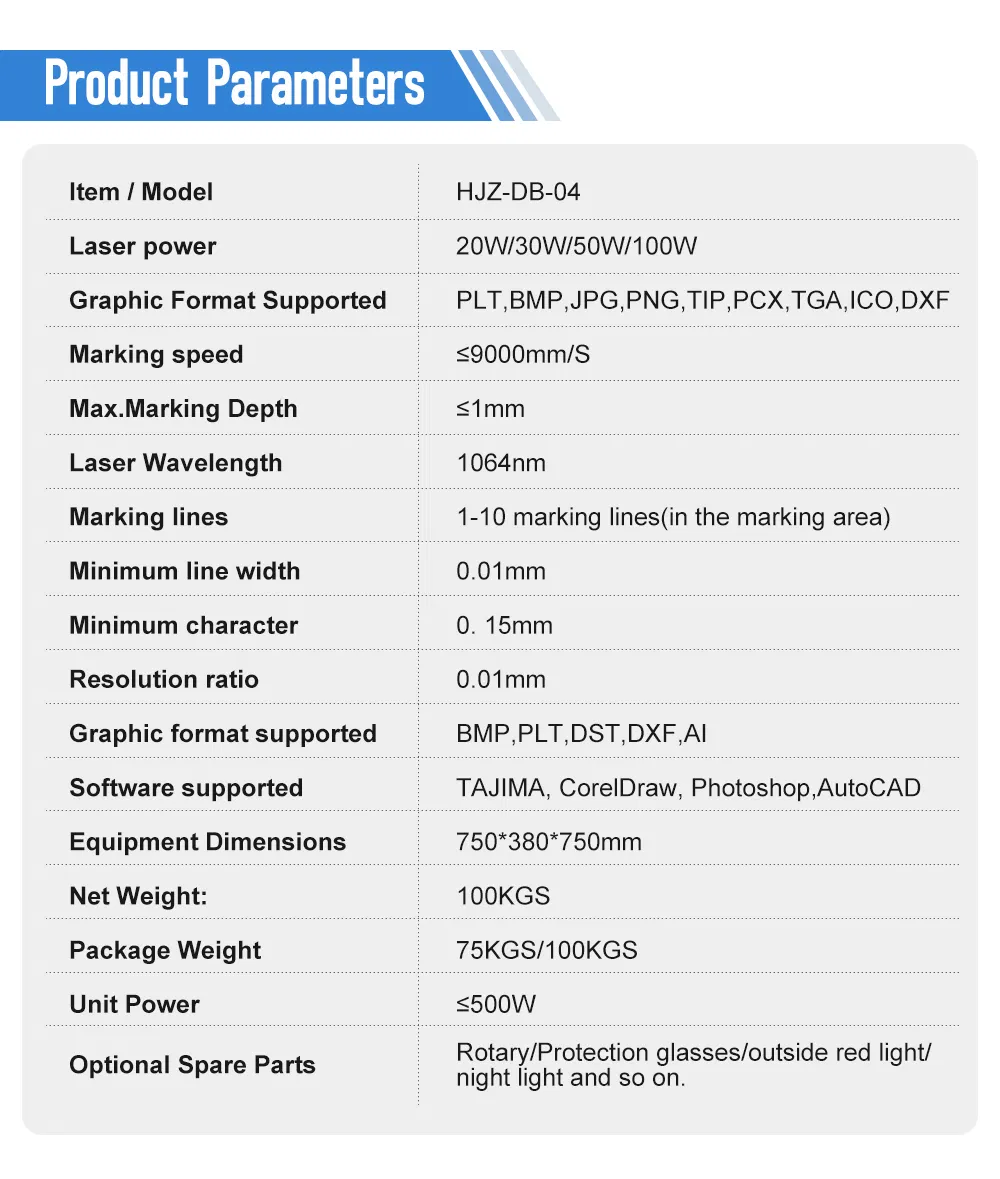

Technical Parameter
Item / Model DB-04 (20/30/50/60/70/100W)
Laser source Raycus (IPG/MAX/JPT Mopa color marking optional)
Laser power 20w, 30w, 50w, 60w, 70w, 100w
Laser type Fiber laser
Graphic Format Supported PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
Marking speed ≤9000mm/S
Max. Marking Depth ≤0.4mm
Laser Wavelength 1064nm
Marking lines 1-10 marking lines (in the marking area)
Minimum line width 0.01mm
Minimum character 0.15mm
Resolution ratio 0.01mm
Graphic format supported BMP, PLT, DST, DXF, AI
Software supported CorelDraw, Photoshop, AutoCAD
Equipment Dimensions 420*320*800mm
Net Weight 45 KGS / 55KGS (model dependent)
Unit Power ≤500W
Optional Spare Parts Rotary/Protection glasses/outside red light/night light etc.
Production Process
Quality Control

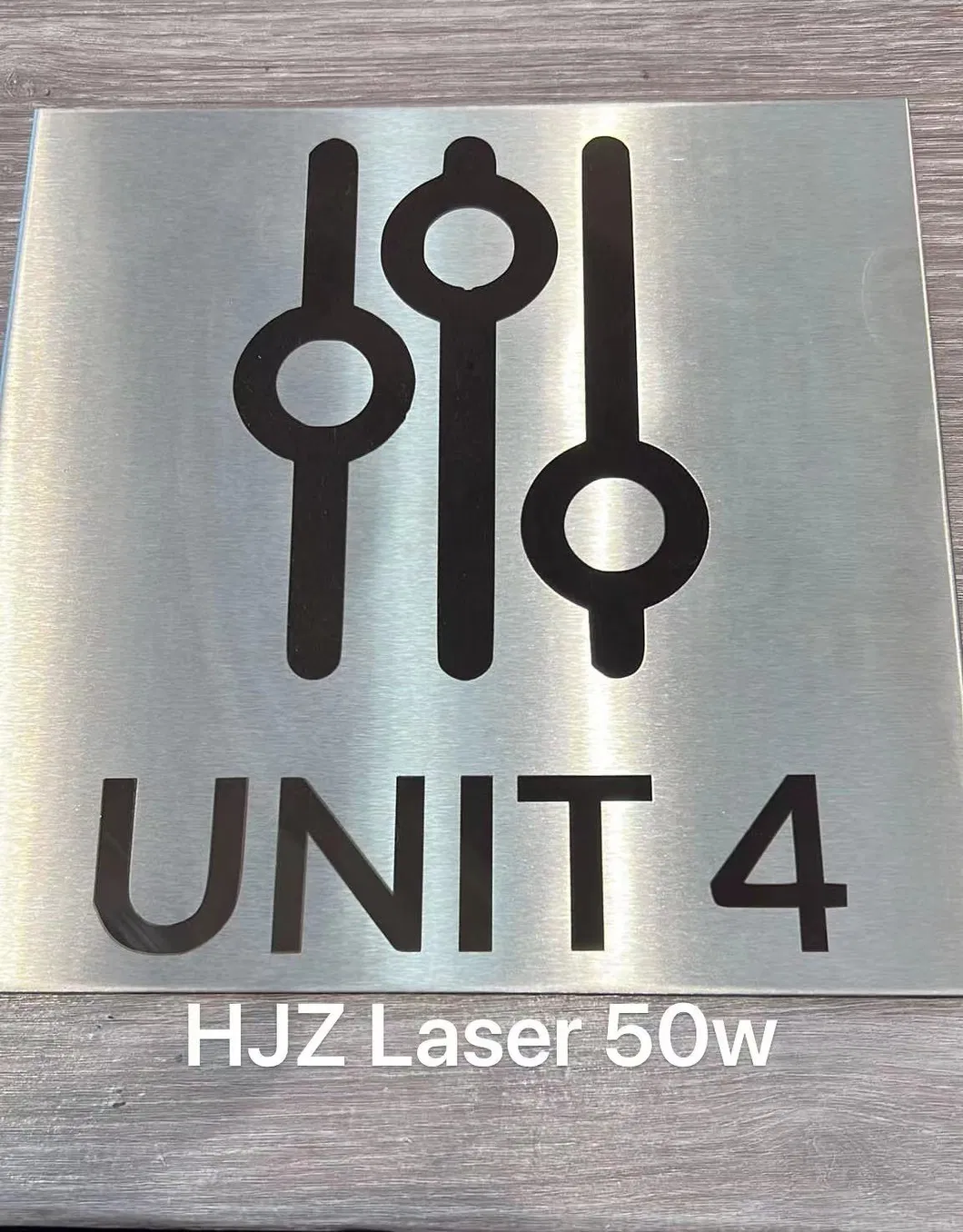

Laser Testing
Certificates
Export History

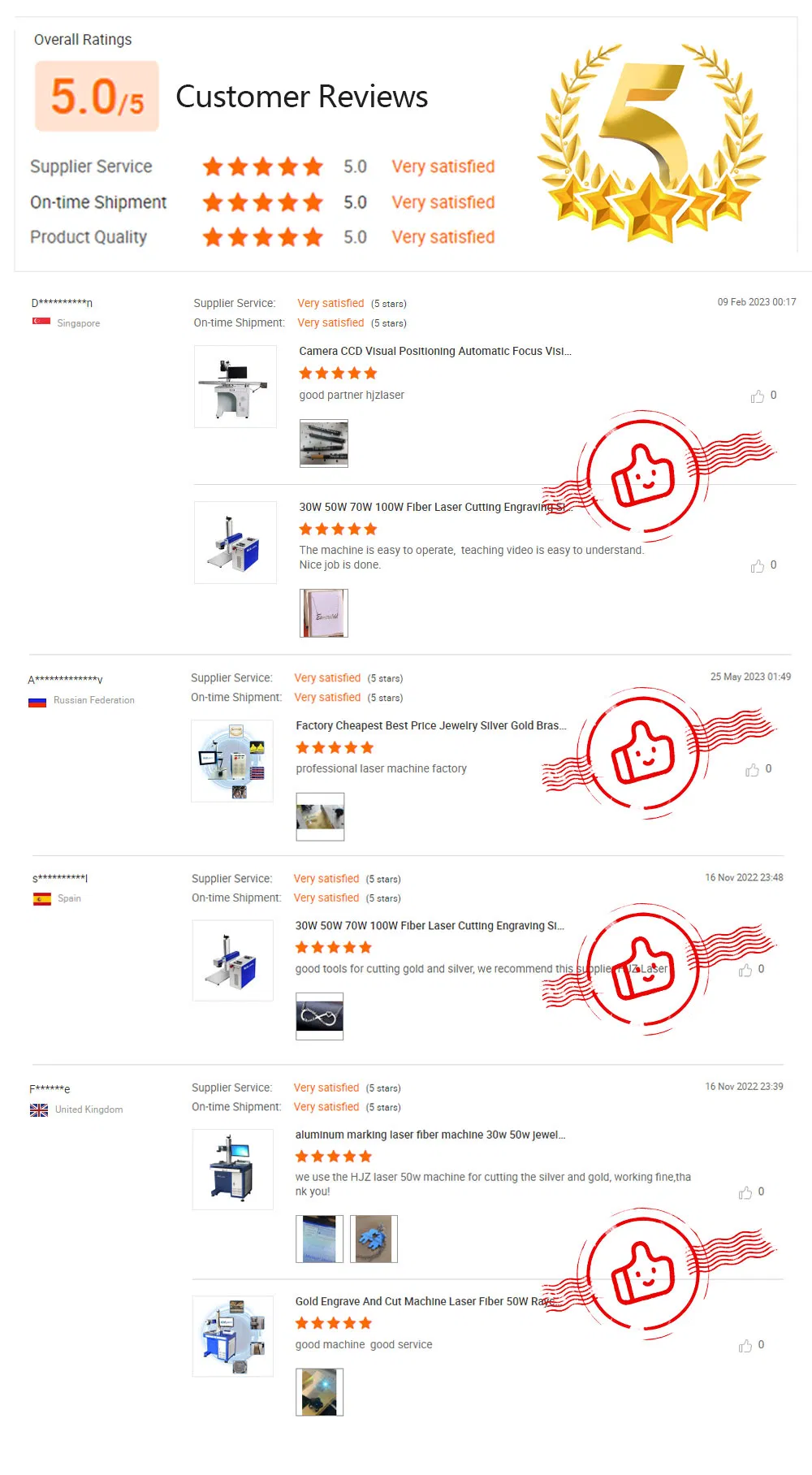

Trading Rates
Packing And Shipments
Plywood Packing
Safe Delivery
Shipment Loading
❓ Frequently Asked Questions
What materials can this fiber laser marking machine engrave?
This fiber laser marking machine is primarily designed for metal materials (including stainless steel, carbon steel, aluminum, brass, copper, titanium, etc.) and some non-metal materials like high-density plastics, rubber, and coated materials.
What is the lifespan of the laser source?
The fiber laser source (Raycus, Max, IPG, JPT) features an exceptional lifespan of over 20,000 hours (and up to 100,000 hours depending on operating conditions and maintenance), requiring virtually no daily maintenance.
What control software does the machine use?
The machine uses the industry-standard Ezcad software, which is highly stable and user-friendly. It is fully compatible with professional design software such as CorelDraw, Photoshop, and AutoCAD, and supports formats like PLT, DXF, BMP, JPG, and AI.
How fast can this machine mark, and what is the precision?
The machine offers high-speed scanning marking up to 9000mm/s. It features extreme precision with a minimum line width of 0.01mm and a minimum character size of 0.15mm, ensuring clean and highly detailed results.
Is the machine easy to operate for beginners?
Yes, the machine is very straightforward to operate. We provide the standard Ezcad software which is intuitive. Most users can master the basic operations within a few hours of reviewing the user manual and setup guidelines.
What are the packaging and shipping standards?
The machine is packed in a standard export plywood case to ensure maximum protection during transit. The standard lead time is 1-3 days for standard configurations, and we support various shipping methods to meet your schedule.
