Basic Info & Packaging
Model Specifications

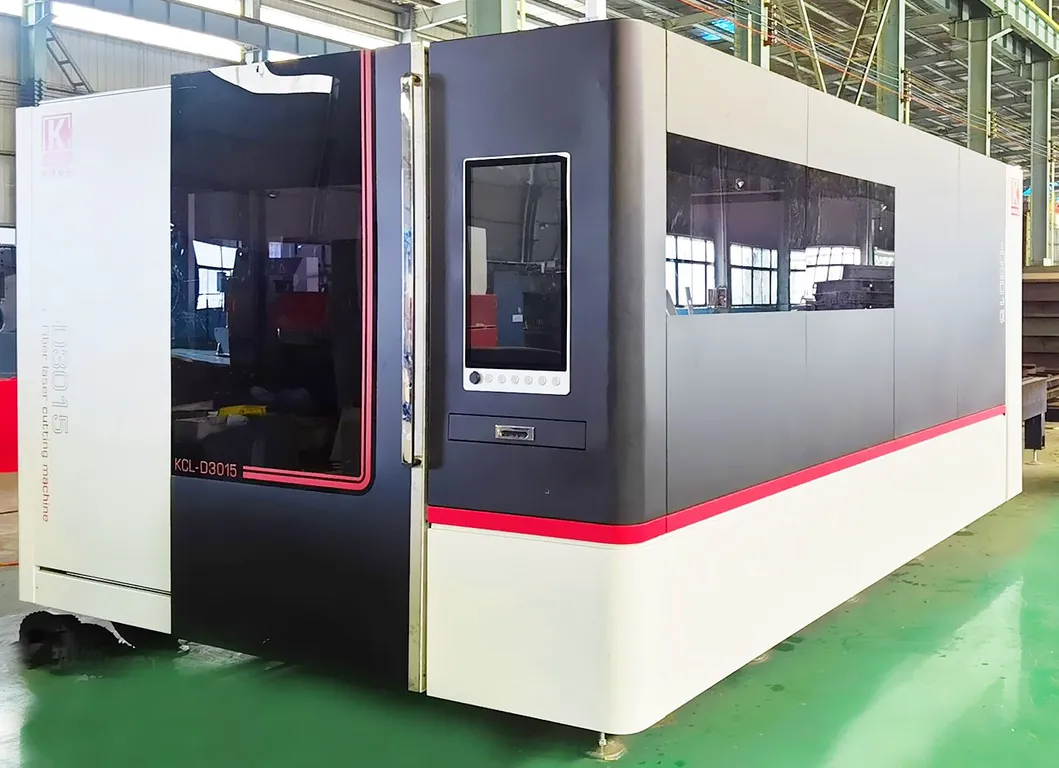

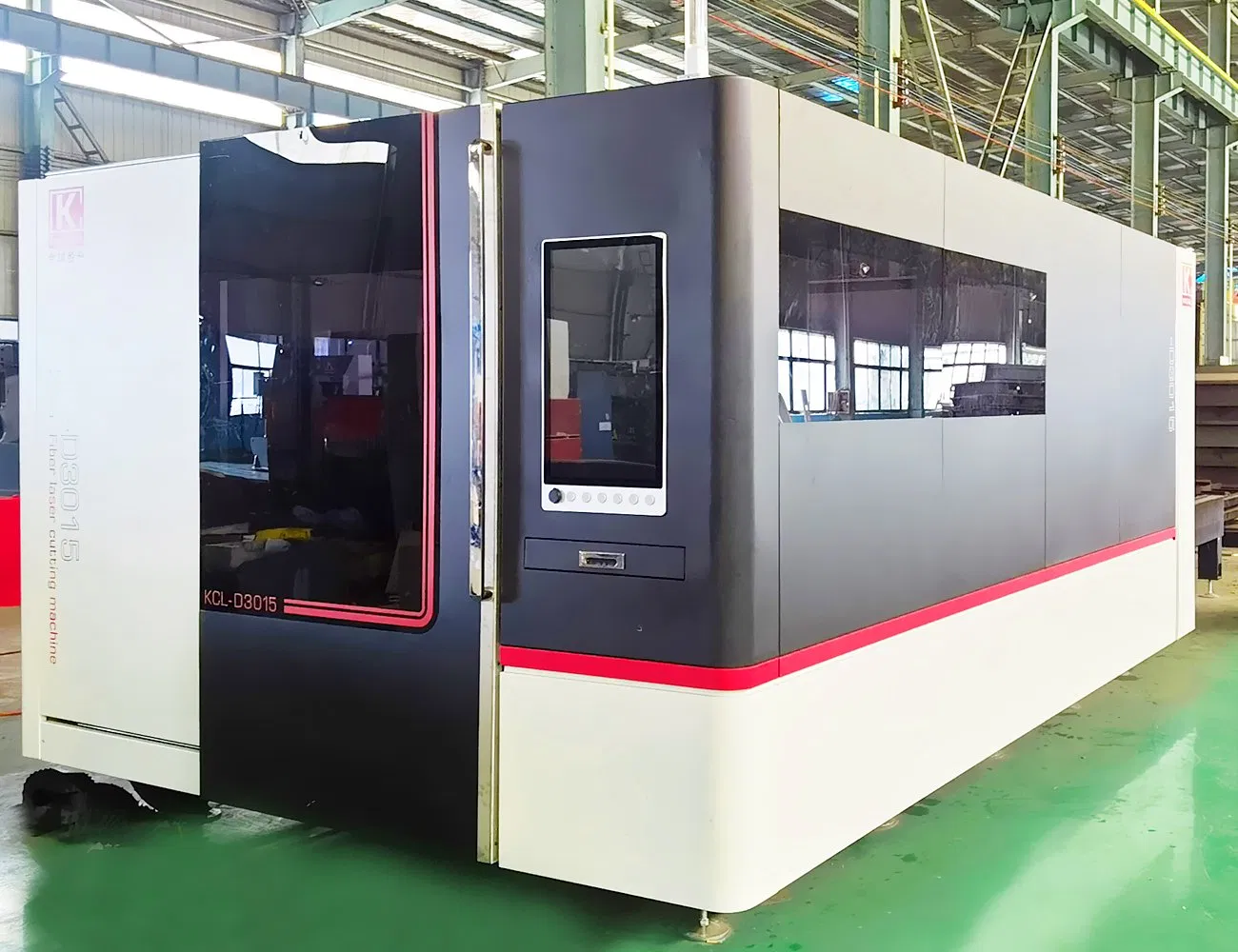

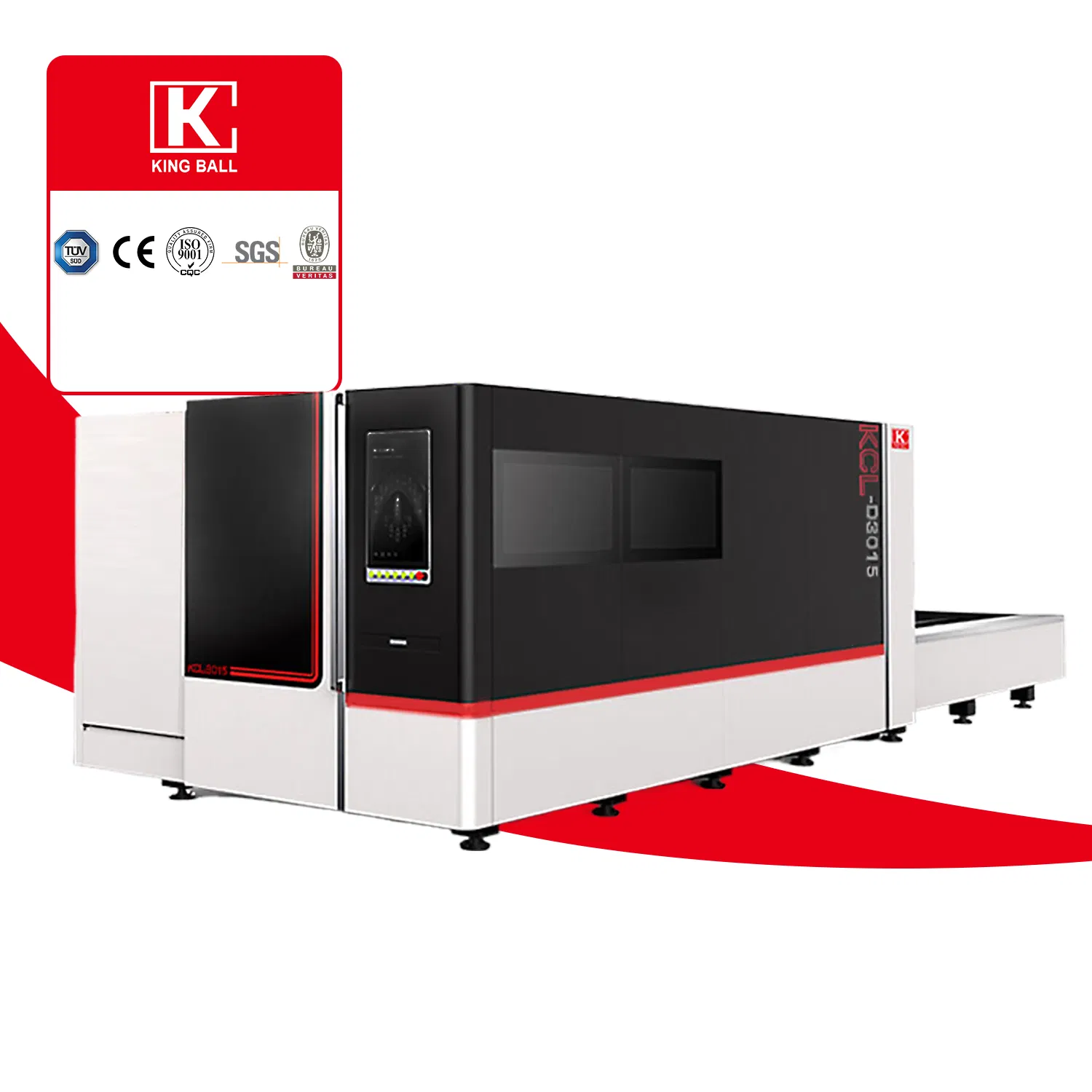

Model NO.
KCL-D3015
Application
Food Machinery, Automotive Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Desktop
Laser Classification
Solid Laser
Performance & Control
Laser Technology
Laser Fusion Cutting
Laser Power
500W / 1000W / 2000W / 3000W
Control System
Cypcut System
Motor
Japan Yaskawa Servo Motor
Max Cutting Speed
15-45mm/S (1mm Stainless Steel)
Tube Diameter
20mm-220mm Diameter
Production Capacity
100 P/M
Shipping & Standards
Transport Package
Packaged by Plywood
Specification
KCL-D
Origin
China
HS Code
8456110090
Package Size
480.00cm * 220.00cm * 240.00cm
Package Gross Weight
12.000kg

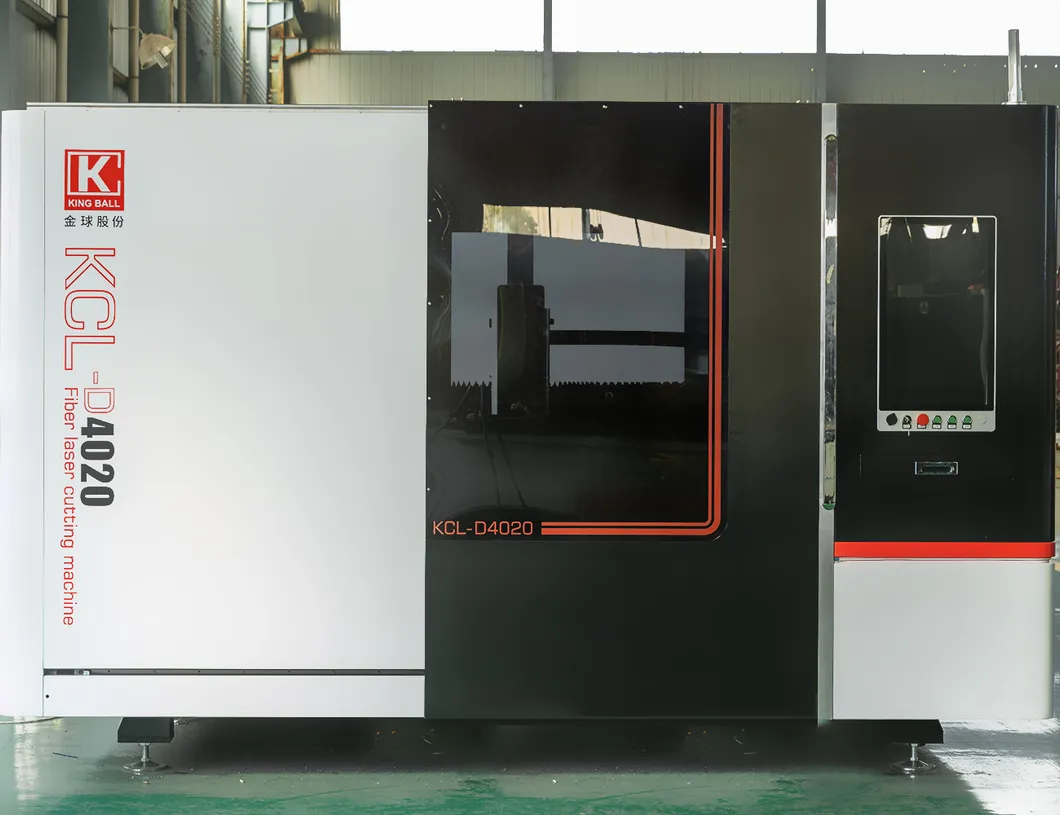

Product Description
Details Images
Model & Specifications Matrix
| Model |
KCL-D3015 |

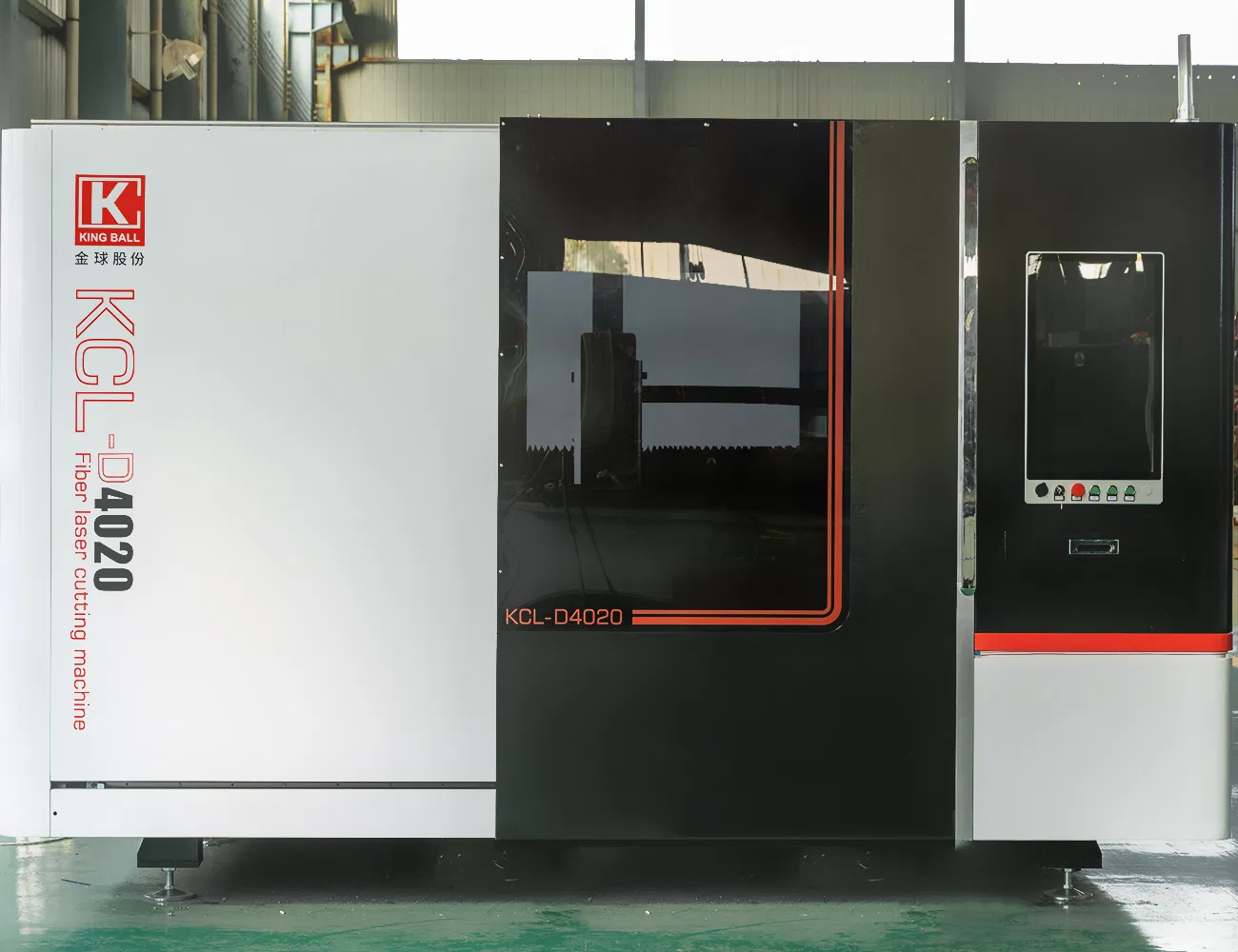

KCL-D4015 |
KCL-D4020 |
KCL-D6020 |
KCL-D6025 |
KCL-D8025 |
KCL-D10025 |
KCL-D12025 |
| Cutting Range (mm) |
3000*1500 |
4000*1500 |
4000*2000 |
6000*2000 |
6000*2500 |
8000*2500 |
10000*2500 |
12000*2500 |
| Laser Power (w) |
1000W & 1500W & 2000W & 3000W & 6000W & 8000W & 12000W |
| Maximum idle speed |
160 m/min |
| Maximum cutting speed |
35-80 m/min |
| Positioning Accuracy |
0.03 mm |
| Reposition Accuracy |
0.02 mm |
Core Technology

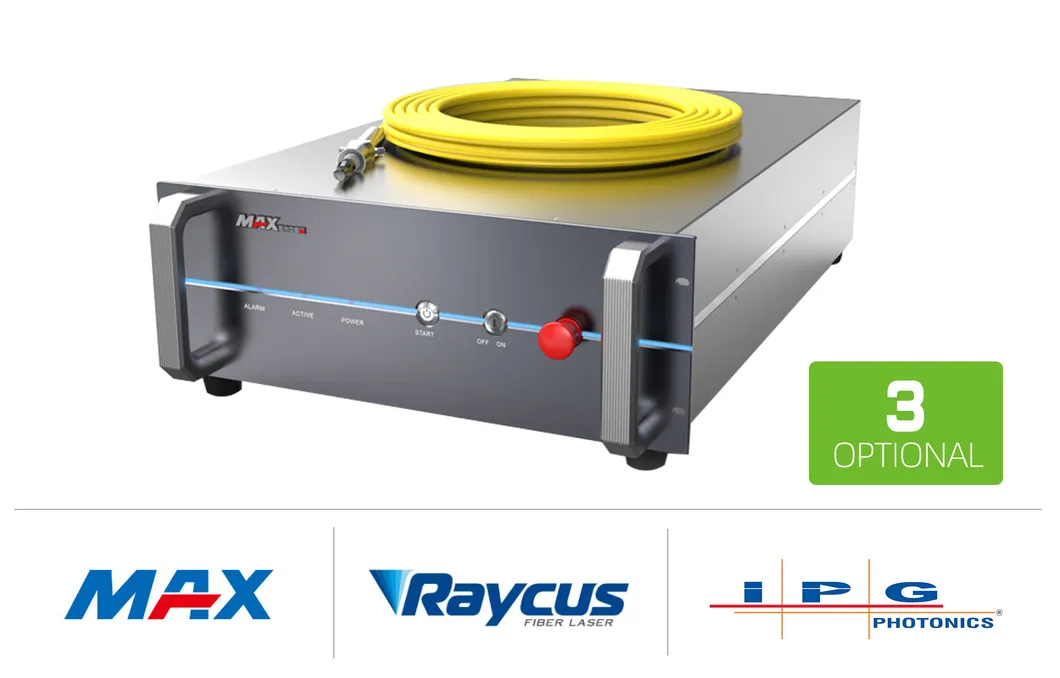

MAX & Raycus & IPG Brand Laser Source
Features higher electro-optic conversion efficiency, superior reliability & modularity. Provides easy maintenance, low downtime, and built-in anti-high reflection protection for stable performance.

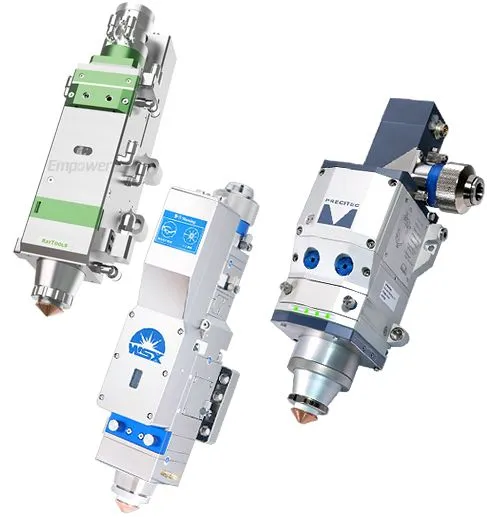

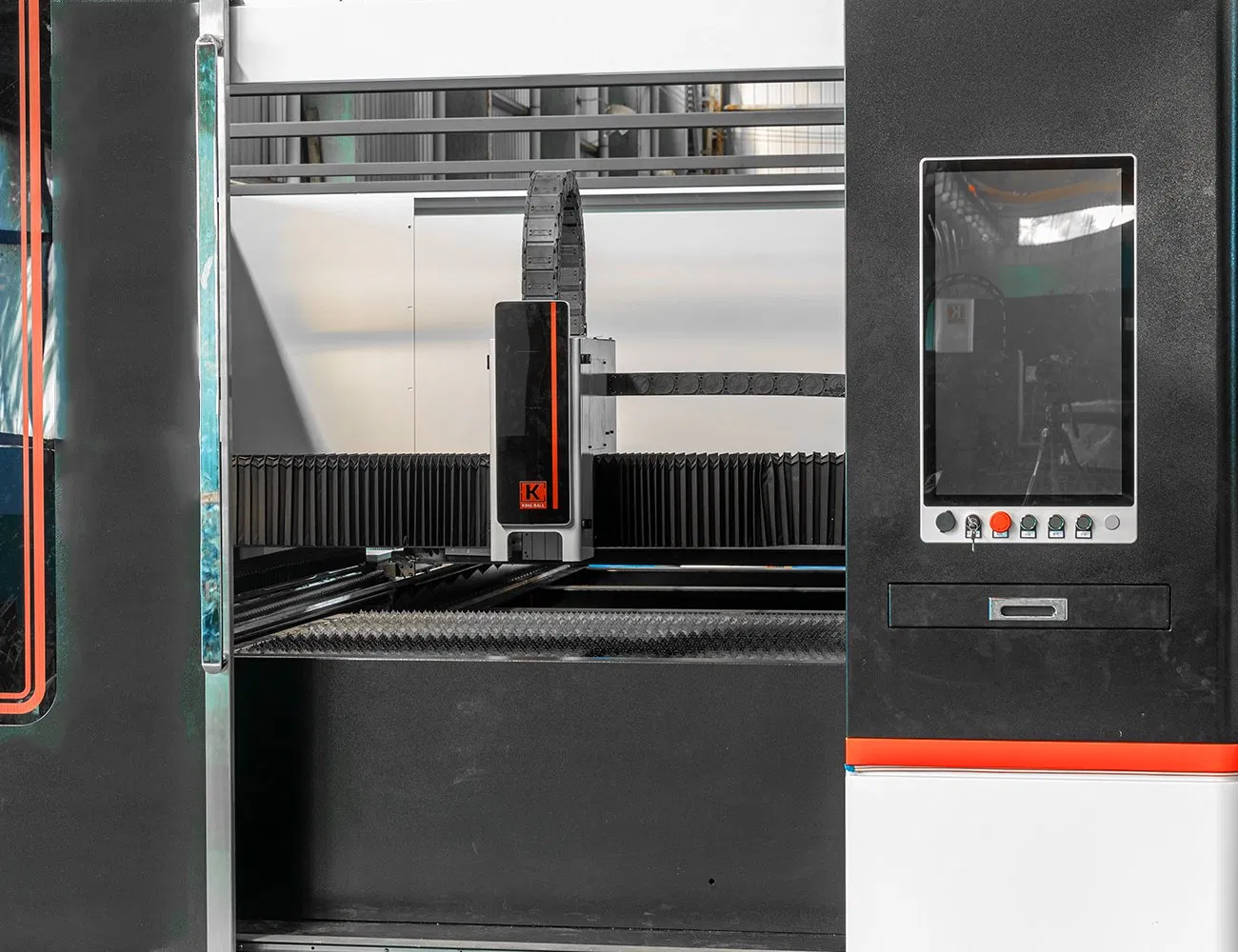

Laser Cutting Head
Equipped with 3 pieces of protection lens to highly effectively safeguard the collimating focus lens. Incorporates a 2-way optical water cooling system to extend continuous operation. Various premium brands of laser heads are compatible.

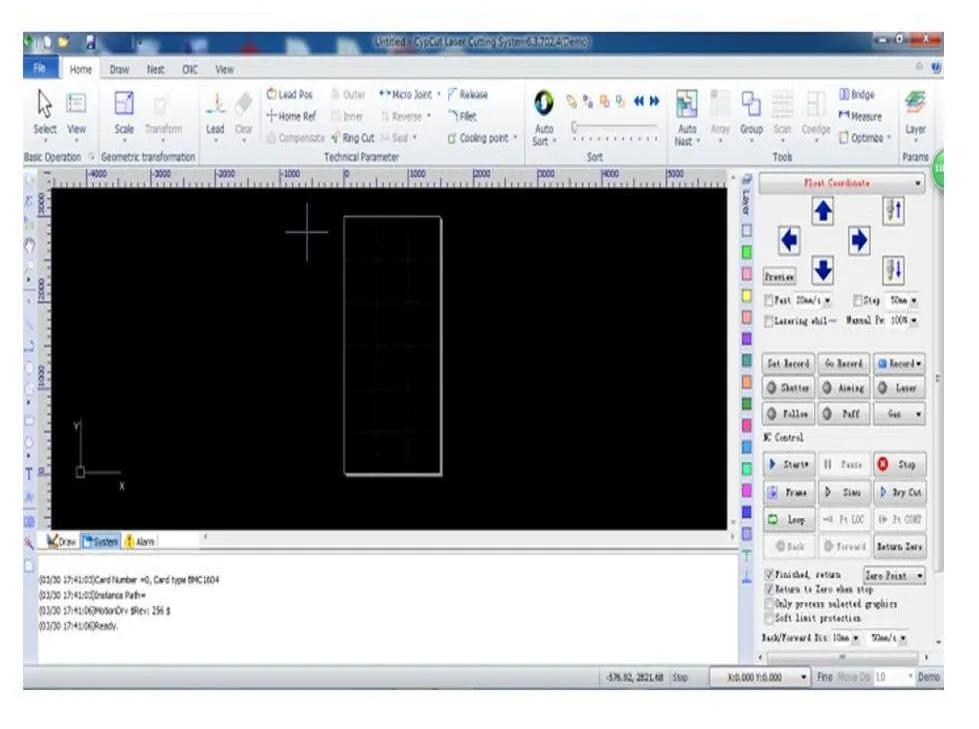

CYPCUT Control System
User-friendly software featuring extensive file editing capabilities, remote assistance support, and robust real-time alarms and protection configurations to guarantee seamless machine coordination.

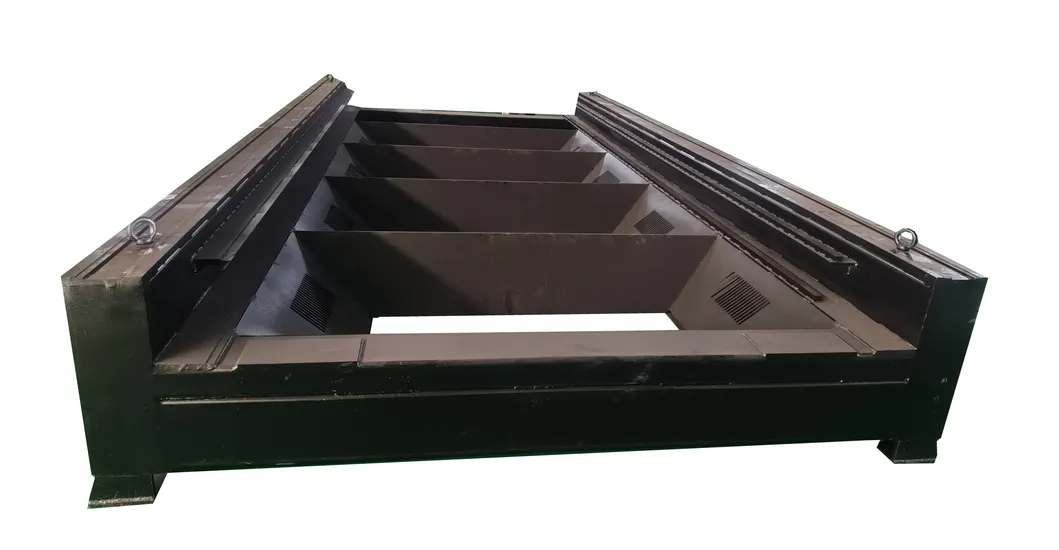

Heavy Duty Steel Plate Welding Frame
Our steel frames undergo stress-relieving annealing at over 600°C to guarantee long-term operational consistency without distortion. Heavy frame prevents vibration, preserving precision under loaded operating rates up to 1800kg.
High-Strength Aluminum Beam
Utilizes an integrated aluminum casting method processed by rigorous stages: casting, stress annealing, rough machining, vibration aging, semi-finishing, and final machining. This ensures outstanding rigidity, structural speed stability, and lasting gantry precision.

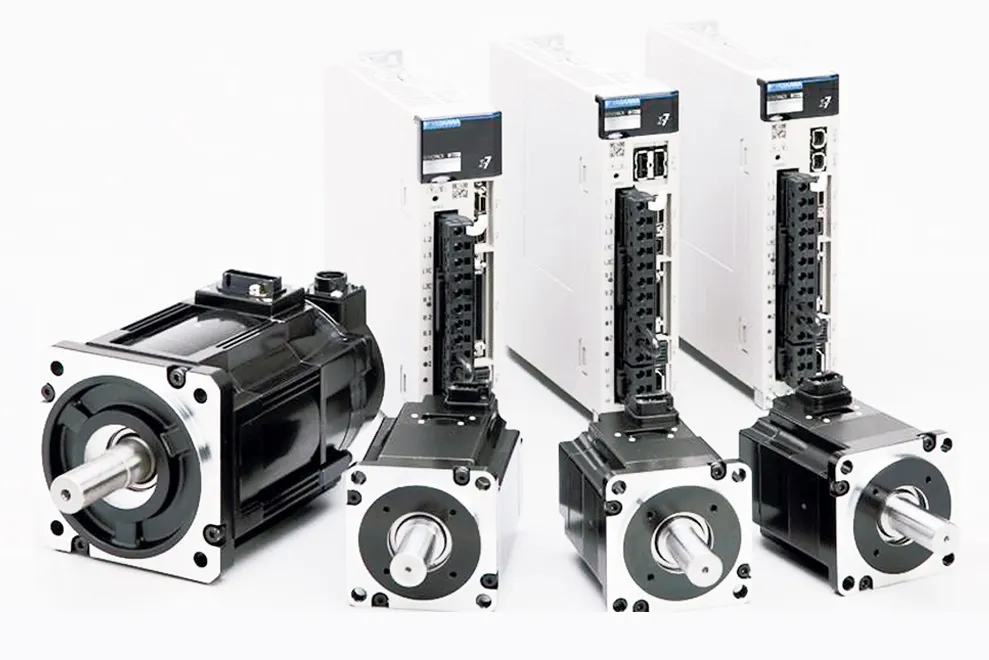

High-Performance Drive System
France MOTOREDUCER & Japan FUJI Servo Motor

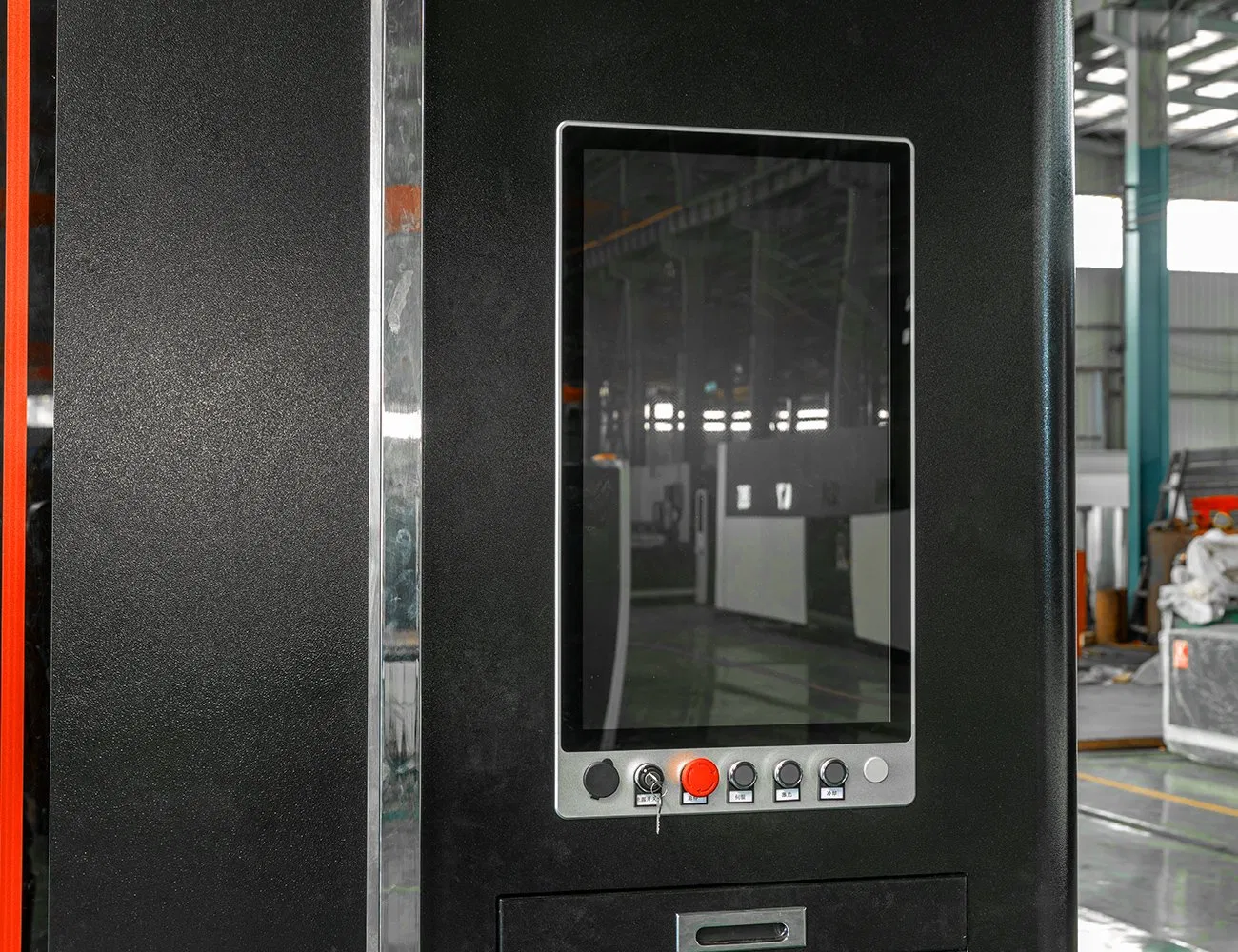

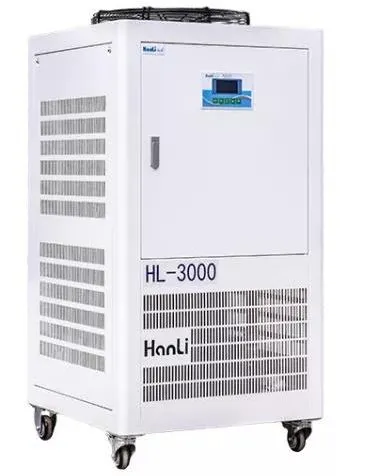

Industrial Cooling & Touch Screen Interfaces

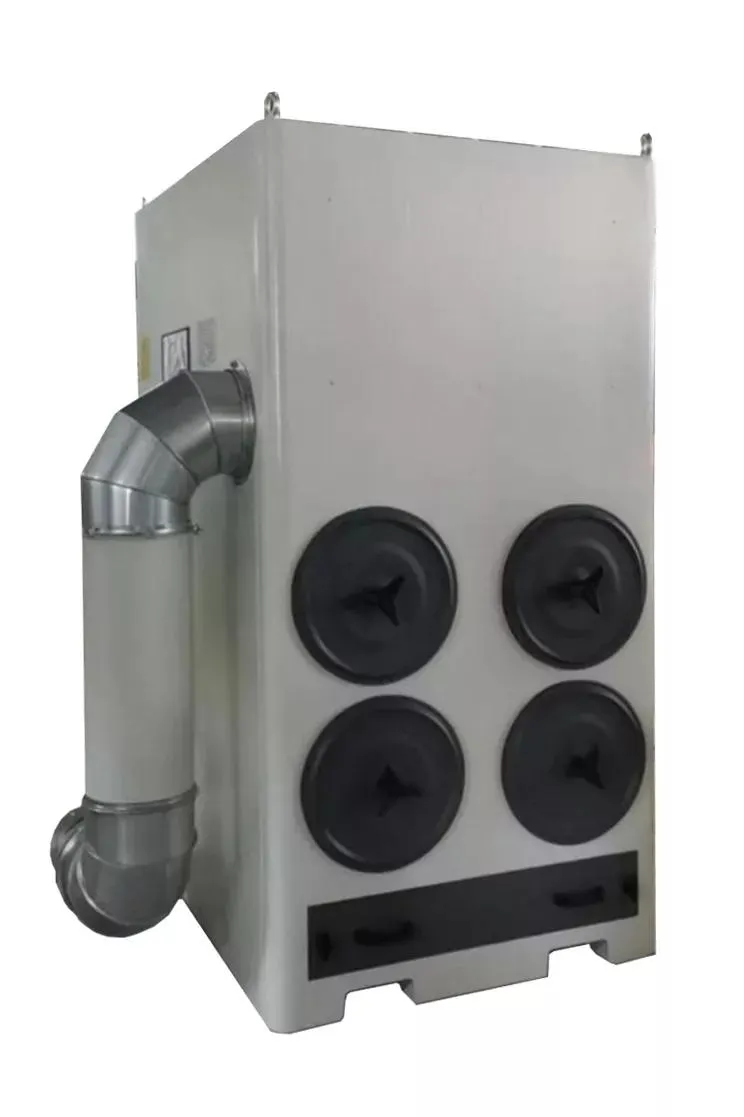

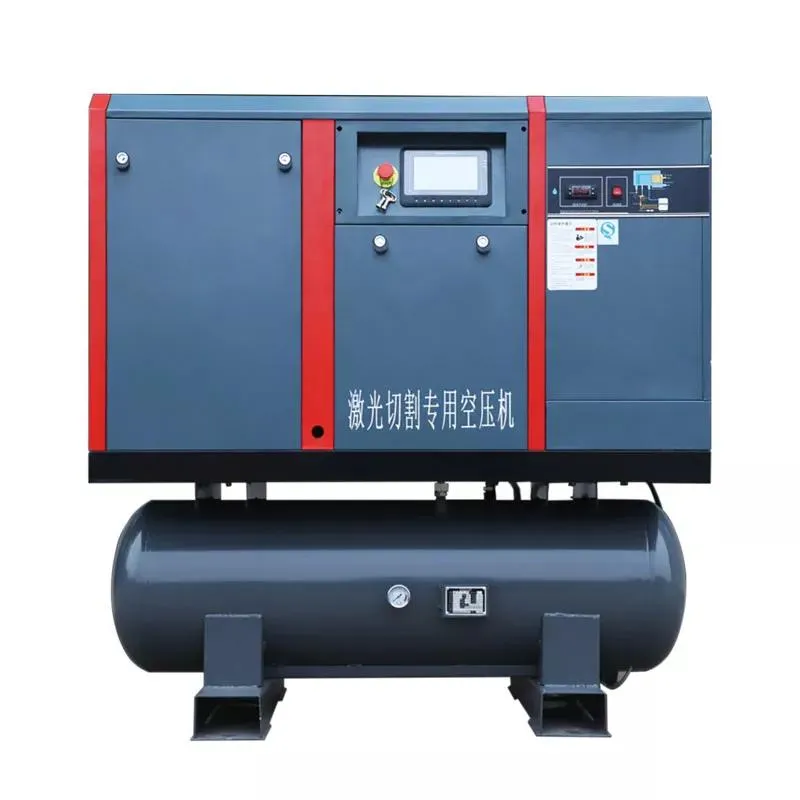

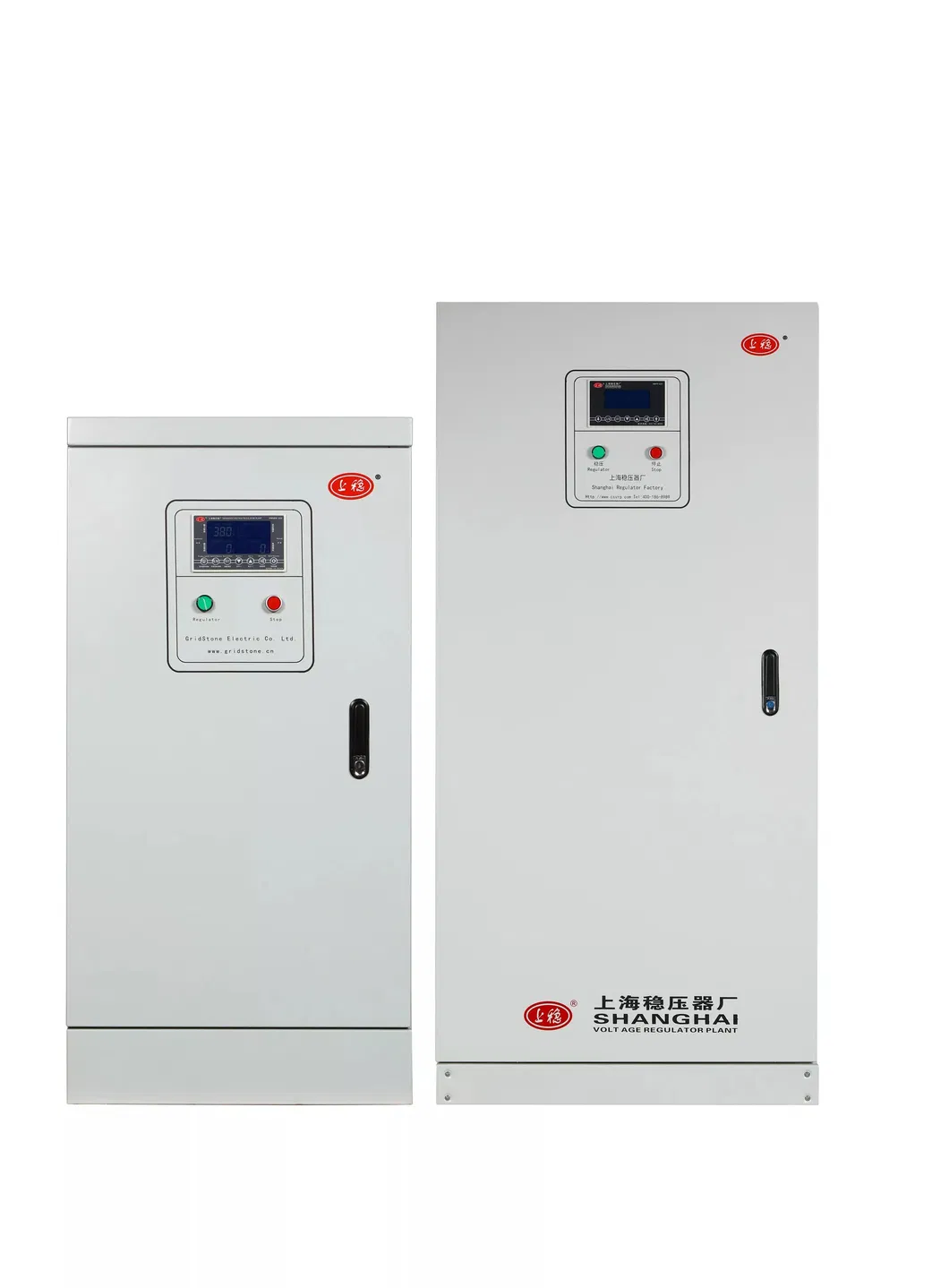

Optional Auxiliary Systems (Air Compressor, Voltage Regulator, & Dust Extraction)

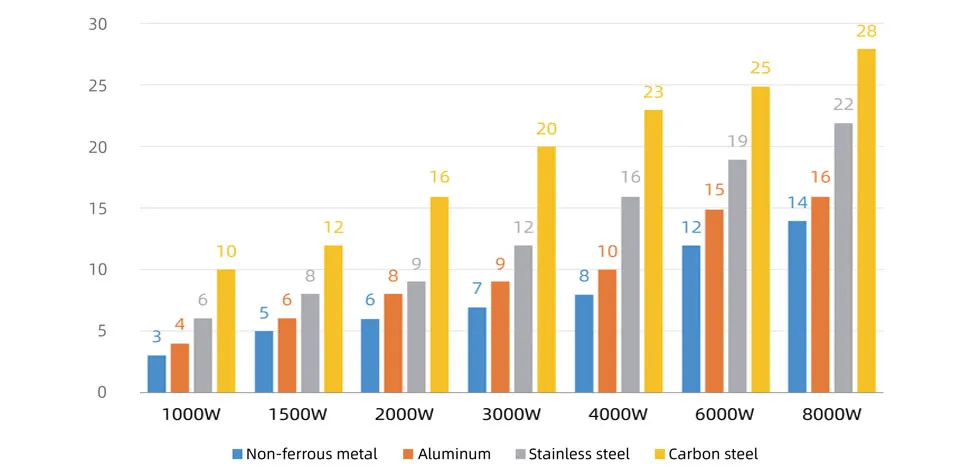

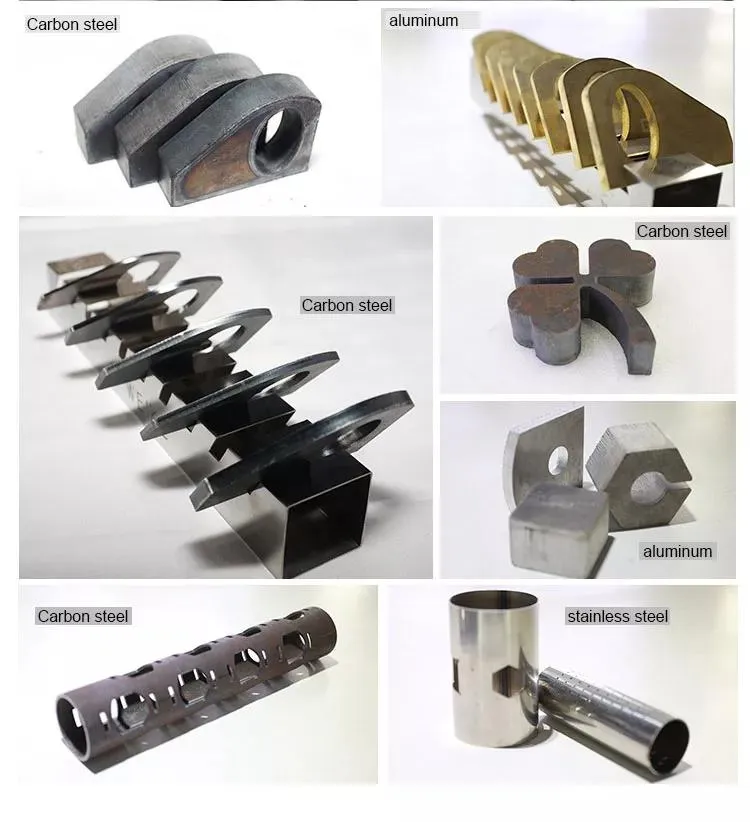

Cutting Thickness Capacity & Process Samples
Our Service
Pre-sales services
- Comprehensive inquiry and machine consulting support.
- Custom sample testing support to evaluate performance.
- Factory tour arrangements and real-time remote facility audits.
After-sales services
- Comes with a 2-year warranty period for structural safety.
- Comprehensive training tutorials on installation and equipment operations.
- Qualified engineers available to service machinery overseas for setup.
Frequently Asked Questions
Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance, Insurance, Country of Origin, and other critical export documents where required.
What is the average lead time for machinery delivery?
For samples, the lead time is about 7 days. For mass production or custom standard setups, the lead time is 20-30 days after receiving the deposit payment. Lead times become effective once your deposit is cleared and final technical design approval is settled.
What kinds of payment methods do you accept?
We support payments directly via Bank Transfer, Western Union, or PayPal: 30% deposit in advance, and 70% balance against the copy of B/L, or via irrevocable LC at sight.
What is the product warranty coverage?
We warranty our operational materials and overall workmanship. Our core commitment is to your complete satisfaction with our products. Regardless of warranty status, it is our company culture to address and resolve all technical and customer issues to everyone's satisfaction.
Do you guarantee safe and secure delivery of products?
Yes, we always use high-quality reinforced export packaging. We also use specialized hazard packing for dangerous components and validated dry containers for temperature-sensitive electronics.
How are the shipping fees calculated?
The shipping cost depends on the method chosen to receive the goods. Express is the quickest but most expensive route, whereas seafreight is the optimal, cost-efficient solution for large industrial cargo. Detailed rates can be quoted once weight, dimensions, and destinations are confirmed.
