Basic Info.
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Gantry Type
Laser Classification
Free Electron Laser
Laser Technology
Laser Control Fault Cutting
Transport Package
Wooden Case
Specification
5200x2100x1560mm
Product Description

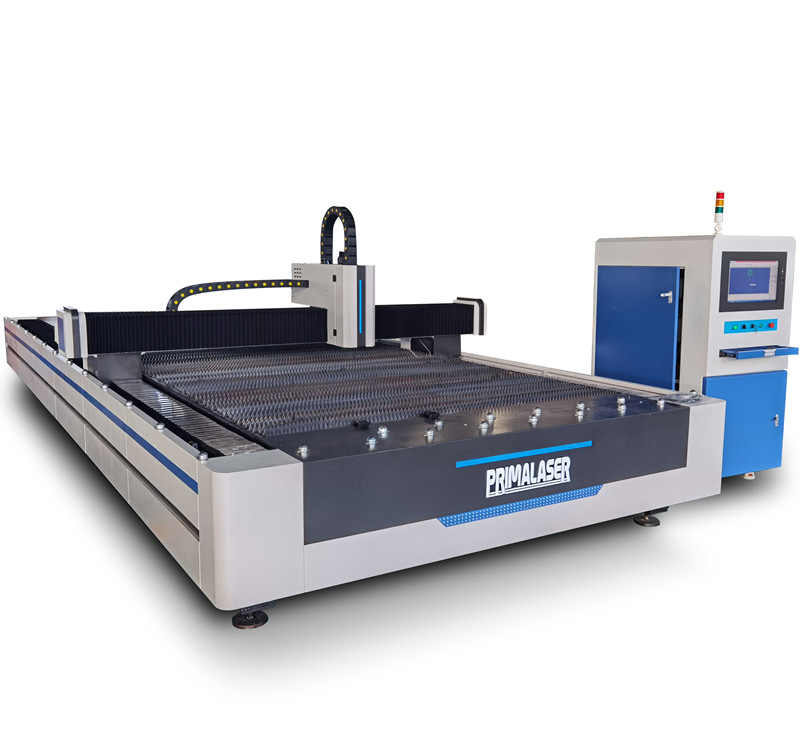

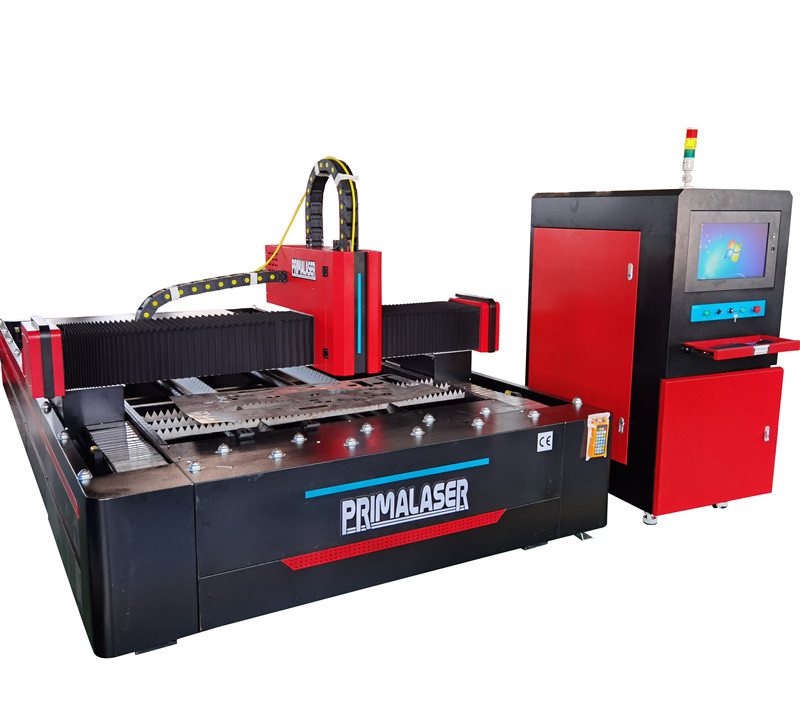

Fiber Laser Cutting Machine With CNC 3000W , 4000W , 5000W
High strength, high rigidity box type welding machine frame, high precision linear guide and rack driving and bilateral drive system to strengthen the accuracy and stability of the machine running; Integrally cast aluminum beam, strong rigidity, light weight, small inertia, fast response, machine acceleration of 0.6 G, empty moving speed of 72 m/s, improving the processing ability of the equipment. Equipment machining accuracy for a long time to keep within +/- 0.05 mm.
Independent, professional smoke dust, smoke dust effect is good, good working environment of the factory.
✦ Applicable Materials

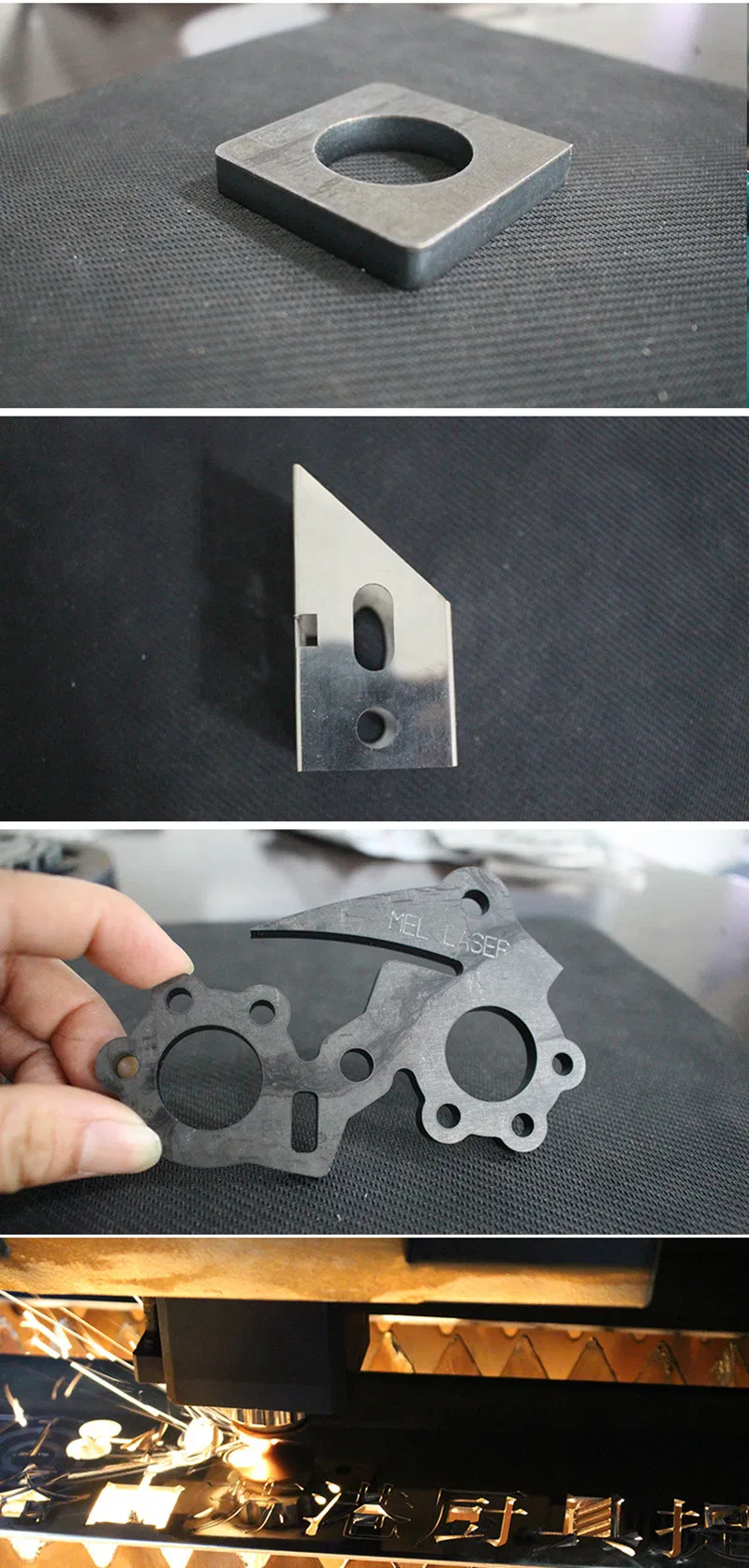

Professional designed to cut thin sheet metal, offering high-quality cutting for 0.5 ~ 10mm carbon steel sheet, 0.5 ~ 4mm stainless steel plate, aluminum alloy plate, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminum zinc plate, and other metal materials.
Main Features
- Photoelectric conversion efficiency can reach 30%, which is two times that of CO2.
- Less consumption of power source (CO2 is 20% ~ 30%).
- No laser working gas needed, which saves a lot of laser maintenance costs.
- Optical fiber transmission operates without reflection lenses, eliminating the need to adjust the light path.
Product Features
- Gantry double drive structure, smooth and reliable movement.
- Independent research and development design, precise machine tool bed manufacture, special processing technology, machine tool precision, stable and reliable long life.
- Precision gear rack drive, equipped with high response and high precision servo motor.
- International first-class quality of fiber laser, industrial application for many years, long service life, maintenance-free, stable and reliable.
- High precision laser cutting head, imported optical lenses, finely focused, convenient adjustment, and perfect cutting quality.
- Double closed-loop control capacitive height controller, low requirement to the steel sheet, cutting quality is stable and reliable.

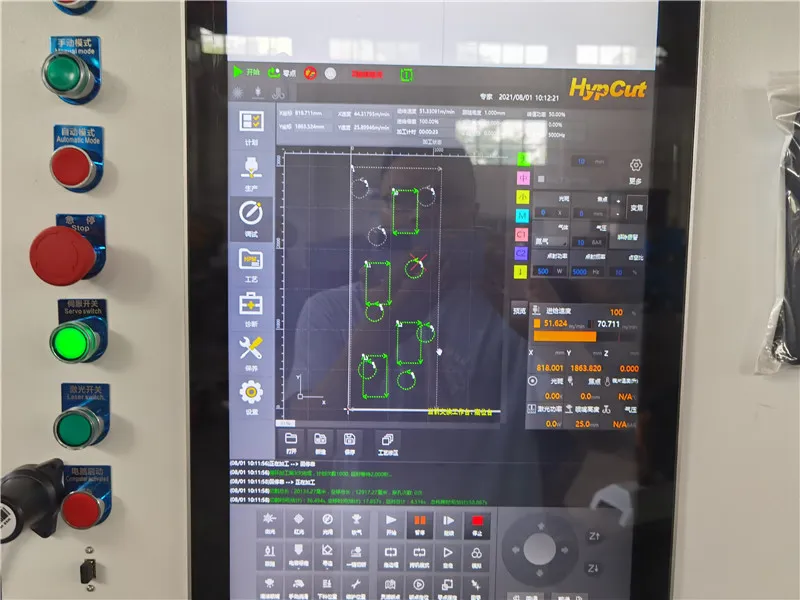

- CNC system is concise and easy to operate, presenting low requirements for the operator.
- Cutting graphic input supports multiple formats, with powerful drawing and editing graphics functions.
- Special cutting software, cutting technology expert options, and data call functions.
Basic Configuration
| No. |
Description |
Brand |
Origin |
| 1 |
Machine main body |
Premium OEM |
China |
| 2 |
CNC operating cabinet |
Premium OEM |
China |
| 3 |
Smoke dust sucking structure |
Premium OEM |
China |
| 4 |
Air conditioning cabinet |
Premium OEM |
China |
| 5 |

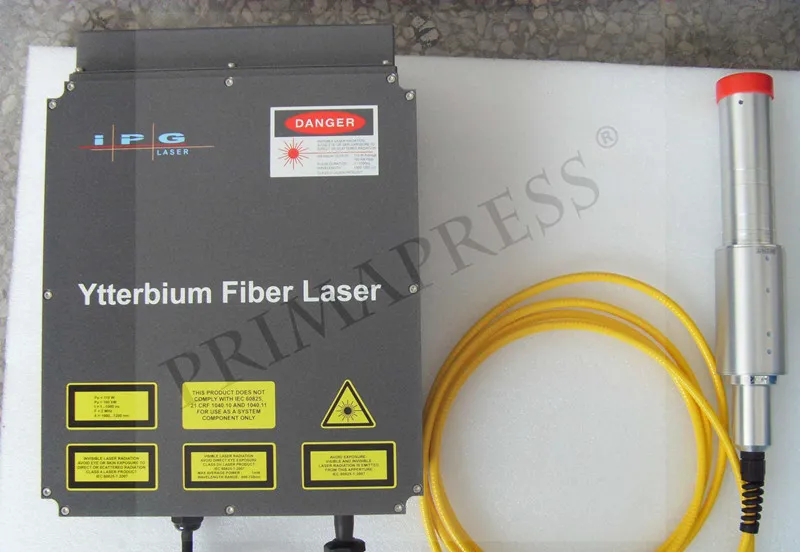

Fiber Laser |
IPG-700W |
Germany |
| 6 |
Laser cutting head |
RayTools |
Swiss |
| 7 |

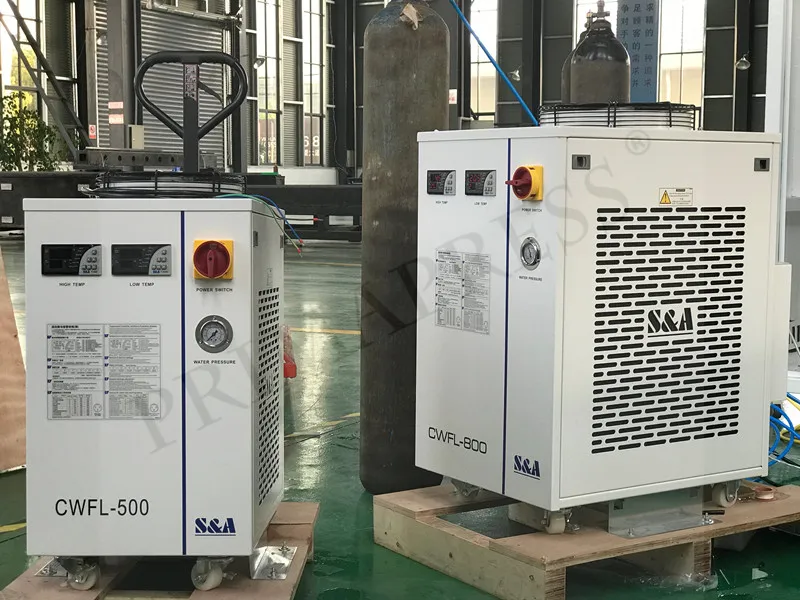

Laser chiller |
Standard Brands |
China |
| 8 |
CNC system |
CypCut |
China |
| 9 |
Capacitive THC |
CypCut |
China |
| 10 |
Servo motor |
Schneider |
France |
| 11 |
Gear rack |
YYC / Level 6 precision |
Taiwan |
| 12 |
Linear Guide |
Hiwin |
Taiwan |
| 13 |
Precision reducer |
Neugart |
Germany |
| 14 |
Proportional valve |
SMC |
Japan |
| 15 |
High-pressure valve |
SMC |
Japan |
| 16 |
Electronic pieces |
Schneider |
France |
| 17 |
Solenoid valve |
SMC |
Japan |
| 18 |
Air cylinder |
AirTAC |
Korea |
| 19 |
Air Conditioner |
WINHENG |
China |
| 20 |
Cutting software |
CypCut |
China |
| 21 |
Composing software |
SmartNest |
China |

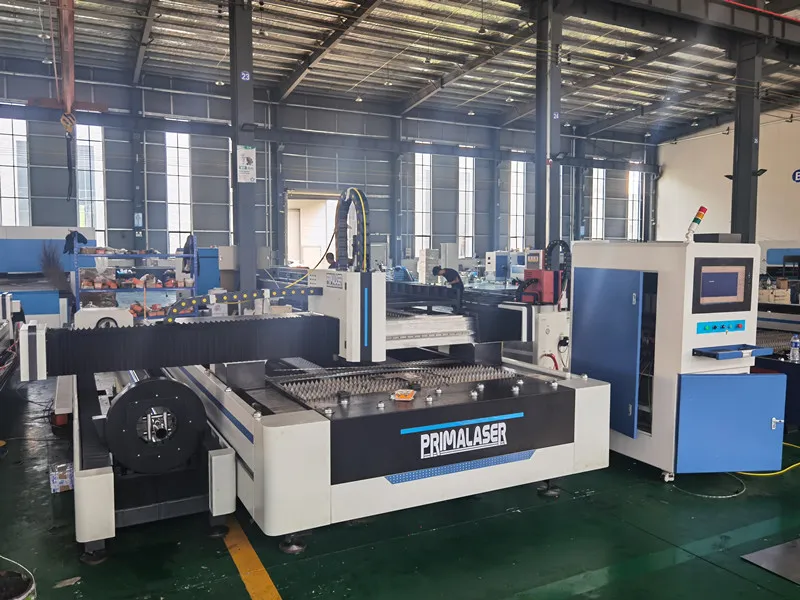

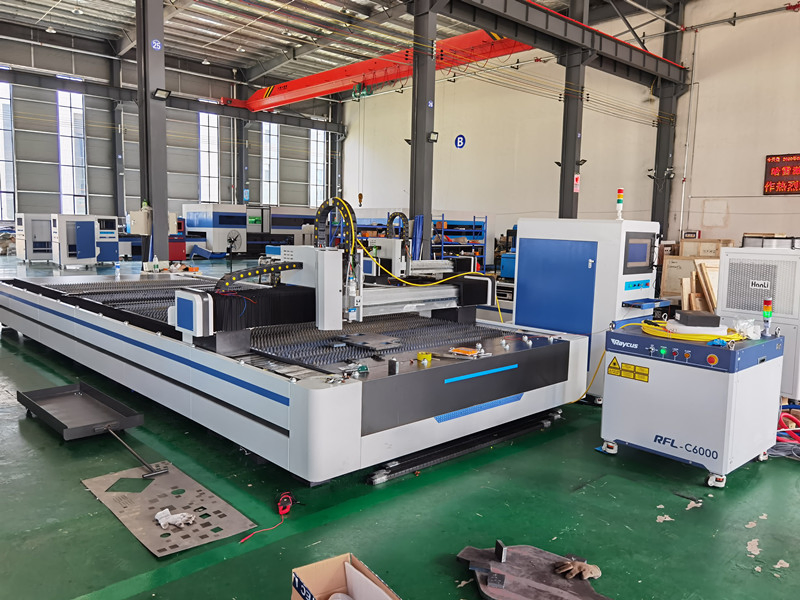

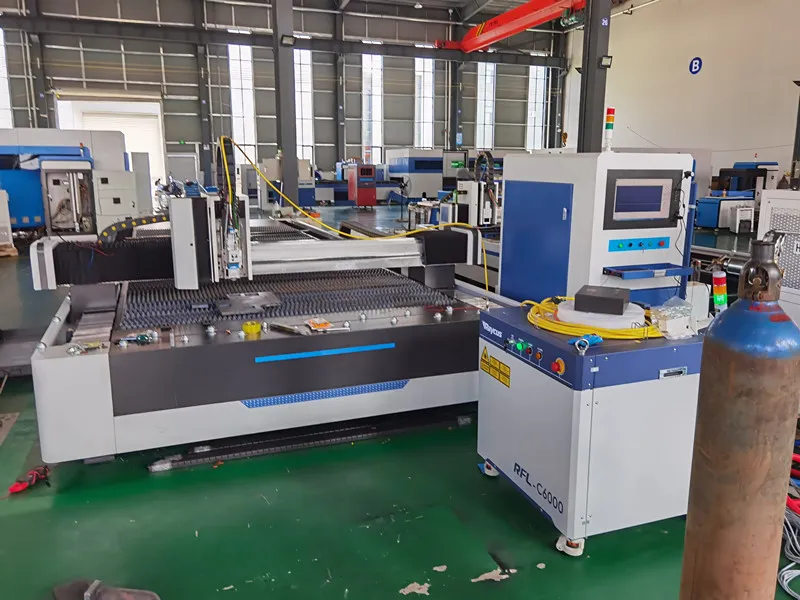

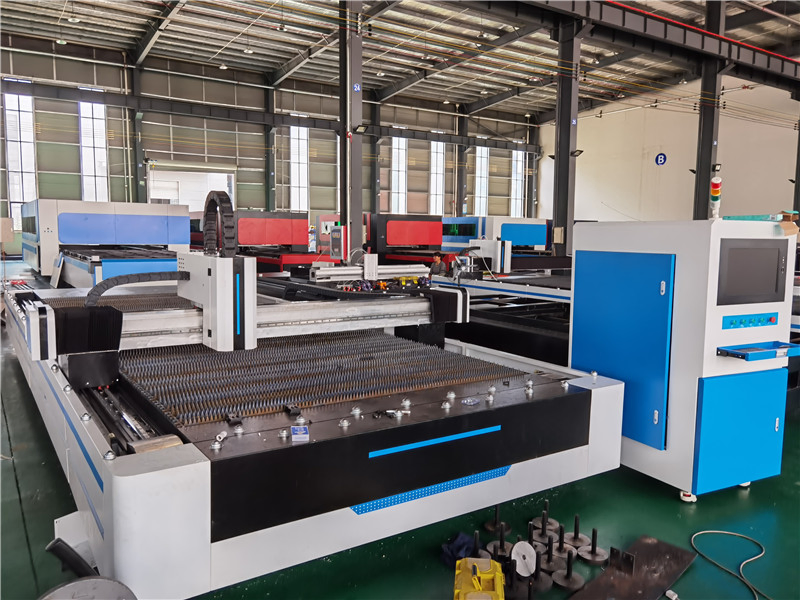

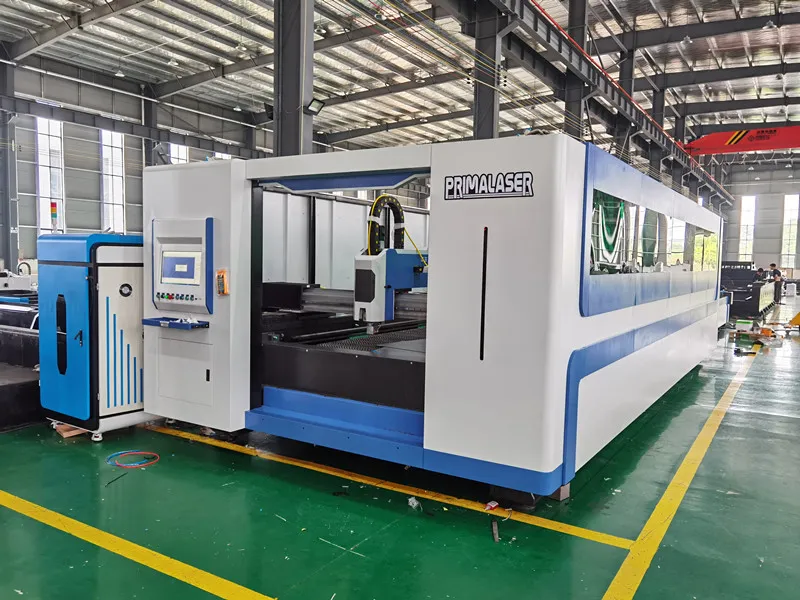

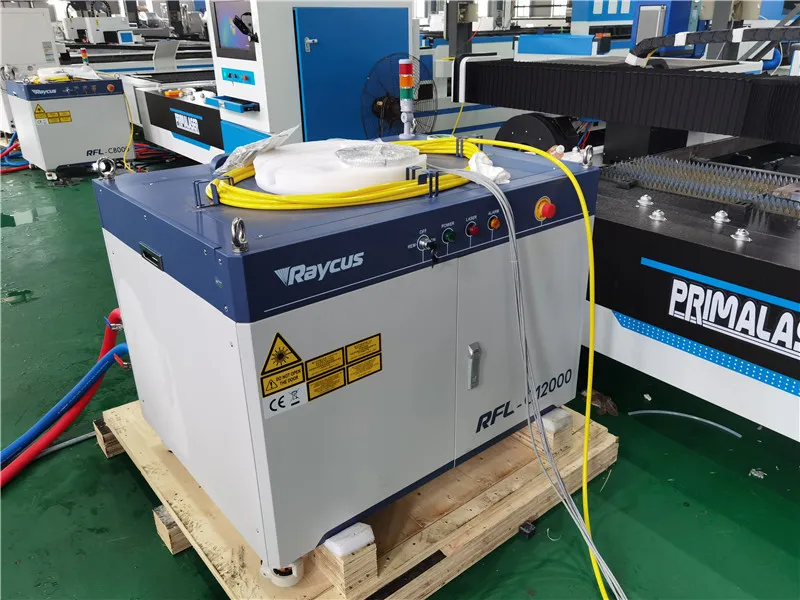

Detailed Photos
Frequently Asked Questions
What materials can this CNC Fiber Laser Cutting Machine process?
+
This machine is highly proficient at cutting various thin sheet metals. It is perfectly optimized for carbon steel (0.5 to 10mm), stainless steel (0.5 to 4mm), aluminum alloy plates, galvanized sheets, electrolytic plates, silicon steel, titanium alloys, and aluminum-zinc plates.
What are the key efficiency benefits of using a fiber laser compared to a CO2 laser?
+
Fiber lasers deliver a photoelectric conversion efficiency of up to 30%, which is twice that of CO2 systems. They also consume significantly less power (only 20% to 30% of what CO2 lasers consume) and do not require laser working gas, drastically reducing maintenance overhead.
What brand components are integrated into the machine?
+
The system features world-class components including IPG Fiber Lasers (Germany), RayTools Laser Cutting Heads (Swiss), Schneider Servo Motors and Electronics (France), Hiwin Linear Guides (Taiwan), SMC Pneumatic Valves (Japan), and CypCut CNC control software.
How does the water cooling system enhance performance?
+
The integrated high-efficiency water cooling system ensures stable temperature regulation for the laser source and cutting head during intensive, continuous operation. This extends the service life of optical and mechanical components and guarantees precise cuts.
What is the cutting accuracy and speed capacity of this CNC system?
+
Constructed with a double-drive gantry structure and high-rigidity box-type frame, this cutter offers an acceleration rate of 0.6G and empty moving speeds up to 72 m/s. The system keeps long-term mechanical accuracy strictly within +/- 0.05 mm limits.
