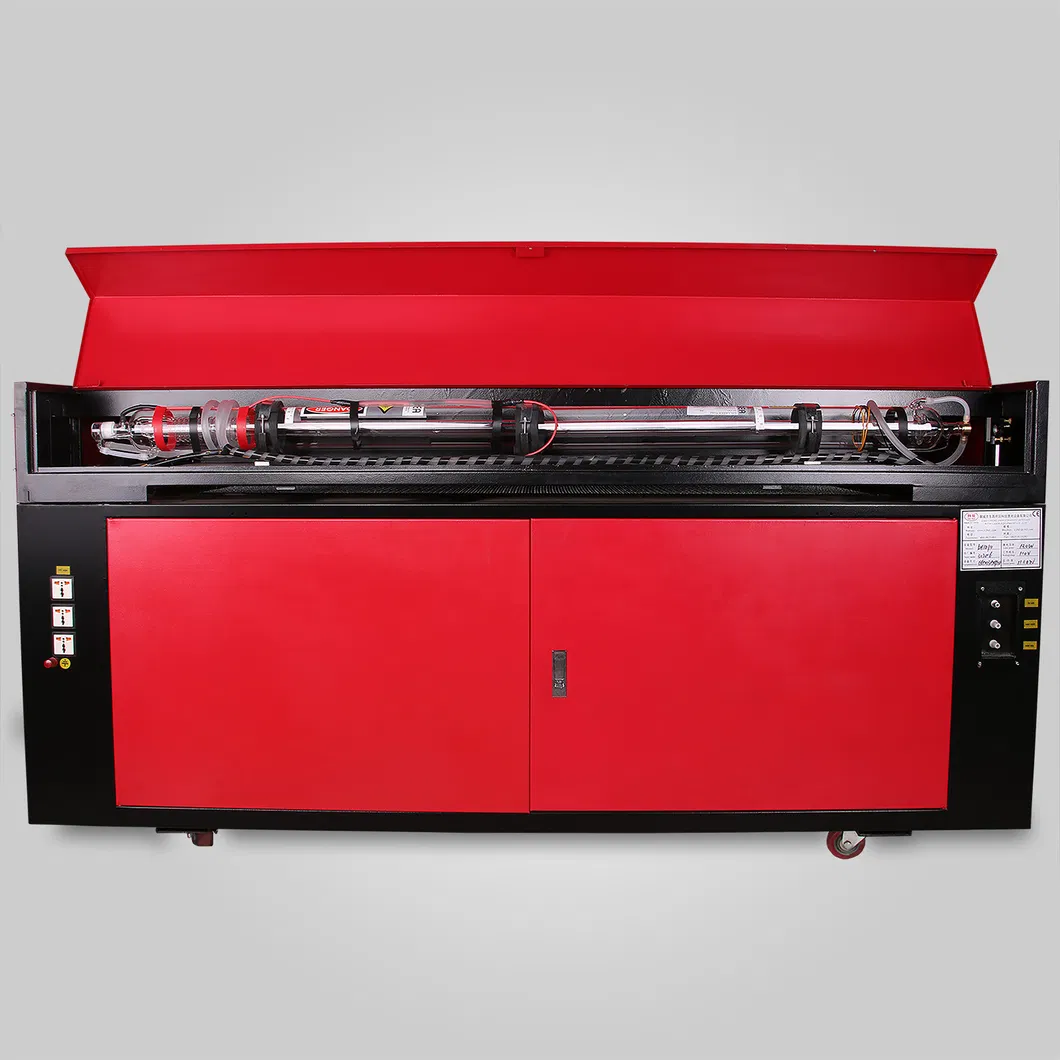

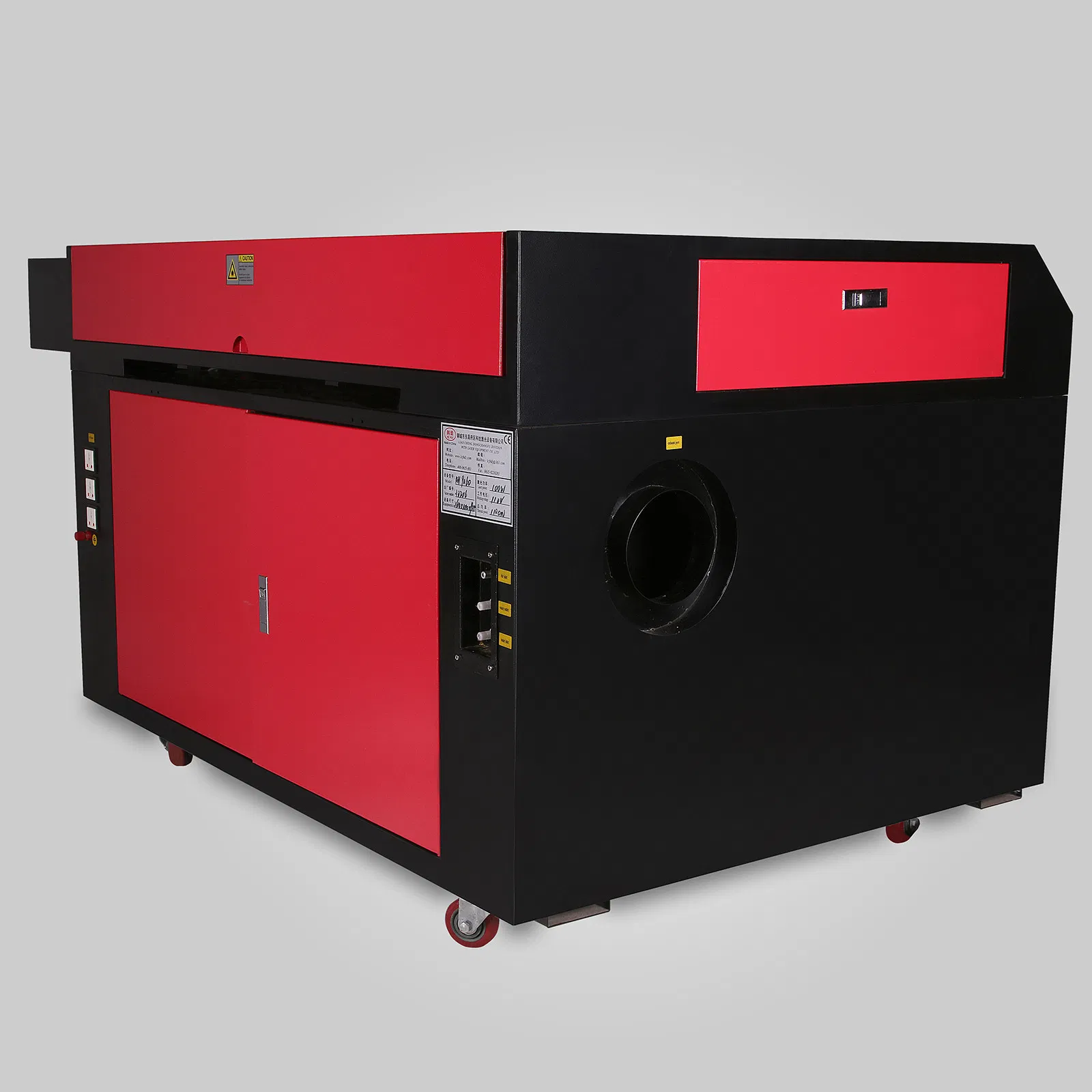

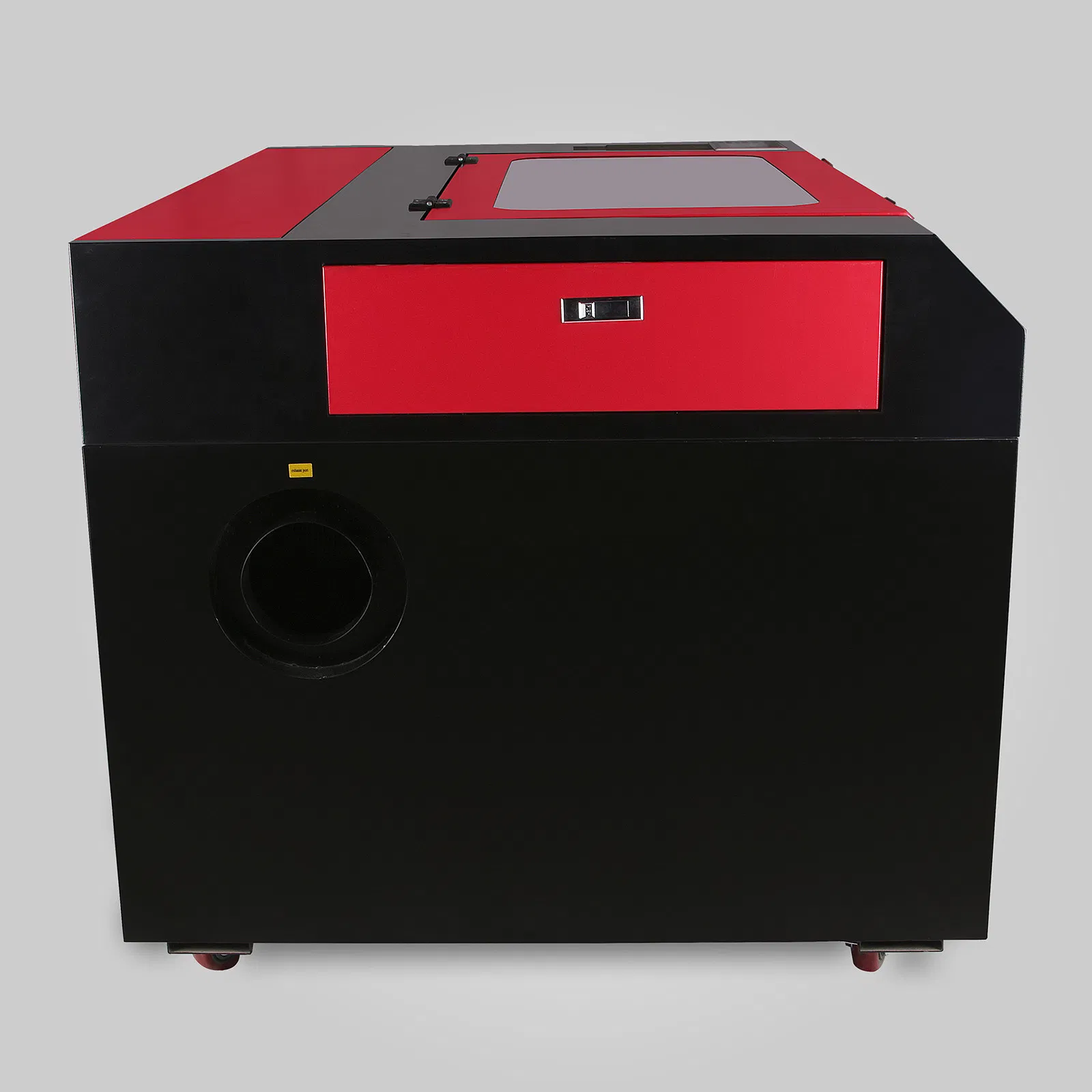

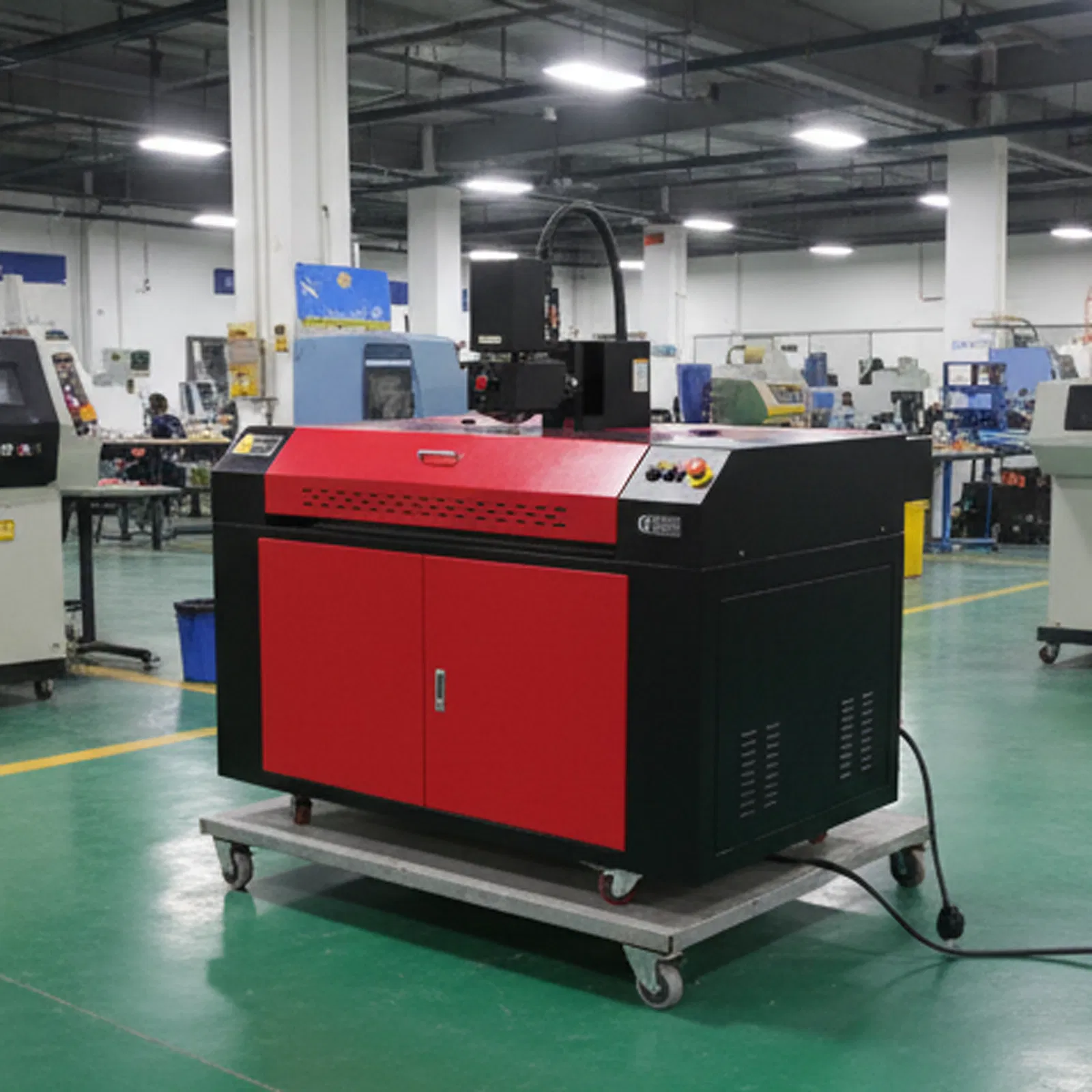

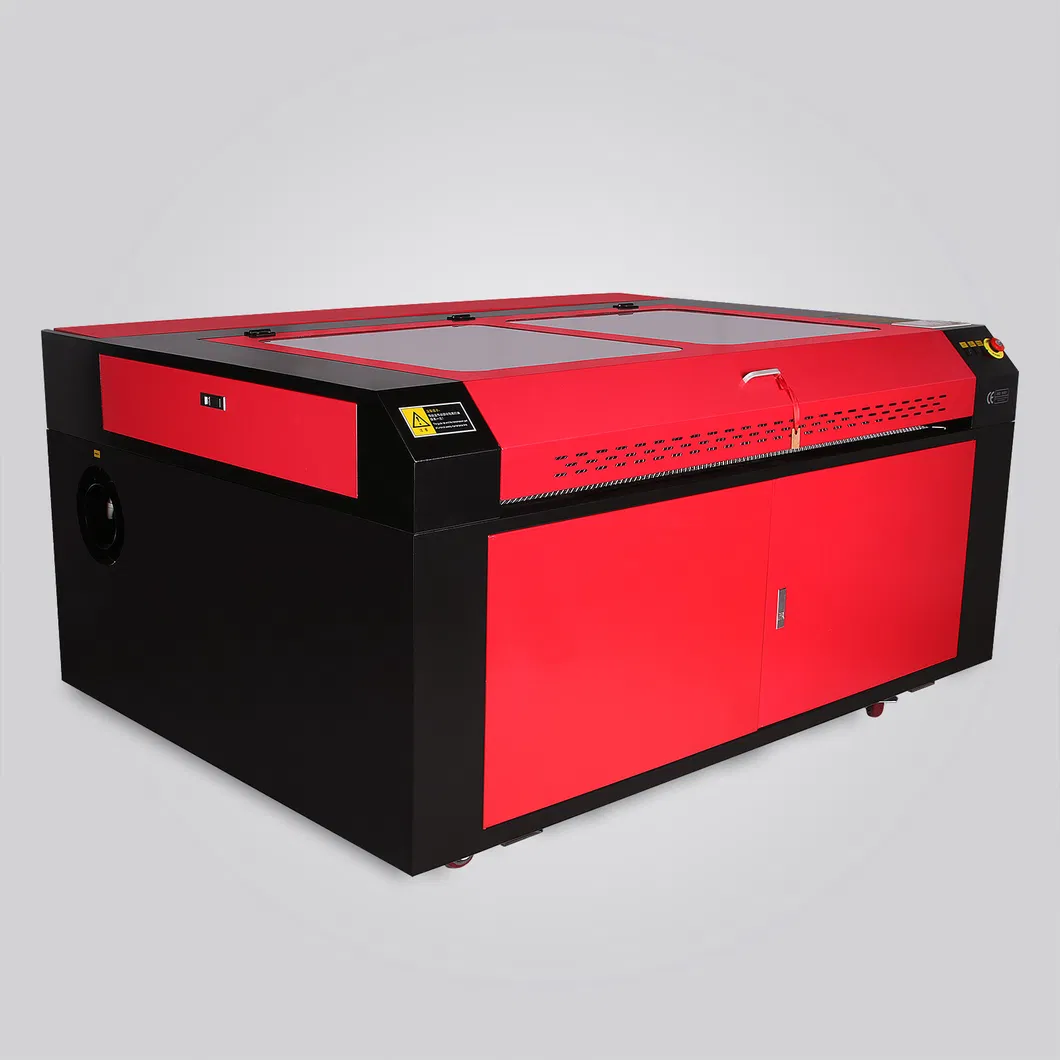

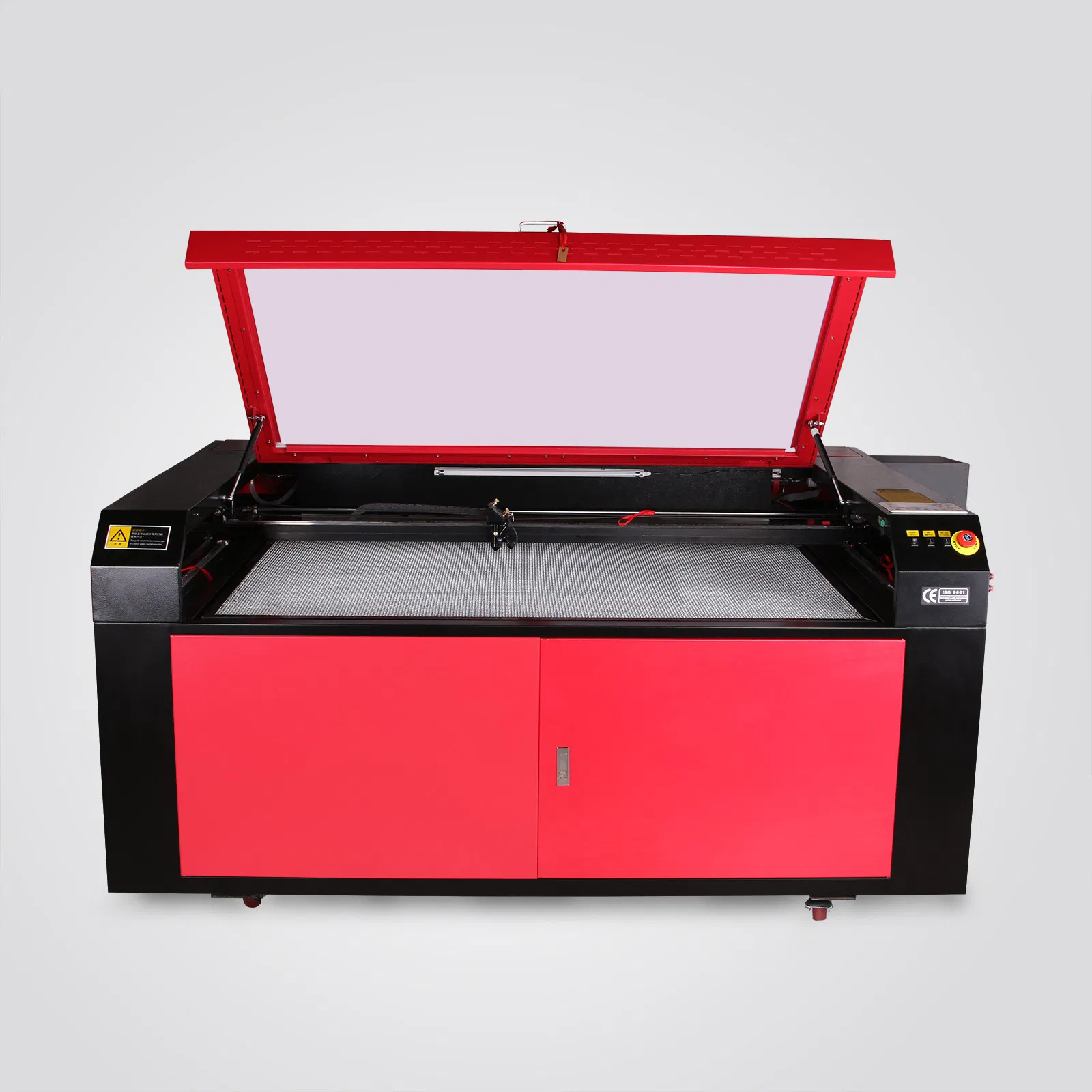

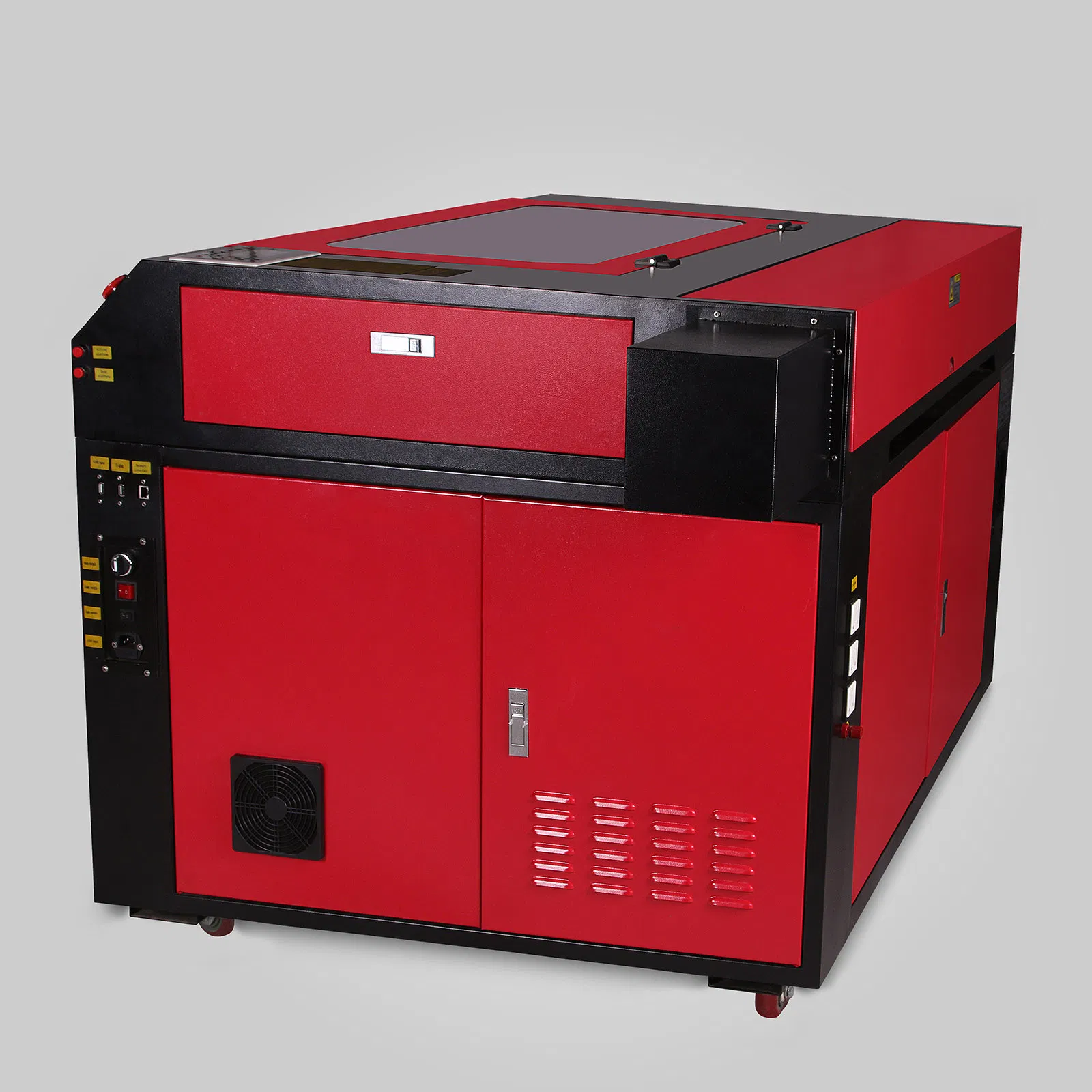

Model no. KH1490. Equipped with a high-performance CO2 laser tube, this system is engineered for high-precision engraving and cutting. It is the preferred choice for industries including advertising, gifts, footwear, and toys. The machine handles diverse materials such as wood, bamboo, plexiglass, crystal, leather, rubber, marble, ceramics, and glass.

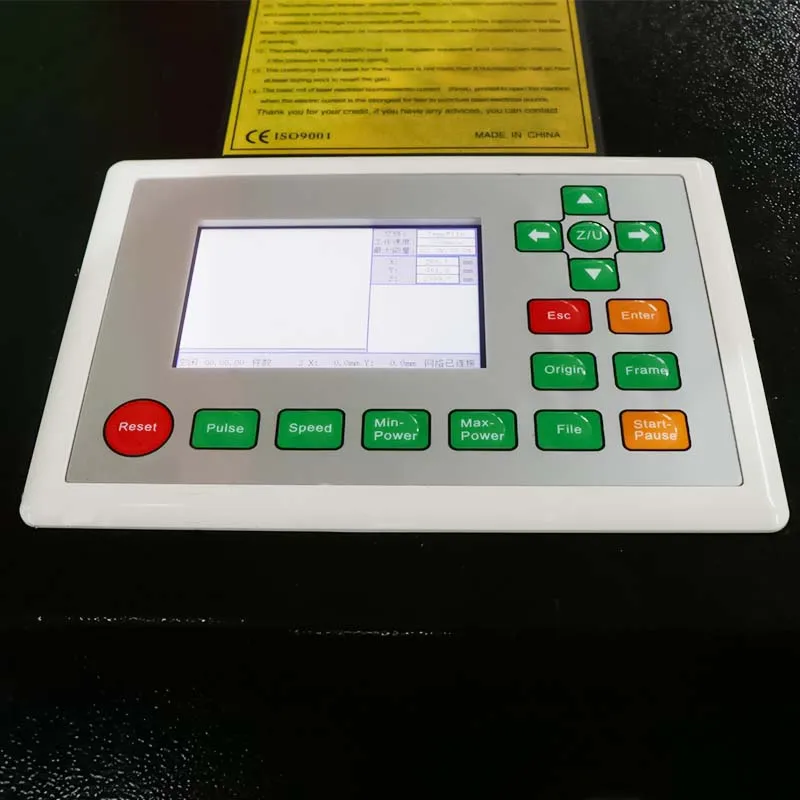

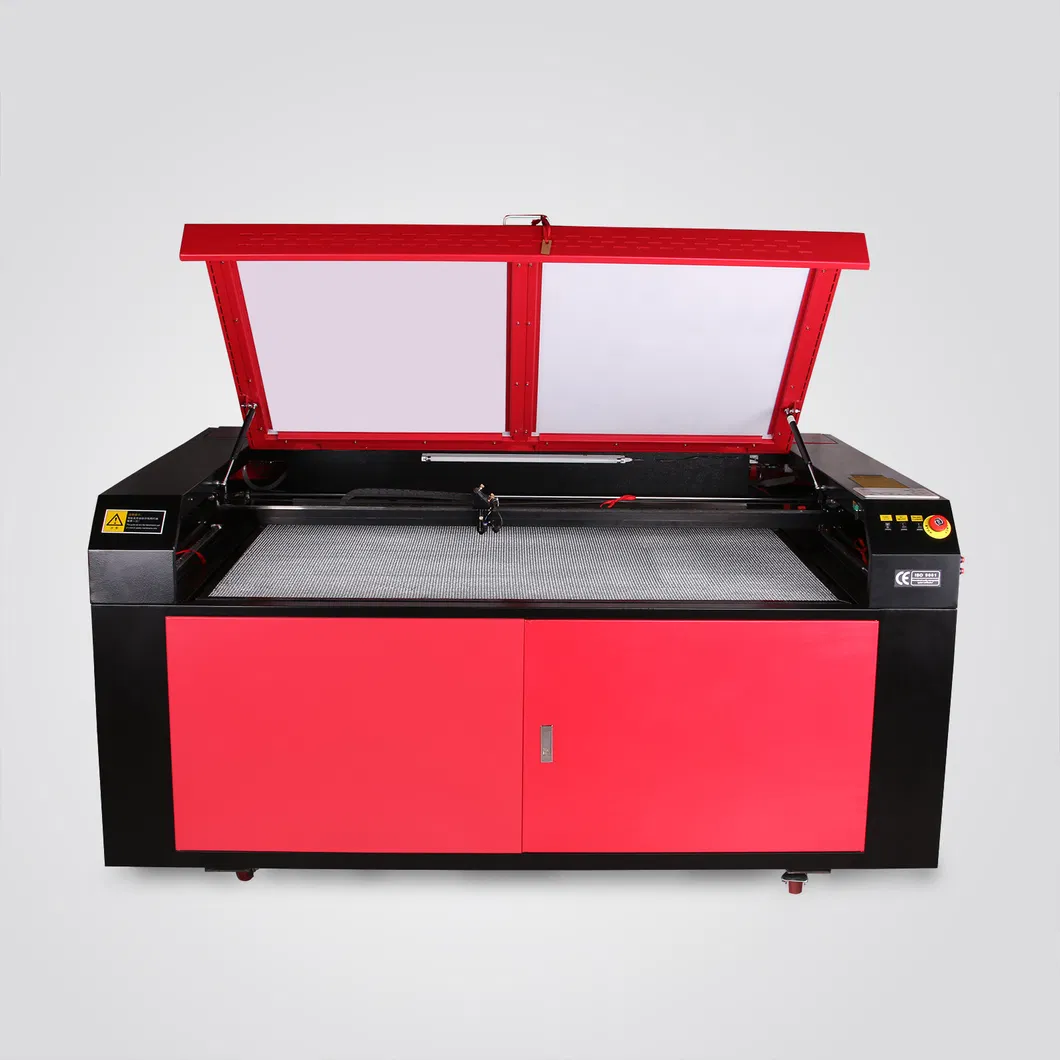

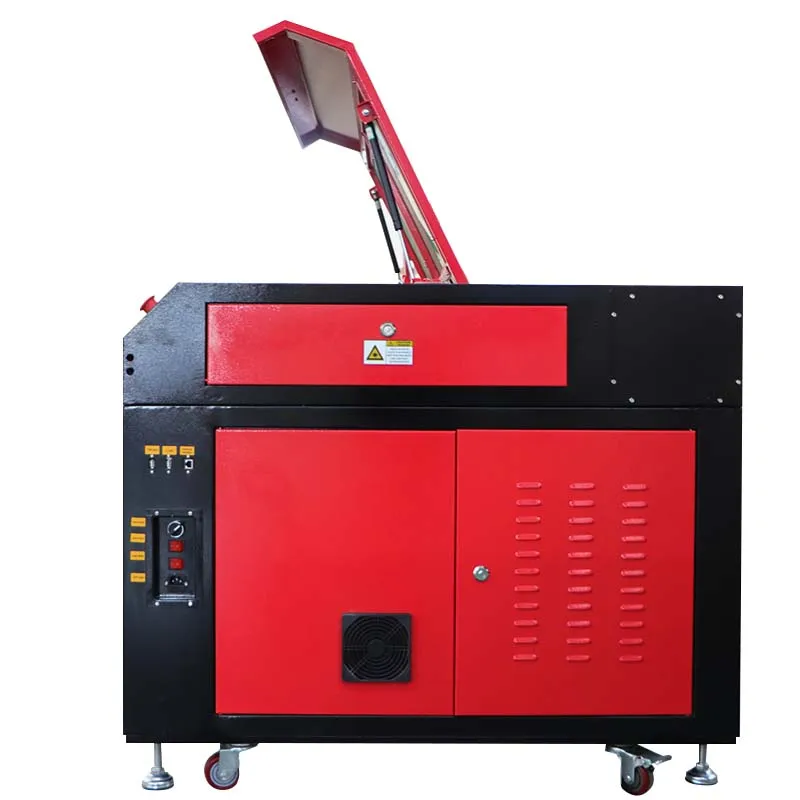

The system features a DSP Control System for direct RDdraw output and seamlessly integrates with CorelDraw, Auto CAD, and other advanced software. Users can transfer files via USB cable or memory stick for offline operation. The unique design allows the legs to separate from the main body, and accessible doors accommodate oversized materials.
| Parameter Item | Specifications |
|---|---|
| Model | KH-9060 |
| Machine Power | 2000W |
| Laser Type | Carbon dioxide glass laser |
| Laser Model | Two 130W lasers |
| Working Area | 900*600mm |
| Workbench Adjustment | Electric lift 50cm |
| Laser Cooling Mode | Water circulation cooling |
| Engraving/Cutting Speed | 400mm/s / 300mm/s |
| Engraving Cutting Depth | 0-20mm (depends on material) |
| Auxiliary Positioning | Red light positioning, Auto focus |
| Software Name | RDworksV8 |
| Collaboration Software | CorelDraw, AutoCAD |
| Support Graphics Format | JPG, BMP, AI, PLT, etc. |
| Data Transmission | USB 2.0, Network Port, U-disk |
| Power Supply | AC220±10% 50HZ / AC110±10% 60Hz |
A: This machine is highly versatile and can engrave or cut wood, bamboo, plexiglass, crystal, leather, rubber, marble, ceramics, glass, paper, and various plastics.
A: The machine supports RDworksV8 and is fully compatible with professional software like CorelDraw and Auto CAD, supporting formats such as AI, DXF, PLT, BMP, and JPG.
A: No, the machine features a USB interface and U-Flash Disk support. You can transfer files via a memory stick and work independently without a PC connection during the job.

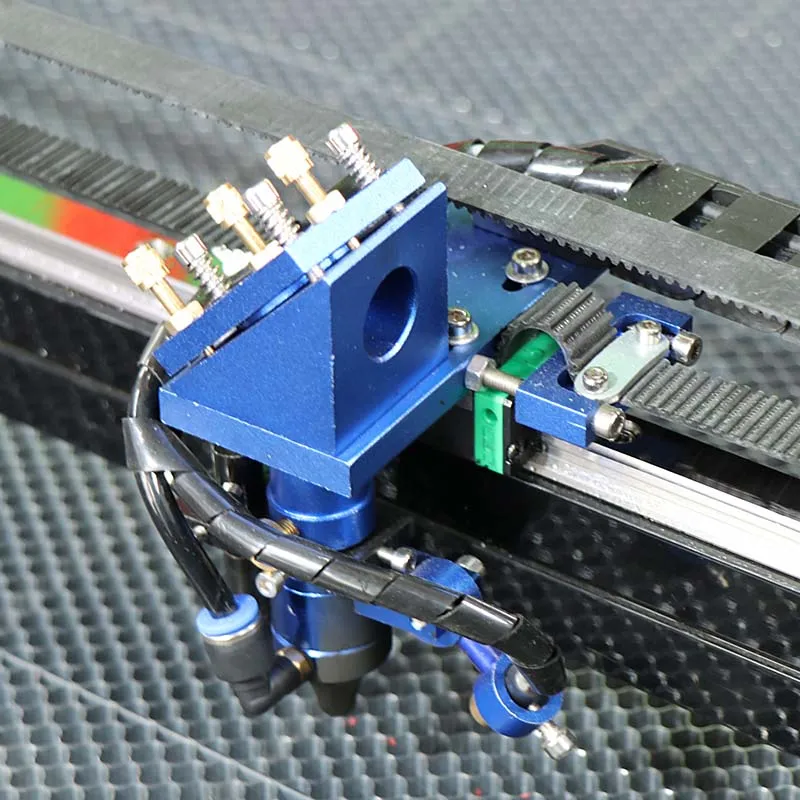

A: The Air Assist system removes heat and combustible gases from the cutting surface, preventing fires and ensuring a clean, precise finish on your engraving or cutting projects.

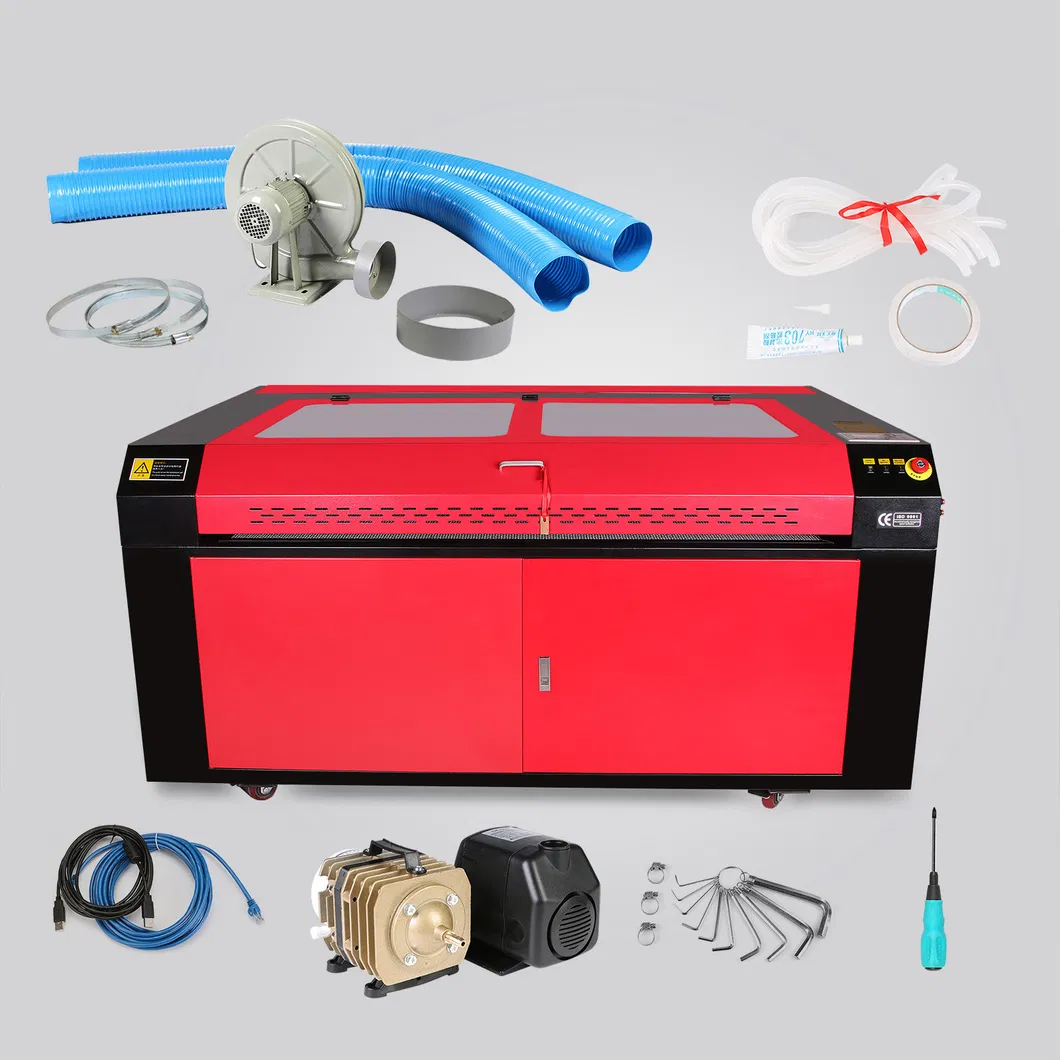

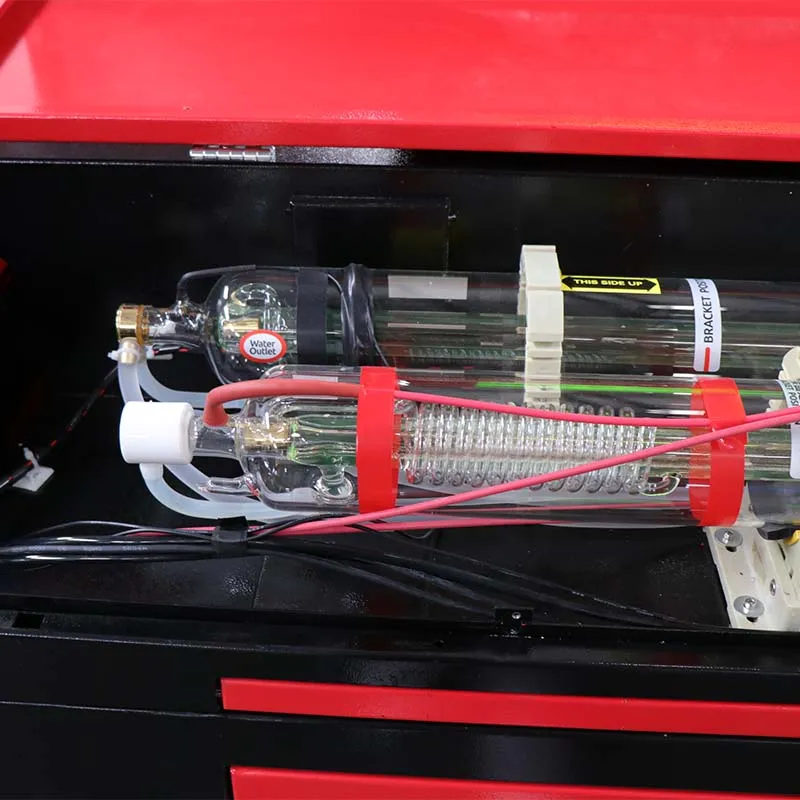

A: It uses a professional water circulation cooling system (forced water circulation pump included) to ensure the laser tube remains at a safe operating temperature during long working cycles.
A: The machine is equipped with air-blowing flame retardant systems and water-cut protection to ensure the machine stops if the cooling water flow is interrupted.
